Model: The Bellano (including apron) |
 |
About the Bellano (B-DV033)
Dimensions: 1400 × 1400 × 610 (mm) | 55 × 55 × 24 (in.)
DUAL action Jet Systems: 12 water massage jets, 10 air bubble jets
White acrylic apron surround also included in price |
| The Bellano comes complete with an apron surround to provide a white acrylic finish. Alternatively, you can create a tile surround as depicted in the main product image. The Bellano also includes a thermostatic valve, handheld shower, adjustable air and water jets, cleaning system and underwater lighting. |
|
|
|
|
| |
Whirlpool Bath FeaturesThe Bellano whirlpool bath includes the following product features: |  |
|
| Product FeaturesInformation about the Bellano whirlpool bath |
 | Digital control panel
Located along the front edge of the whirlpool bath this control panel allows you to increase/decrease the pressure of the air jets, turn the air massage jets on/off and turn the water pump on/off. The pressure of the water jets can be controlled using an adjacent dial on the front of the bath. |
|
 | 8 Hydromassage water jets
Carefully positioned around the edge of the bathtub these water jets, powered by a 1HP water pump, spray water onto your body to gently relax and massage your tired or aching muscles. |
|
 | 10 Air Massage Jets
To compliment the water massage jets this dual action massage system also provides an air pump and 10 air jets that line the base of the whirlpool bathtub to provide a complete body massage. |
|

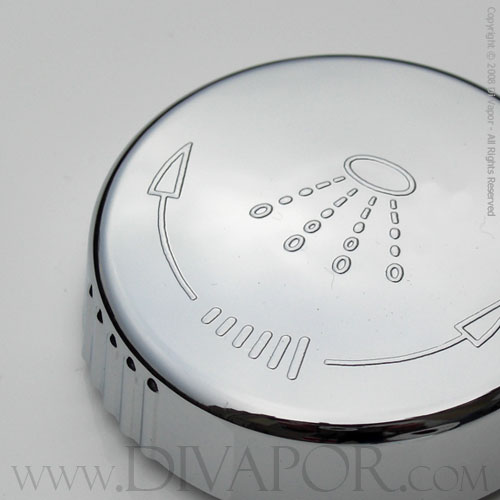

 | Adjustable Water Jets
Select the desired pressure of the water jets that line the side of the bathtub. Simply turning the pressure dial will gently increase or decrease the pressure accordingly. |
|

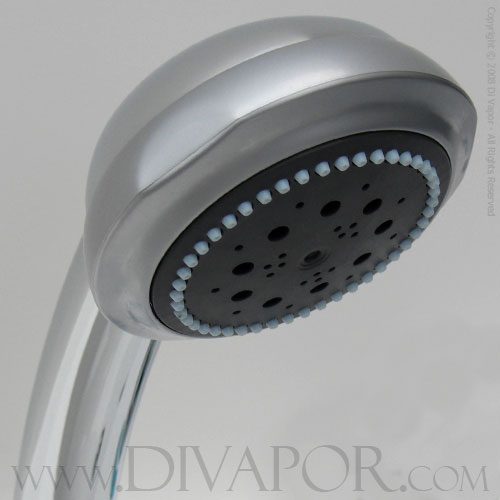

 | Three-way hand shower
After your whirlpool hydromassage is complete you can simply wash off any shampoo or bubbles that remain using this built-in handheld shower. The handheld shower provides 3 settings for either spray, jet or champagne showering. |
|
 | Water level safety sensor
In the event that the water fill level is below the water jets then this will be automatically detected by the bathtub and it will not start the water jets. This helps protect the electrical water pump if it is started without water being present. |
|
 | Underwater LED Lighting
An underwater LED light illuminates the bubbling water to create the perfect bathroom ambience while enjoying the dual action massage system. |
|
 | Residual Current Device (RCD) Safety
The Residual Current Device (RCD) is a device that can detect an imbalance in the electrical current within the unit. This is an early warning system that shuts-off the product if an imbalance is detected to protect both the user and the product. |
|
 | Bath Cleaning System
When the water pump is running, press the cleaning button for 3 seconds to activate the cleaning system that will circulate your cleaning detergent through the water pipes and water pump. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

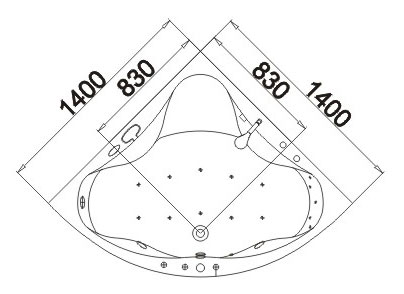

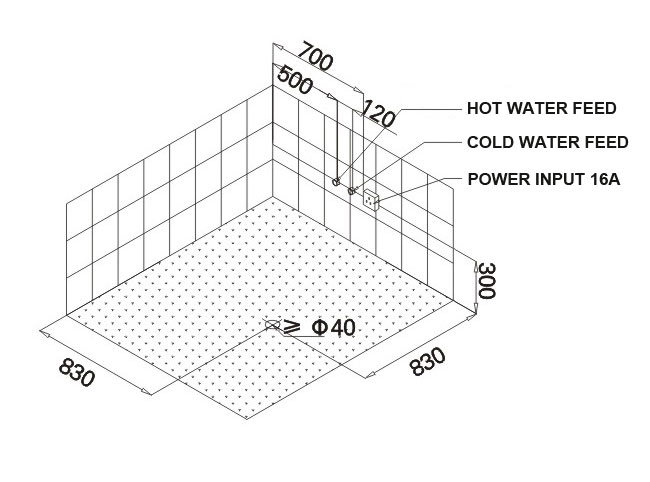

| Technical DiagramsDimensions and Layout |
 |  |  |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Bellano bath Volume: 160 Litres
- Water pump: 1HP, air pump: 0.5HP
|
|
| |
| More PhotographsClick to Enlarge |
|
|
| |
 |
| |
|
|
|
