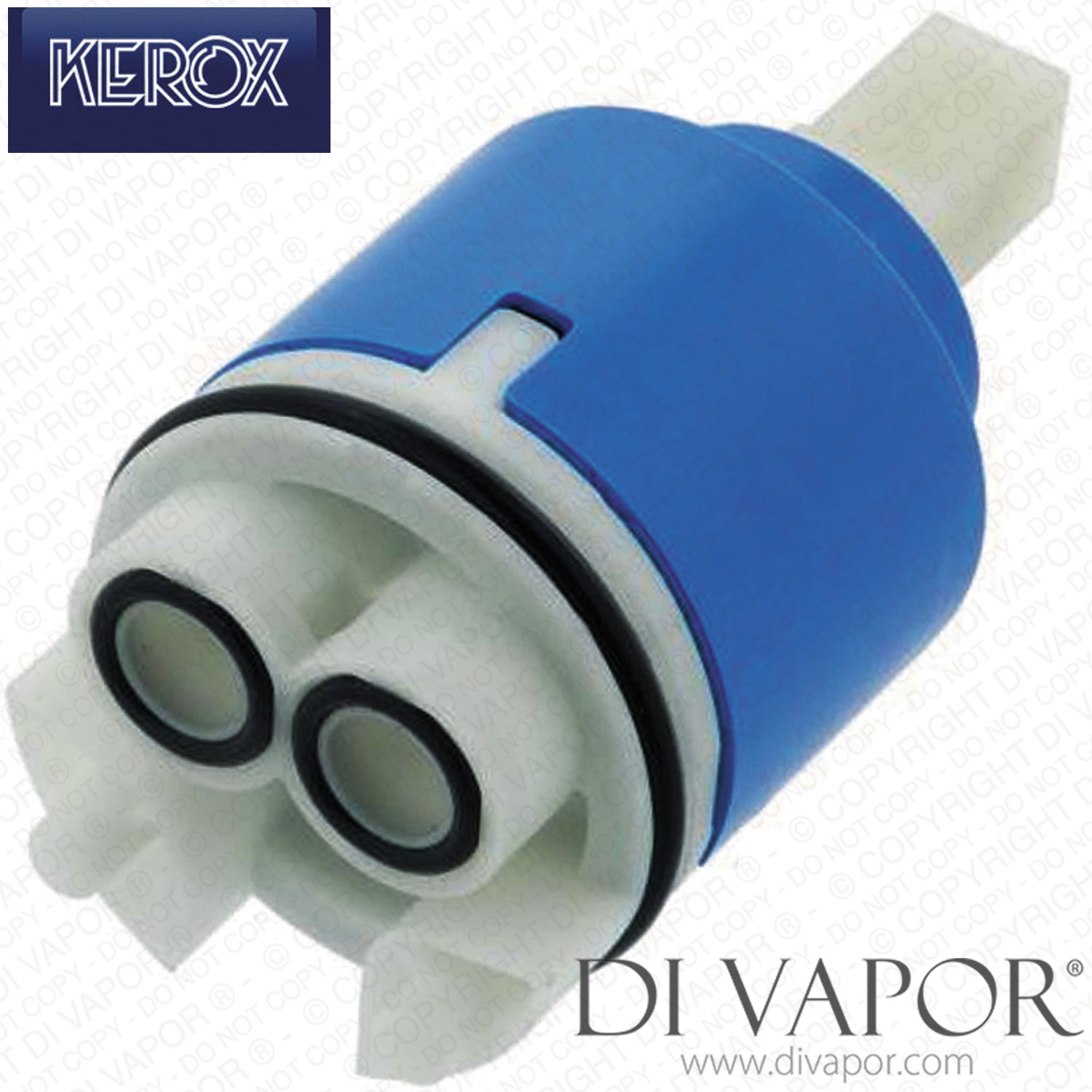

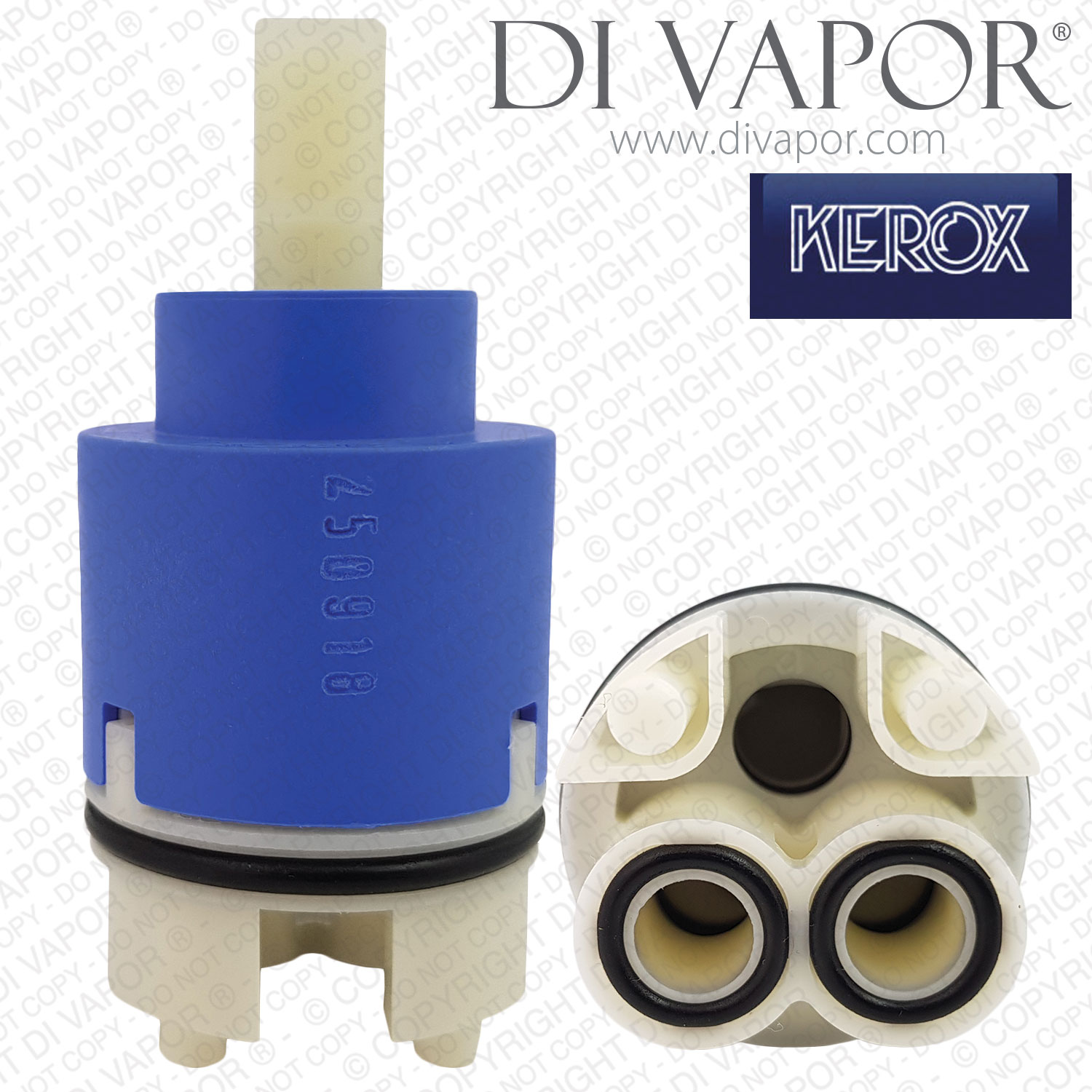

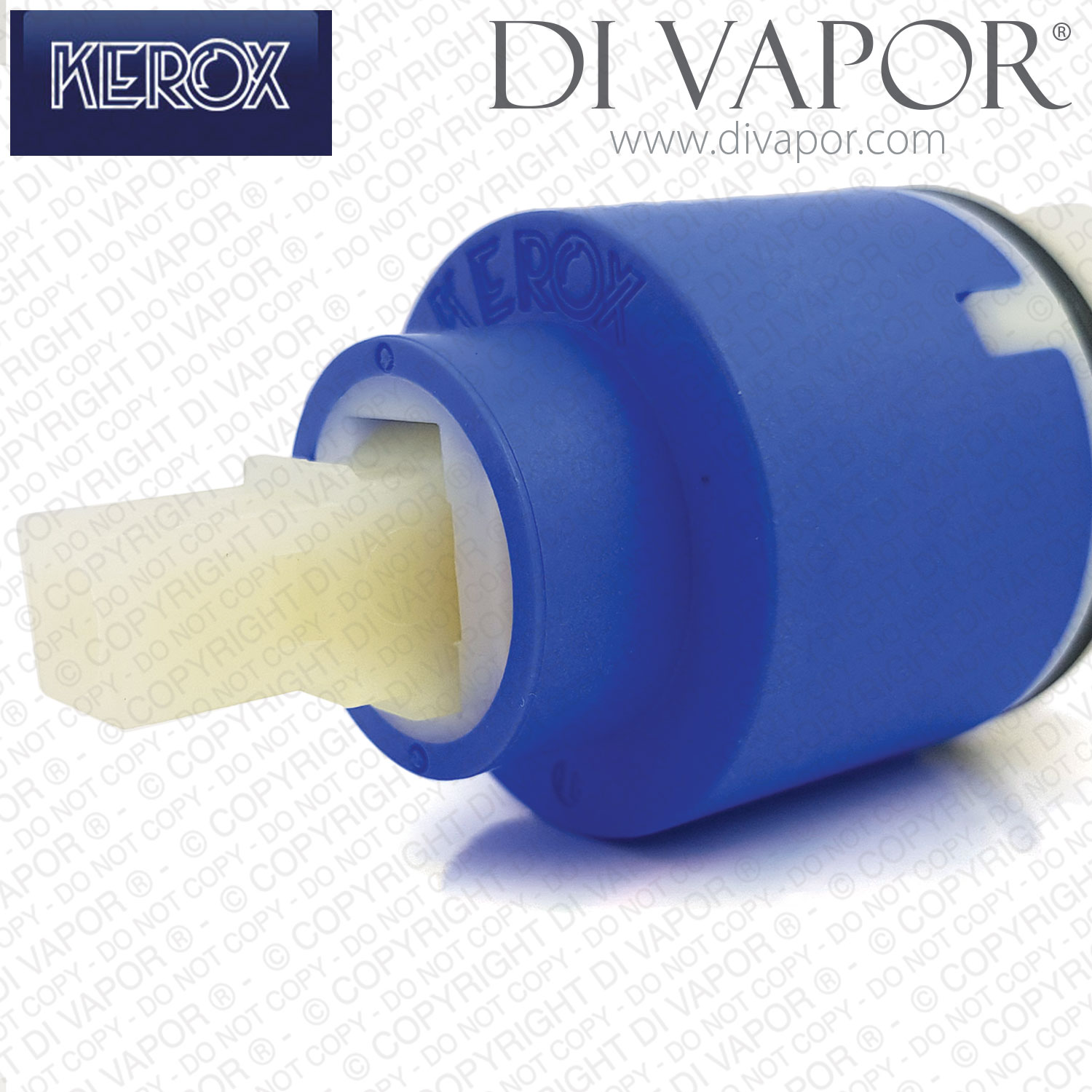

KEROX K35B 35mm Mixer Tap Cartridge Replacement

SUMMARY

KEROX K35B 35mm Mixer Tap Cartridge Replacement. Please note that the cartridge you will receive doesn't have the grey limiter on it. If your K35B has a grey limiter at the top, the new version without the limiter will work for you as it doesn't affect the compatibility of the cartridge.

Product: Tap cartridge
Installation: Push Fit
Material: Aluminium Oxide Ceramic

KEROX cartridge K-35B is suitable with – but not limited to – taps from:
- Cascade
- La Torre
- Kohler

Al2O3 Ceramic Disc Cartridge
Al2O3 is the chemical formula for aluminium oxide – a compound of aluminium and oxygen. Sintered by heat into ceramic, cartridges made from the material is considered to be durable with a compressive strength of at least 2,000 megapascals (MPa) and is said to have almost the same toughness as a diamond with a hardness of up to 19 gigapascals (GPa). It is less subject to corrosion and can last longer than cartridges made from other material.

Another attribute of aluminium oxide ceramics is its capability to glide which comes in handy for a ceramic disc tap. Two discs are utilized in such a tap mechanism. The upper disc moves as the tap is switched on and off while the lower disc remains static. The discs glide to align or misalign, acting as a gateway to open or inhibit water flow.

Please check out other Kerox Cartridges we provide.

Attributes of the Kerox K-35B Tap Cartridge

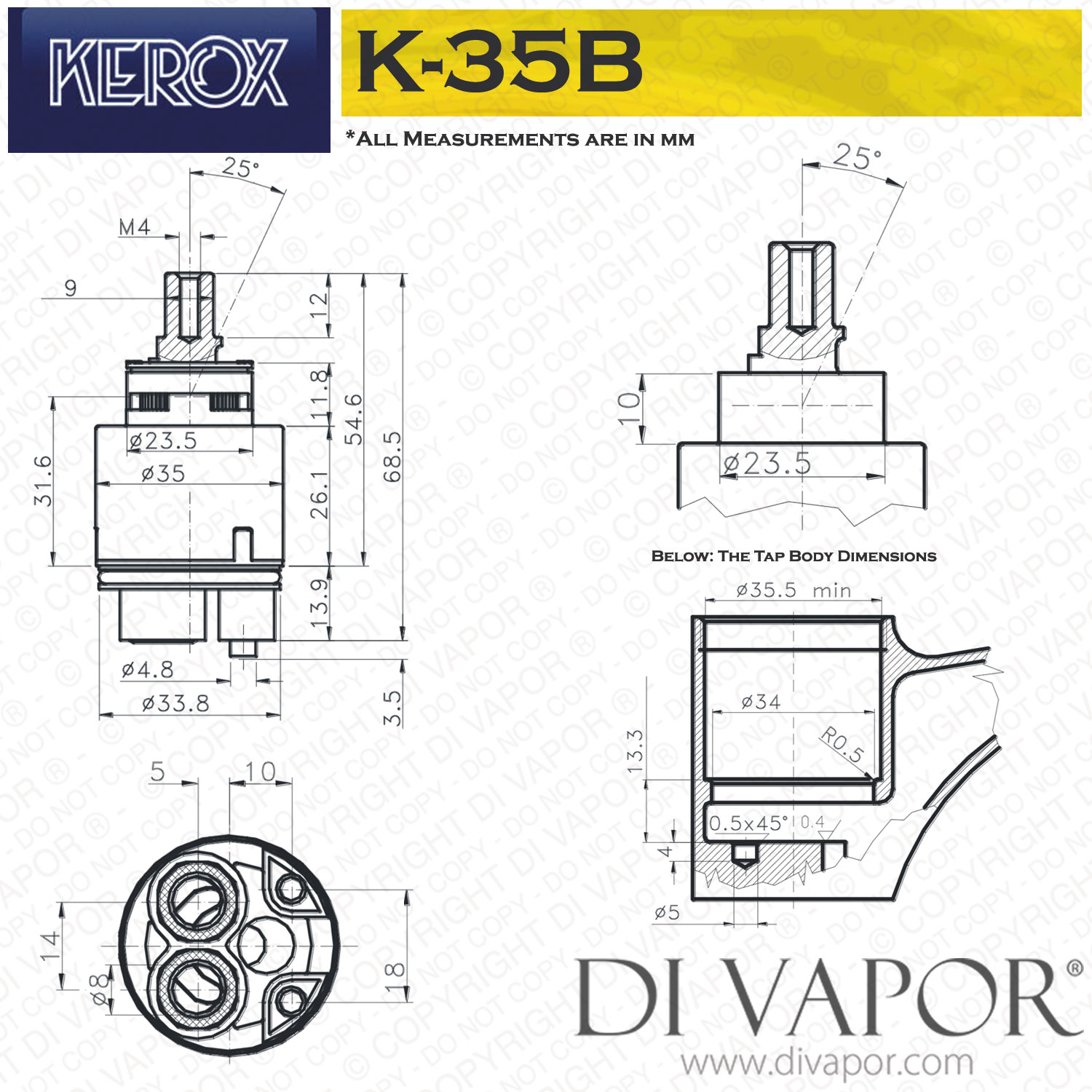

KEROX K-35B is a 35mm single-lever type cartridge composed of Al2O3 engineered ceramic. It has a surface roughness of 0.2 micrometres (µm) and a contact surface area of 50 to 80 percent. It opens at a 25-degree angle with a maximum mixing angle of 90 degrees. The highest temperature that can be reached with this cartridge is 90℃ (194℉).

The flow rate allowed by the K-35B is from 20.1 liters per minute up to 26 liters per minute.

Accessing and Changing a K-35B Cartridge
The single-lever cartridge sits in a manual lever tap. To repair the faucet, first, turn the tap water supplies off and lift the tap handle to the “on” position to prevent stressing the seals of the replacement.
1: Remove the tap handle by using an Allen key to undo the grub screw.
2: Remove the shroud by hand with an anticlockwise turn.

3: Remove the brass collar keeping the cartridge secure with the help of an appropriate sized spanner. The cartridge should pull out with ease.

4: Use the appropriate silicone grease on the O-rings of the new cartridge. Wiggle the new cartridge in the valve until it sits perfectly still.
5: Reattach and tighten the collar, shroud and handle.

The Kerox K-35B is eligible for next day delivery, provided it is ordered before 3:00 PM from Monday to Friday.
