LX DH1.0 Pump 1 HP - 220V/50Hz - 3.8 Amps

SUMMARY

Manufacturer Model:	DH1.0-C
Qmax Litres/Min	340
Hmax (m):	10.5
Voltage / Hertz:	220V - 240V / 50Hz
Power (KW):	0.75
Horsepower (HP):	1
Ampage:	3.8

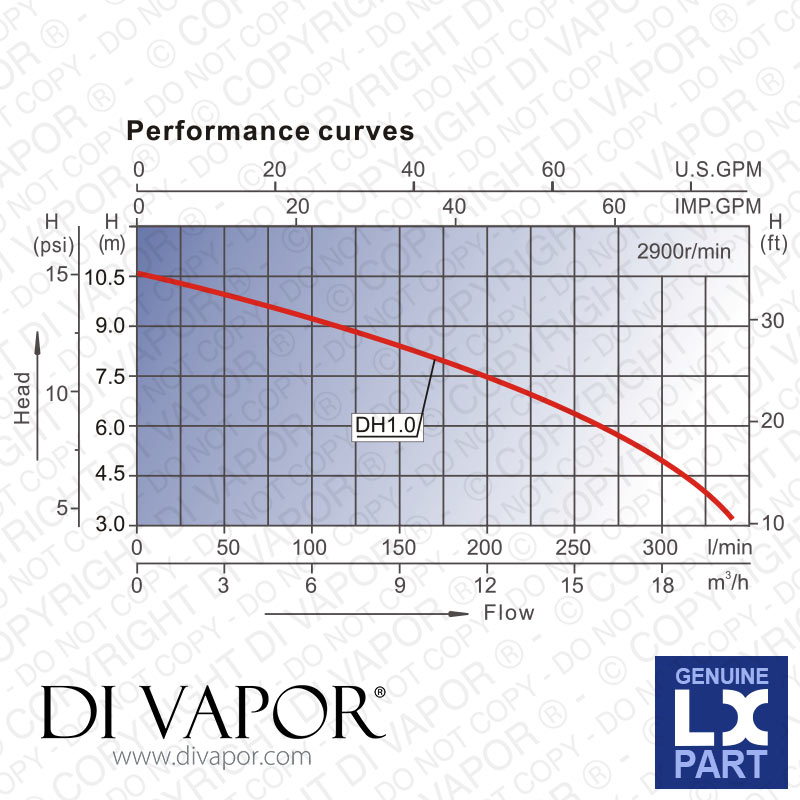

Curves:	N/A
Speed (Revolutions / Minute:	N/A
Power (Watts):	750
Heater Power (Watts):	N/A
Maximum Pressure (Mpa):	N/A
Maximum Pressure:	N/A
Air Volume (m3/min):	N/A
Noise Level dB (A):	N/A
Jets Quantity (pieces):	N/A
Recommended Water Depth (metres):	N/A
Water Volume Heating Capacity (Gallons):	N/A
Water Volume Heating Capacity (Litres):	N/A
Fitting Size (mm):	48.5mm or 50mm
Weight (Kg):	9.5
Length (mm):	380
Width (mm):	175
Height (Kg):	260
Power Cable Length:	1.5 Metres
Pump Type:	Water Circulation Pump
Brands Used On:
Will ship to:	Worldwide
Suitable For:	Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools
Certification:	CE, TUV
Water Protection Grade:	IP55
Thermal Protector:	TI.USA
Important Information:	N/A
Other Information:	Please contact us for more information about 230V / 60Hz, 110V / 60Hz models, 110V / 50Hz before ordering.

LX DH1.0 Pump 1 HP | Hot Tub | Spa | Whirlpool Bath | Water Circulation Pump | 220V/50Hz | 3.8 Amps

Brand: LX
Product: DH1.0 1HP Water Circulation Pump

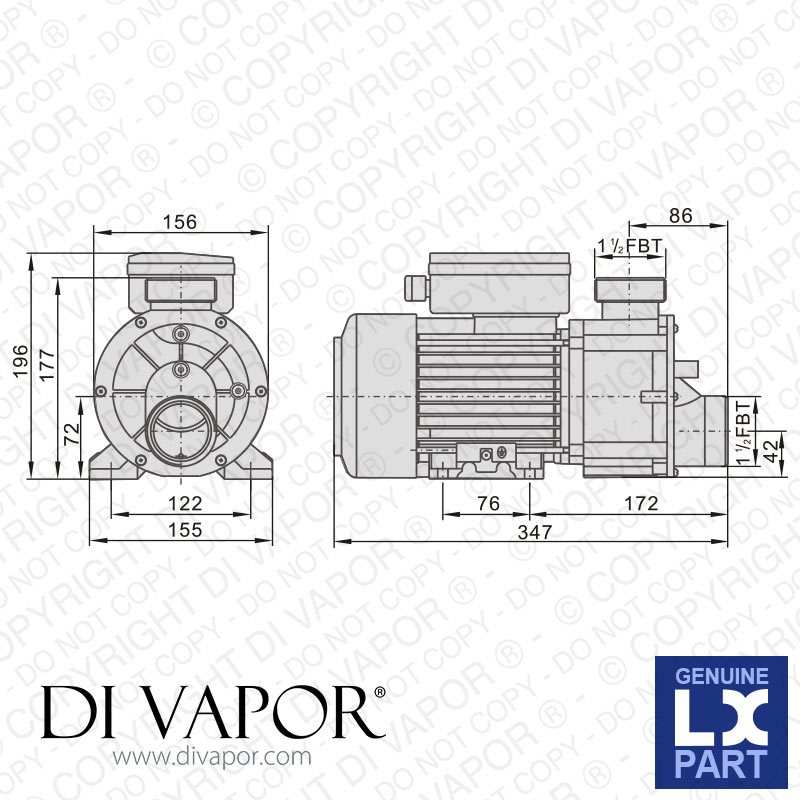

Dimensions: 350mm x 190mm x 140mm
Weight: 8.55 Kilograms
Voltage: 220 Volts, 50 Hertz
Intended for: Hot Tub, Whirlpool Bath, and Spa Pools
Certification: TUV Certified and CE Certified
Pipe Fitting Size: Approx. 63-64mm external thread diameter on both fittings


This LX DH1.0 Water Circulation Pump in 1 HP can be dispatched on the same day when ordered before 3:00 PM, Monday to Friday.

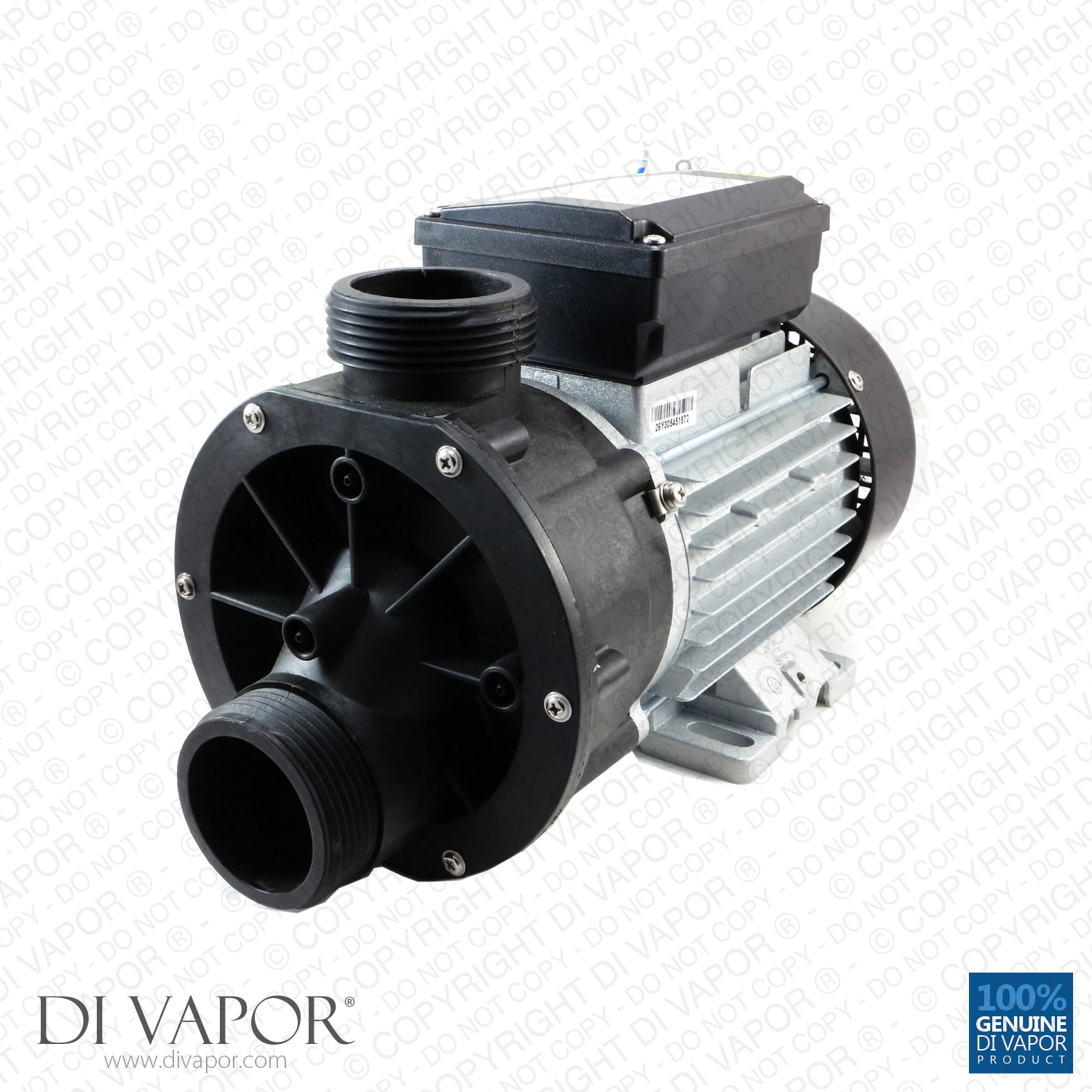

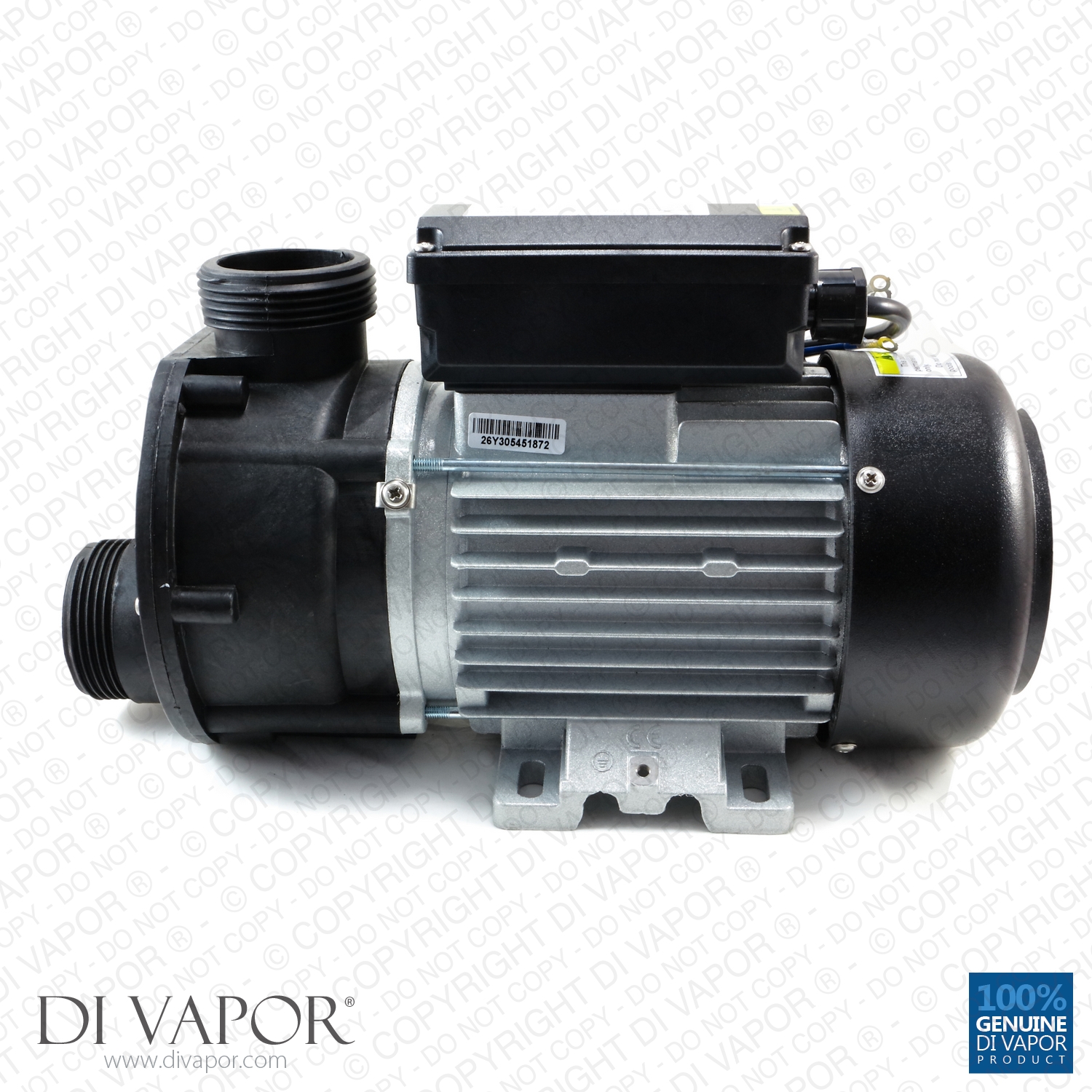

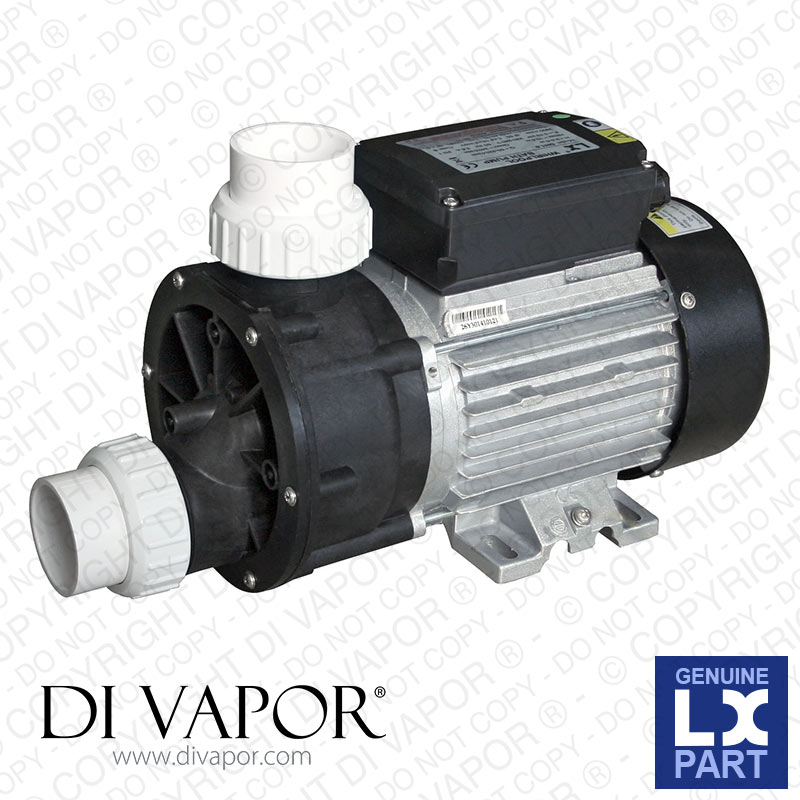

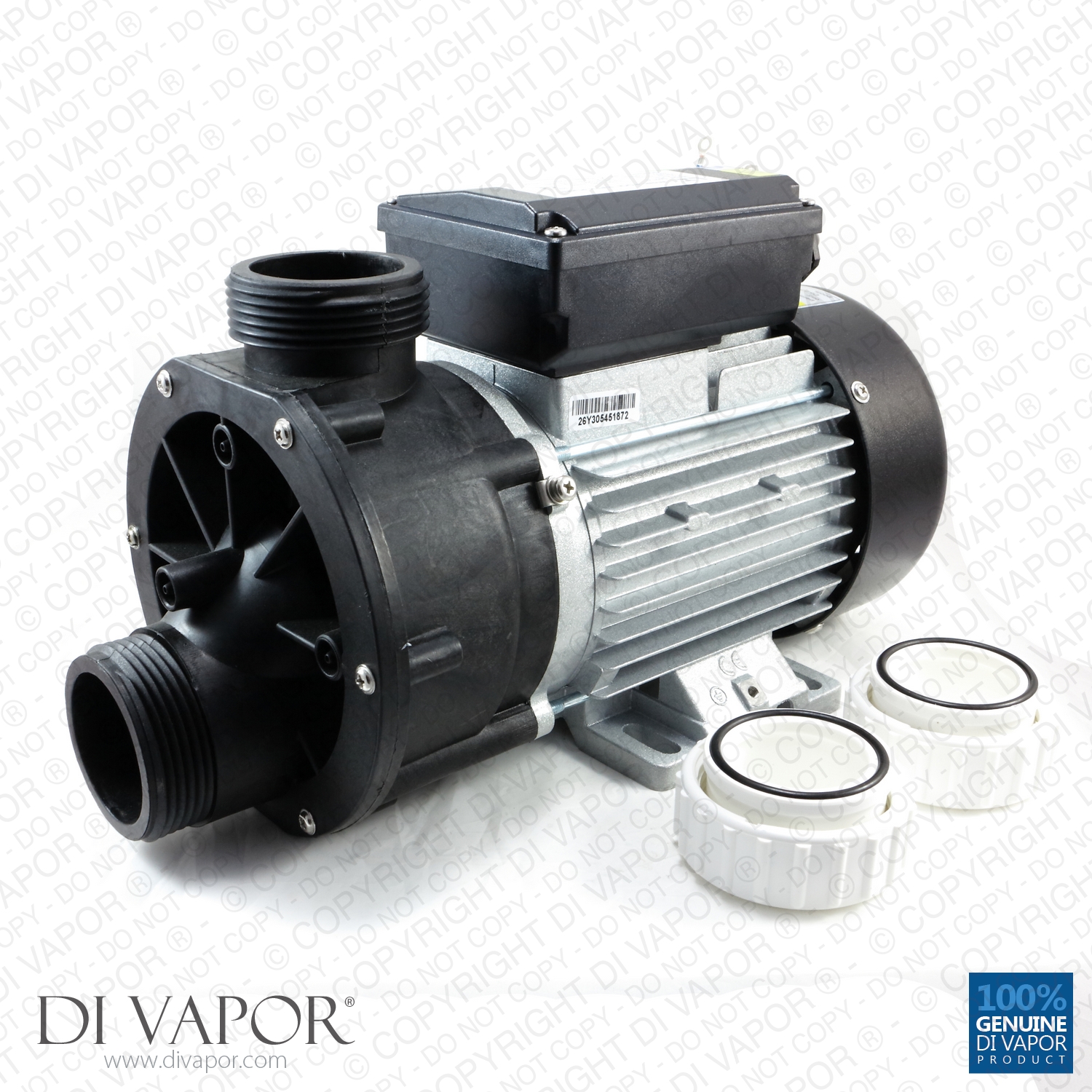

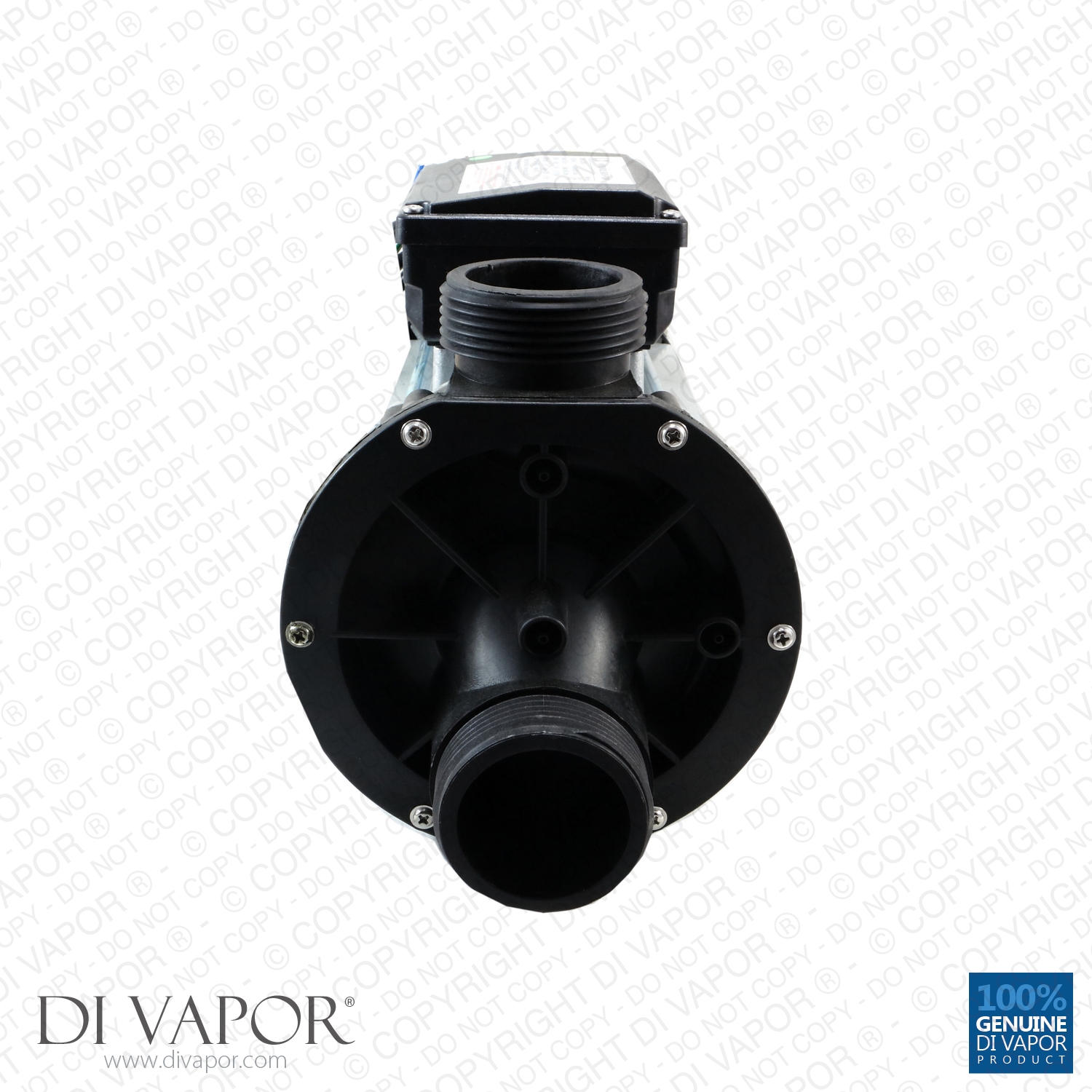

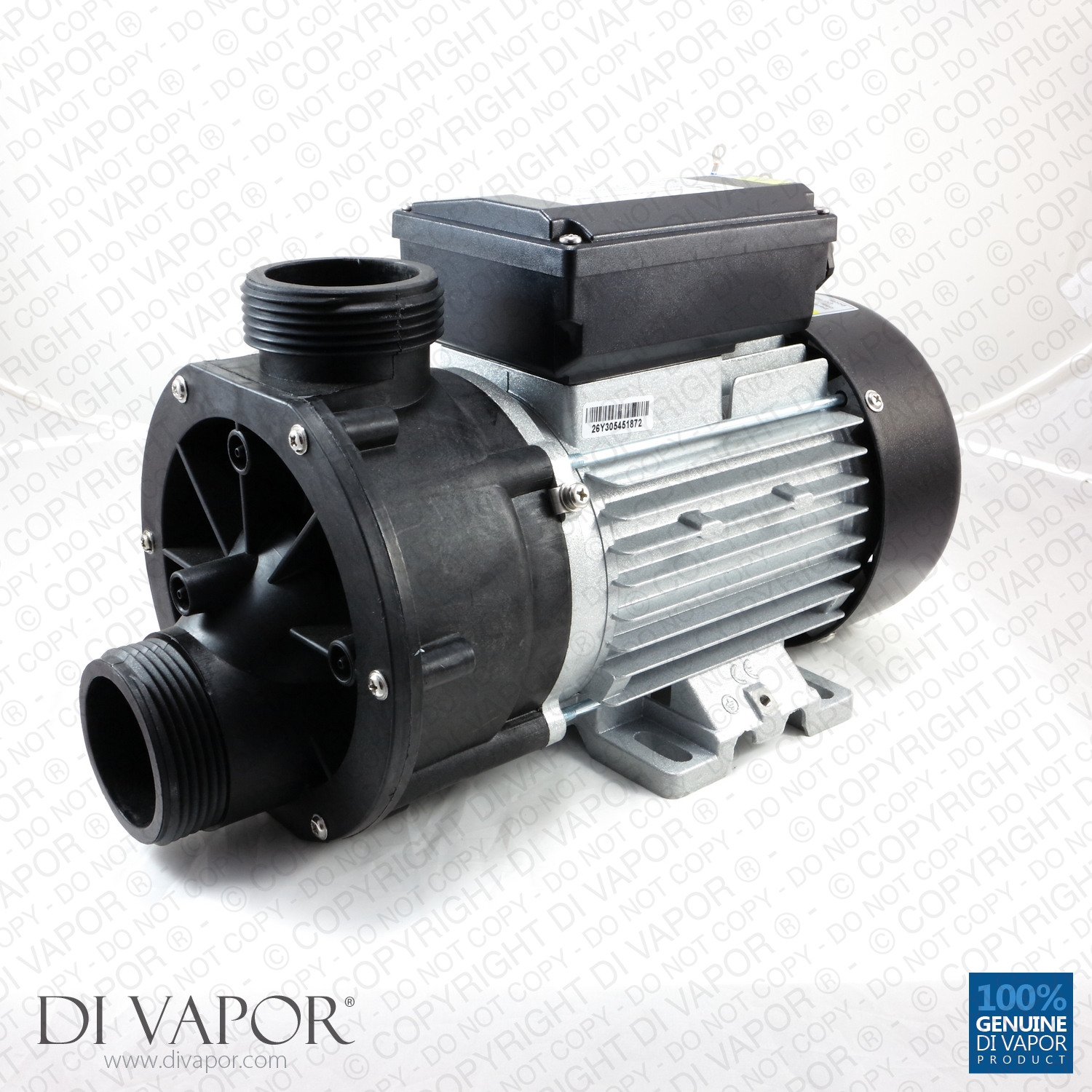

The LX DH1.0 is a single-speed, one horsepower, centrifugal type water circulation pump and has a suction of 1.50”. It is a self-draining machine with a centre discharge. Medium to large hot tubs, spa systems, and whirlpool baths use this pump. It is suitable with, but not limited to, tubs by AMC Winer, Cascade, Danz, and Trinity.

This pump can be a replacement for the Rocoi LDPB-140B and is identical to the LX EA350 and DXD water pump.

Air switches does not come with the LX water pumps.


Electric Centrifugal Water Pump
Water pumps are machines that propel the movement or circulation of water. To perform the task it is designed to do, these devices expend energy derived from electricity or from solar power.

There are different types of pumps among which is the centrifugal pump. The LX DH1.0 is an example of a centrifugal pump. It encourages water flow through the rotational energy emanating from the motor to hydrodynamic energy as the fluid enters the rotor and exits from the pump casing. A single-speed, or single-stage pump, comprises of a single rotor. This type of pump is one of the best options for a whirlpool bath or hot tub because of its ability to generate a high water flow rate.

A water pump can also be cost-efficient. A one horsepower pump coupled with a 0.5 horsepower air pump will consume about 1.12 kW.


- We provide a huge selection of LX Water Pumps.


Centrifugal Pump Problems
The LX DH1.0, being a centrifugal pump, is not immune to issues such as impeller damage, leaks, overheating, power surges, and corrosion.

Impeller damage can be due to hydraulic wear. Plus, dross accumulated on it will hinder water flow. Leaks can happen around the pump’s rotating shaft. Low water flow will beget overheating. The circuit breaker has a possibility to trip if there is a short in the pump’s wiring. And corrosion of the pump internals will occur if the pH level of the water is too high or too low and the bearing of dissolved oxygen is high.

- You can send us a message if you need assistance to ensure you are buying the correct water pump for your hot tub, whirlpool bath, or spa system.


Tips: Choosing and Caring for Your Hot Tub Water Pump

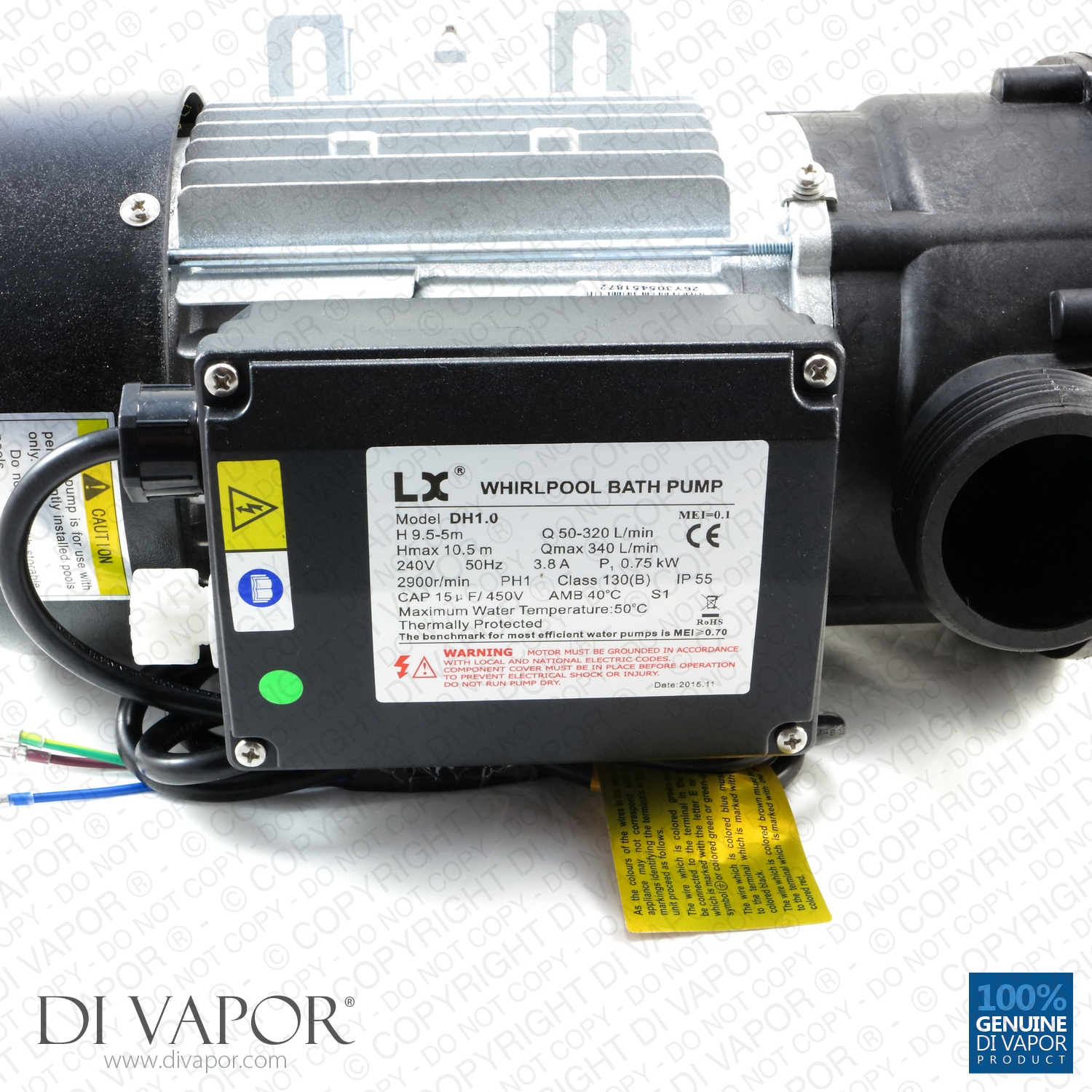

A water circulation pump can have an output of 3/4 HP to as high as 5 HP. It can run on 220-240V or 110-120V. Most pumps have a label attached to its body where technical specifications can be found. Checking this is vital for selecting which replacement pump goes with your tub.

Another thing to consider when buying a water pump is the size of the frame. Pumps come in either a 56 frame or a 48 frame size. The reason for this is the bolt holes on the pump must be contingent to the holes inside the tub or spa system. Information on the frame size can also be found on the label.

It is worth mentioning that water must not get into the pump’s motor. If it does, it will permanently damage the pump.
