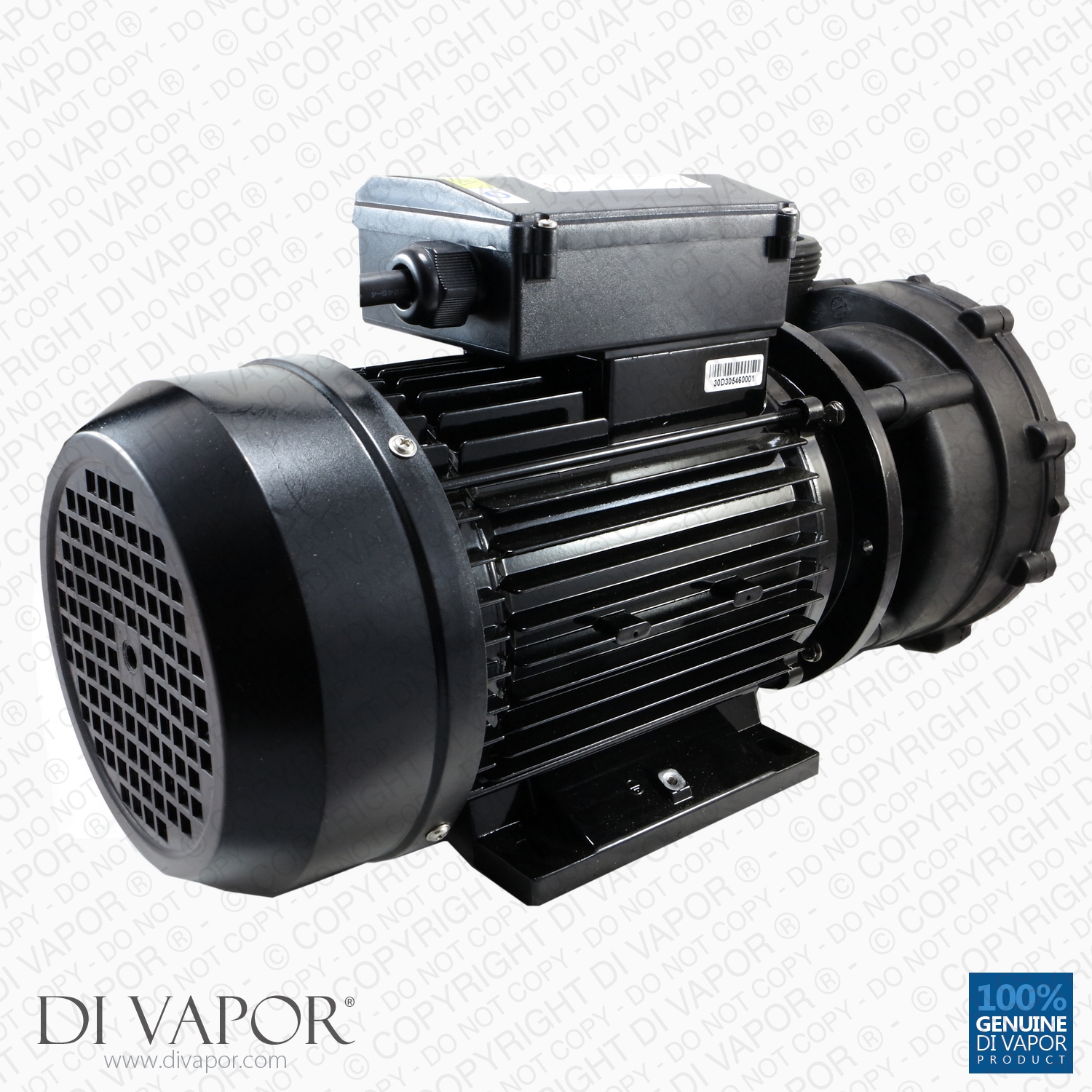

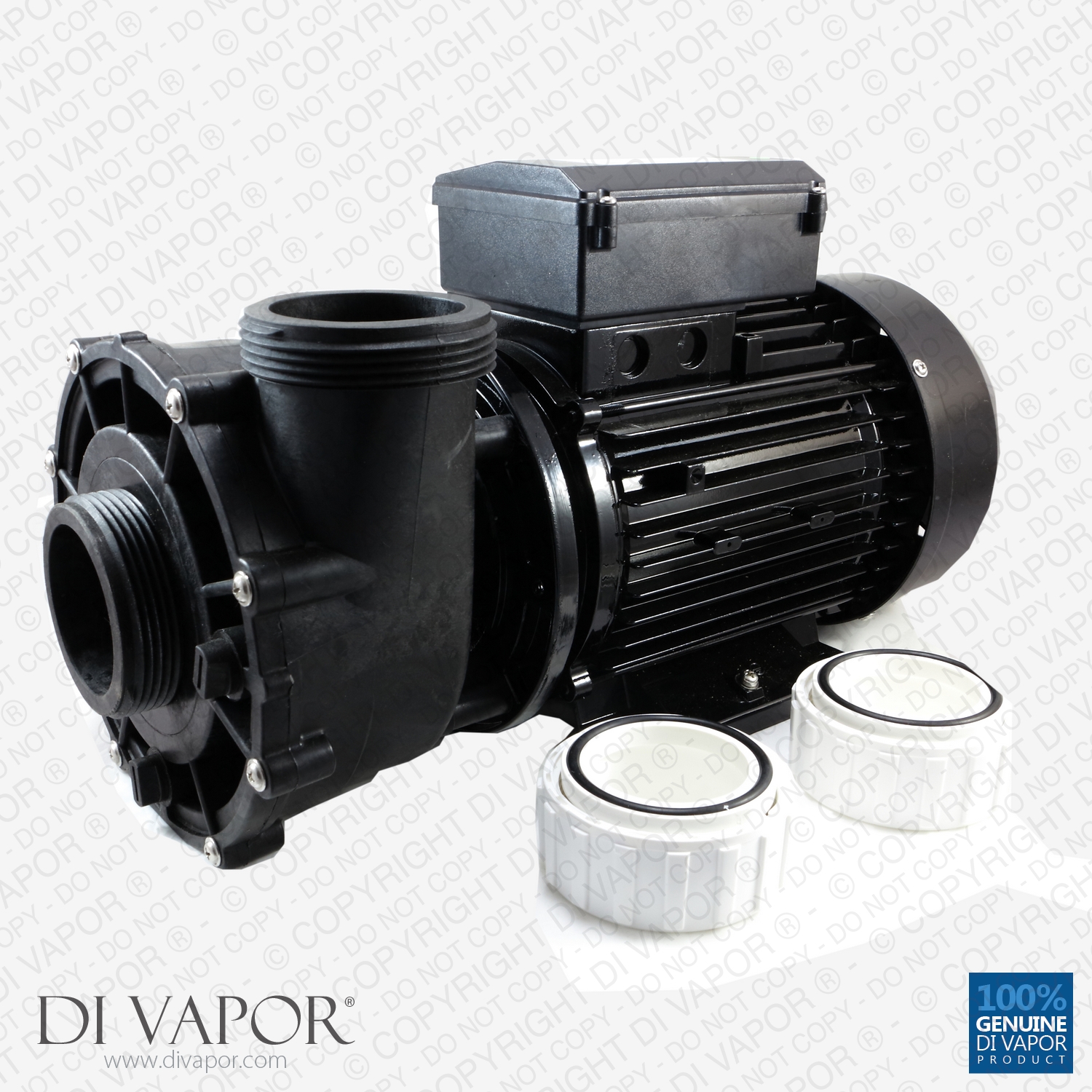

LX WP200-II Pump 2HP 2 Speed - 220V/50Hz - 1.5kW

SUMMARY

Manufacturer Model:	WP200-II
Qmax Litres/Min	620
Hmax (m):	14
Voltage / Hertz:	220V - 240V / 50Hz
Power (KW):	0.35
Horsepower (HP):	0.375
Ampage:	2
Curves:	5
Speed (Revolutions / Minute:	N/A
Power (Watts):	350
Heater Power (Watts):	N/A
Maximum Pressure (Mpa):	N/A
Maximum Pressure:	N/A
Air Volume (m3/min):	N/A
Noise Level dB (A):	N/A
Jets Quantity (pieces):	N/A
Recommended Water Depth (metres):	N/A
Water Volume Heating Capacity (Gallons):	N/A
Water Volume Heating Capacity (Litres):	N/A
Fitting Size (mm):	60.3mm or 63mm
Weight (Kg):	15.5
Length (mm):
Width (mm):	235
Height (Kg):	295
Power Cable Length:	1.5 Metres
Pump Type:	Water Circulation Pump
Brands Used On:
Will ship to:	Worldwide
Suitable For:	Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools
Certification:	CE, TUV
Water Protection Grade:	IP55
Thermal Protector:	TI.USA
Important Information:	Twin Impellar
Other Information:	Please contact us for more information about 230V / 60Hz, 110V / 60Hz models, 110V / 50Hz before ordering.

LX WP200-II Pump 2 HP | Hot Tub | Spa | Whirlpool Bath | Water Circulation Pump | 220V/50Hz.

- Twin speed / two speed pump

The diameter of the wet end and top inlet threads is 78.6mm.

Voltage: 240V / 50Hz
High Speed:
Hmax: 14m
Qmax: 620 L/min
Power: 1.5KW, 2900 r/min

Minimum Speed:
Hmax: 3.5m
Qmax: 280 L/min
Power: 0.35KW, 1450 r/min

Hot Tub and Spa Pump Overview: LX WP200-II

The LX WP200-II is a post 2008 water circulation pump. It can be used in some of the latest spas, baths and hot tubs equipped with a 2 HP and dual speed pumps.

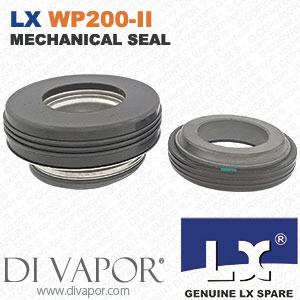

The mechanical shaft seal of the LX WP200-II can be replaced when there are leaks originating from the seal. A pump older than 3 years can be replaced in its entirety as some parts may have worn out.

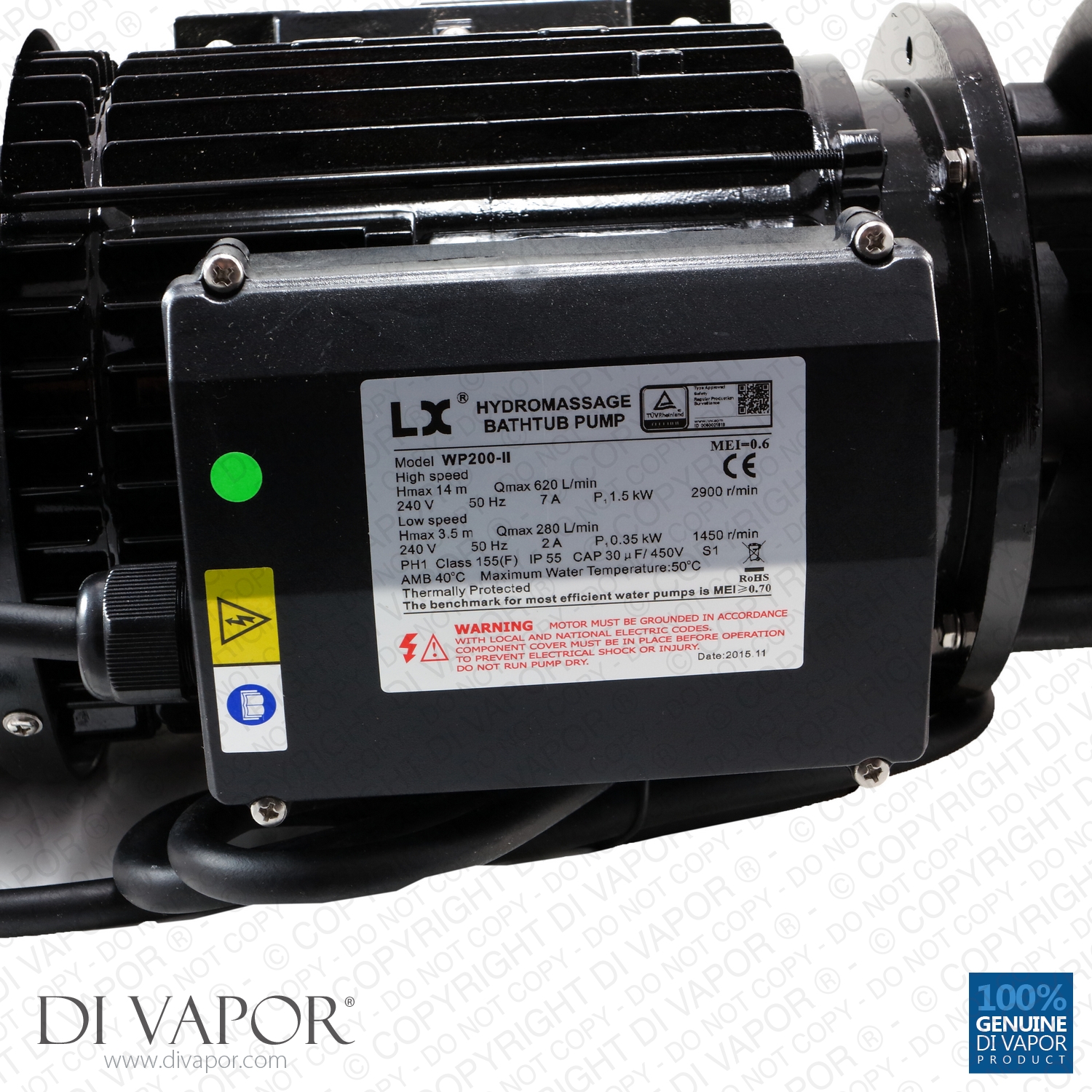

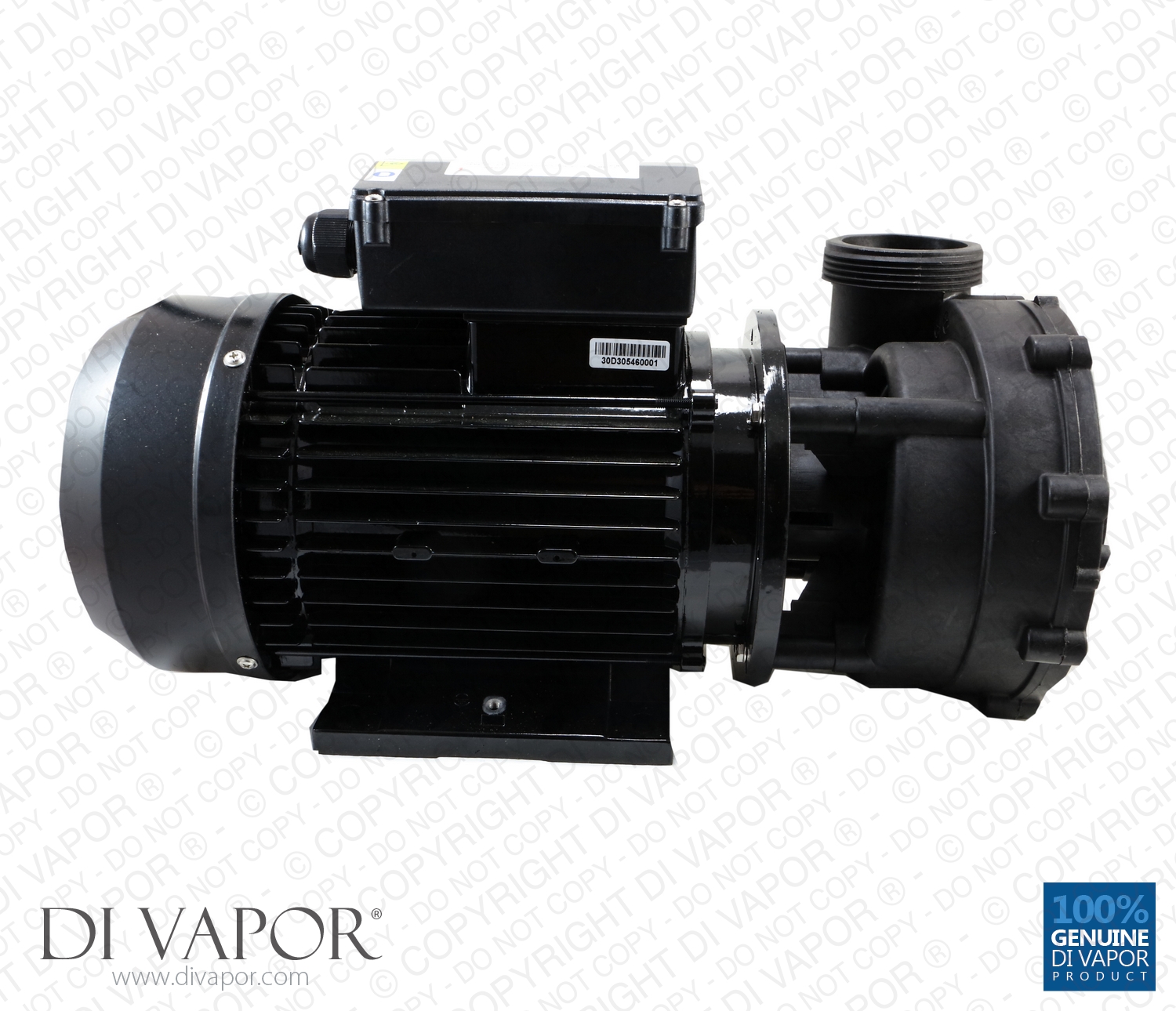

The specifications of WP200-II LX pump are given above and in the 3rd photo in the gallery. The connection diameter is 79mm and union connection is 20”. For a 2-inch plumbing connection. The frame size of this Type A pump is 56 Frame. It has a wet end for the impeller and a dry end for the motor.

LX WP200-II can be the replacement pump for some systems such as Sundance and Jacuzzi. It can be used as a replacement for a faulty Theramax water circulation pump.

The pump can be used in Jacuzzi:
– 6500-291,
– 6500-299,
– 6500-319,
– and 6500-899.

Other LX WP Pumps

– LX-WP250-II-PUMP
– LX WP300-II
– LX-WP400-I-PUMP
– LX WP500-II


If you have more questions about the LX pump WP200-II 2 speed, 2 HP, please leave us a message. We will get back to you at the soonest time we can.
