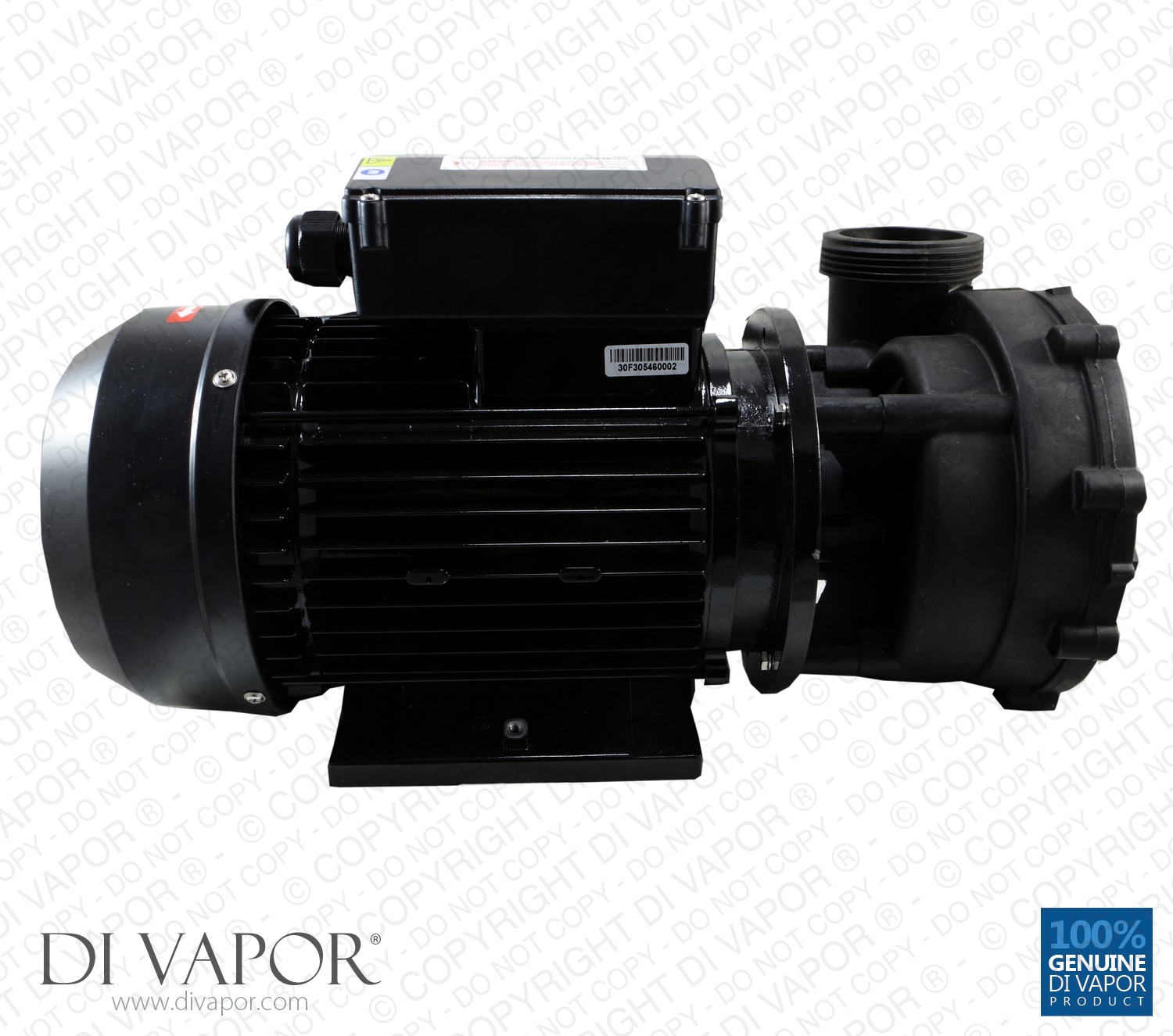

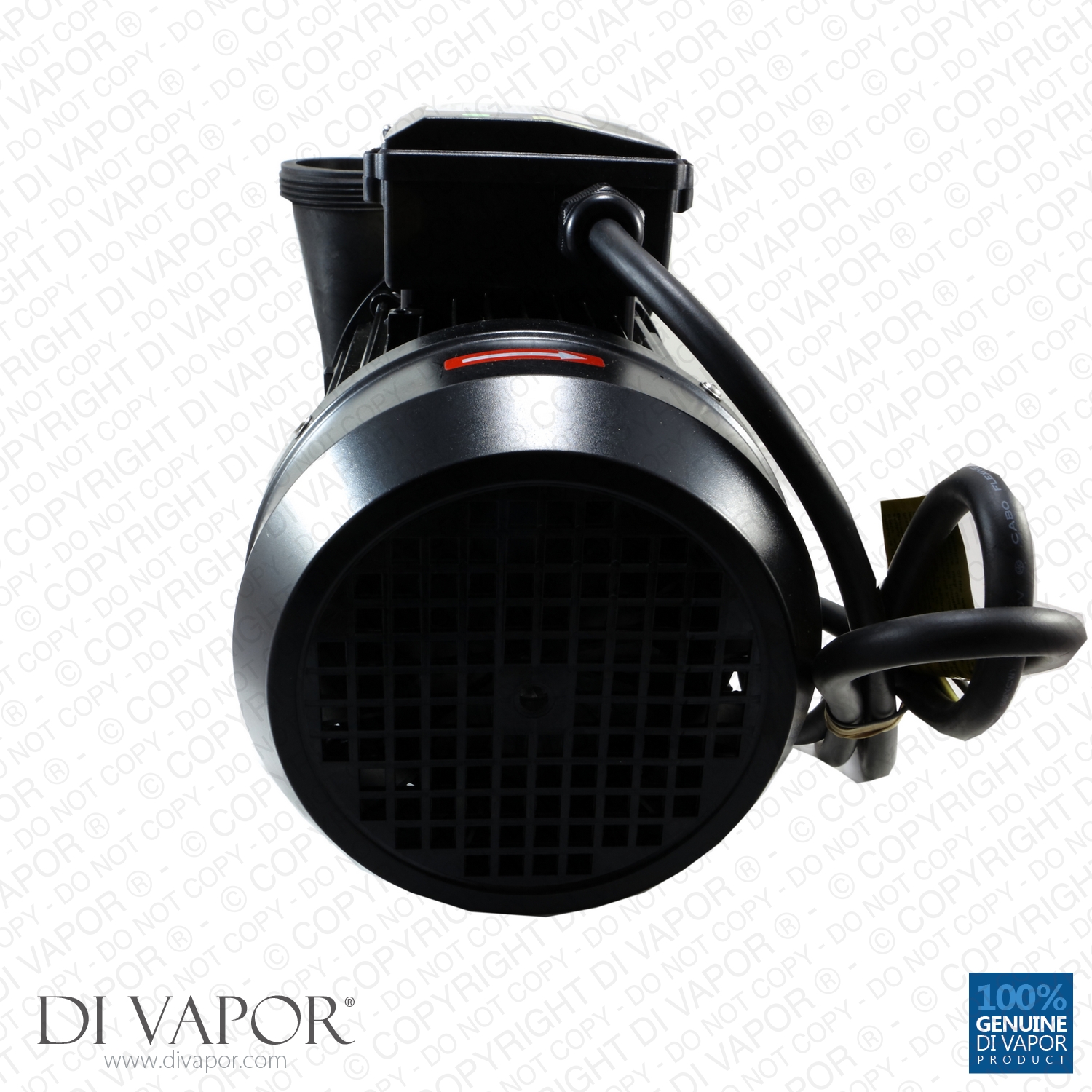

LX WP300-II Pump 3HP - 10 Amps - 2.2kW - 220V/50Hz

SUMMARY

Manufacturer Model:	WP300-II
Qmax Litres/Min	730
Hmax (m):	18
Voltage / Hertz:	220V - 240V / 50Hz
Power (KW):	0.45
Horsepower (HP):	0.625
Ampage:	3
Curves:	7
Speed (Revolutions / Minute:	N/A
Power (Watts):	450
Heater Power (Watts):	N/A
Maximum Pressure (Mpa):	N/A
Maximum Pressure:	N/A
Air Volume (m3/min):	N/A
Noise Level dB (A):	N/A
Jets Quantity (pieces):	N/A
Recommended Water Depth (metres):	N/A
Water Volume Heating Capacity (Gallons):	N/A
Water Volume Heating Capacity (Litres):	N/A
Fitting Size (mm):	60.3mm or 63mm
Weight (Kg):	18.5
Length (mm):
Width (mm):	235
Height (Kg):	295
Power Cable Length:	1.5 Metres
Pump Type:	Water Circulation Pump
Brands Used On:
Will ship to:	Worldwide
Suitable For:	Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools
Certification:	CE, TUV
Water Protection Grade:	IP55
Thermal Protector:	TI.USA
Important Information:	Twin Impellar
Other Information:	Please contact us for more information about 230V / 60Hz, 110V / 60Hz models, 110V / 50Hz before ordering.

LX WP300-II Pump 3 HP | Hot Tub | Spa | Whirlpool Bath | Water Circulation Pump | 220V/50Hz

- Twin speed / 2 speed water circulation pump
- 10 Amps, 2.2kw at high Speed
- Diameter of top thread: 78.6mm
- Diameter of thread at end: 78.6mm
- Diameter of white connection pipe: 68.7mm

The LX WP300-II 3HP 2 speed pump for hot tubs, spa systems, and whirlpool baths can be dispatched on the same working day when ordered before 12:00 PM, Monday to Friday. This pump is also used as a direct replacement for the Wellis ACM0394.


Are you looking for other LX water pump models?
- Please click here to see other LX models we have in stock.

LX WP300-II Water Pump: Choosing the Right LX Water Pump for Your Hot Tub or Whirlpool Bath

Is the LX WP300-II 2 speed hot tub pump the correct water pump spare part for your hot tub or spa, and bath?

A water pump pulls water into the pump and emits it through a tub’s jets and circulates the water. Power supplied by water pumps ranges from ¾ horsepower to 5HP. Specifications on the majority of pumps in the market, like the LX WP300-II, can be found on a label on the body of the machine.

The capability of an establishment’s or a home’s plumbing must be able to sustain the power of a water pump, therefore, it is crucial to choose the proper one. If it is too powerful it may cause leaks.

To determine the voltage of a water pump, the information should be listed on the side label of the machine. Also, you can check if it has two or four wires. If it has two wires – one white and one green – it runs on 110-120 volts. If it has four wires – white, green, red and black – it is 220-240 volts.

The LX WP300-II 2 speed water pump has a voltage of 220-240V.

Pumps are equipped with a wet and dry end. The wet end contains the rotor used to boost the pressure and circulation of your hot tub or whirlpool bath. The dry end holds the pump’s motor in an enclosed case to prevent moisture.

Precaution: If water gets into motor, it could damage the LX WP300-II pump beyond repair. Debris caught in the rotor will hinder water flow. And a short in the motor’s wiring may result in a circuit breaker trip.

Another important detail to consider in choosing the right pump for your tub or whirlpool bath is the frame size. Hot tub water pumps are built with a 48 frame or a 56 frame. Holes for bolting it in place can be found on the frame of the pump. Contingent on the size of the frame, these holes can either be near each other or farther apart. The distance of the bolts in a 48 frame is less than four inches. In a 56 frame pump, the distance between the bolts exceeds four inches.

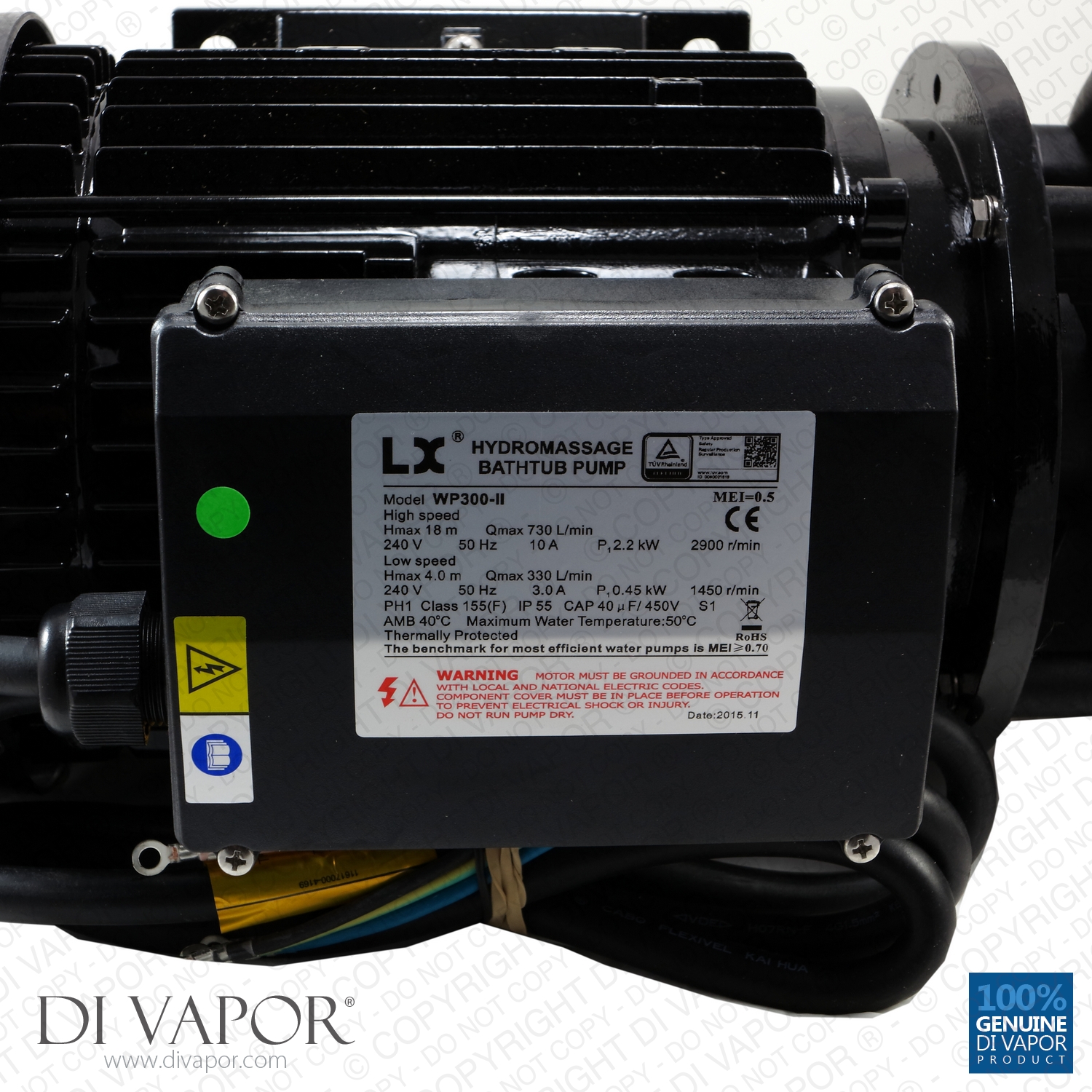

Information on the frame size is also found on the LX WP300-II label.

Got LX WP300-II Questions?

Please contact us if you have further queries about this 3HP pump or other water pumps.
