LX WTC50M Pump 0.35HP Hot Tub Pump | 230V/50 | 1.0 Amps

SUMMARY

Manufacturer Model:	WTC50M
Qmax Litres/Min	240
Hmax (m):
Voltage / Hertz:	220V - 240V / 50Hz
Power (KW):	0.25
Horsepower (HP):	0.35
Ampage:	1

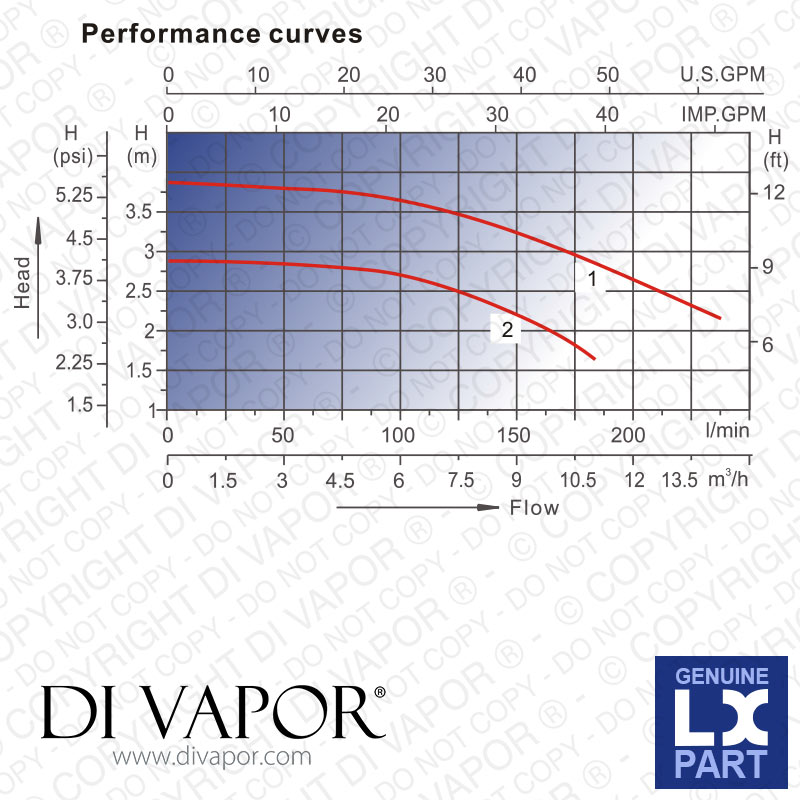

Curves:	1
Speed (Revolutions / Minute:	1400
Power (Watts):	250
Heater Power (Watts):	N/A
Maximum Pressure (Mpa):	N/A
Maximum Pressure:	N/A
Air Volume (m3/min):	N/A
Noise Level dB (A):	N/A
Jets Quantity (pieces):	N/A
Recommended Water Depth (metres):	N/A
Water Volume Heating Capacity (Gallons):	N/A
Water Volume Heating Capacity (Litres):	N/A
Fitting Size (mm):	48.5mm or 50mm
Weight (Kg):	6
Length (mm):	320
Width (mm):	180
Height (Kg):	210
Power Cable Length:	1.5 Metres
Pump Type:	Water Circulation Pump
Brands Used On:
Will ship to:	Worldwide
Suitable For:	Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools
Certification:	CE, TUV
Water Protection Grade:	IP55
Thermal Protector:	TI.USA
Important Information:	N/A
Other Information:	Please contact us for more information about 230V / 60Hz, 110V / 60Hz models, 110V / 50Hz before ordering.

LX WTC50M Pump 0.35HP Hot Tub Pump | 230V/50 | 1.0 Amps

Frequently Asked Questions: LX WTC50M Pump

Question: What core cable does this pump have?
Answer: The LX WTC50M pump has a 3 core cable with a 1.5 metres power cable length.

Question: Can you tell me more about the specifications of the LX WTC50M hot tub pump?
Answer: The LX WTC50M is a
– 71 frame,
– single-phase (1 speed),
– 0.35 HP
water circulation pump for hot tubs, baths, and spa systems.

The pump is composed of engineered and reinforced materials (aluminum and plastic) for long service life.

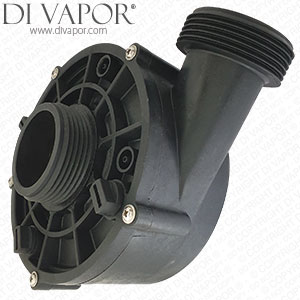

It has a thermal protector to automatically shut off the pump to prevent overheating. This hot tub pump is insulation class F with IPX5 protection. Its maximum working pressure is 0.3MPa. The wet ends are located in the middle with a union size of 1.5.

This is an energy-saving pump with low power consumption (0.35 HP).

Question: How will I know if the LX WTC50M is compatible with the spa system I have? And do you have other 0.35 HP pumps?

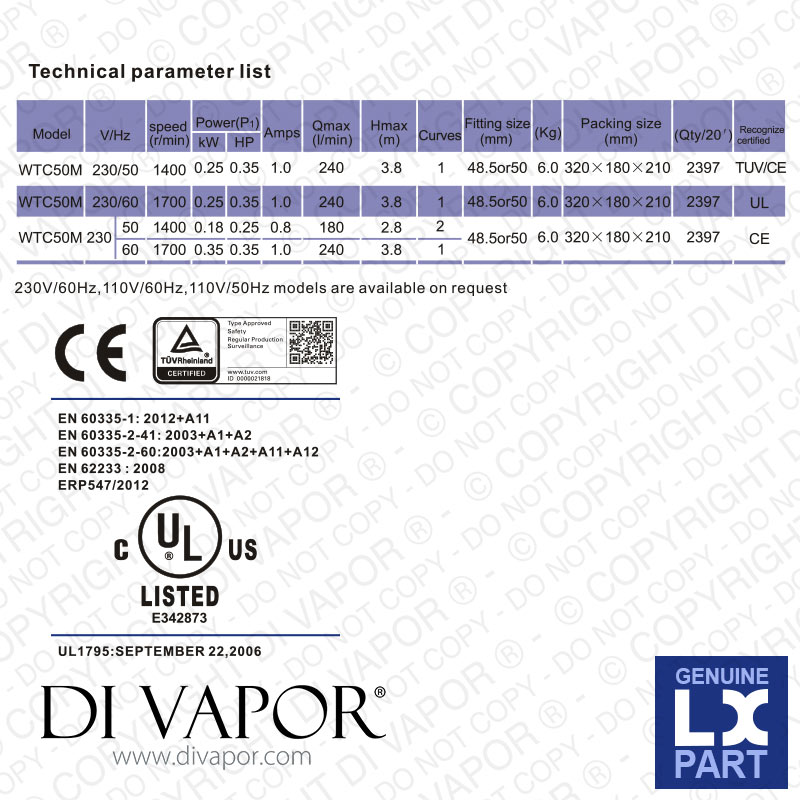

Answer: The old pump should have a label somewhere on its casing. Please compare it with the LX WTC50M pump label (4th photo above).

We have another 0.35 HP pump (LX JA35).

Please contact us should you have further queries. We are here to serve you.
*Queries received on a weekend will be attended to first thing on Monday.

Question: I’m looking for a quiet replacement pump. Is this a good replacement?

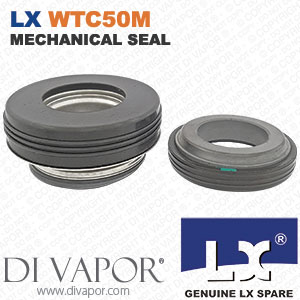

Answer: The LX WTC50M hot tub pump is considered quieter than some pumps and it vibrates less. Its durability makes it a good replacement pump. The mechanical seal is resistant to wear and tear making sure that no water will enter the pump while in use. It is equipped with a mechanism that will prevent overheating.

Question: Is this pump self draining?
Answer: Yes, this water circulation pump will automatically drain when it is switched off.
