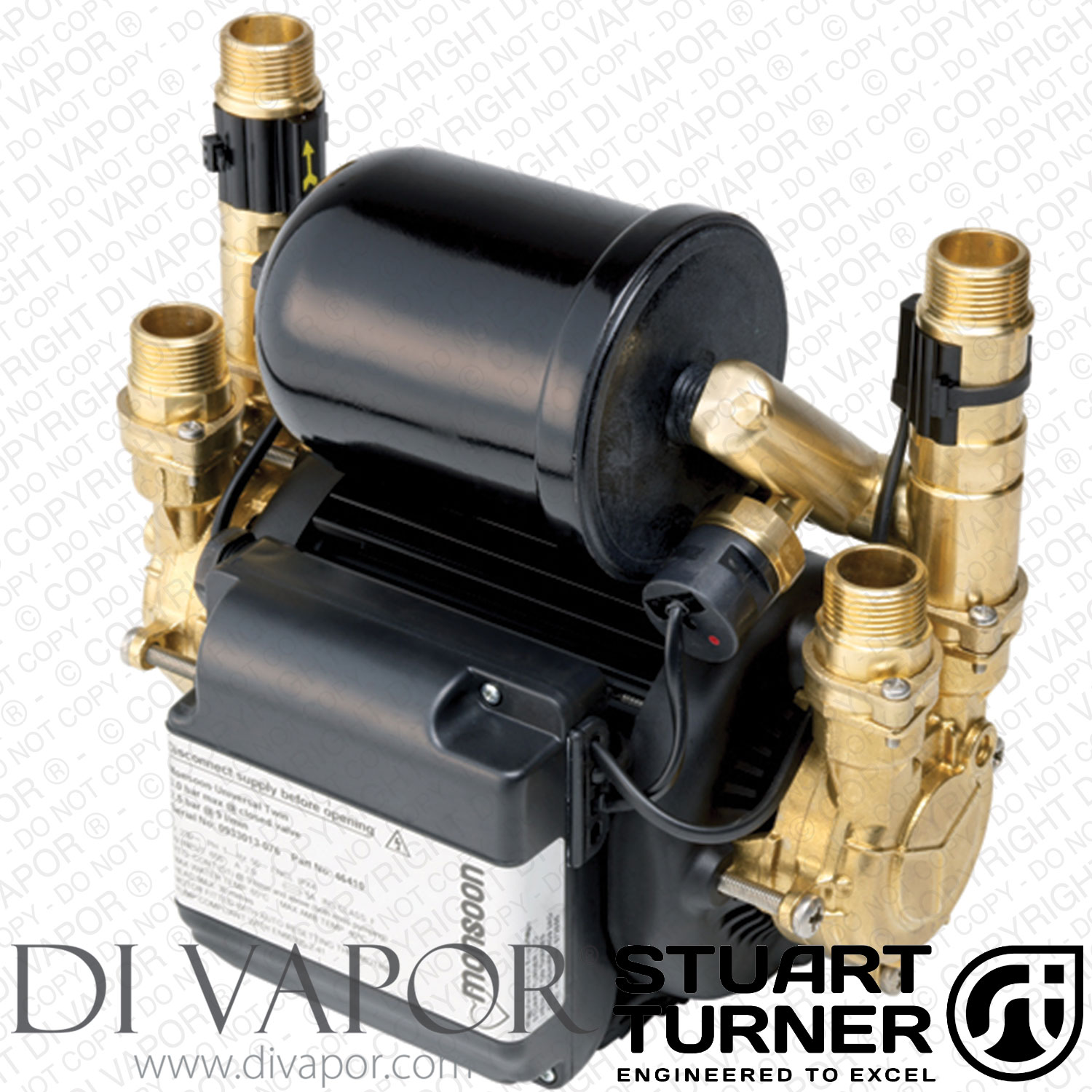

Stuart Turner 46411 Monsoon Universal 4 Bar Twin Water Pump Stuart Turner 46411 Monsoon Universal 4 Bar Twin Water PumpStuart Turner 46411 Monsoon Pump

Stuart Turner 46411 Monsoon Universal 4.0 bar Twin Water Pump for Showers, Bathrooms, Houses and Apartments

Part Number: ST-46411
Out of stock - Ask a Question now

SALE: £498.95

You save: £413.34 (45%)
Price includes VAT
Stock Arrival Notification
Name:
Email:
-- or --
Phone:
Captcha: Anti-Spam Check
Request Stock Date
3 Day Availability
Wrong Item? Click to see More
Product description

SUMMARY

Monsoon Universal 4.0 bar Twin pumps aredesigned for installation into vented systems to pump both the hotand cold water supplies - boosting both equally. Suitable for bothpositive and negative head applications.

Monsoon Universal pumps do not require agravity flow of water to start.

Application

  • Boost hot and cold water services to the complete home,bathroom, kitchen or cloakroom.
  • Pressurise the supply in applications such as loft conversions,where outlets are higher than the water source.

Technical Specification

General
Product code46411
Guarantee5 years
WRAS approval1404701
Features
Pump typePeripheral
Mechanical sealEPDM / PTFE / Al. Oxide
Anti vibration feet
Inlet strainer(s)
Flexible hoses4
Run on timer3 sec
Dry run protection
Materials
Pump bodyBrass
ImpellerBrass
Performance
Maximum head (closed valve)4.0 bar
Performance @ 9 l/min3.5 bar
Performance @ 18 l/min2.8 bar
Maximum flow45 l/min
Maximum static inlet pressure12 metres
Maximum static outlet pressure12 metres
Maximum working pressure*600 kPa (6 bar)
Maximum ambient air temperature40 °C
Min / Max water temperature**Min 4 °C / Max 65 °C
Flow switch sensitivity (approx)0.6 l/min
Pressure vessel air pre-charge1.3 bar (18.5 psi)
Connections
Pump connectionsG ¾ male
Flexible hoses
Connections (UK model)G ¾ female x 22 mm push-in
300 mm long
Isolating valves on all hoses
Connections (ROI model)G ¾ female x 21 mm push-in
300 mm long
Isolating valves on all hoses
Connections (Export model)G ¾ female x G ¾ female
300 mm long
Motor
TypeInduction, auto-reset thermal trip
Duty ratingContinuous (S1) @ 9 l/min and above***
Electrical
Power supply/phase/frequency230 V a.c./ 1 / 50 Hz
Current (full load)3.9 Amps
Power consumption875 Watts
Fuse rating13 Amps
Power cable (pre-wired)1.5 metres

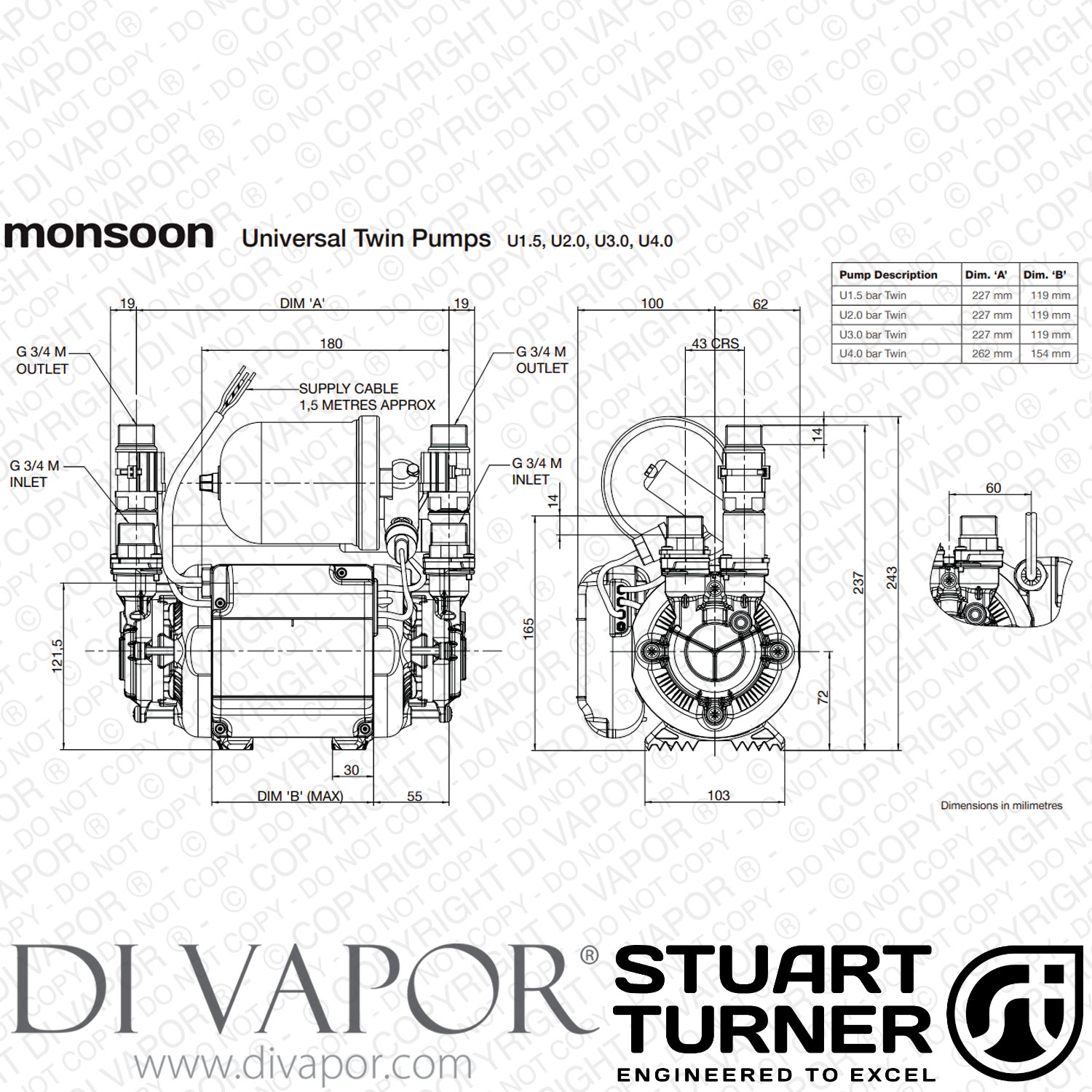

Physical
Enclosure protectionIPX4
Length300 mm
Width162 mm
Height (excluding hoses)243 mm
Weight (including fittings)11.1 Kg


* The maximum pressure that can be applied to the pump under anyinstallation conditions.

** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.

*** Both heads pumping 4.5 l/min and above.
