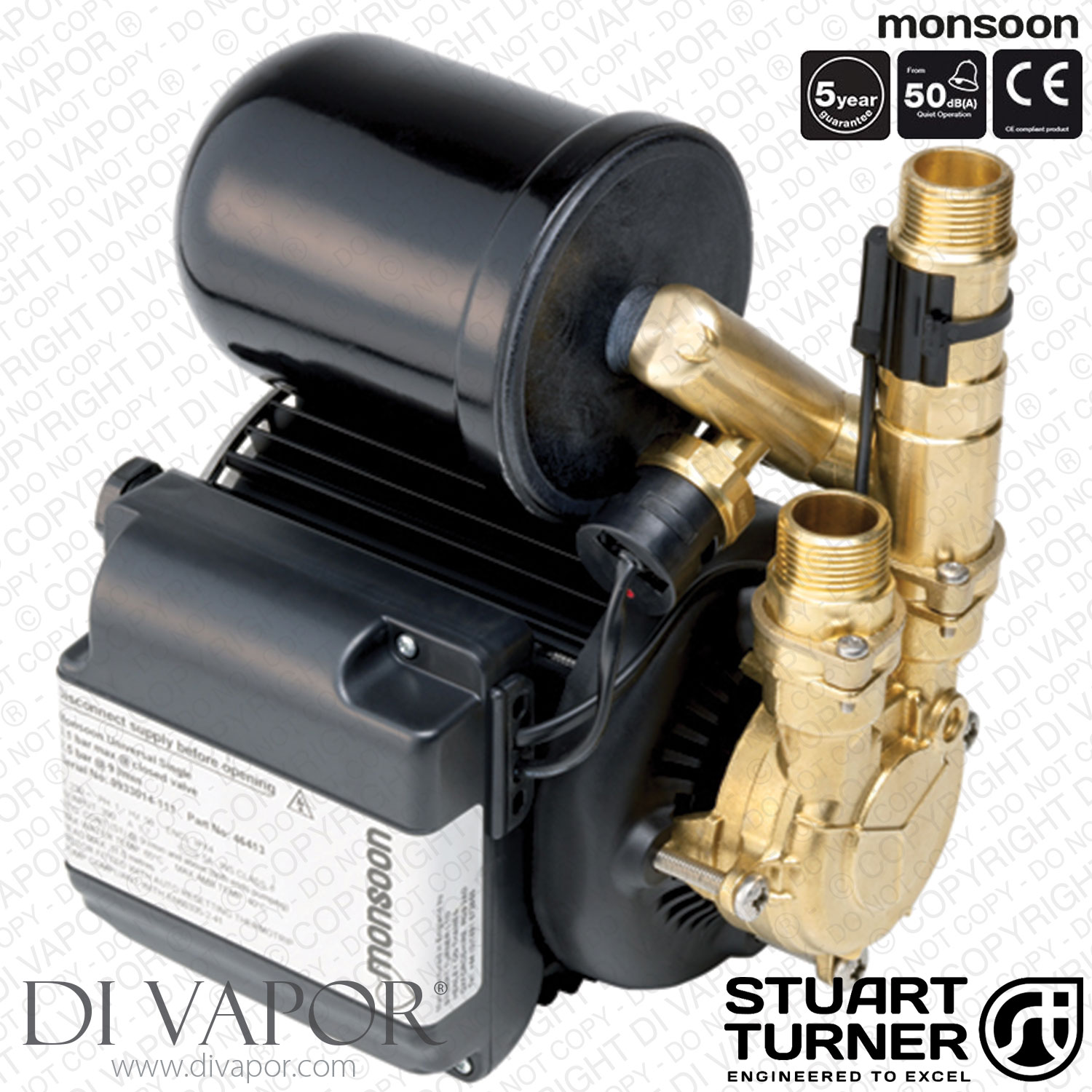

Stuart Turner 46414 Monsoon Universal 4.5 Bar Single Water Pump for Showers, Bathrooms, Houses and Apartments
SUMMARY
Monsoon Universal 4.5 bar Single pumps can beused in pairs to boost vented systems to pump hot and cold watersupplies independently, or as a single pump to boost a water supplyas required. Suitable for both positive and negative headapplications.
Monsoon Universal pumps do not require agravity flow of water to start.
Application
- Boosting hot water services to a common mixer where the coldsupply is mains fed.
- Boosting hot and cold supplies separately.
- Increasing water pressure to a combi boiler via a breaktank.
Technical Specification
| General | |
| Product code | 46414 |
| Guarantee | 5 years |
| WRAS approval | 1404701 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 2 |
| Run on timer | 3 sec |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Brass |
| Performance | |
| Maximum head (closed valve) | 4.5 bar |
| Performance @ 9 l/min | 3.5 bar |
| Performance @ 18 l/min | 1.7 bar |
| Maximum flow | 26 l/min |
| Maximum static inlet pressure | 12 metres |
| Maximum static outlet pressure | 12 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.6 l/min |
| Pressure vessel air pre-charge | 1.3 bar (18.5 psi) |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections (UK model) | G ¾ female x 22 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (ROI model) | G ¾ female x 21 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (Export model) | G ¾ female x G ¾ female 300 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 2.5 Amps |
| Power consumption | 555 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |

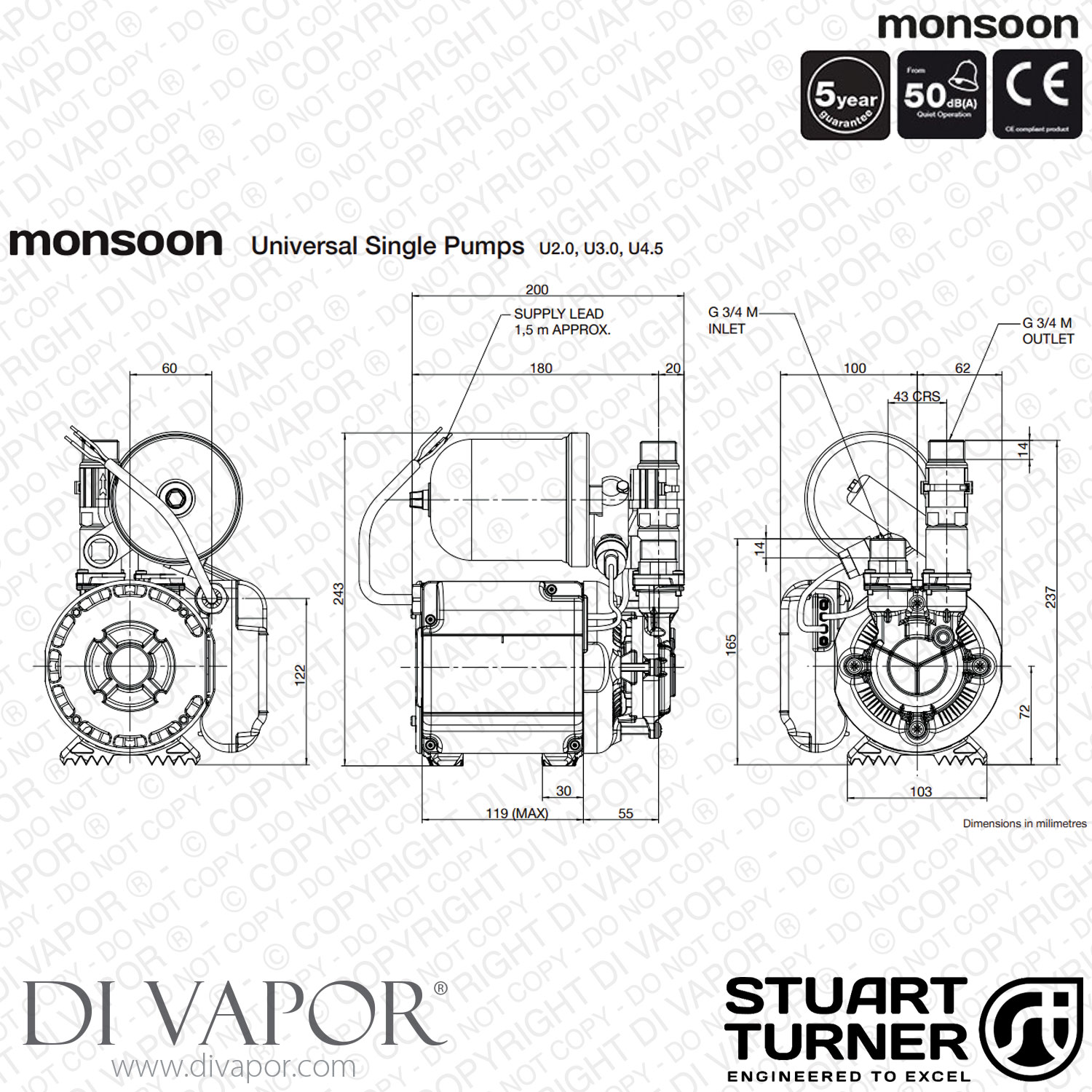

| Physical | |
| Enclosure protection | IPX4 |
| Length | 200 mm |
| Width | 162 mm |
| Height (excluding hoses) | 243 mm |
| Weight (including fittings) | 7.3 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
