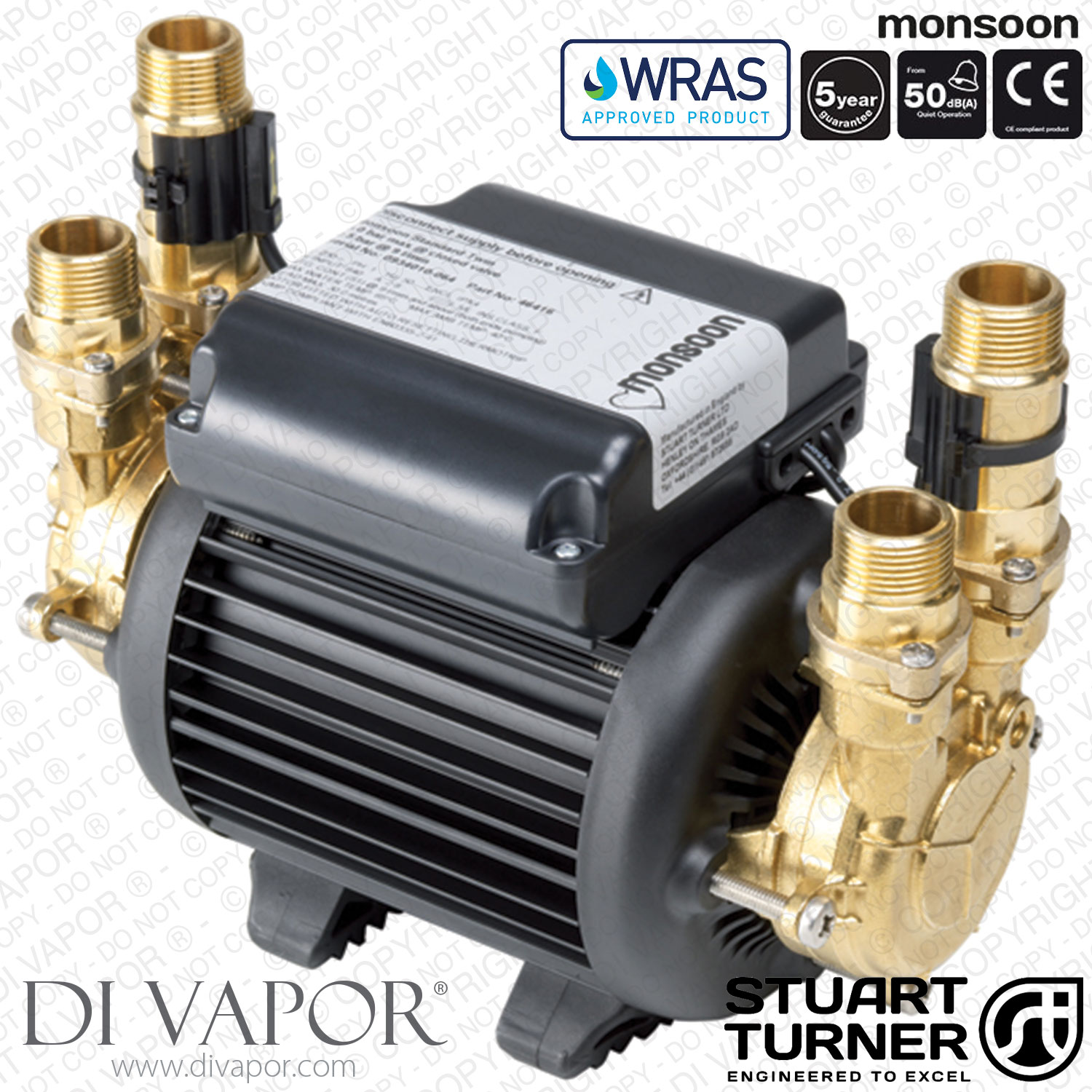

Stuart Turner 46415 Monsoon Standard 2.0 bar Twin Water Pump for Showers, Bathrooms, Houses and Apartments
SUMMARY
Monsoon Standard 2.0 bar Twin pumps aredesigned to boost the incoming hot and cold water cupply to ashower, bath, shower mixer or mixer tap. Suitable for positive headapplications only.
Suitable for domestic use, Monsoon Standardpumps are suitable for installation into open vented hot and coldwater systems.
Monsoon Standard pumps require a flow of just0.6 l/min through the outlet to start.
Application
- Boost hot and cold water services to the complete home,bathroom, kitchen or cloakroom.
- Boost hot and cold water supplies to a high performance showersystem.
Technical Specification
| General | |
| Product code | 46415 |
| Guarantee | 5 years |
| WRAS approval | 1404702 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 4 |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Brass |
| Performance | |
| Maximum head (closed valve) | 2.0 bar |
| Performance @ 9 l/min | 1.5 bar |
| Performance @ 18 l/min | 1.3 bar |
| Maximum flow | 55 l/min |
| Maximum static inlet pressure | 14 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.6 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections (UK model) | G ¾ female x 22 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (ROI model) | G ¾ female x 21 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (Export model) | G ¾ female x G ¾ female 300 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above*** |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.9 Amps |
| Power consumption | 425 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |

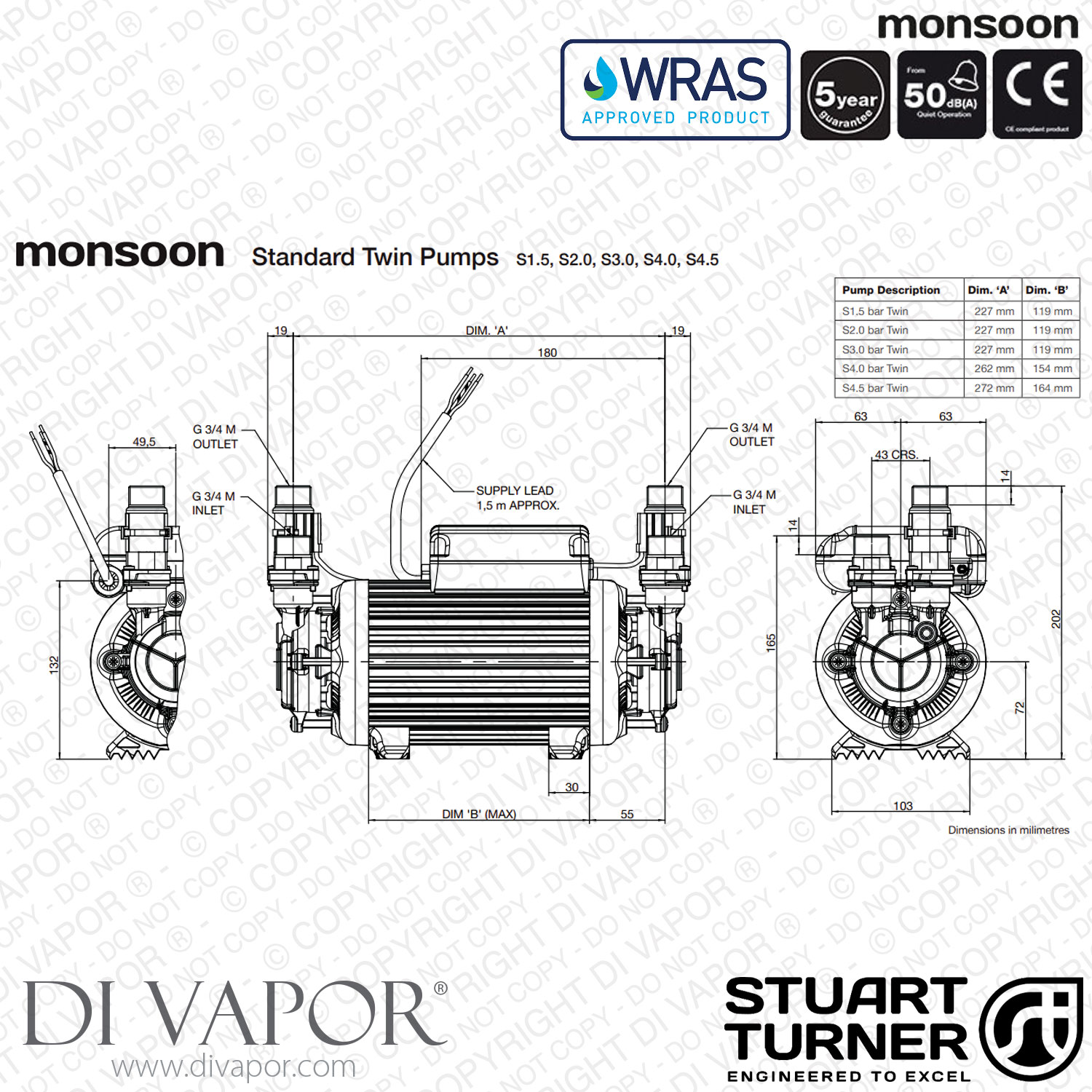

| Physical | |
| Enclosure protection | IPX4 |
| Length | 265 mm |
| Width | 126 mm |
| Height (excluding hoses) | 202 mm |
| Weight (including fittings) | 7.2 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
*** Both heads pumping 4.5 l/min and above.
