Showermate Standard 2.6 bar Single pumps aredesigned to improve water supplies to single taps or to pumpblended water from a shower mixer. Suitable for positive headapplications only.
Suitable for domestic use only, ShowermateStandard pumps are suitable for installation intoopen vented hot and cold water systems.
Showermate Standard pumps require a flow ofjust 0.8 l/min through the outlet to start.
Application
Technical Specification
General | |
Product code | 46429 |
Guarantee | 3 years |
WRAS approval | 1207070 |
Features | |
Pump type | Peripheral |
Mechanical seal | EPDM / PTFE / Al. Oxide |
Anti vibration feet | |
Flexible hoses | 2 |
Dry run protection | |
Materials | |
Pump body | Plastic |
Impeller | Plastic |
Performance | |
Maximum head (closed valve) | 2.6 bar |
Performance @ 9 l/min | 1.3 bar |
Performance @ 18 l/min | 0 bar |
Maximum flow | 18 l/min |
Maximum static inlet pressure | 13 metres |
Maximum working pressure* | 380 kPa (3.8 bar) |
Maximum ambient air temperature | 40 °C |
Min / Max water temperature** | Min 4 °C / Max 65 °C |
Flow switch sensitivity (approx) | 0.8 l/min |
Connections | |
Pump connections | G ¾ male |
Flexible hoses | |
Connections | G ¾ female x 15 mm push-in 200 mm long Isolating valves on inlet hose |
Motor | |
Type | Induction, auto-reset thermal trip |
Duty rating | Continuous (S1) @ 9 l/min and above |
Electrical | |
Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
Current (full load) | 1.1 Amps |
Power consumption | 245 Watts |
Fuse rating | 5 Amps |
Power cable (pre-wired) | 1.5 metres |

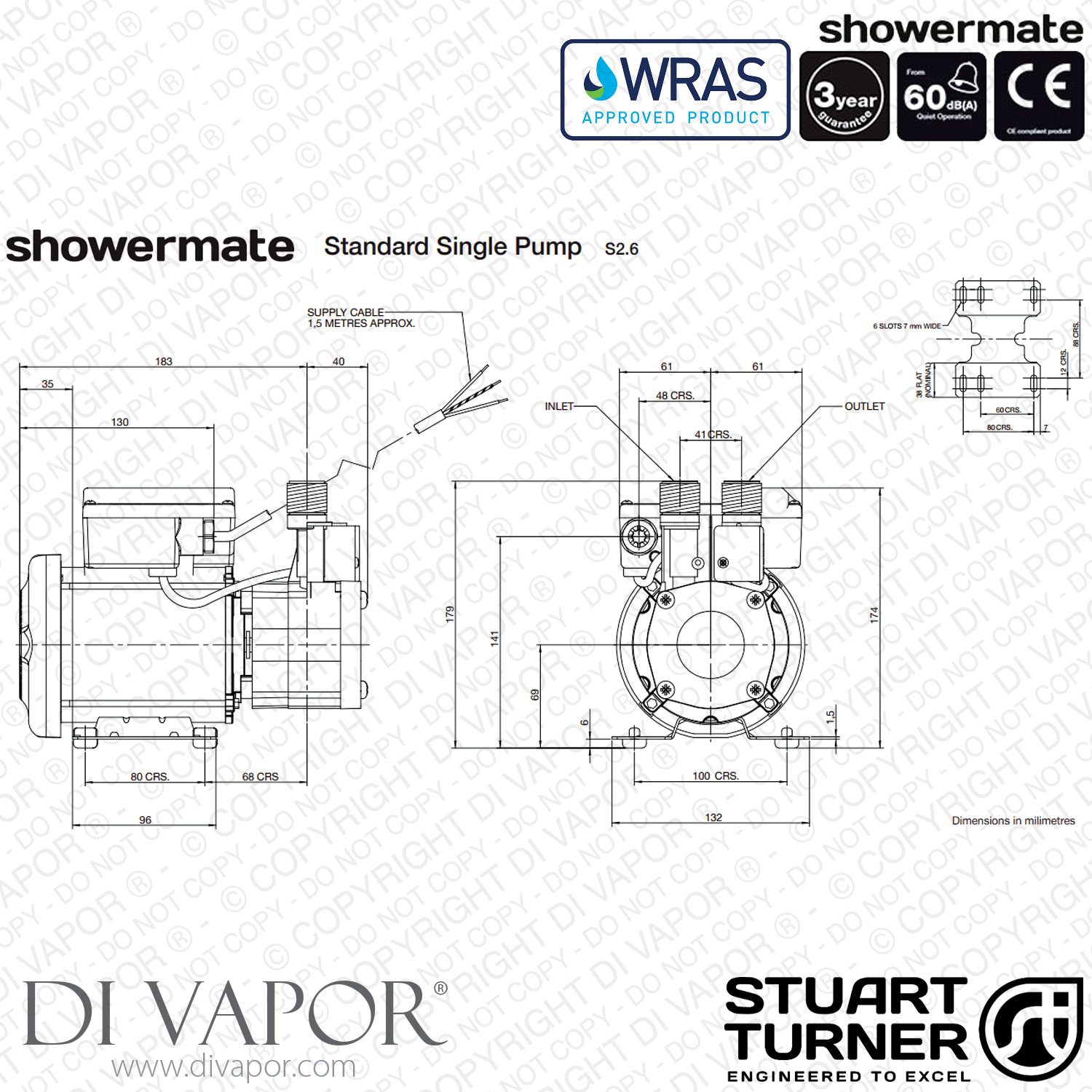

Physical | |
Enclosure protection | IP22 |
Length | 223 mm |
Width | 132 mm |
Height (excluding hoses) | 179 mm |
Weight (including fittings) | 3.9 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
