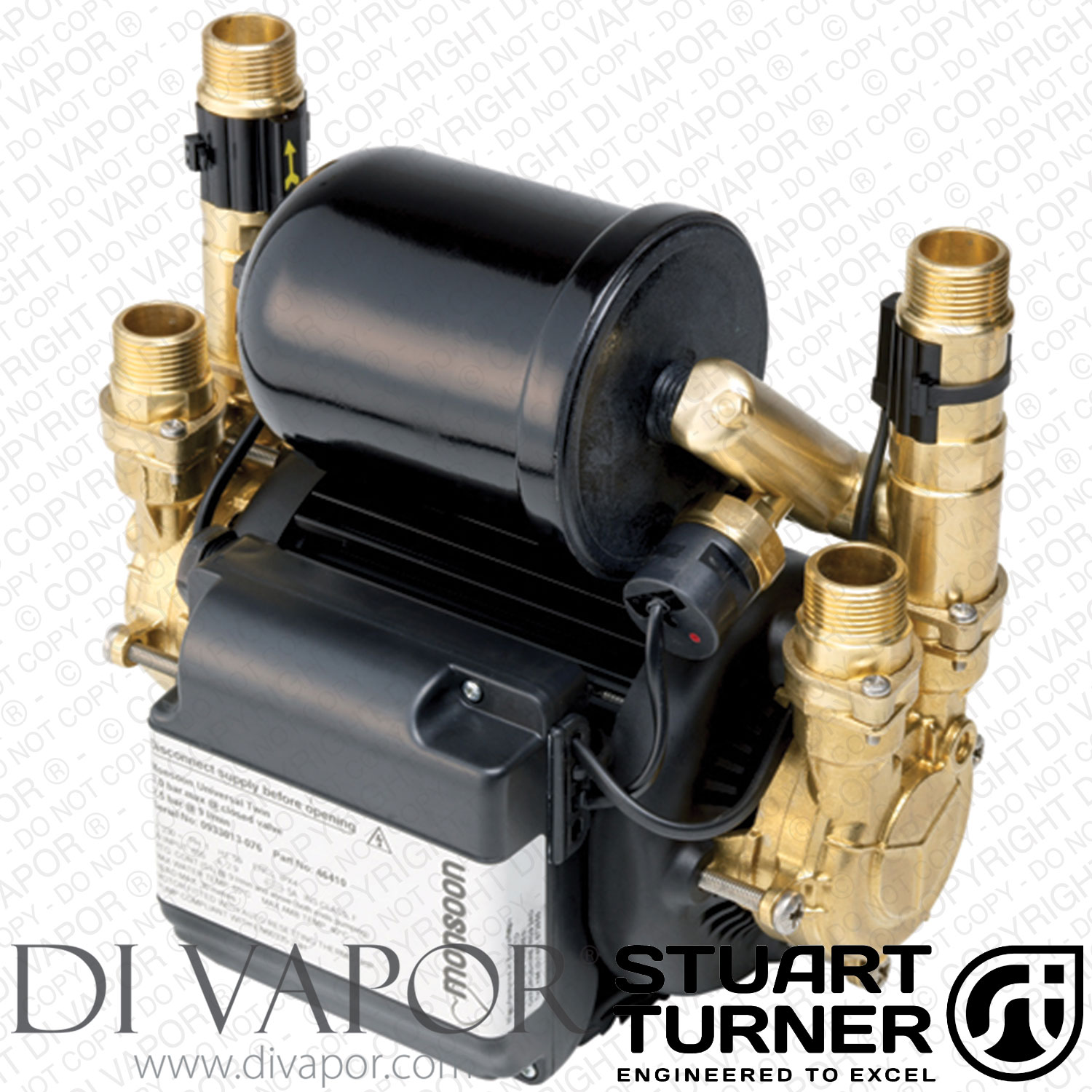

Stuart Turner 46480 Monsoon Universal 2.0 Bar Twin Water Pump for Showers, Bathrooms, Houses and Apartments
SUMMARY
Monsoon Universal 2.0 bar Twin pumps aredesigned for installation into vented systems to pump both the hotand cold water supplies - boosting both equally. Suitable for bothpositive and negative head applications.
Monsoon Universal pumps do not require agravity flow of water to start.
Application
- Boost hot and cold water services to the complete home,bathroom, kitchen or cloakroom.
- Pressurise the supply in applications such as loft conversions,where outlets are higher than the water source.
Technical Specification
| General | |
| Product code | 46480 |
| Guarantee | 5 years |
| WRAS approval | 1404701 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 4 |
| Run on timer | 3 sec |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Brass |
| Performance | |
| Maximum head (closed valve) | 2.0 bar |
| Performance @ 9 l/min | 1.5 bar |
| Performance @ 18 l/min | 1.1 bar |
| Maximum flow | 35 l/min |
| Maximum static inlet pressure | 8 metres |
| Maximum static outlet pressure | 8 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.6 l/min |
| Pressure vessel air pre-charge | 0.9 bar (13 psi) |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections (UK model) | G ¾ female x 22 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (ROI model) | G ¾ female x 21 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (Export model) | G ¾ female x G ¾ female 300 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above*** |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.9 Amps |
| Power consumption | 435 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX4 |

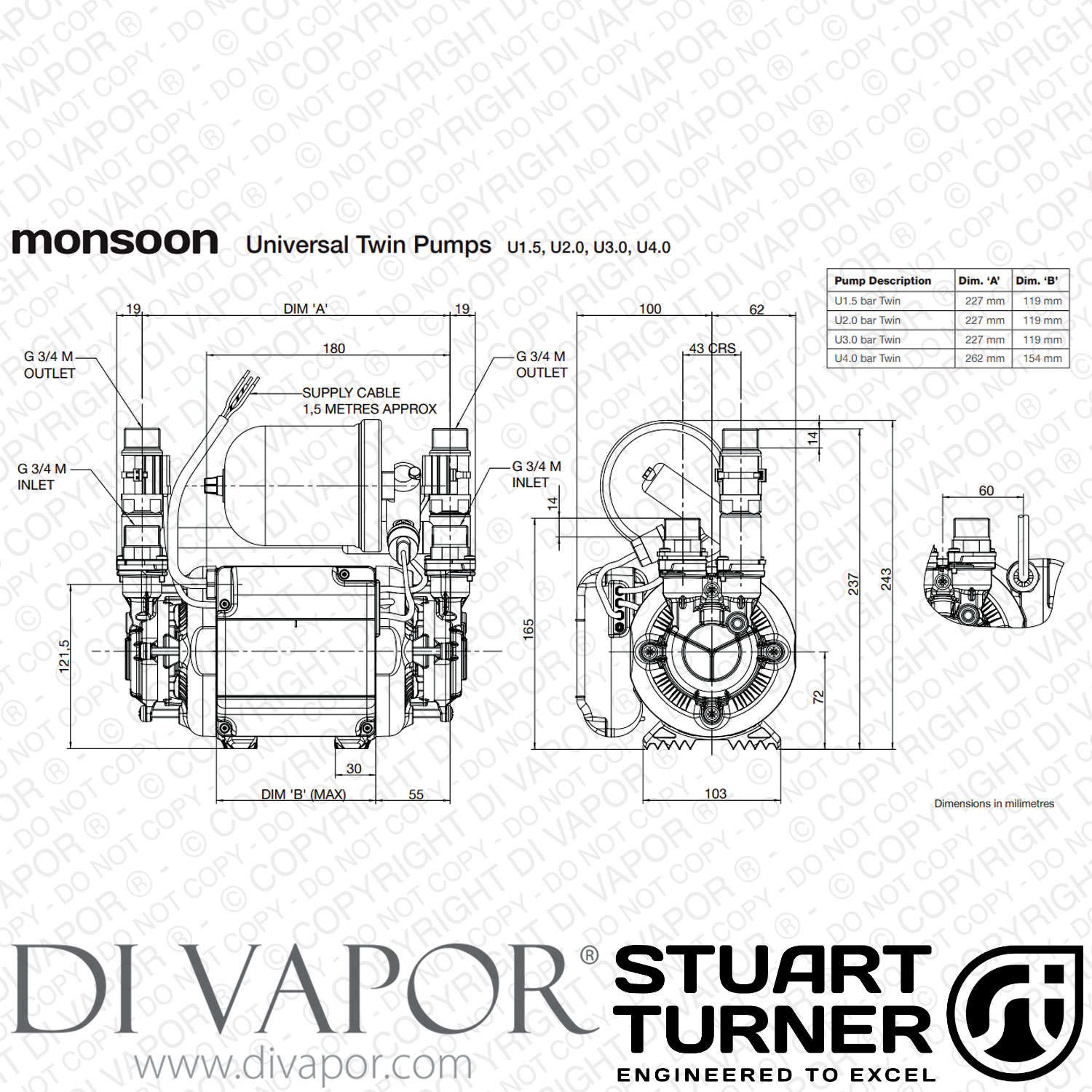

| Length | 265 mm |
| Width | 162 mm |
| Height (excluding hoses) | 243 mm |
| Weight (including fittings) | 8.8 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
*** Both heads pumping 4.5 l/min and above.
