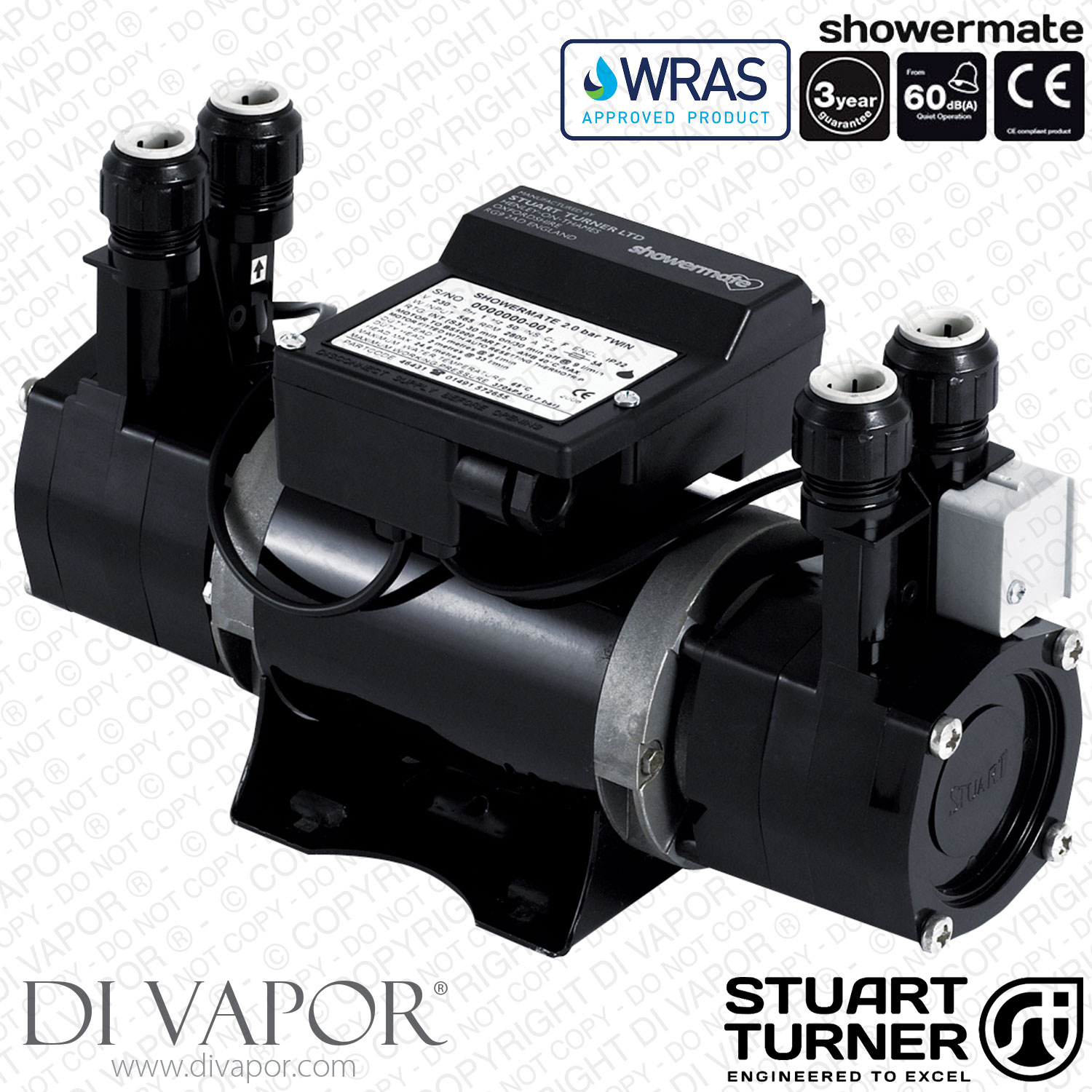

Stuart Turner 46500 Showermate Eco Standard 2.0 Bar Twin Shower Pump
SUMMARY
Showermate eco water boosting shower pumps arethe ideal solution to boosting the hot and cold water supply to asingle shower, bath, shower mixer or mixer tap, providing aninvigorating showering experience.
Designed for domestic use only, Showermate ecopumps will function under positive head conditions and are suitablefor installation into open vented hot and cold water systems.
Standard pumps require a flow of just 0.8 l/min through theoutlet to start.
Application
- Boost hot and cold water supplies equally
- Single function shower
- Bath/basin mixer tap
Technical Specification
| General | |
| Product code | 46500 |
| Guarantee | 3 years |
| WRAS approval | 1504701 |
| Features | |
| Pump type | Peripheral |
| Mechanical Seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Flexible hoses | 4 |
| Dry run protection | |
| Materials | |
| Pump body | Plastic |
| Impeller | Plastic |
| Performance | |
| Maximum head (closed valve) | 2.0 bar |
| Performance @ 9 l/min | 1.4 bar |
| Performance @ 18 l/min | 0.8 bar |
| Maximum flow | 35 l/min |
| Maximum static inlet pressure | 10 metres |
| Maximum working pressure* | 300 kPa (3 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.8 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections | G ¾ female x 15 mm push-in 200 mm long Isolating valves on inlet hoses |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Int (S3) 30 mins on / 30 mins off @ 9 l/min |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.8 Amps |
| Power consumption | 420 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IP22 |

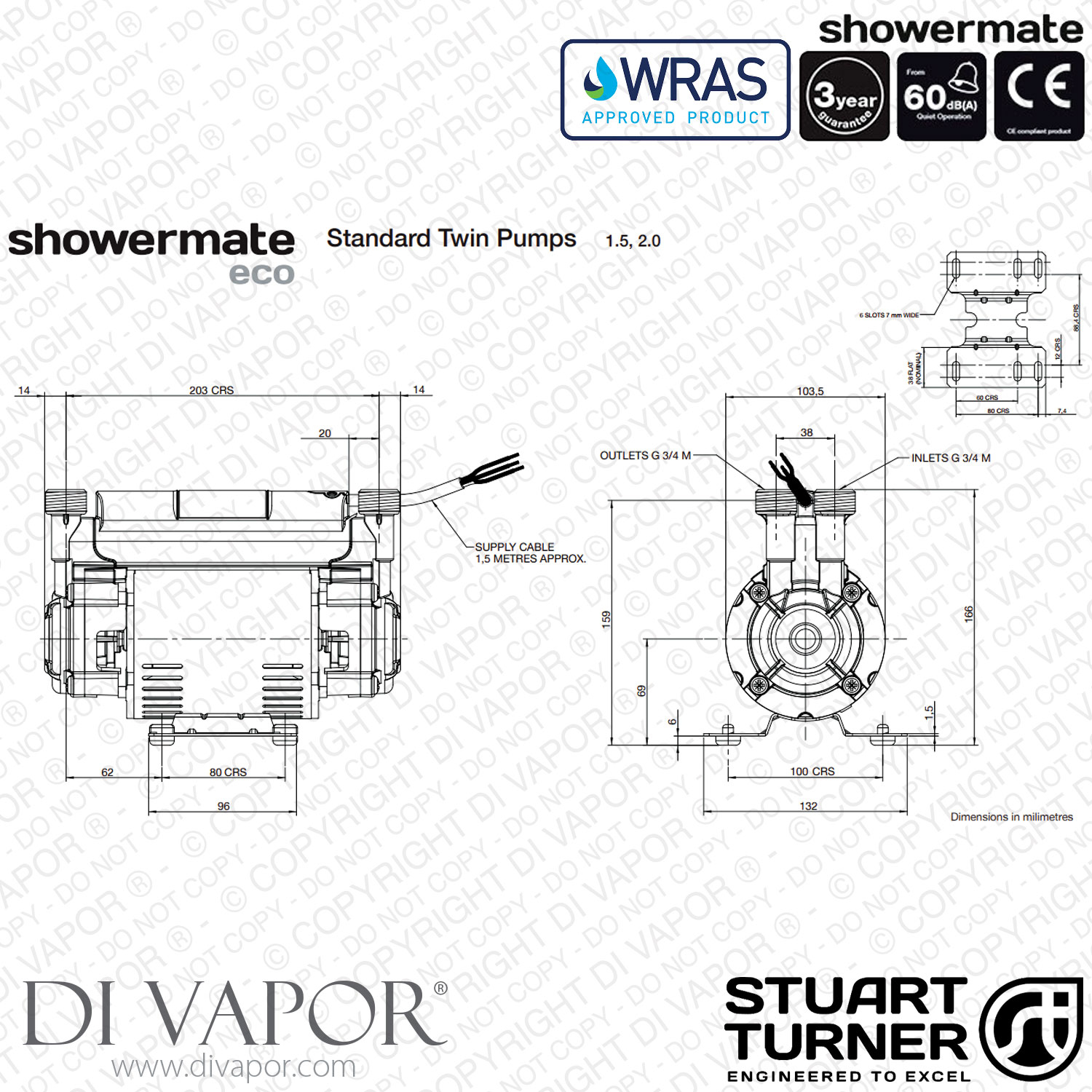

| Length | 231 mm |
| Width | 132 mm |
| Height (excluding hoses) | 166 mm |
| Weight (including fittings) | 4.3 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
