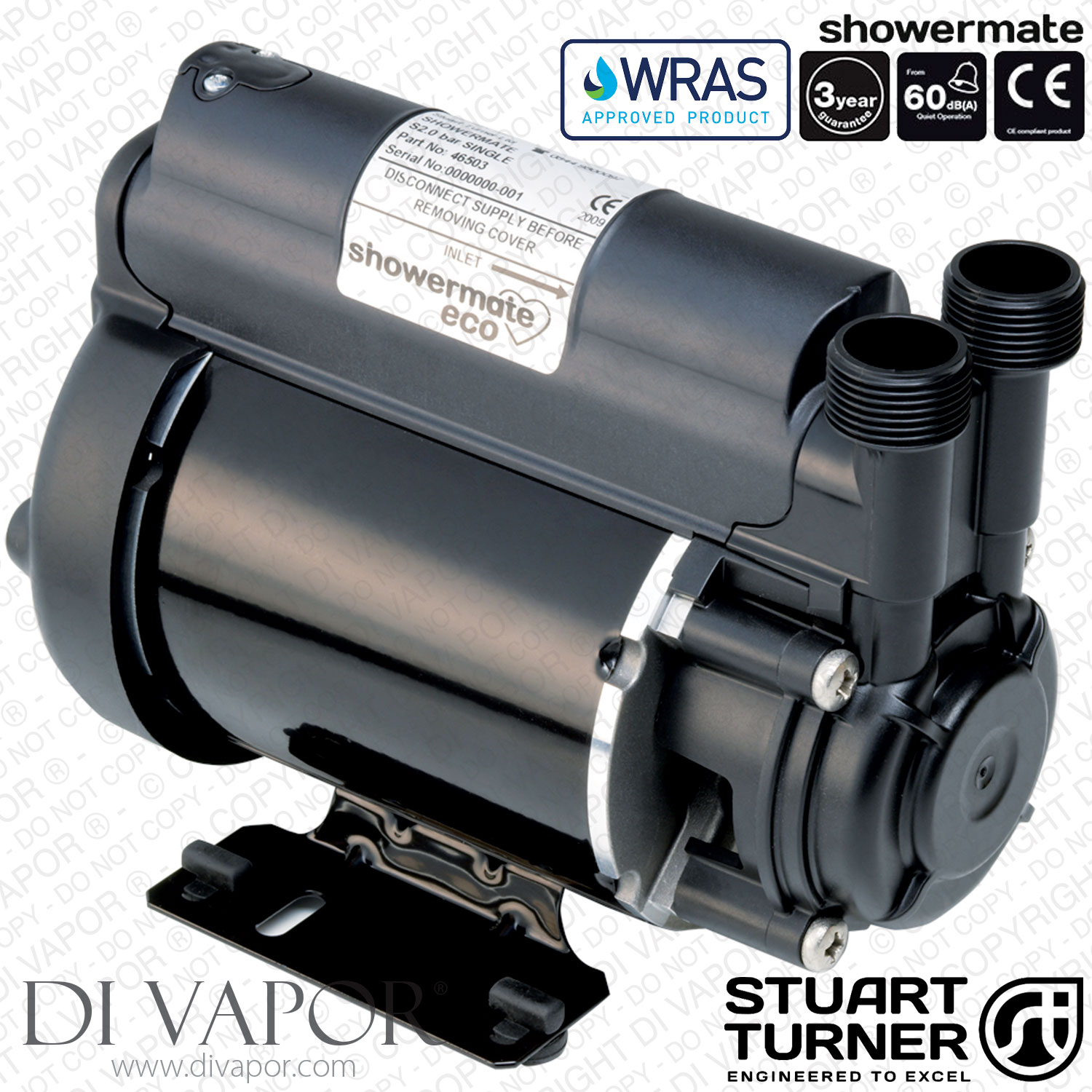

Stuart Turner 46503 Showermate eco Standard 2.0 Bar Single Shower Pump
SUMMARY
Showermate eco water boosting shower pumps arethe ideal solution to boosting the performance of a single showeror outlet, providing an invigorating showering experience.
Designed for domestic use only, Showermate ecopumps will function under positive head conditions and are suitablefor installation into open vented hot and cold water systems.
Standard pumps require a flow of just 0.8 l/min through theoutlet to start.
Application
- Boost the water pressure to either a hot or cold singletap
- Boost the blended water between the shower valve and the showerhead
- Suitable for positive head applications only
Technical Specification
| General | |
| Product code | 46503 |
| Guarantee | 3 years |
| WRAS approval | 1504701 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Flexible hoses | 2 |
| Dry run protection | |
| Materials | |
| Pump body | Plastic |
| Impeller | Plastic |
| Performance | |
| Maximum head (closed valve) | 2.0 bar |
| Performance @ 9 l/min | 1.0 bar |
| Performance @ 18 l/min | 0.3 bar |
| Maximum flow | 17 l/min |
| Maximum static inlet pressure | 10 metres |
| Maximum working pressure* | 300 kPa (3 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.8 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections | G ¾ female x 15 mm push-in 200 mm long Isolating valves on inlet hose |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Int (S3) 30 mins on / 30 mins off @ 9 l/min |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.0 Amps |
| Power consumption | 215 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IP22 |
| Length | 208 mm |
| Width | 132 mm |
| Height (excluding hoses) | 166 mm |
| Weight (including fittings) | 3.3 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
