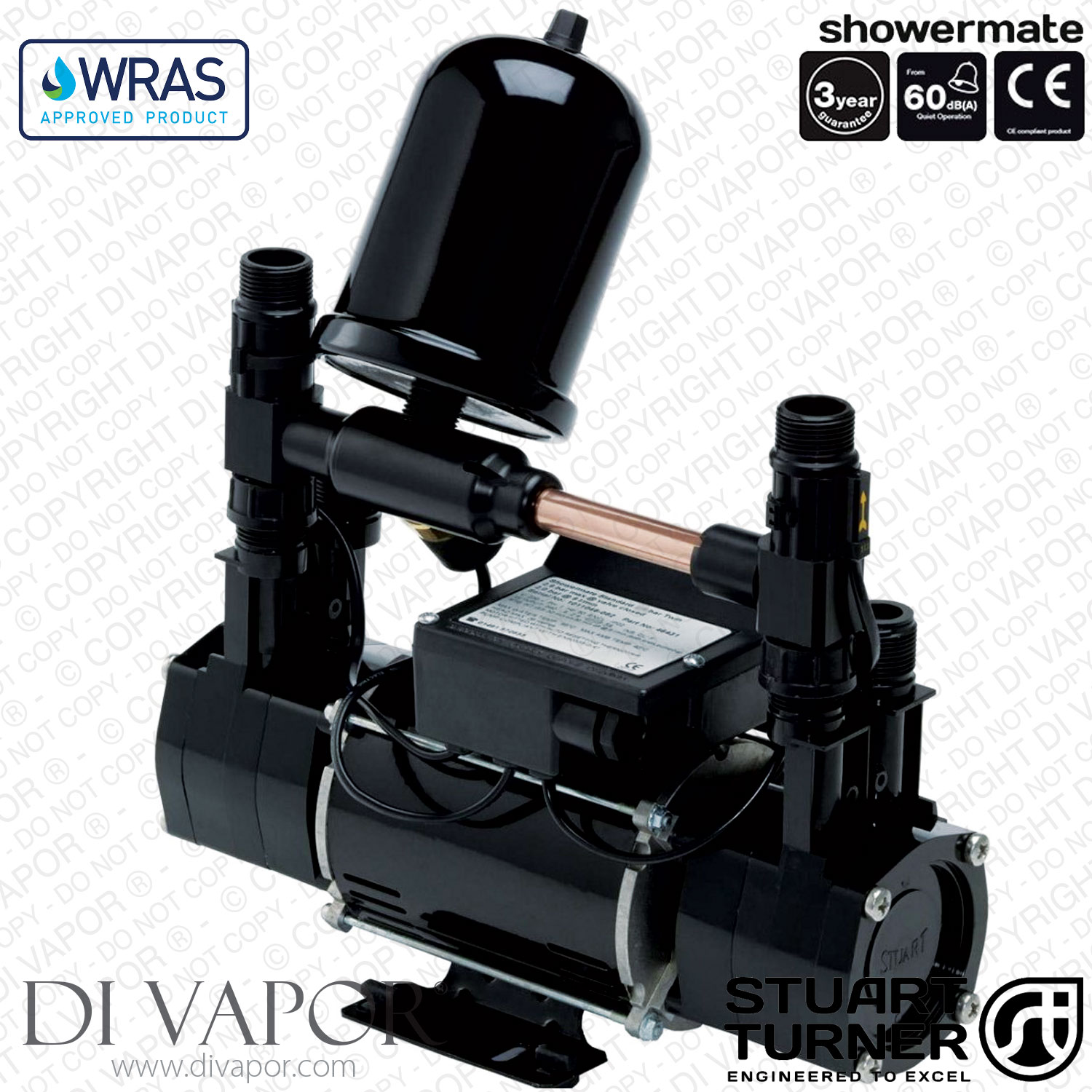

Stuart Turner 46532 Showermate Universal 1.8 bar Twin Shower Pump
SUMMARY
Showermate Universal Twin pumps are designed toboost the incoming hot and cold water supply to a shower, bath,shower mixer or mixer tap. Suitable for both positive andnegative head applications.
Suitable for domestic use only, ShowermateUniversal pumps are suitable for installation into openvented hot and cold water systems.
Universal pumps do not require a gravity flowof water to start.
Application
- Boost hot and cold water supplies equally
- Suitable for single or multiple (up to 4) outlets within abathroom subject to correct specification and pump sizing
Technical Specification
| General | |
| Product code | 46532 |
| Guarantee | 3 years |
| WRAS approval | 1212078 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE/ Al. Oxide |
| Anti vibration feet | |
| Flexible hoses | 4 |
| Run on timer | 3 sec |
| Dry run protection | |
| Materials | |
| Pump body | Plastic |
| Impeller | Plastic |
| Performance | |
| Maximum head (closed valve) | 1.8 bar |
| Performance @ 9 l/min | 1.4 bar |
| Performance @ 18 l/min | 0.8 bar |
| Maximum flow | 33 l/min |
| Maximum static inlet pressure | 6 metres |
| Maximum static outlet pressure | 6 metres |
| Maximum working pressure* | 380 kPa (3.8 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.8 l/min |
| Pressure vessel air pre-charge | 1.5 bar (21.75 psi) |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections | G ¾ female x 15 mm push-in 200 mm long Isolating valves on inlet hoses |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above*** |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 1.9 Amps |
| Power consumption | 440 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IP22 |

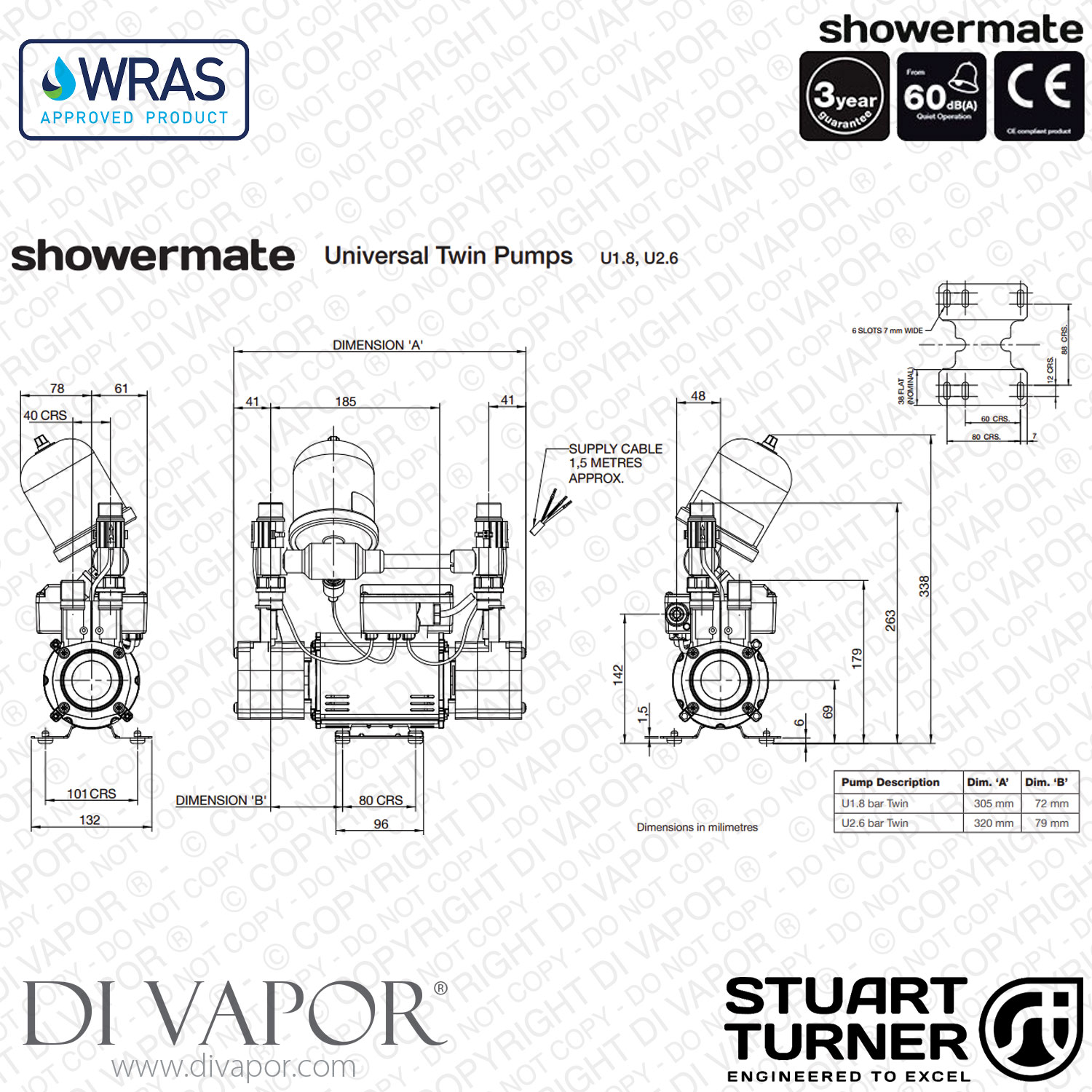

| Length | 305 mm |
| Width | 139 mm |
| Height (excluding hoses) | 338 mm |
| Weight (including fittings) | 5.6 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
*** Both heads pumping 4.5 l/min and above.
