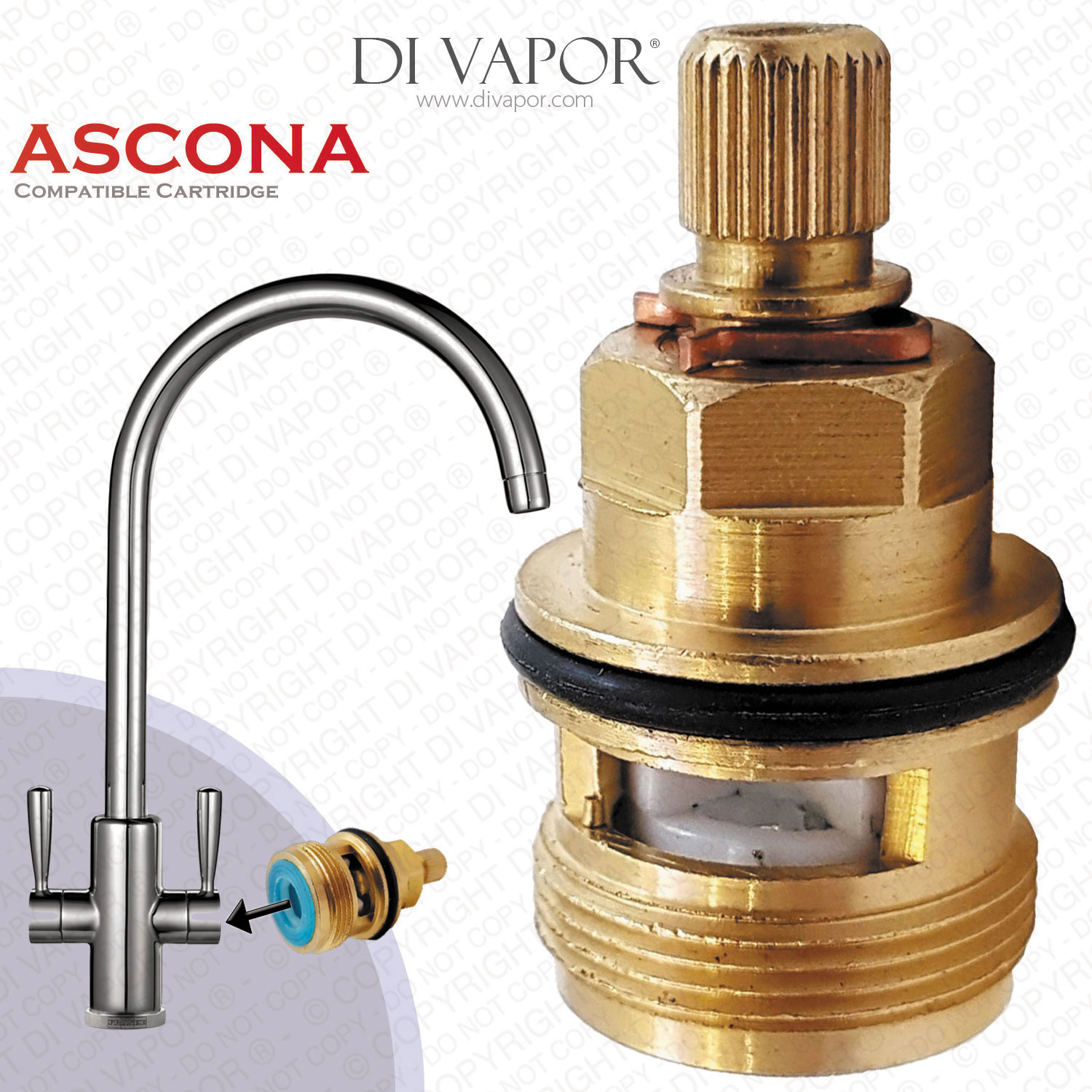

Franke Ascona 3794R-C Tap Valve Cartridge Spare - Cold Side (133.0358.055) - SP3308 Compatible Cartridge (1150158976)

Franke Ascona 3794R-C Tap Valve Cartridge Measurements and Other Information

Measurements:
Total length (from top to bottom of cartridge): 39.2mm (3.92cm)
Diameter at widest part: 22mm (2.2cm)
Diameter of spline: 7.8mm
Spline teeth count: 28

Other information:
Bottom seal colour: Blue (Cold)
Close and open direction: Clockwise close (Anti-clockwise open)
Hot valve compatible cartridge: FR-AS02 (Please visit the page for the guide to replacing the cartridge.)
Original spare part number: 3794R, SP3308, and 133.0358.055

Franke Ascona 3794R Cartridge Identification Guide

This tap valve cartridge is for the Franke Ascona. It also fits in other taps. These are the details to help you determine if the Franke Ascona 3794R compatible tap valve cartridge is the right cartridge for your tap.

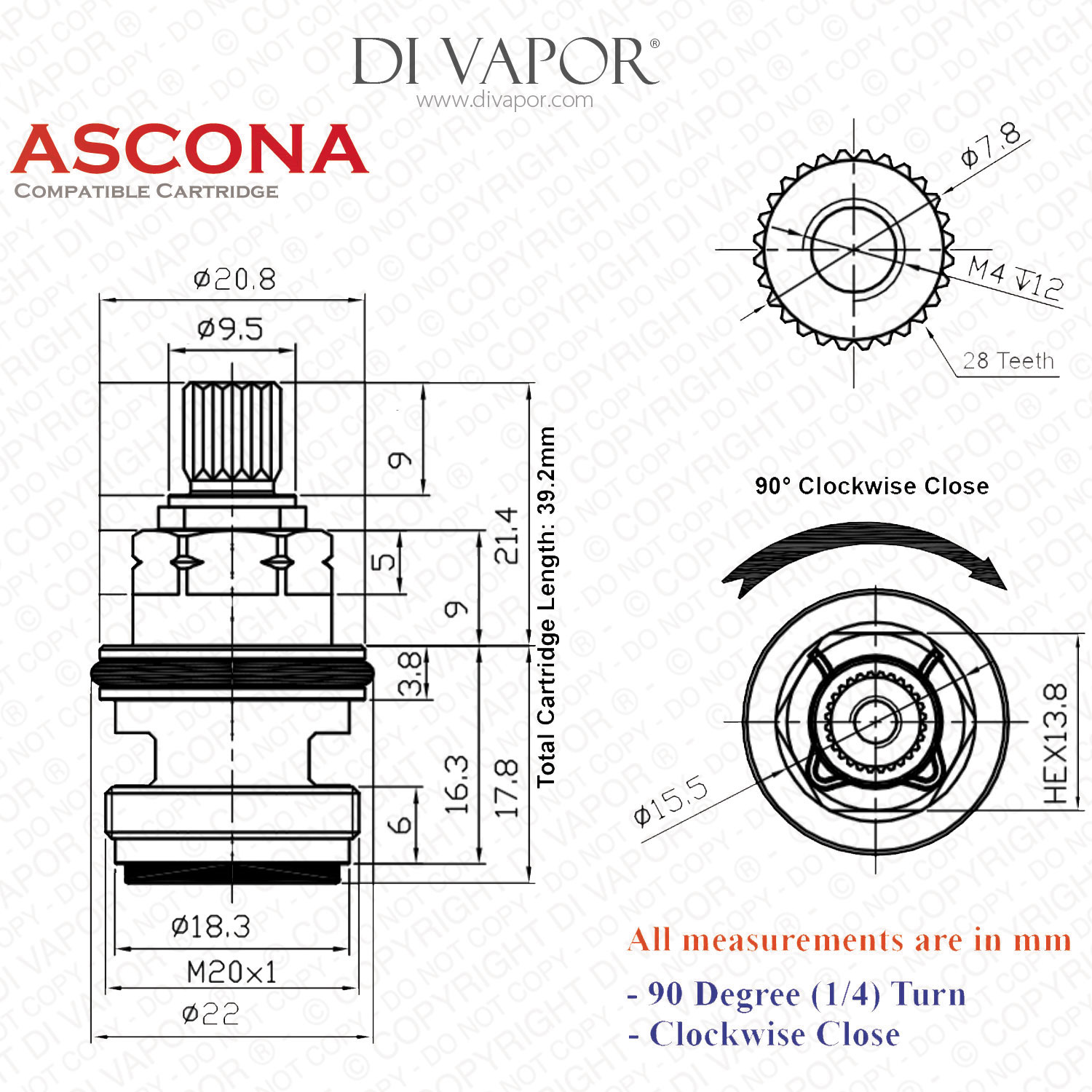

1. Determine the measurements of the cartridge you have. You can use a ruler or a measuring tape to do this. Then, you can refer to the measurements stated in the first section and the second image in the gallery for the illustration of the measurements of the Franke Ascona 3794R replacement cartridge.

2. Count each spline of the cartridge you have. The spline is the peaks and grooves located at the top part of the tap cartridge. This mechanical implement on the cartridge mates with the tap handle’s spline. It serves as a rotational and anti-rotational tool that makes it possible to open and close the tap. That said, it is important that the spline count of this Franke Ascona 3794R tap valve cartridge matches with the cartridge you have.

You can mark one spline peak as the beginning point using a pen and count on from there.

3. Do you need the hot or cold valve cartridge? The hot and cold valves close and open in different directions. The cold side opens in an anti-clockwise turn and closes clockwise. The hot side is the opposite. Therefore, the hot and cold Franke Ascona replacement cartridge cannot be interchanged.

This spare part is the cold compatible tap valve cartridge for Franke Ascona taps.

4. If you are still unsure if this is the cartridge you need or if you have further questions, please contact us via our spare part identifier. Our friendly in-house spares experts will gladly respond to you in the shortest possible time.


Is this tap spare not a match with the cartridge you need to replace?
– We have a variety of tap cartridge spares for:
+ Franke,
+ Carron Phoenix,
+ Blanco,
+ and Abode.
