SUMMARY

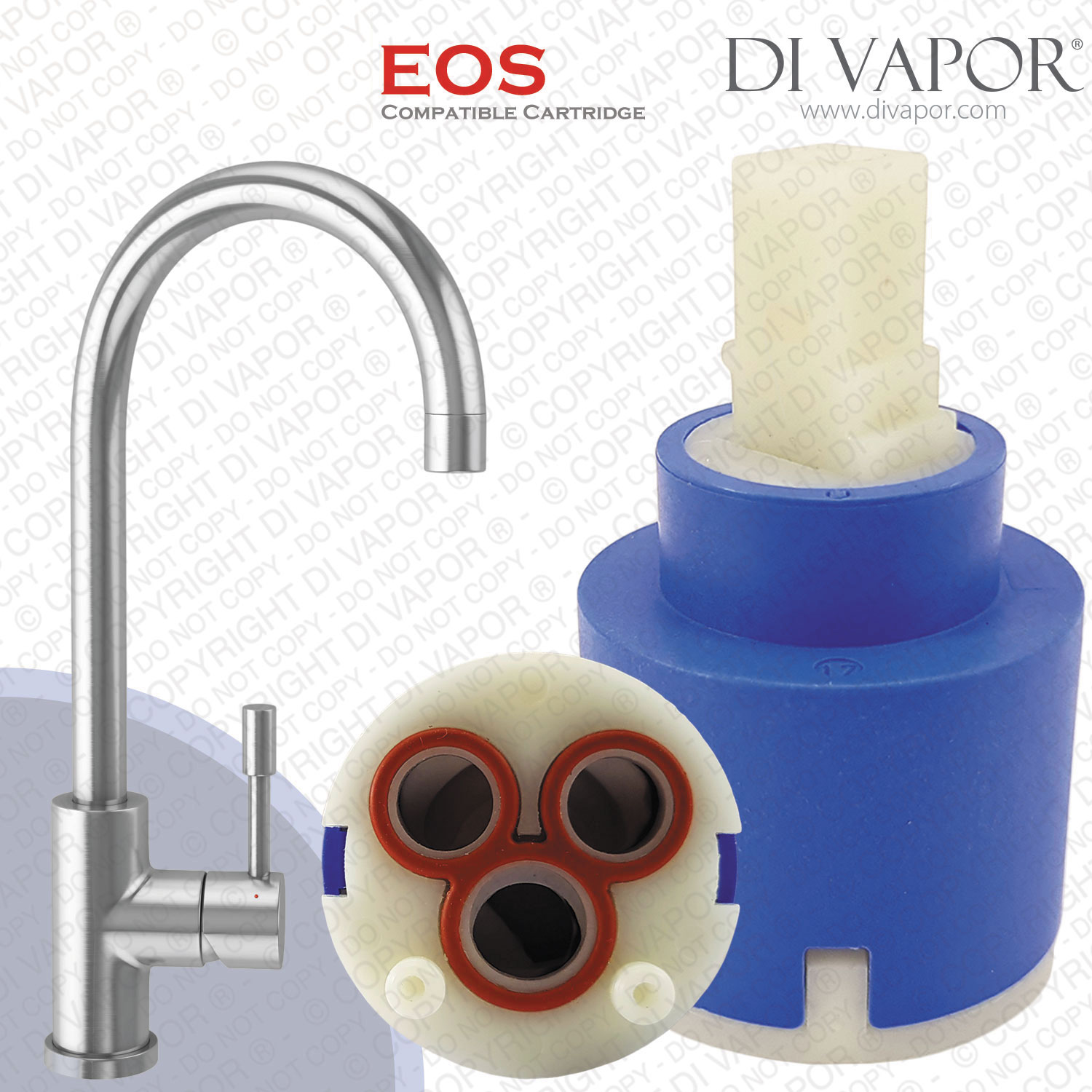

Franke EOS 1202R / SP1202 /4010421 35mm Single Lever Kitchen Tap Cartridge Replacement 133.0056.079 Compatible Valve Cartridge used in 115.0156.202, 4010513 from February 2009 - March 2019.

Franke EOS Cartridge Replacement General Information

Cartridge Compatibility: Franke EOS
Spare Part: Kitchen Tap Cartridge
Installation: Push-Fit
Material: Ceramic
Number of External O-Rings: 1
Colour: Blue

Technical Details

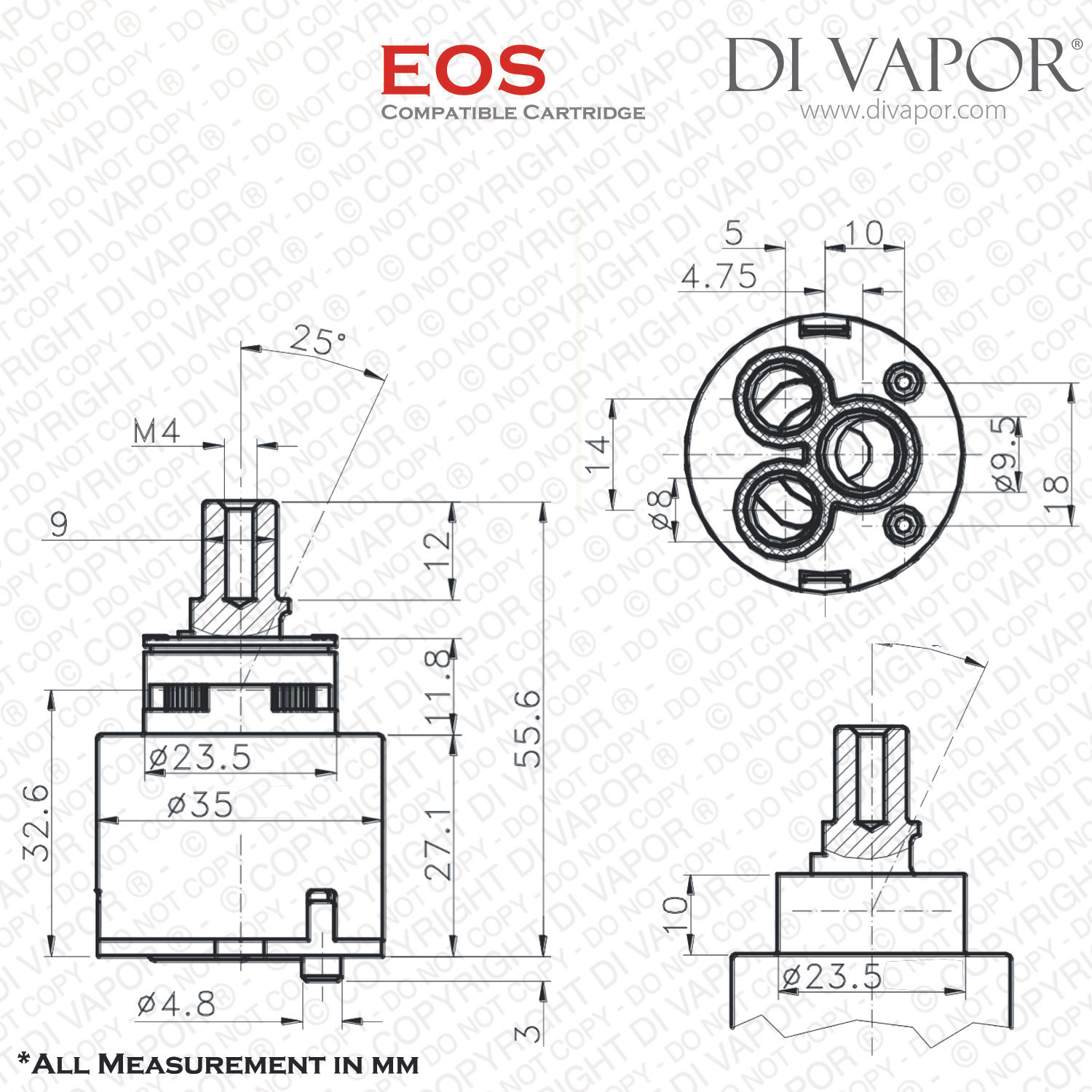

Please see the above second image for complete information on the measurements of this Franke EOS tap valve replacement single lever cartridge spare part.

Cartridge Measurements (Approximate):
Total Length (including locating pins): 55.6mm
Barrel Diameter: 35mm
Distance Between Locating Pins at Bottom (Centre to Centre): 18mm

How to Replace the Franke EOS Kitchen Tap Cartridge

Hot and cold water supplies must be turned off before starting.
– Remove the handle prong.
– Remove the handle cap and the grub screw.
– Remove the stainless steel protective shroud. This can be unscrewed by hand. Use rubber gloves for extra grip if it is too tight.
– Remove the retaining nut using an adjustable spanner.

– Pull the faulty cartridge out. If it remains stuck in the tap valve, use a socket wrench or WD40 to loosen the hardened limescale.
– Clear the inside of the tap unit of any visible dirt.
– Layer a small amount of silicone grease on the bottom O-ring of the new Franke EOS tap valve cartridge replacement spare part.
– As you install the cartridge, make sure the locating pins are inserted in its respective holes found in the tap valve.

– Return the retaining nut and tighten with a spanner to lock the ceramic disc cartridge in.
– Return the stainless steel protective shroud.
– Return the handle cap and secure with the grub screw.
– Return the handle prong.
