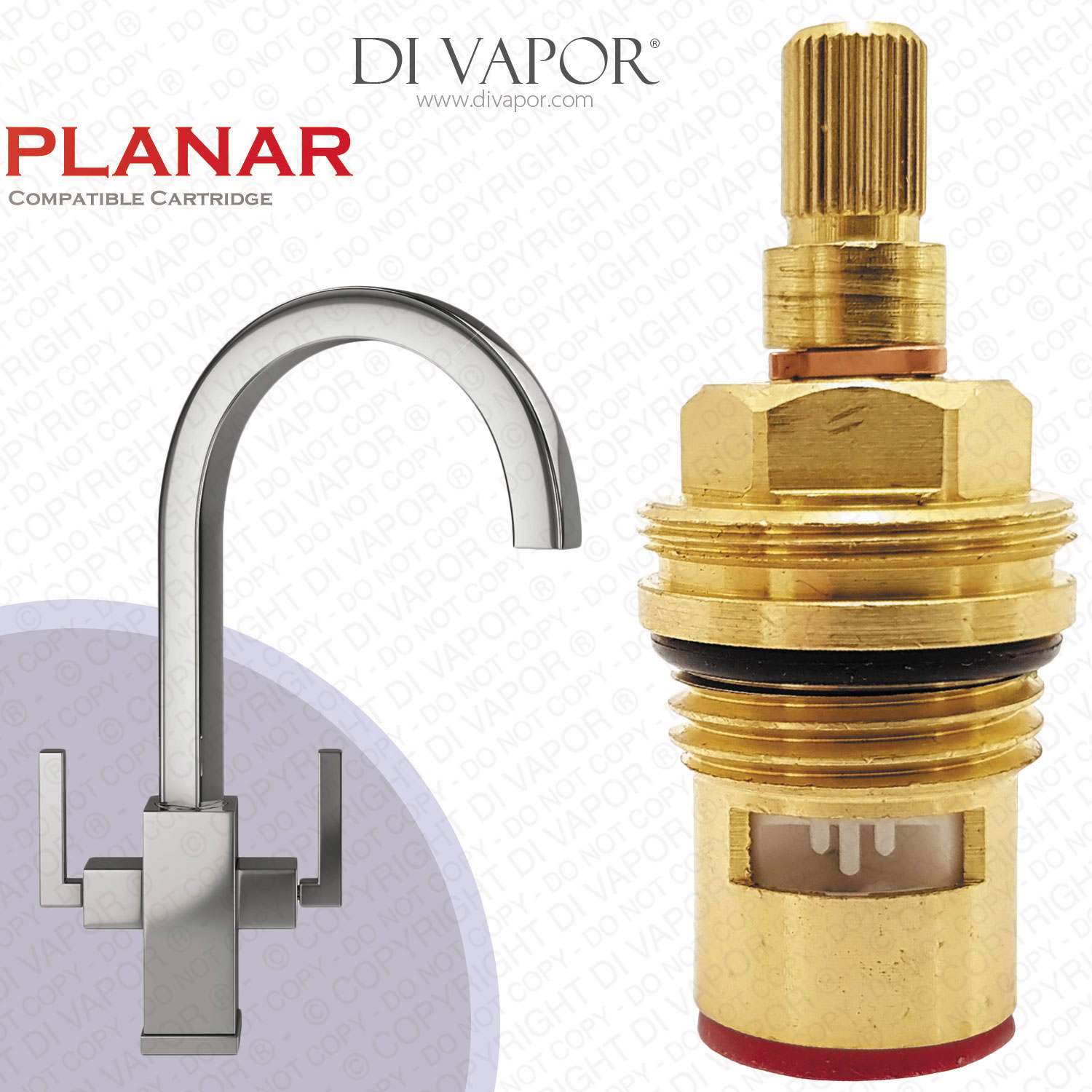

Franke Planar 2307R-H Hot Tap Valve - 1/2" Gland Assy - 3547R-H / 133.0438.154 Compatible Kitchen Tap Cartridge

SUMMARY

Franke Planar 2307R-H Hot Tap Valve - 1/2 Inch Gland Assy - 3547R-H / 133.0438.154 Compatible Kitchen Tap Cartridge manufactured from the year 2005 onwards.

Cartridge Compatibility: Franke Planar
Spare Part: Franke Planar Tap Spare Cartridge (Hot Side)
FUN#: 133.0438.154
Installation: Screw In
Material: Brass with Ceramic Core
Bottom Seal Colour: Red

The 2307R-H / 3547R-H Franke Planar tap spare Hot Side compatible cartridge can be dispatched on the same working day when ordered before 3:00 PM.


Technical Information: Franke Tap Spare 2307R-H / 3547R-H Compatible Cartridge
Both the 2307R-H and the 3547R-H are compatible with the hot side of a Franke Planar kitchen tap. (The difference between the two cartridges will be stated below.) It opens with a clockwise ¼ turn and closes anticlockwise. The diameter of the spline is 7.8mm and has 28 teeth.

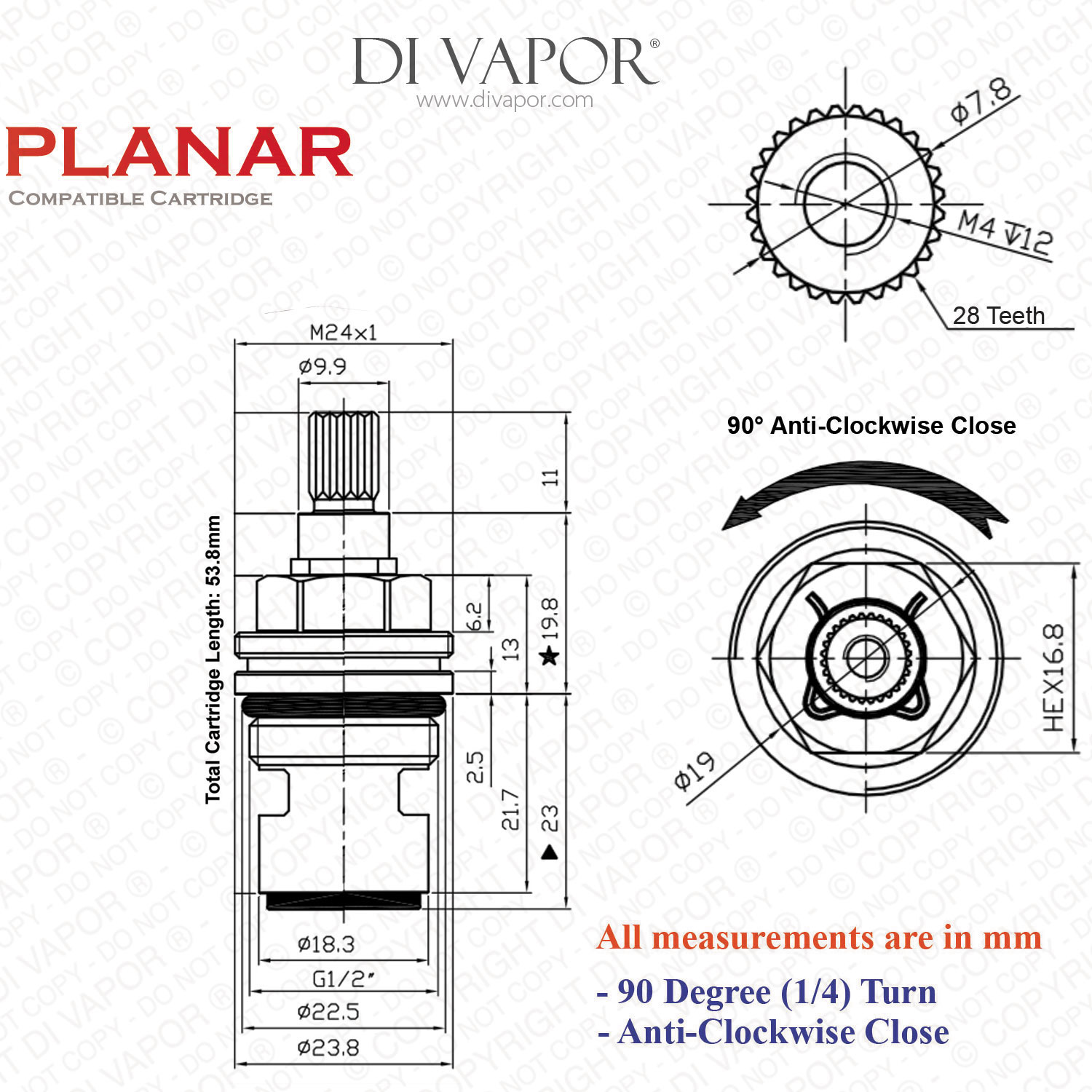

Cartridge Measurements:
Total Length (including bottom seal): 53.8mm
Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 28 Teeth
Bottom Seal Colour: Red (for Hot Side)
Close Direction: Anticlockwise Close


Need the Franke Planar Cold Cartridge?
- Franke Planar 2307R-C Cold Tap Valve is the cold side tap insert.


Franke Planar Tap Spare Modifications
The kitchen tap model of the Planar made by kitchen hardware manufacturer, Franke, underwent two modifications. The first version was produced until February 2008 and the latest was out in the market after February 2008. To meet the internal specifications made by the change, the cartridge utilized by the tap has three versions.

- Cartridge 2307R is suitable for new Planar tap. Its splines count to 28. The bottom seal of this cartridge is slightly bigger than the also new 3547R and it is designed with two threads.

- 3547R is another cartridge version compatible with the Planar. The spline is equipped with 28 teeth. It has a slightly smaller bottom seal than the 2307R and it is made with a single thread.

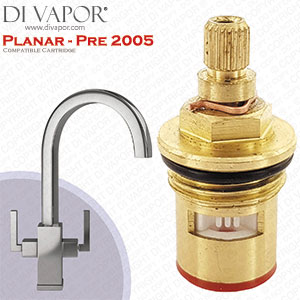

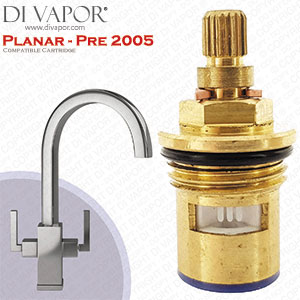

- 3549R is the earliest cartridge that fits the first version (pre-February 2008) of the Planar. It has a 20 teeth spline.

Make sure you buy the correct Franke Planar tap spare. When in doubt, you can always contact us. We are here to assist you so you can fix your tap right away.


Identifying the Right Tap Cartridge for the Franke Planar
Determining the correct Franke Planar tap spare part is important to prevent the hassle of ordering the wrong one. To be sure, one can pull the cartridge out of the existing tap in question and check for the code identifier in the cartridge or photograph it and ask a spare part provider.

Removing the cartridge from the tap valve entails taking the handle off by unscrewing it. To remove the cube-like part under the handle, locate the two grub screws beneath it and use an Allen key to loosen till the piece can slide out. With the help of a small spanner, unscrew the cartridge out.
