SUMMARY

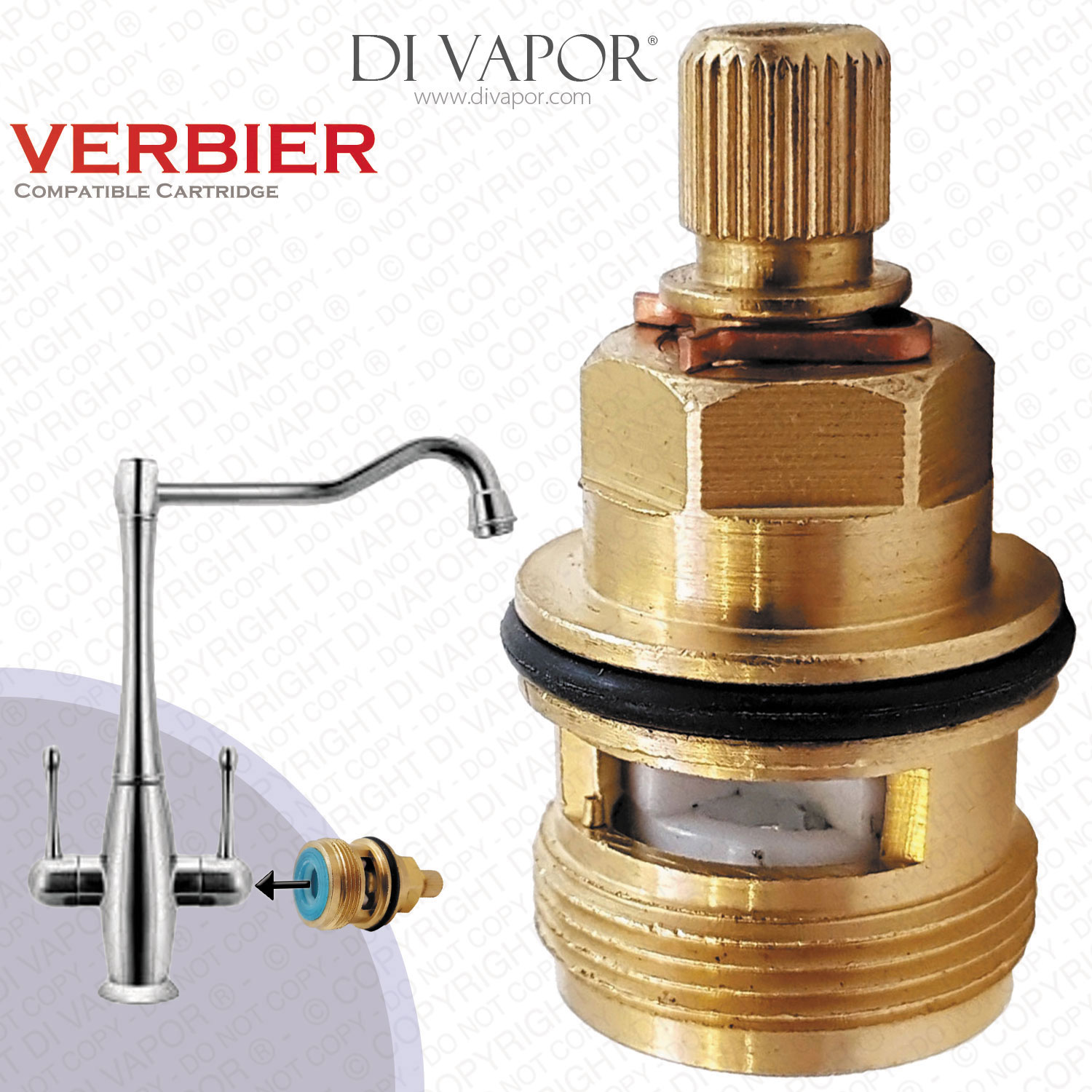

Franke Verbier SP3794-C / 3308R-C Cold Tap Valve Cartridge - 133.0358.055 / 133.0150.219 Compatible Kitchen Tap Cartridge used in Franke Verbier 115.0250.640 kitchen taps from March 2012 until March 2014.

Franke Verbier Tap Spare Cartridge Details and Measurements

Details:
Cartridge Compatibility: Franke Verbier
Spare Part: Tap Cartridge – Cold
Installation: Screw-Fit
Material: Brass with Ceramic Core
Number of External O-Rings: 1
Original Part Number: SP3794-C, 3308R-C, 133.0358.055, and 133.0150.219

This is the Franke tap spare for the Franke swivel spout Verbier cold tap valve produced from 2012 to early 2014.

Please go to this page to see the hot side Verbier replacement cartridge.

Technical Specifications: Franke Verbier Tap Cartridge Replacement SP3794-C / 3308R-C Compatible

The cold side Franke Verbier tap cartridge spare part closes with a quarter turn, anti-clockwise direction. It has a 7.8-millimeter diameter and 28 teeth. For more measurement information, please check the second image in the gallery above.

Cartridge Measurements (Approximate):
Total Length (including bottom seal): 39.2mm
Diameter at Widest Point: 22mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 28
Bottom Seal Colour: Blue (for Cold Side)
Open Direction: Anti-clockwise 1/4 Turn
Close Direction: Clockwise 1/4 Turn

You can drop us a message if you need further details in figuring out if this is the right Franke tap spare cartridge for your kitchen tap.

Frequently Asked Questions: Franke Verbier Tap Cartridge Spare Part

Question: I have a Franke Verbier tap. How can I change the cartridge?
Answer: You can start by isolating the sink’s water supplies. Remove the grub screw under the handle with a 2.5-millimeter Allen key. Remove the plastic insert. Unscrew the old cartridge from the tap using an adjustable spanner.

Apply a thin layer of plumbing silicone lubricant on the O-ring of the new Franke Verbier tap cartridge spare. Seat the cartridge in the valve and tighten it with the spanner. Then, put the parts back together for handle reassembly.

Question: Insufficient hot water flow from kitchen tap.
Answer: This can be caused by a number of reasons. If you just changed your cartridge, one reason can be calcified hard water minerals in the tap’s water ports or water pipes. Another reason can be low water pressure.

Question: Do you sell the cartridge in pairs?
Answer: The replacement cartridge compatible with the Franke Verbier is sold individually.
