SH90188 33mm Diverter Cartridge

SUMMARY

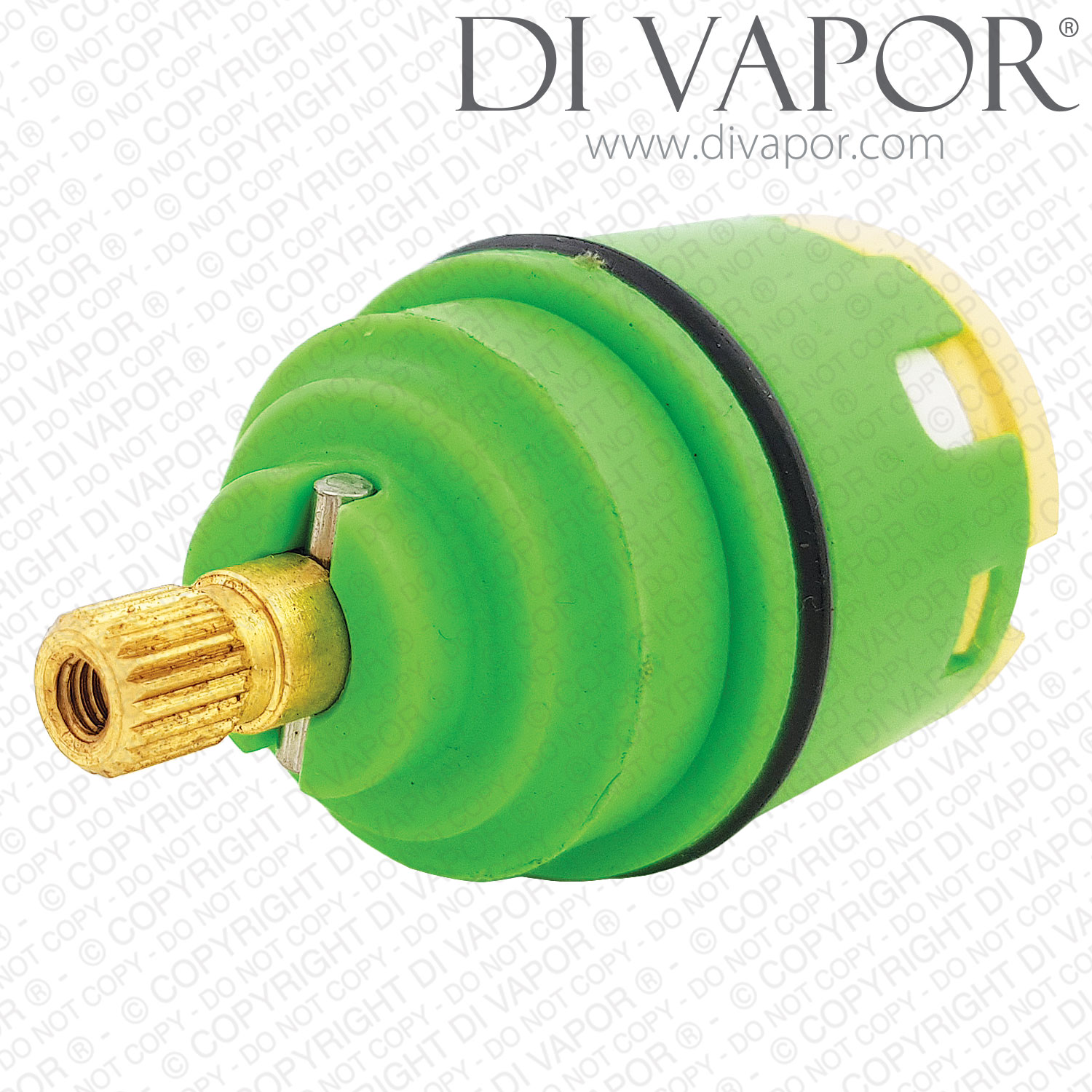

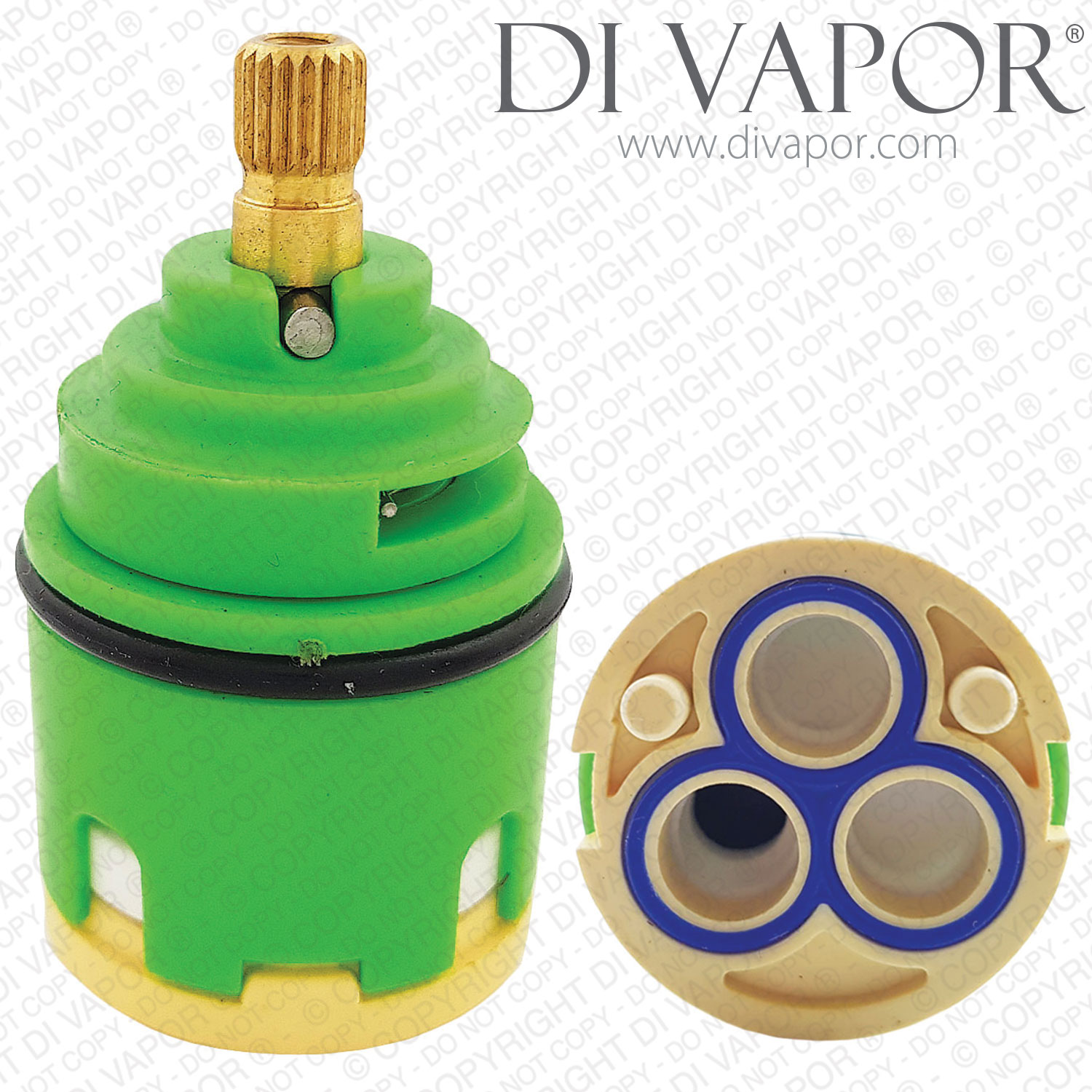

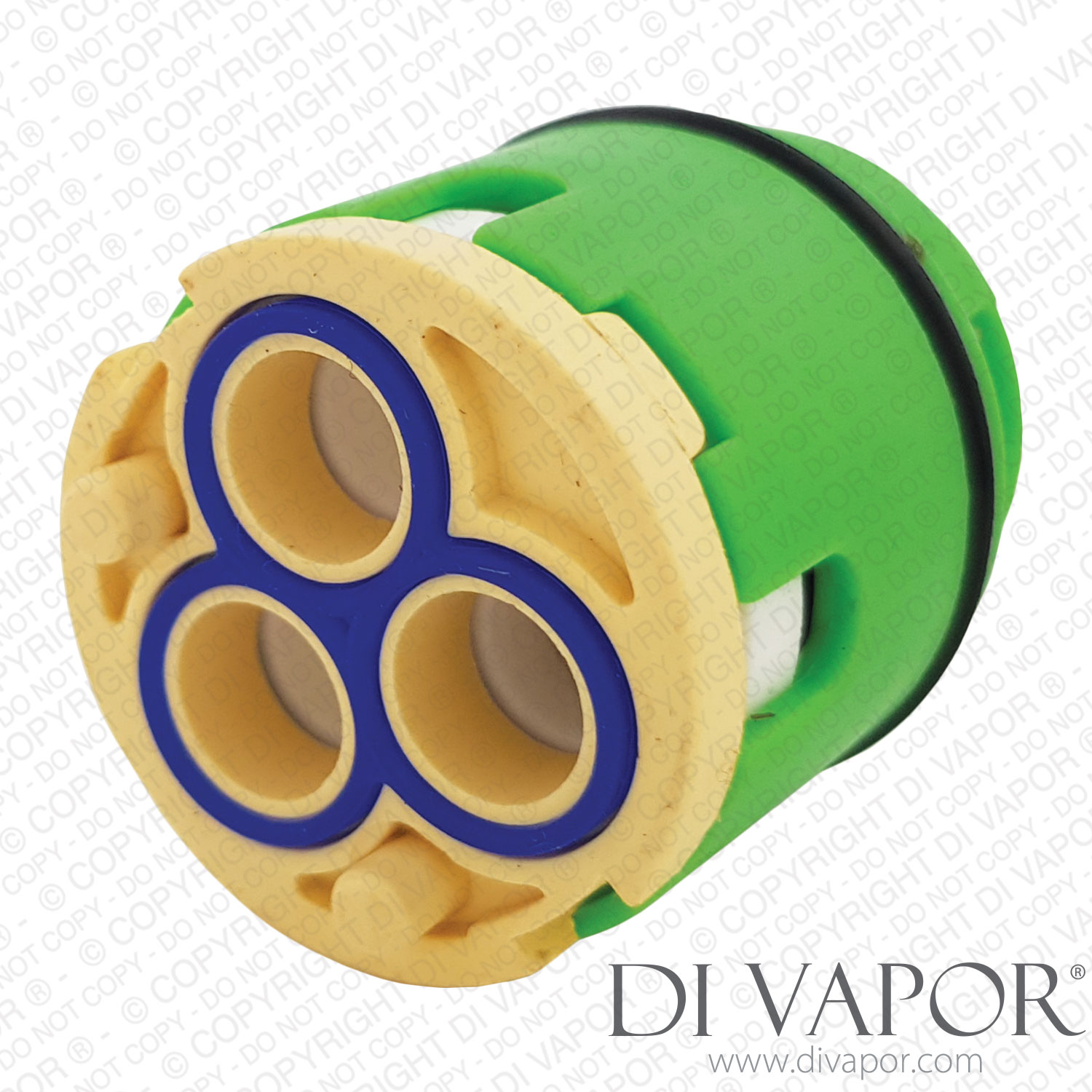

SH90188 33mm Diverter Cartridge. This is a 3 way spring action cartridge which means that a spring will push the cartridge back to the middle function.

This Three-Way Green Diverter Cartridge (SH90188) spare part can be dispatched on the next working day when ordered before 3:00 PM, Monday to Friday.

Cartridge Measurements:
Total Length (including bottom seal): 58mm (excluding locating pins)
Diameter at Widest Point: 34.3mm (at o'ring)
Brass Spindle Length (Including Spline): 12mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 33mm
Number of Function Outlets: 3
Distance Between Locating Pins at Bottom (Centre to Centre): 20.5mm

Made of hardwearing ABS and ceramic, the SH90188 effectively allows water to exit from a selected water outlet – shower head, tap, or jets – inside a shower enclosure.

Accessing the diverter cartridge requires removing the shower valve’s diverter control handle and the diverter housing. Unfasten the cartridge with a socket wrench (or spanner). Clean the valve to make sure it is free from debris. Grease the new diverter cartridge with applicable silicone grease before installing it.
