SUMMARY

Priced per item.

Will Post Worldwide?	Yes
Roller Diameter	As selected Above
Number of Wheels / Rollers	2
Orientation (Top or Bottom of Shower Door)	Bottom
Glass Thickness	4-6mm
Colour	Grey
Body Material	Plastic, Nylon, Zinc Alloy, Stainless Steel
Wheel Style	Spring
Max Roller Installation Adjustment	n/a
Possibly used on some of the following brands and ranges: • Simpsons • Huppe • Showerlux • Phoenix • Tradepoint
Further Information:

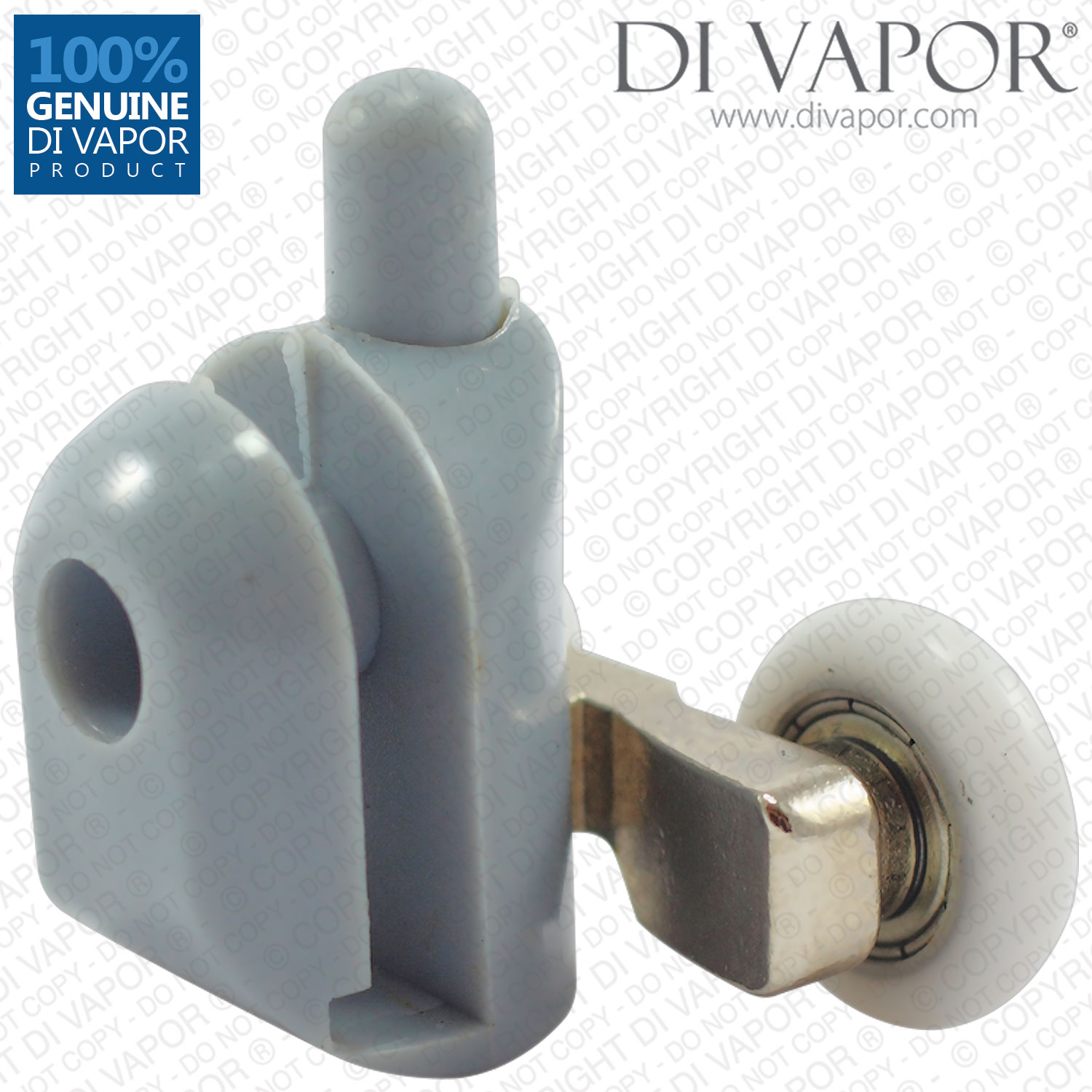

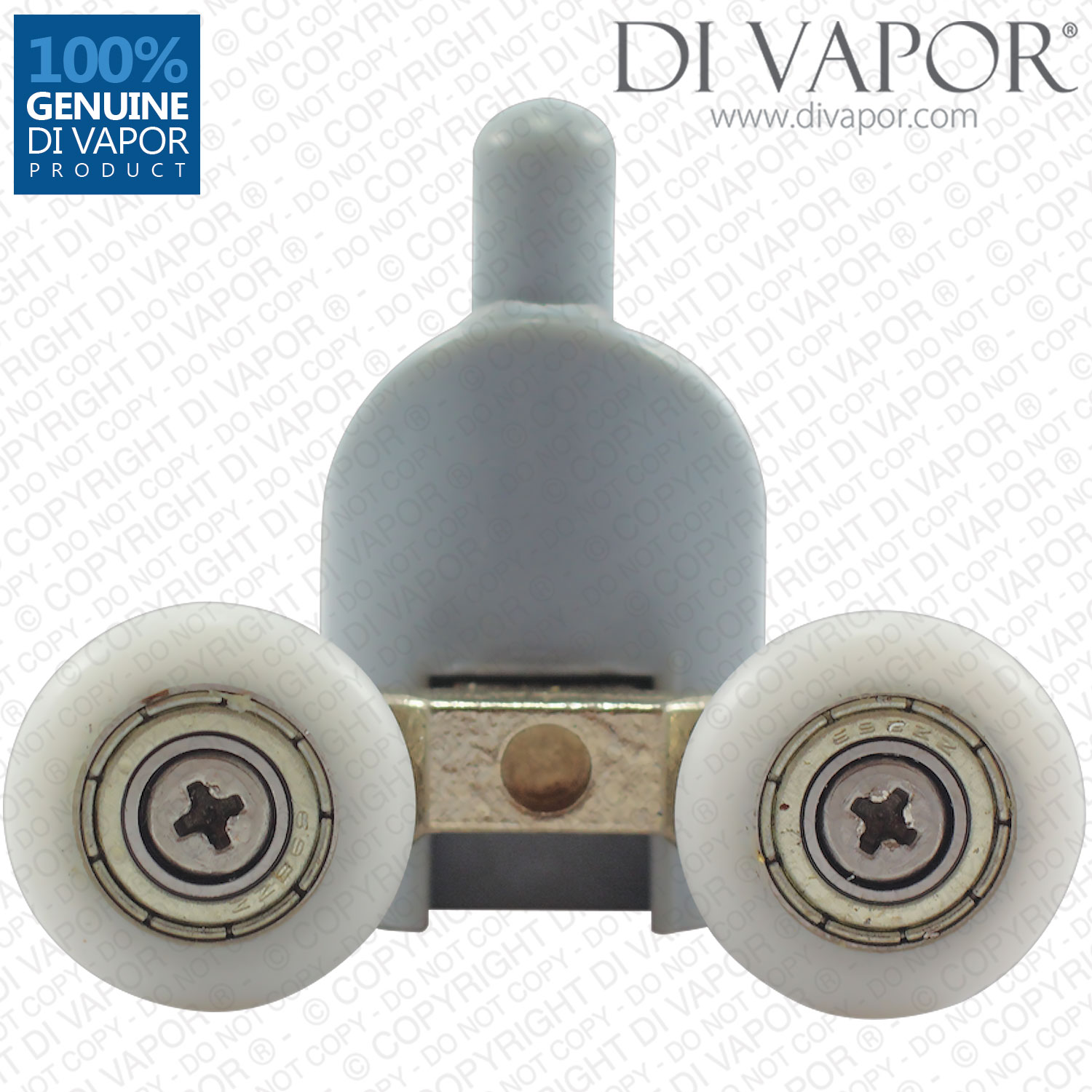

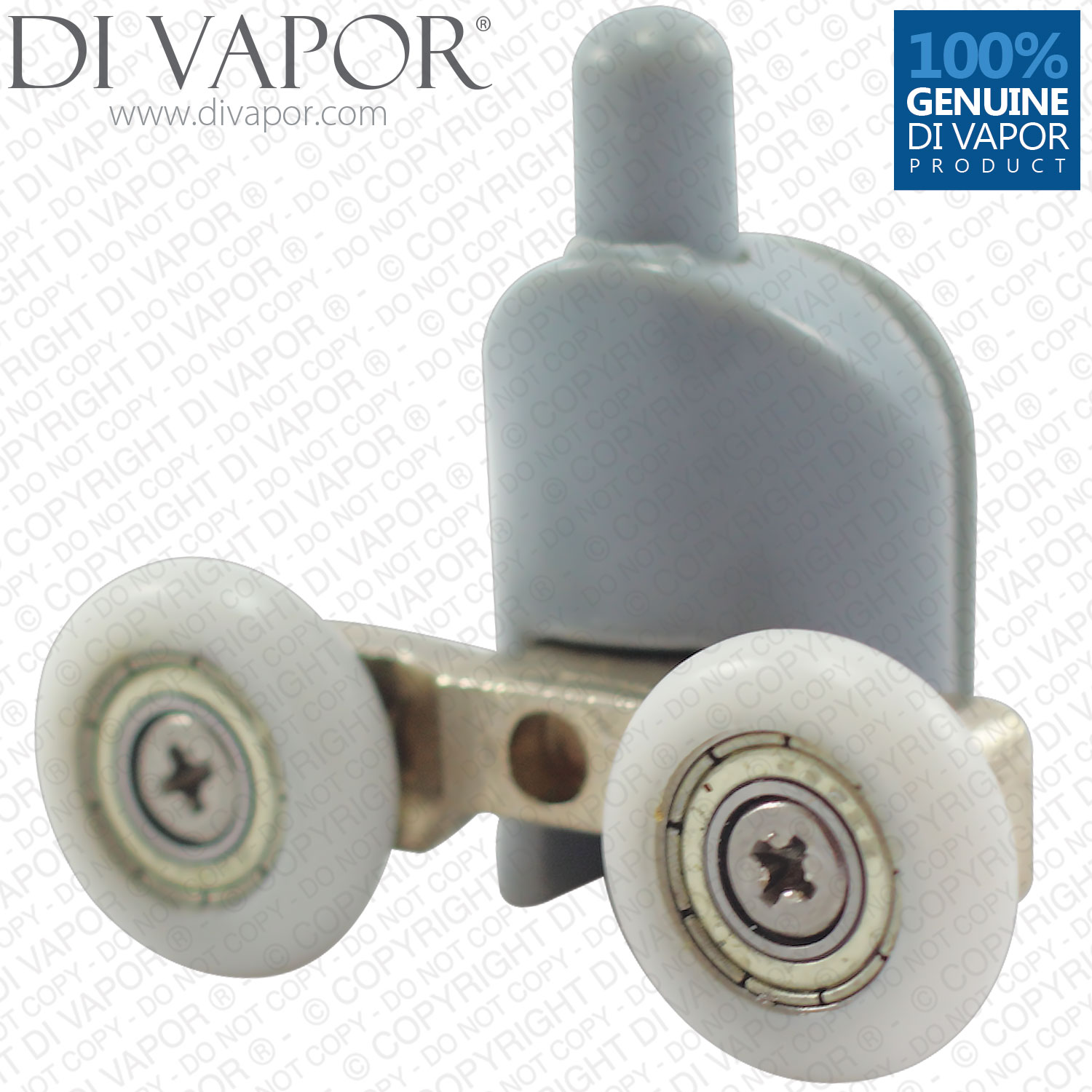

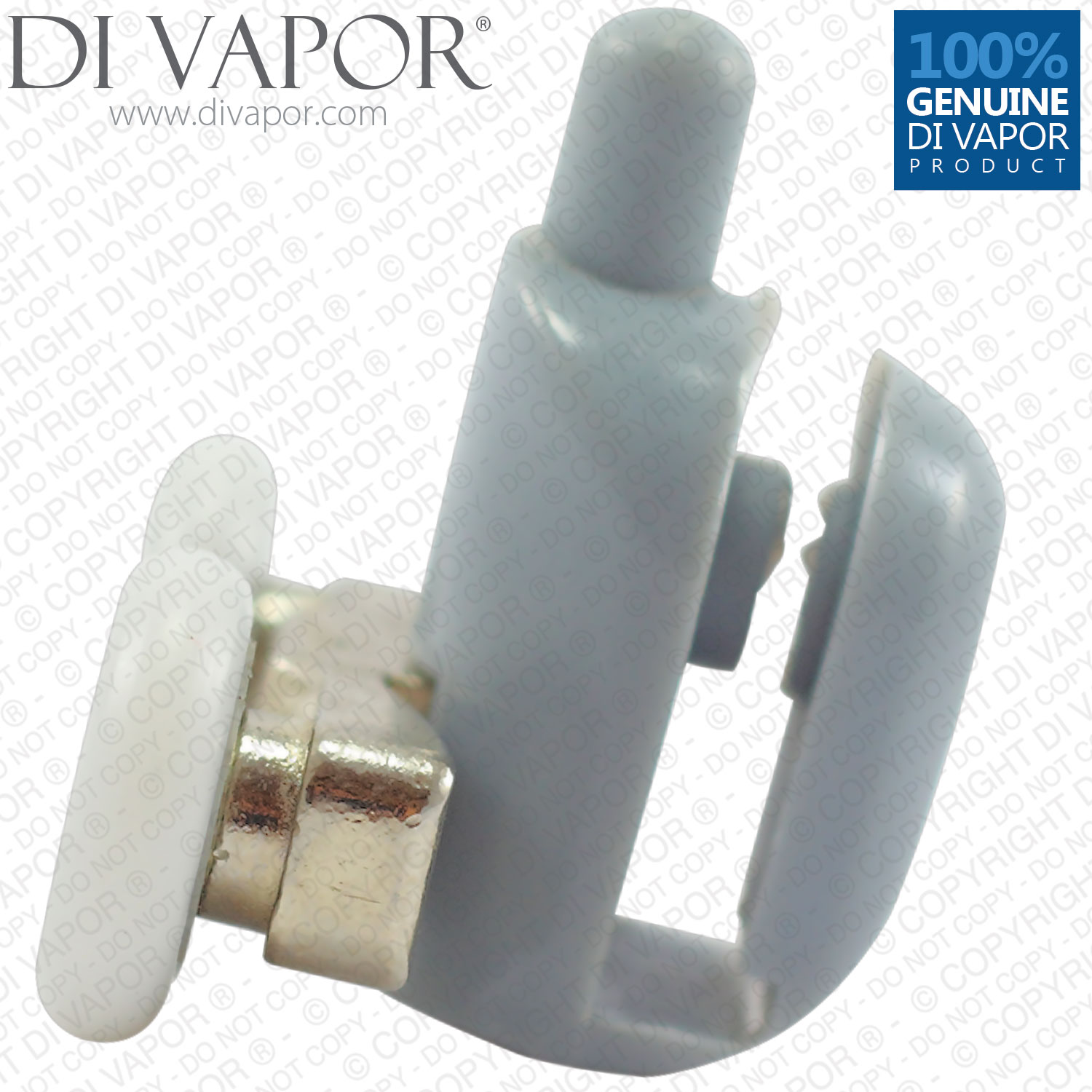

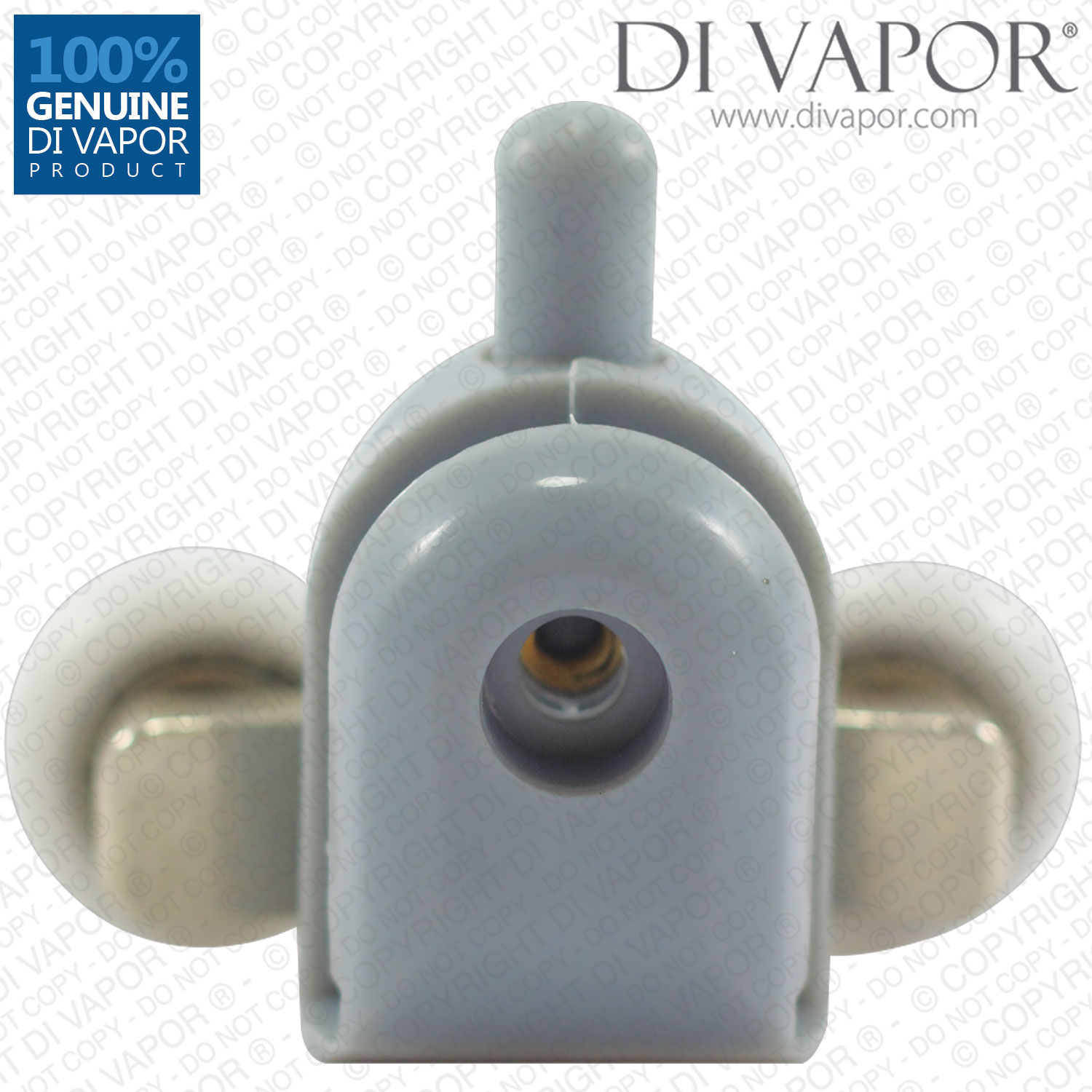

Bottom Double Quadrant Shower Door Runners | 22mm/23mm/25mm

Spare Part Guide: Bottom Double Quadrant Shower Door Runners

Shower door runners come in a variety of sizes, material and mounting positions. Read below for general information about this shower door part and how to choose a replacement runner.

Shower doors have runners located at the bottom and/or at the top. These strategically placed parts make it easy to open and close the shower enclosure.

This shower door runners has a body that is made from plastic, stainless steel and zinc alloy. The make is durable and is resistant to rust up to a certain moisture point.

The wheels are made from nylon, a slippery synthetic polymer. The characteristic allows the wheels to glide on the shower door track smoothly.

The runners can be attached to shower doors that are either curved or straight.

To fit this part in your shower enclosure door: remove the old runners, loosen the screw at the back of the replacement shower door runners to open it and fit it in the door. When the top runners of the shower door are placed back on the track, pull the bottom runners to the bottom track and press the spring button to latch it in place.

1003BG22 is the top orientation of this runner for shower doors. Please view the spare part page for the FAQs.

The invention of the wheel has dramatically transformed the way we do everyday life. From transportation to shower enclosures, these simple machines are very much integrated into almost all aspects of our normal day-to-day activities.


How to Choose a Replacement Shower Door Runner
The shower door part must fit not only in the shower door itself but also on the tracks. Taking account of the part’s measurements is essential. Here are what to consider before buying a replacement shower door runner.

– Thickness of the shower door: This shower door runner will fit in doors with a thickness of 4mm to 6mm.

– Diameter of the pre-drilled fixing screw hole: The fixing screw of this shower door spare part is 10mm (1cm) which means the pre-drilled hole in your shower door must have at least the same diameter.

– Wheel diameter and body size: The length of the body of this shower door runner, minus the button on top, is 35mm (3.5cm). The width is 25mm (2.5cm). Wheel diameter options available for this shower door runner are 22mm, 23mm and 25mm.

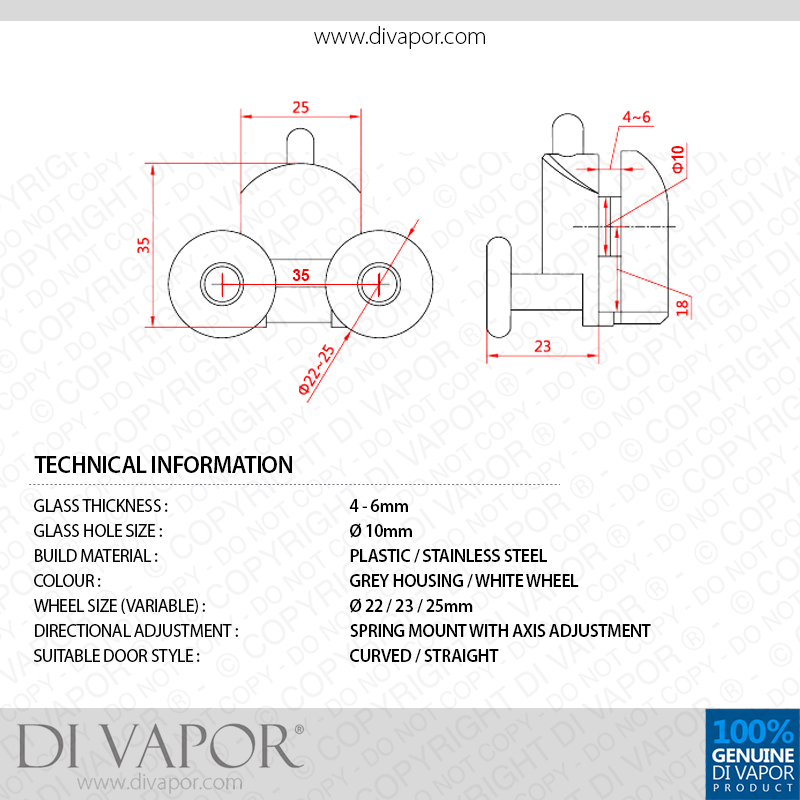

If you have your old shower door runner with you, you can compare it with these measurements. Also, there is a diagram in the gallery above where you can see a visual representation of the said measurements.


Want to see other shower door runners we offer before deciding which to purchase?
+ Please explore the catalogue. In that link, there is a runner specific search bar where you can streamline the results based on wheel size, number of wheels and mounting position.
+ Feel free to contact us should you require spare part assistance or more information.
Weekend messages will be responded to first thing on Monday.


The Bottom Double Quadrant Shower Door Runners will be despatched on the same working day if the purchase is made before 3:00 PM.

FAST DELIVERY

• Delivery of this item is priced as a 'small' packet. UK delivery costs £5.95.
• For all in-stock spare parts the typical UK delivery timescale is 2-5 working days.
• If you need a part urgently then we can provide a next-day (delivered Mon-Fri) UK delivery service for all in-stock small parcels ordered before 3.30pm, Monday - Friday.
• Next day delivery is available to select at an additional charge during the checkout.
• We delivery WORLDWIDE. For more information about international deliveries, read our delivery page.

RETURNS

• If you need to return a part then please telephone Di Vapor on 0121 705 0866 with the reasons for the return within 14 days of receiving the goods.
• For more information please see our terms and conditions.
