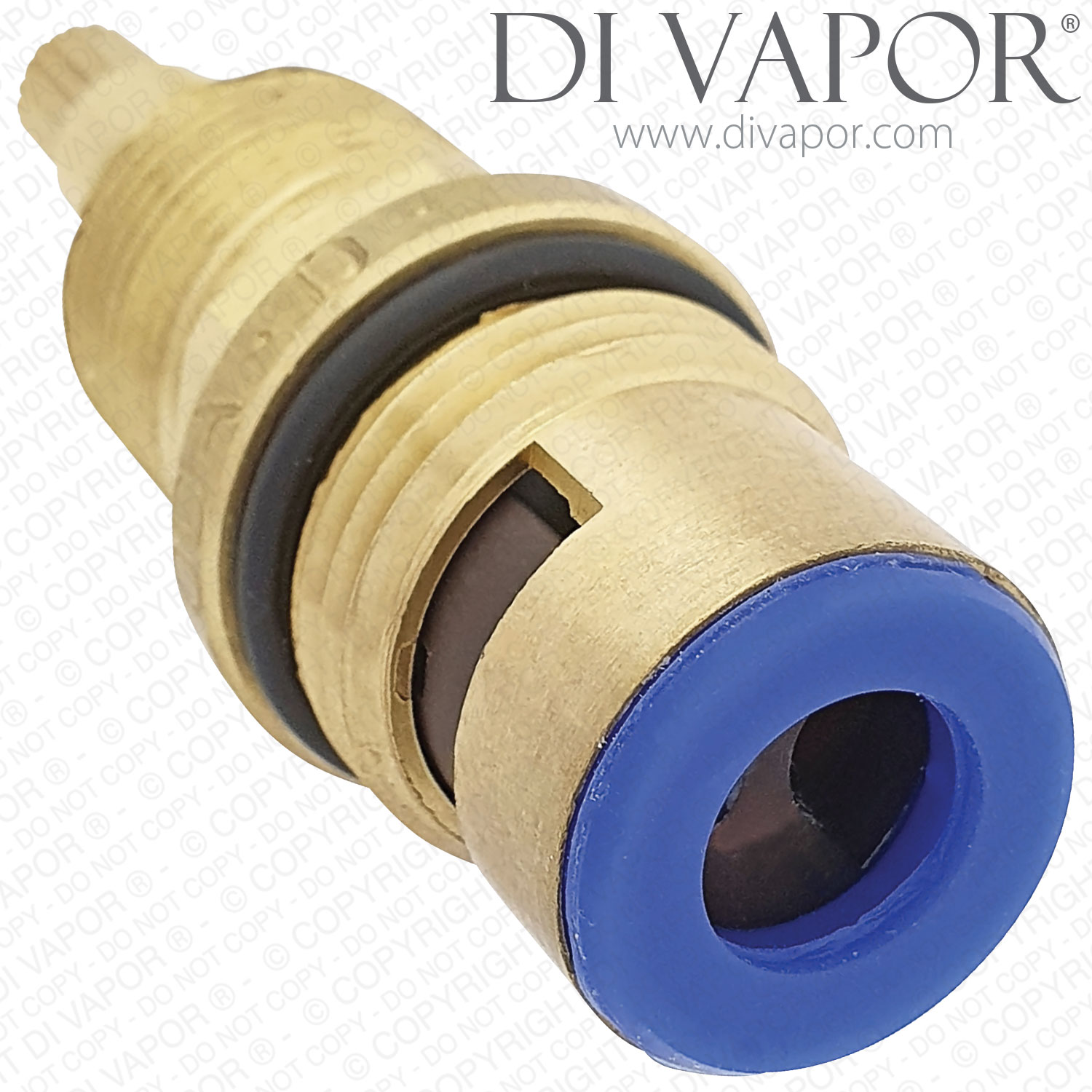

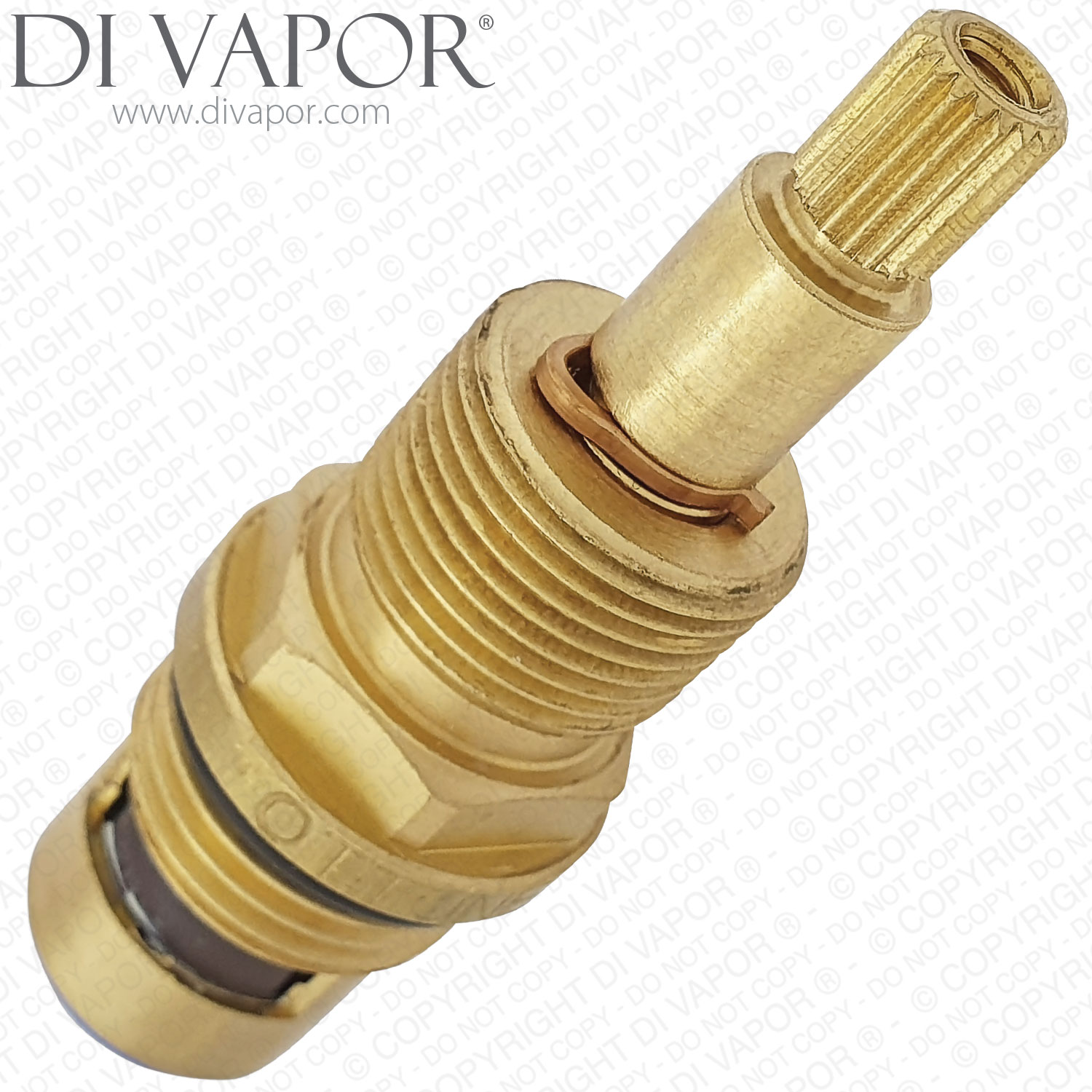

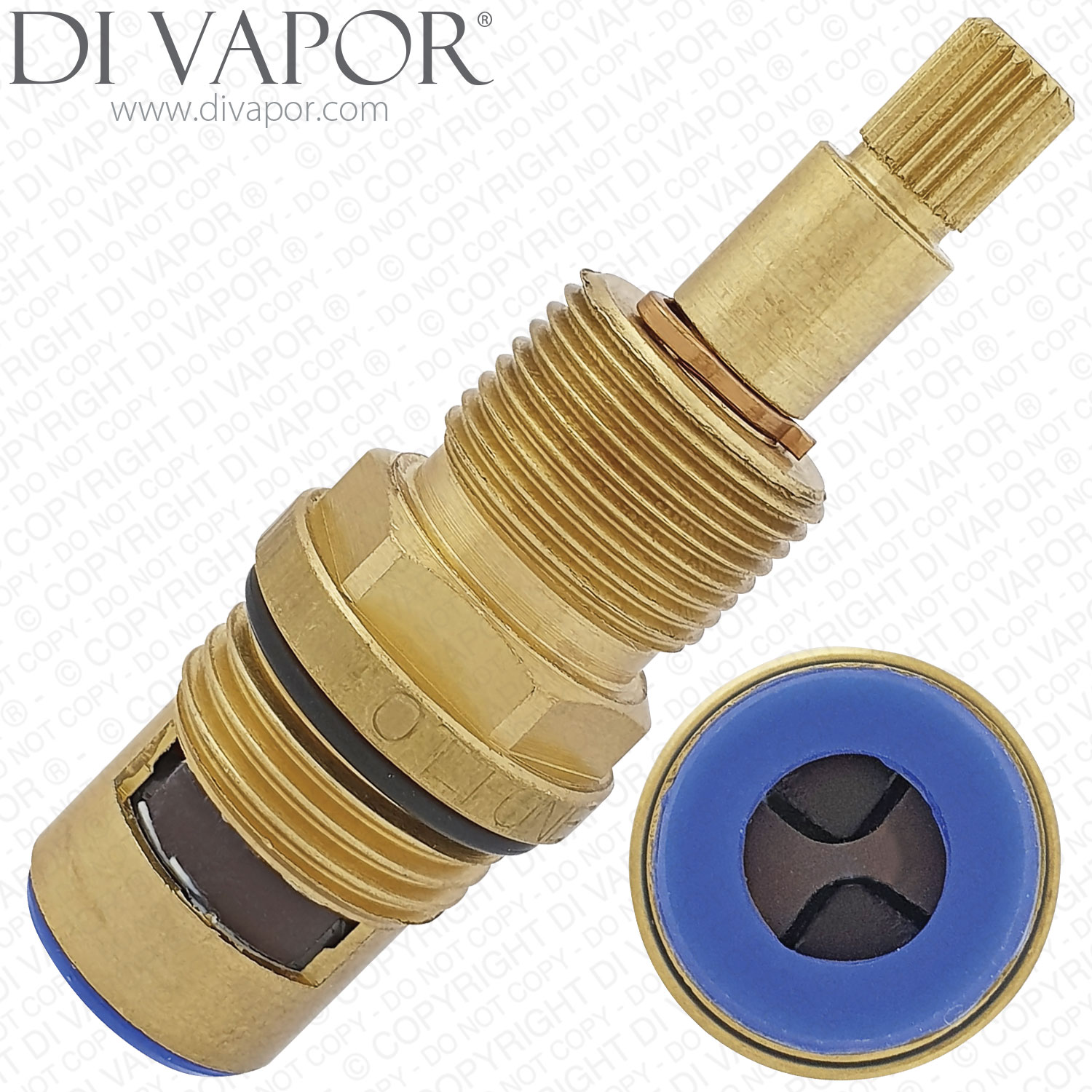

893H667 Ceramic Disc Cartridge (Cold)

SUMMARY

893H667 Ceramic Disc Cartridge (Cold)

Cartridge Measurements:
Total Length (including bottom seal): 70mm
Spindle Length:
Diameter at Widest Point: 24mm
Upper Thread (closer to spline): 18.7mm

Top Spline Diameter: 7.5mm
Top Spline Teeth / Notches: 20

Lower Thread Diameter: 20.6mm
Barrel Diameter Below Lower Thread: 18.5mm

Bottom Seal Colour: Blue
Close Direction: Anti-Clockwise Close (Clockwise Open)
Turn: Quarter Turn (1/4 Turn) 90°


– 893H668 Ceramic Disc Cartridge Hot Side
– Flow Cartridge Database
