Bathstore 86mm Replacement 3/4" Ceramic Disc Shower Cartridge - Cold - Used in Metro, Bensham, Quatra, Trinity Shower Valves - BS2321

SUMMARY

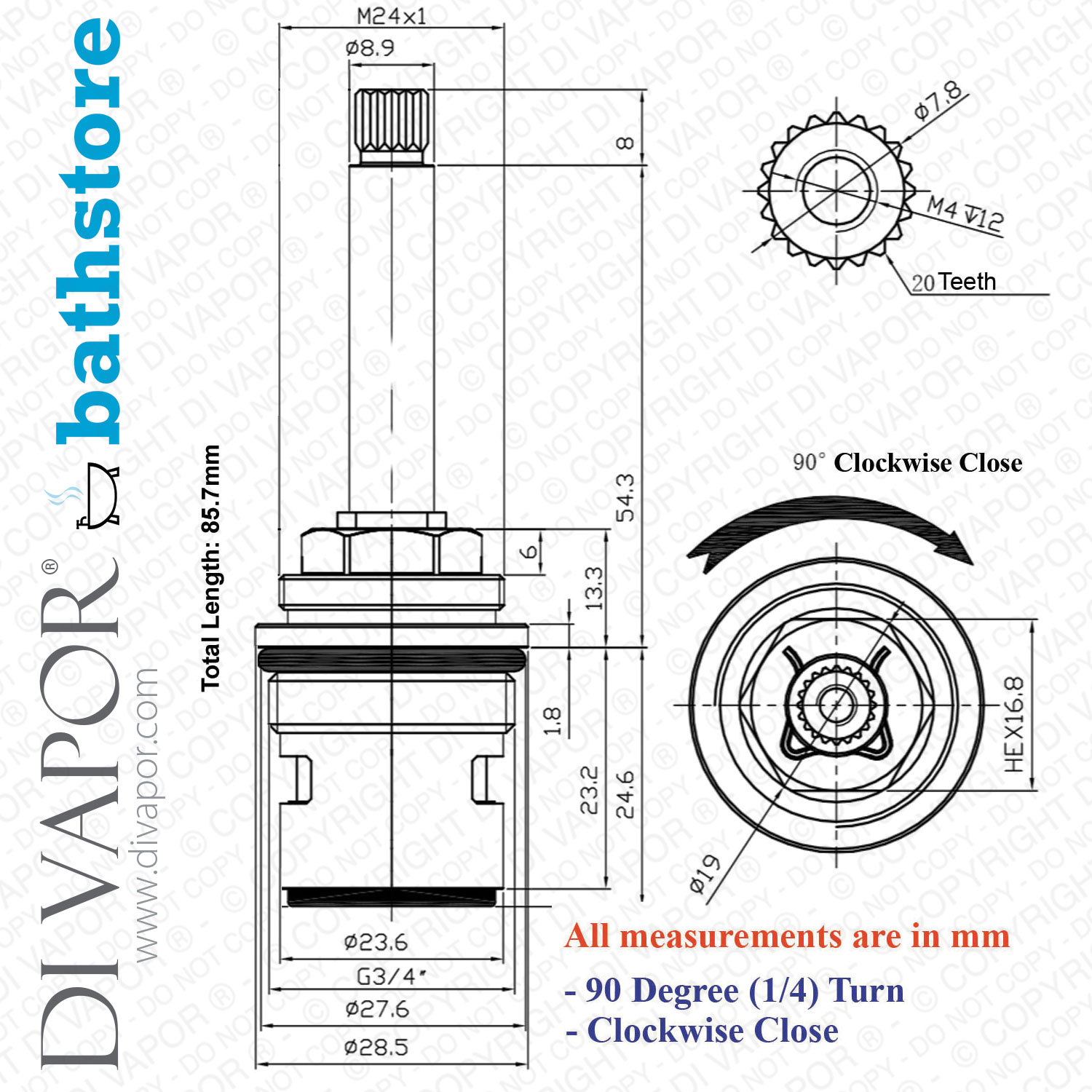

Bathstore 86mm Replacement 3/4" Ceramic Disc Shower Cartridge - Cold - Used in Metro, Bensham, Quatra, Trinity (and the list of models below) Shower Valves - Clockwise close (anti-clockwise open).

Total Length (including bottom seal): 85.7mm
Diameter at Widest Point: 28.5mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 23.6mm
Lower Thread: 27.6mm
Upper Thread (closer to spline): 24mm
Bottom Seal Colour: Blue (for Cold Side)

This quarter turn Bathstore shower cartridge is used in the following shower valves:

- Metro Horizontal Thermostatic Shower Mixer Valve
- Wave Vertical Thermostatic Shower Mixer Valve
- Quatra Horizontal Thermostatic Shower Mixer Valve
- Track Vertical Thermostatic Shower Mixer Valve
- Track Horizontal Thermostatic Shower Mixer Valve
- Bensham Vertical Thermostatic Shower Mixer Valve
- Trinity Thermostatic Shower Valve
- Trinity Horizontal Thermostatic Shower Mixer Valve
- Trinity Vertical Thermostatic Shower Mixer Valve
- Square Thermostatic Shower Valve
- Swing Vertical Thermostatic Shower Mixer Valve
- Parador Vertical Thermostatic Shower Mixer Valve
- Basics Dual Control Vertical Thermostatic Shower Valve
- Square Horizontal 3 Hole Shower Bath Valve And Bath Filler
- Bensham Thermostatic Shower Valve
- Quatra Vertical Thermostatic Shower Mixer Valve
- Blade Horizontal Thermostatic Shower Mixer Valve
- Space Horizontal Thermostatic Shower Mixer Valve
- Swing Horizontal Thermostatic Shower Mixer Valve
- Quatra Thermostatic Shower Valve
- Wave Horizontal Thermostatic Shower Mixer Valve
- Metro Thermostatic Shower Valve
- Space Thermostatic Shower Valve
- Blade Thermostatic Shower Valve
- Space Vertical Thermostatic Shower Mixer Valve
- Blade Vertical Thermostatic Shower Mixer Valve
- Metro Vertical Thermostatic Shower Mixer Valve
- Wave Thermostatic Shower Valve
- Bensham Horizontal Thermostatic Shower Mixer Valve
- Swing Thermostatic Shower Valve
- Parador Horizontal Thermostatic Shower Mixer Valve
- Track Thermostatic Shower Valve
- Square Vertical 3 Hole Shower Valve And Bath Filler
