SUMMARY

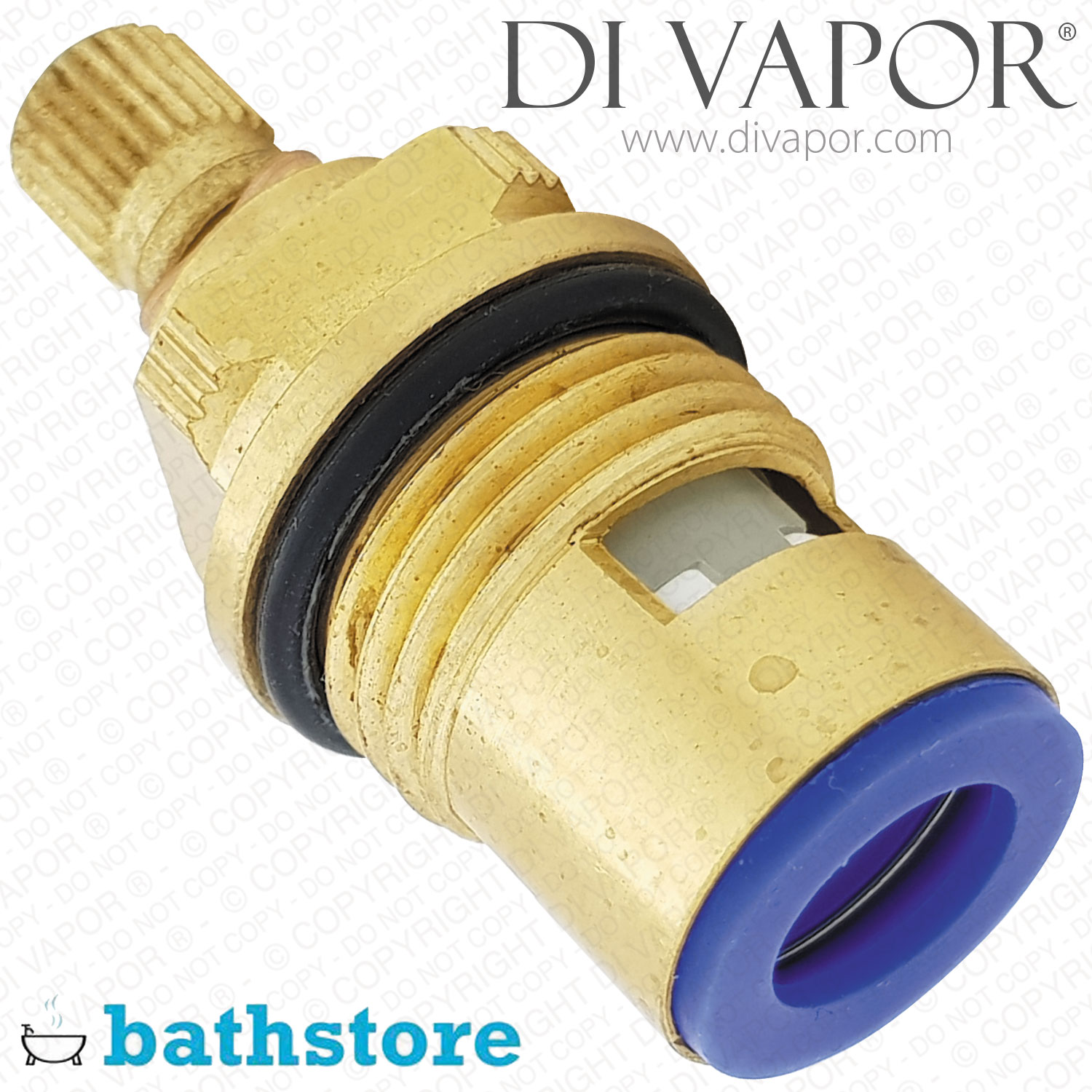

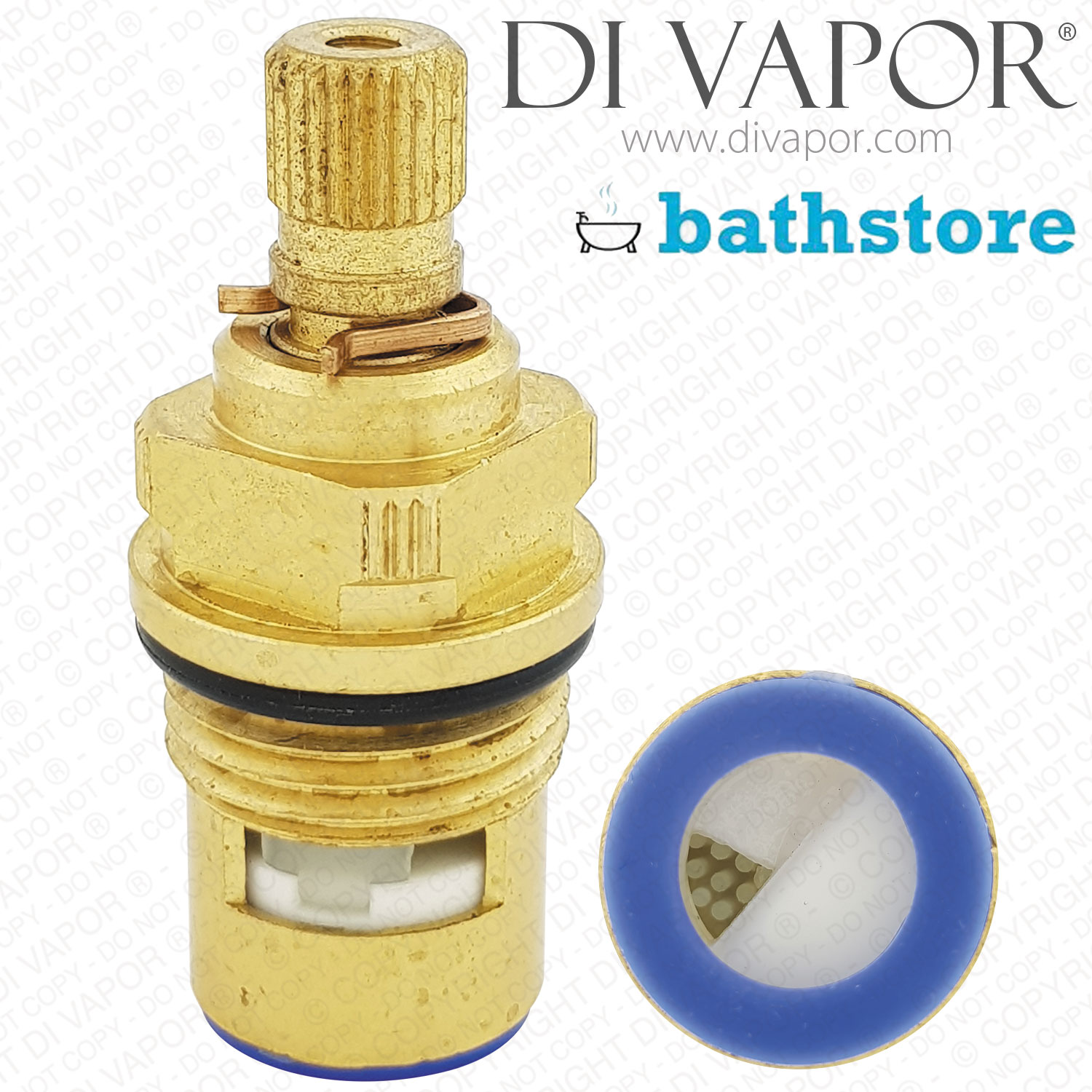

Bathstore 90000014060 Metro Flow Cartridge - Pre 2014

Cartridge Measurements:
Total Length (including bottom seal): 51.7mm
Diameter at Widest Point: 22.8mm

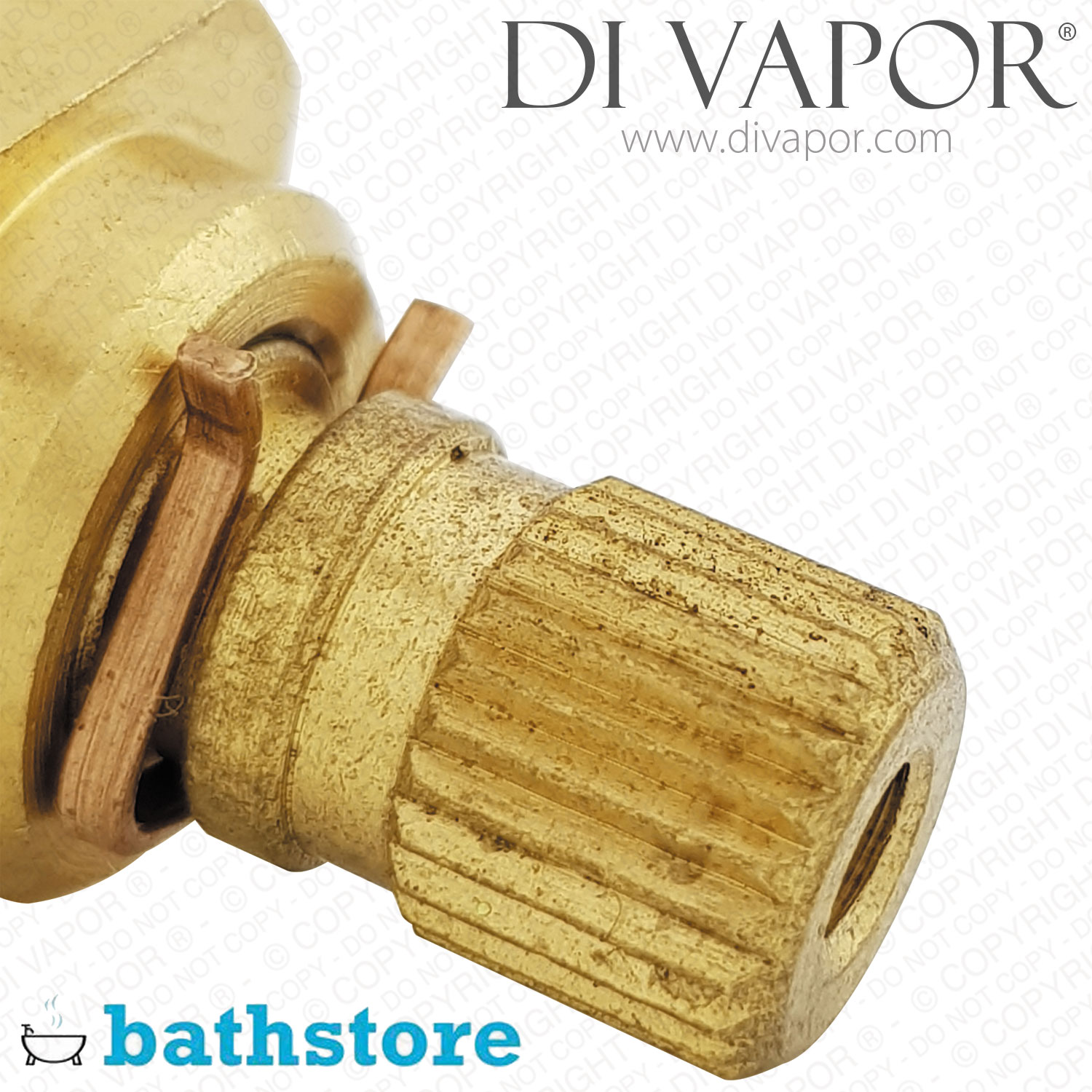

Top Spline Diameter: 9.6mm
Top Spline Teeth / Notches: 24
Barrel Diameter: 18.6mm
Lower Thread: 1/2"
Bottom Seal Colour: Blue (for Cold Side)
Close Direction: Clockwise Close (Anti-Clockwise Open)
Turn: Half turn (180 degrees)

Troubleshooting Shower Valve Problems with the Bathstore 90000014060 Metro Flow Cartridge

Bathstore 90000014060 is the replacement cartridge used in pre-2014 Metro shower valves. The nut of the cartridge has four sides. These are some of the common issues regarding the shower valve and how to know if it is time to replace the cartridge.

How can you stop your Bathstore Metro exposed thermostatic shower valve from leaking? How would you get your shower water flow rate back to normal? A Bathstore Metro flow cartridge 90000014060 replacement might be the answer to these questions.

The Bathstore 90000014060 is a half-turn (180°) flow cartridge with a blue bottom seal. Although usually, the blue colour is known as a cold cartridge, the 90000014060 Bathstore Metro flow cartridge does not regulate the water temperature. The colour stands for the cartridge’s open and close direction which is anti-clockwise to open and clockwise to close.

Scale and dirt collecting in the cartridge can give rise to leaks and poor water flow. Descaling the cartridge is but a temporary solution and the acid in descalants can harm the cartridge and its seals. The best long-term and more cost-effective solution is to replace the Bathstore 90000014060 so that you can enjoy problem-free showering experience (flow cartridge-related) for a long time.

Problem:
Weak rate of water flow.
Possible Course of Action:
– A good shower should run at least 15 liters of water per minute. A weak water flow rate goes below 10 liters per minute.
Water pressure can change over time. Check and correct the water pressure if it goes below par.

– The shower head might have limescale blocking water output.

– Limescale has calcified in the Bathstore 90000014060. A replacement flow cartridge is required.

Problem:
The shower is having issues related to temperature control.
Possible Course of Action:
The Bathstore Metro flow cartridge 90000014060 does not control water temperature. If you are having temperature issues the replacement part you need is B-90000014075 thermostatic cartridge.

How to replace the Bathstore 90000014060 Metro Flow Cartridge

Replacing the Bathstore Metro flow cartridge 90000014060 can be easy and less time-consuming. The process takes only a few steps. Close the shower’s hot and cold water supplies before starting.

– Pop out the screw cover cap. This is the circular cover at the end of the flow control handle. You can use a flat tool to remove it just be careful not to graze the valve’s finish.

– Use a screwdriver to undo the flow handle retaining screw. Make sure the small washer is also removed.

– Remove the handle and use an adjustable spanner to unscrew the old Bathstore Metro flow cartridge.

– Insert the replacement Bathstore 90000014060 and screw it in place.

– Restore the handle.


Di Vapor supplies Bathstore spare parts from cartridges to shower valves.
+ Please contact us should you have any queries about the Bathstore 90000014060 Metro flow cartridge. By contacting us, we are also ready to help you with spare part identification.
