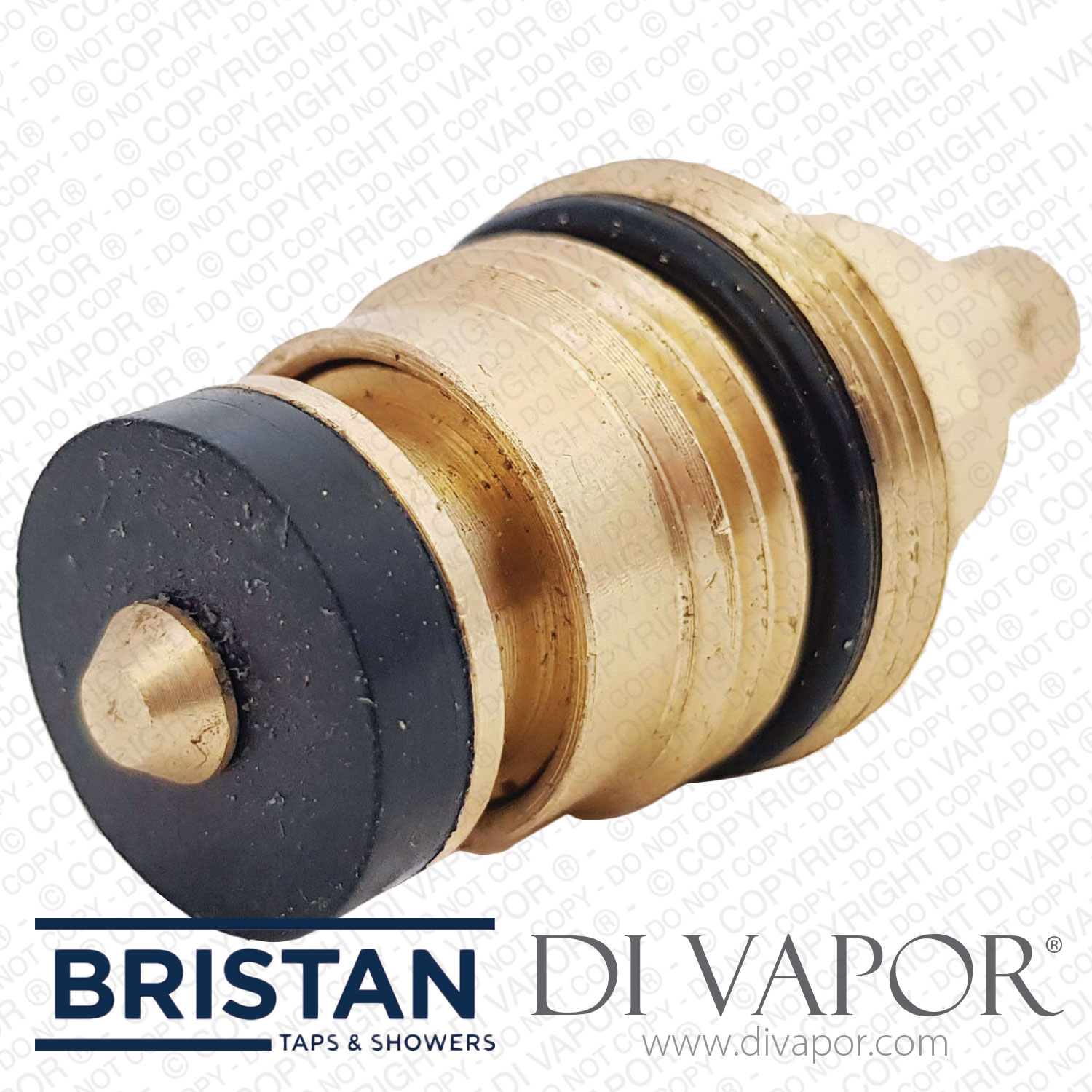

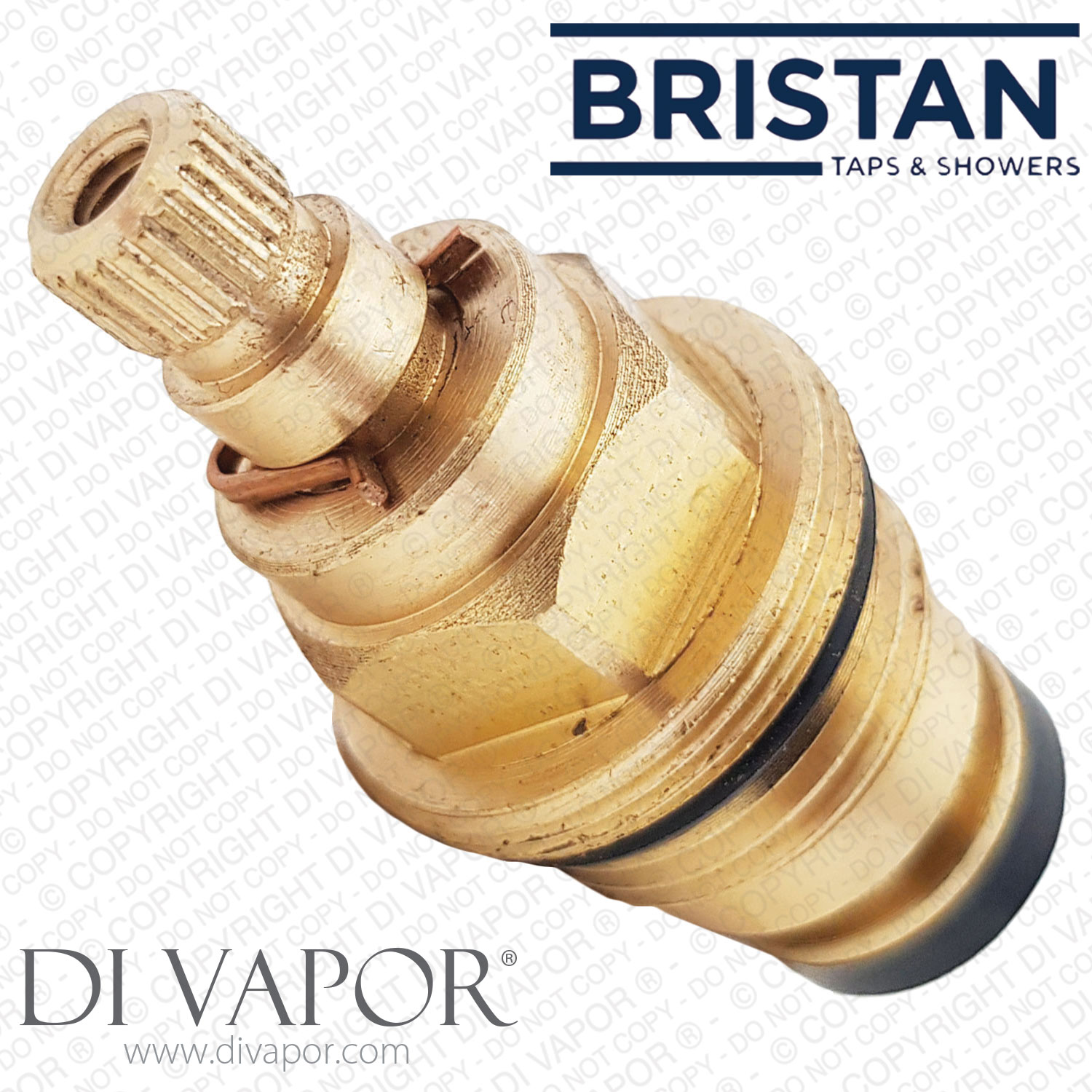

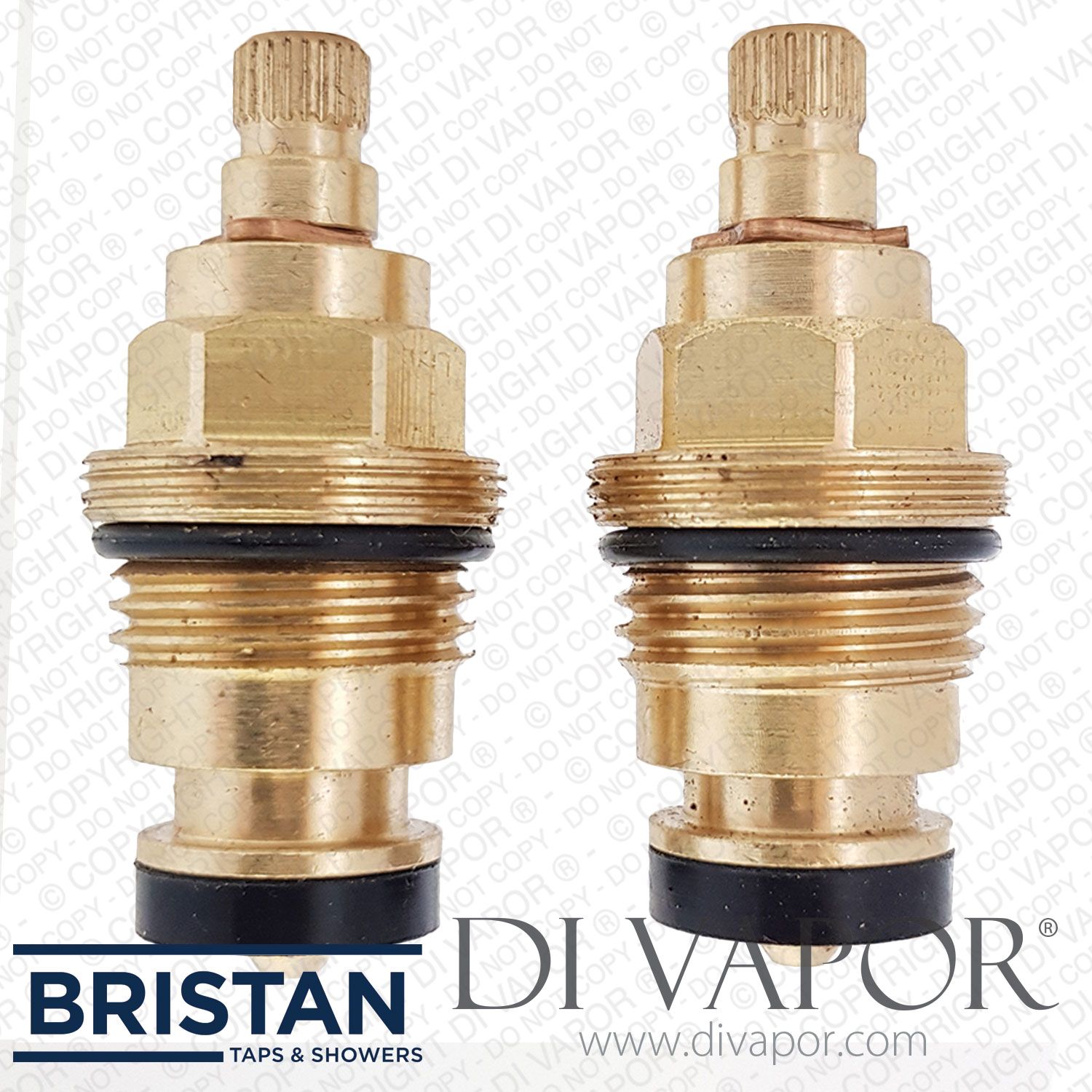

Bristan 2701821300 On/Off Pair of Colonial Tap Cartridges (After 2012)

SUMMARY

Bristan 2701821300 On/Off Pair of Colonial Tap Cartridges (After 2012).

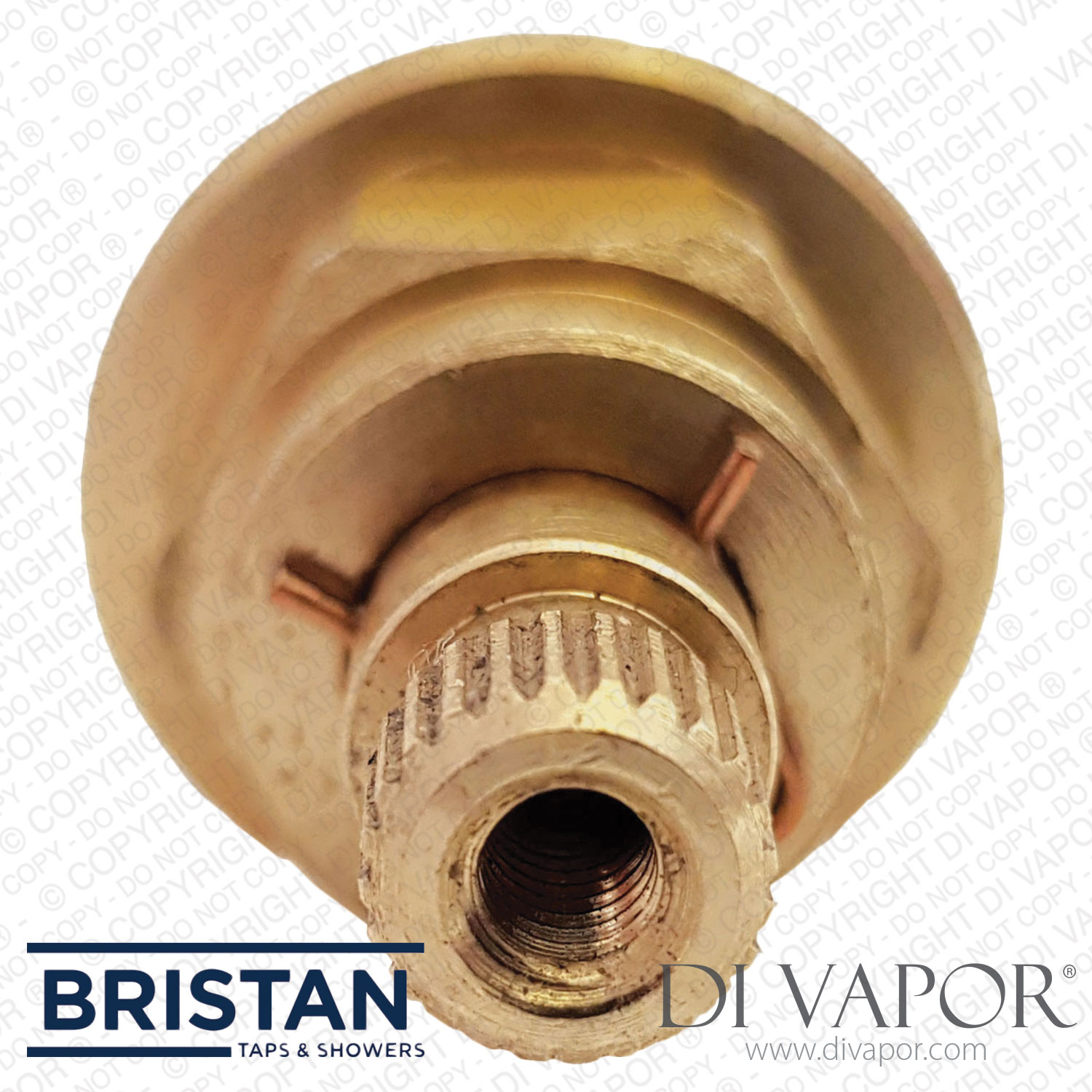

This particular valve measures 46mm tall, 23mm wide, 12mm spindle length at 7.5mm wide with 24 splines.

How to Replace a Thermostatic Cartridge?
When attempting to replace a thermostatic cartridge, always make sure that you – or any part of your body – is not under the water outlet throughout the process because of the possibility that hot water might flow out.
Turn off hot and cold water supplies. Then turn the shower on to be certain the water supply is successfully turned off.
To ensure water supply is turned off:
Use a hex key to remove the shower valve housing handle. Then remove the handle prong.

Next, pull the stop ring to remove. Do not remove the cartridge. Put back the thermostatic handle on the valve and turn it counterclockwise until it stops. After it comes to a stop, rotate the handle clockwise.

1. On the bottom of the valve, use the hex key to remove the cartridge by pulling it out of the valve housing.
2. Use a cloth to wipe the inside of the valve or run it with water to clean.
3. Use a silicone lubricant to grease the cartridge. Replace the cartridge in the valve housing. Make sure the hole for the grub screw on the cartridge is aligned with the hole from the bottom of the valve housing.
4. Replace the grub screw and tighten.
5. Calibrate the cartridge until the water temperature is sustained at 38℃ (100.4℉).
6. Put back the stop ring with the stop point directly on top. Make sure the cartridge spline is not moved.
7. Put the handle back. The handle’s stop position should be at the top.
8. Fasten back the grub screw.
9. Set the prong back in place.
10. Check the water temperature once again.

Frequently Asked Questions
Q: How to choose the right thermostatic cartridge spare?
A: The type of thermostatic cartridge will be determined by the shower valve housing used. The vast majority of cartridges are not generic or cross compatible with other valves, therefore only the correct cartridge will fit. There are two main materials used in cartridge’s build: brass, polymer or a combination of both.

Q: When does a thermostatic cartridge need to be replaced?
A: A thermostatic cartridge may fail for a number of reasons, such as a disparity between hot and cold water supplies. If water temperature can no longer be controlled, the cartridge might need to be cleaned or replaced.


This cartridge is used in the following taps:

- Bristan K BSM C Colonial Bath Shower Mixer - Chrome
