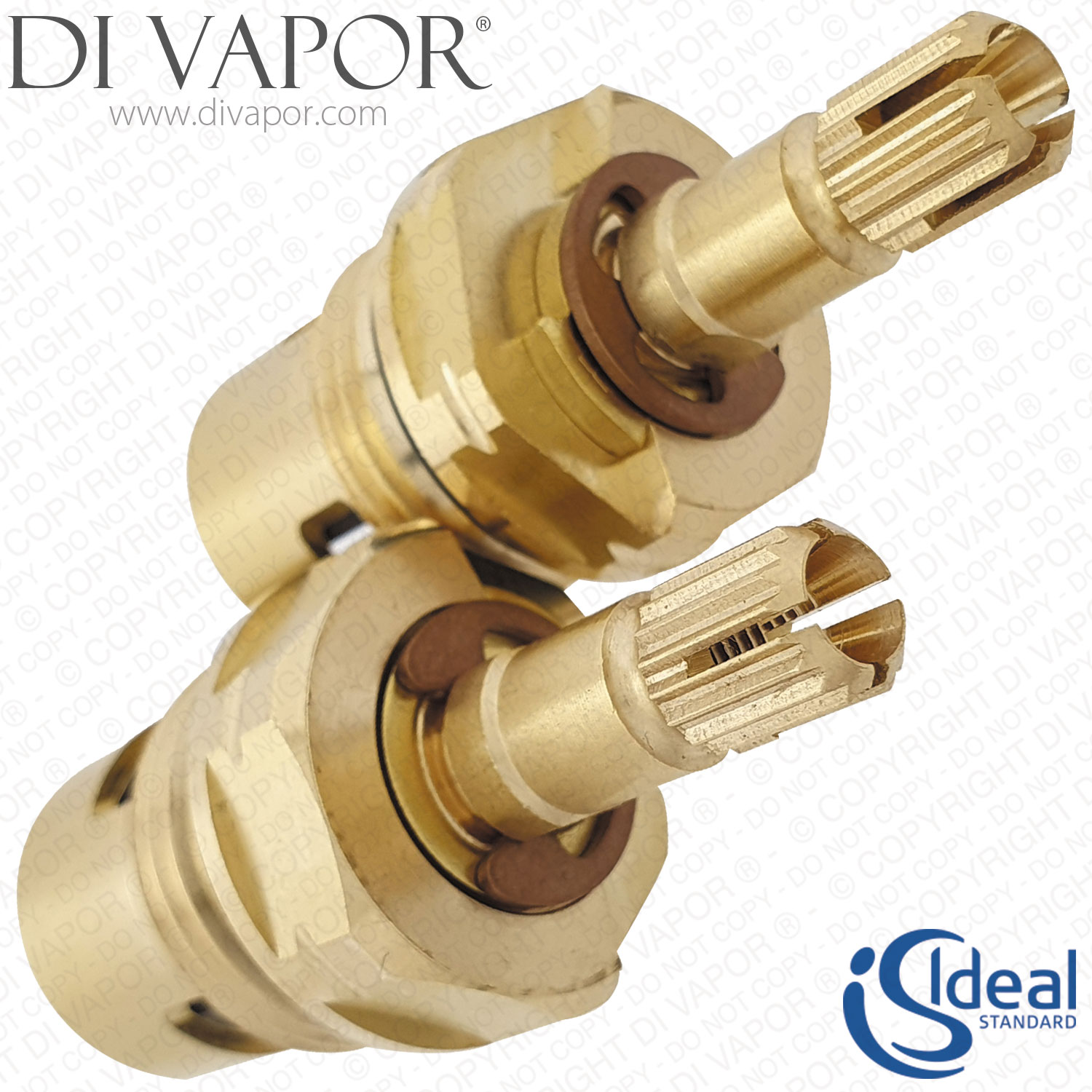

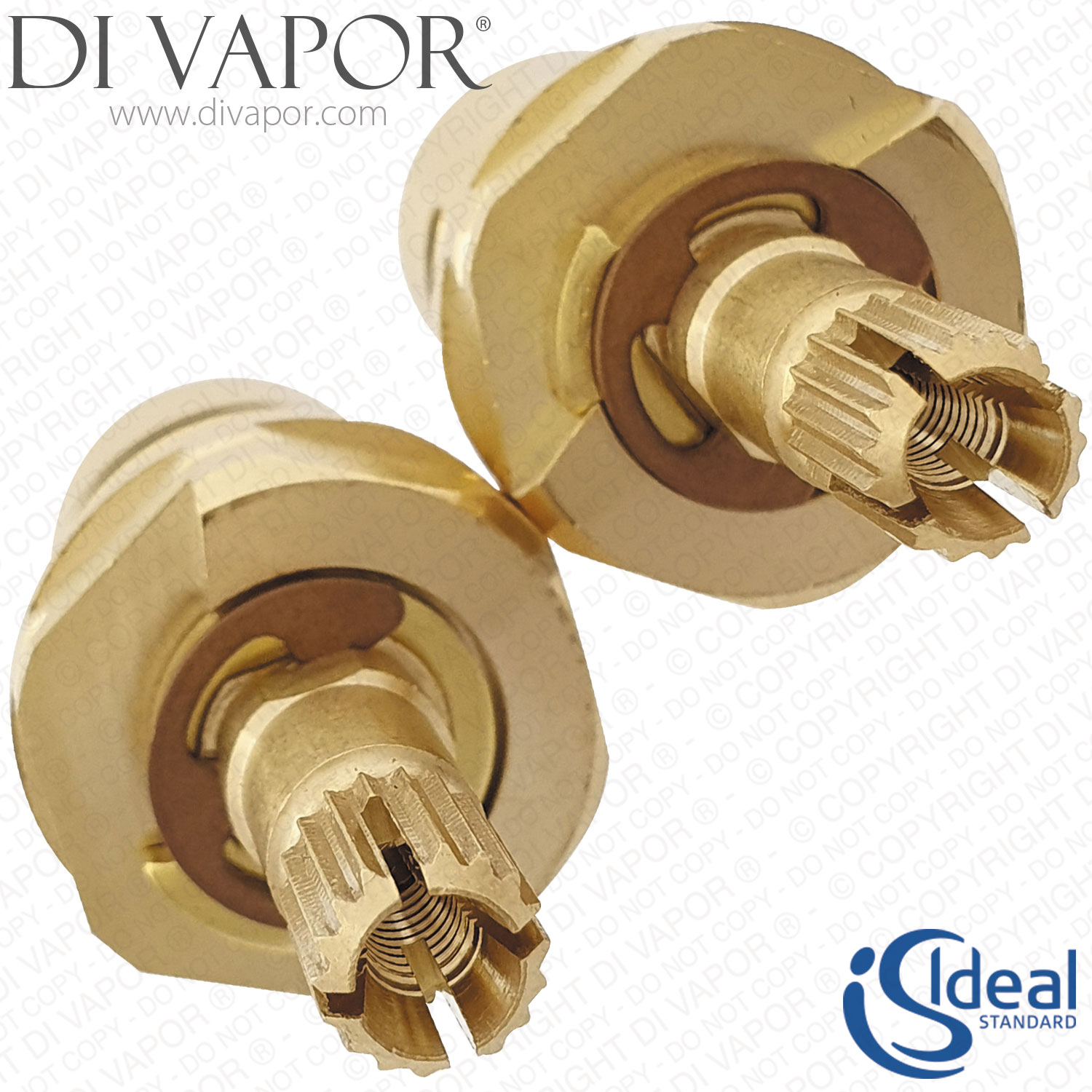

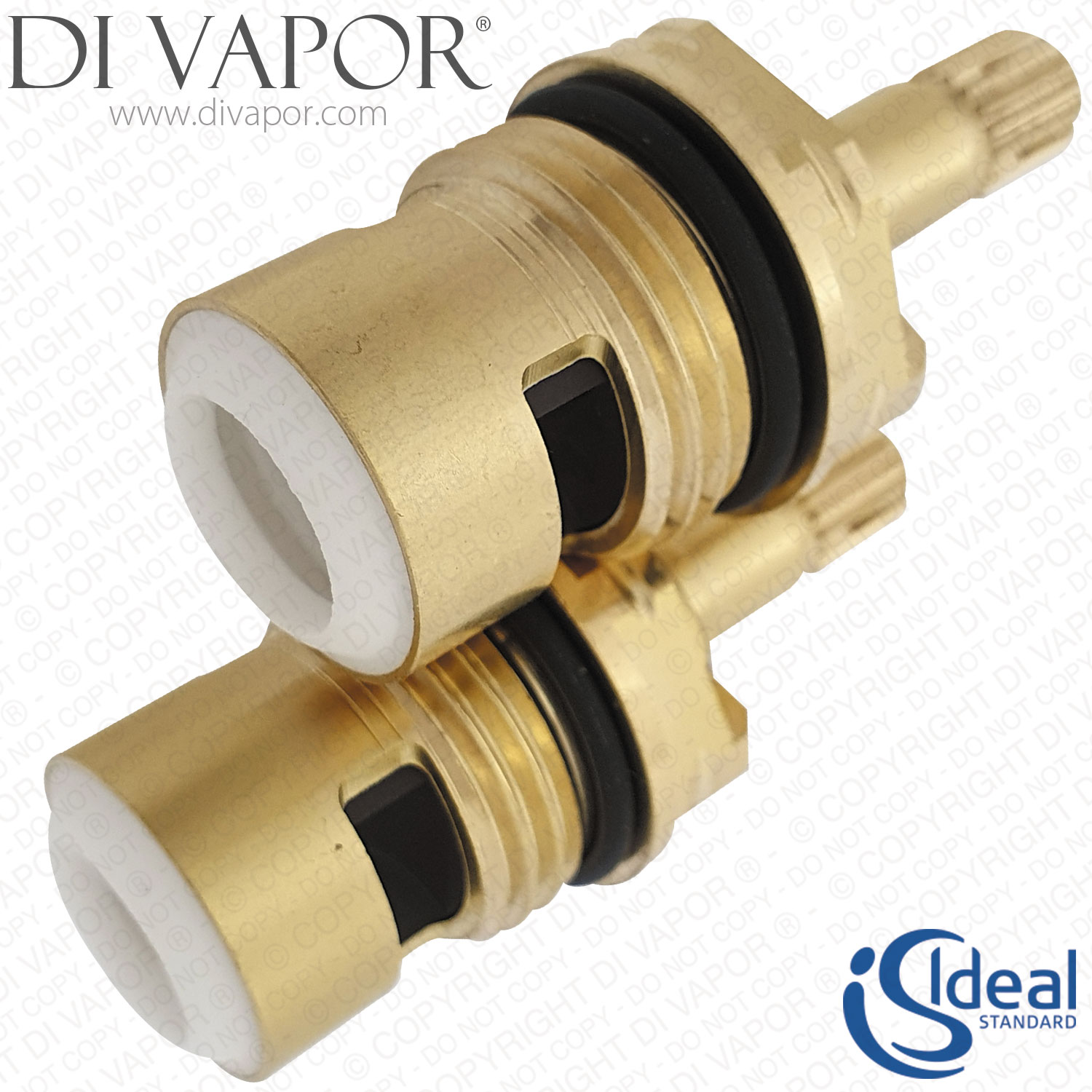

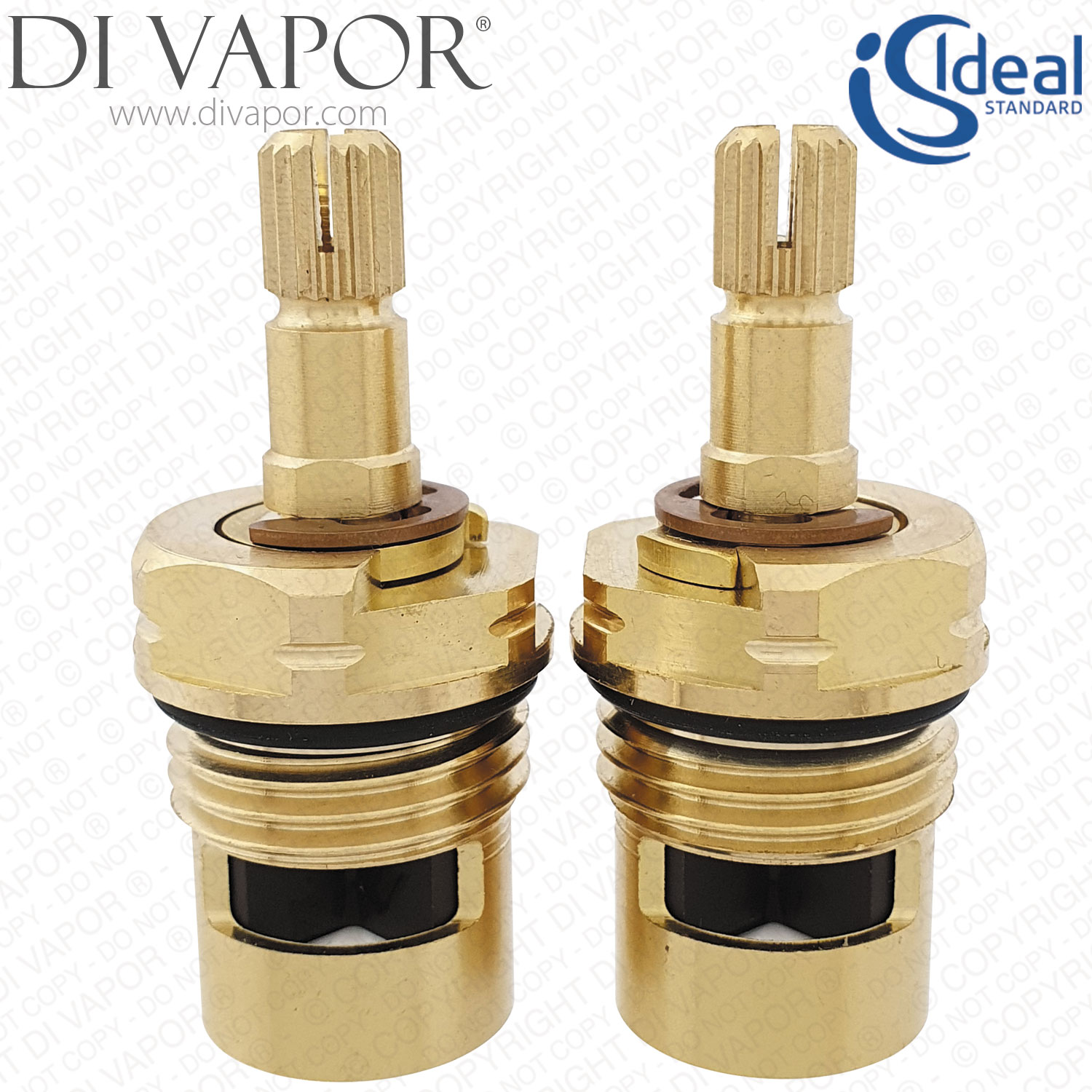

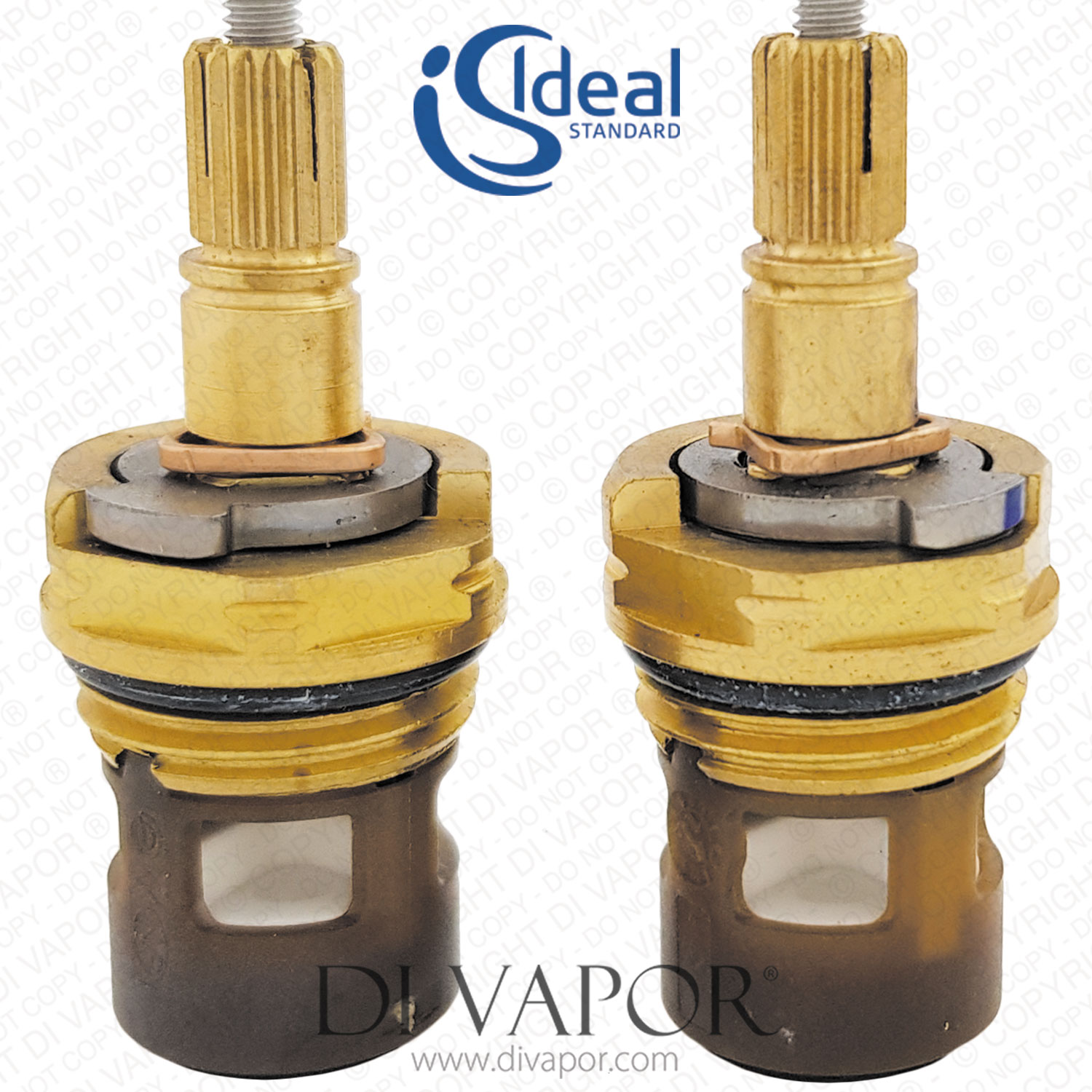

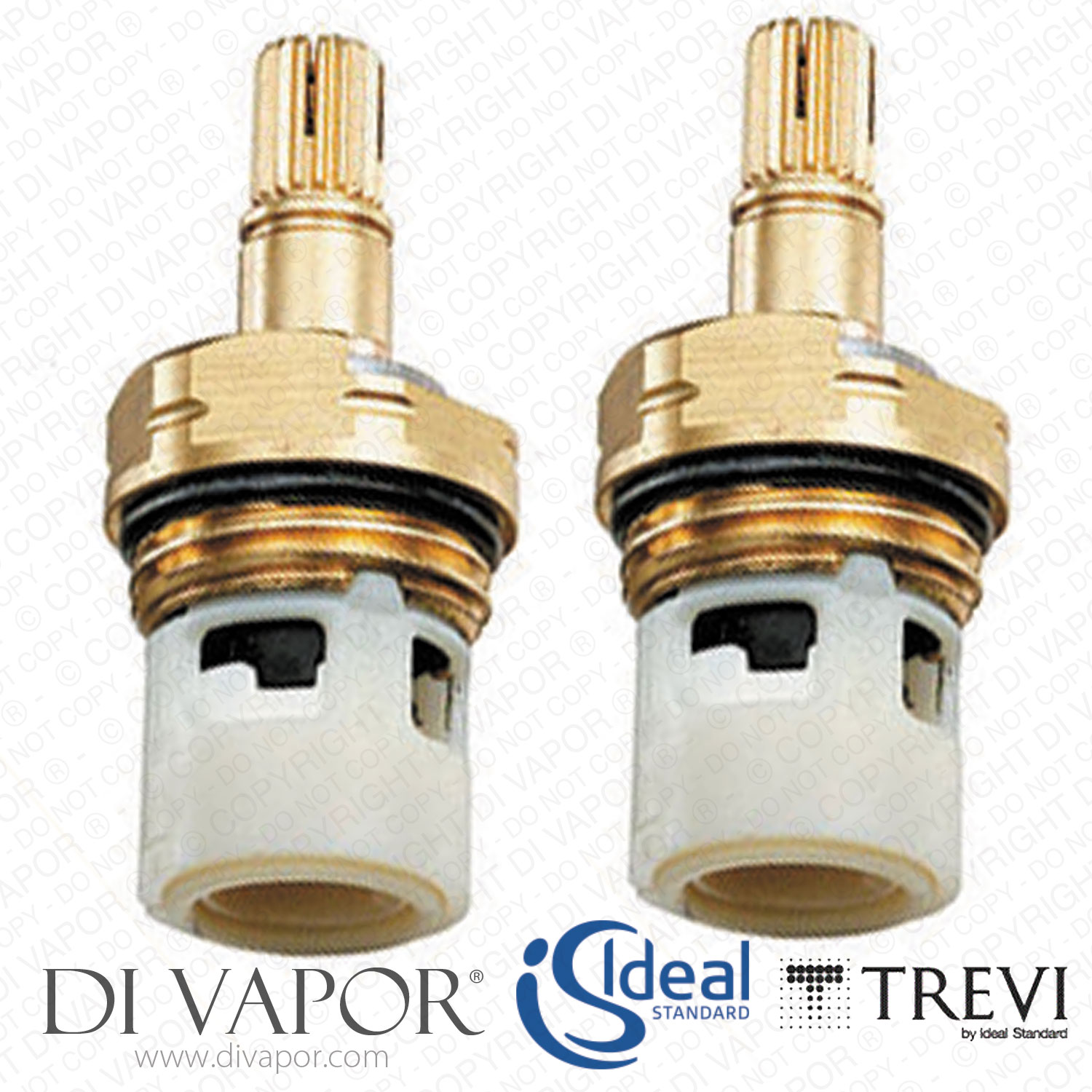

Ideal Standard E002467 Pair of 1/2" On/Off Ceramic Disc Flow Cartridges

SUMMARY

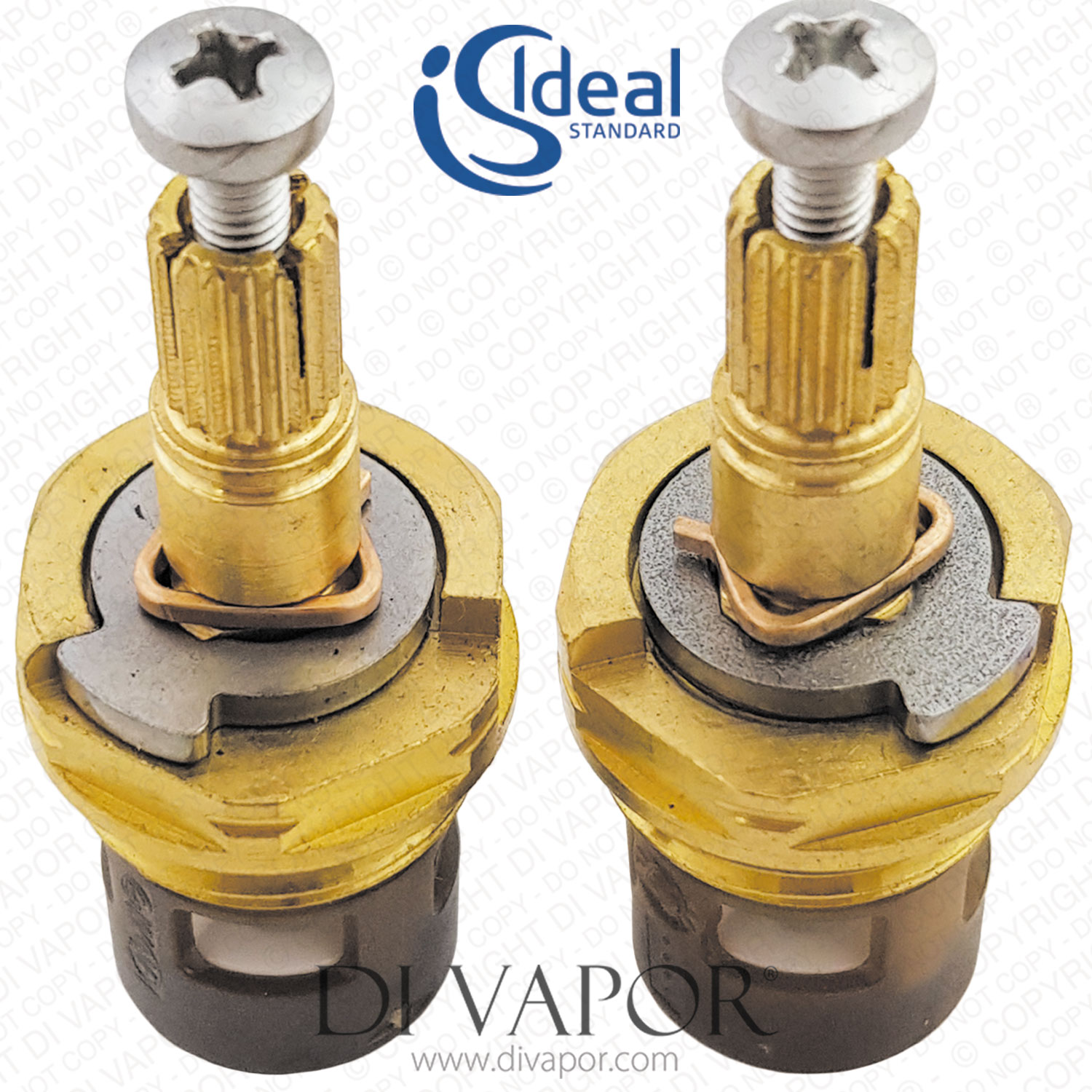

E002467 (1 x Clockwise and 1 x Anti-Clockwise Close Cartridges) of Ideal Standard / Trevi 1/2", Quarter Turn On/Off Ceramic Disc Flow Cartridge for Taps and Shower Valves. Please note, the screws are no longer included with the cartridge.

The total height of this cartridge is 52mm to 53mm depending upon how compressed the bottom seal is. If the cartridge you require is between 56mm and 57mm, then you will need the S960025NU cartridges.

This pair of cartridge is used in the following taps:

- E1515AA Tantadisc Basin Pillar Taps Rim Mounted
- E1735AA Tantadisc Basin Mixer Rim Moutned 1 Hole With Pop Up Waste
- E6816AA Tantadisc dual control one taphole sink mixer
- E6817AA Tantadisc Sink Mixer Rim Mounted - Chrome
- E7811AA Tantadisc dual control two taphole sink mixer

Manufacturer: Trevi by Ideal Standard
Spare Part: 1/2 Inch Flow Cartridge Hot and Cold Pair (E002467)
Installation: Screw In
Material: Ceramic
Colour: White


The Ideal Standard E002467 spare part can be dispatched on the same day when ordered before 3:00 PM, Monday to Friday.


The pair of flow cartridges included in the E002467 are the A954361NU11 for the tap’s hot side and the A954360NU11 for the cold.


Technical Information: Ideal Standard E002467
Cartridge Measurements:
Total Length (including bottom seal): 51mm
Diameter at Base: 17mm
Spline Length: 20mm
Number of External O-Rings: 1


We have a huge selection of Ideal Standard spare parts.
- Please contact us if you need any assistance in determining the correct spare part you need. We will reply to your message as soon as we can.


Changing Ideal Standard E002467 Flow Cartridge
1: Shut off water cold and hot water supplies from under the sink.
2: Drain the remaining water from the pipe by turning the tap on until water flow stops.
3: Use an Allen key to detach the handle. Remove the handle and its decorative cap to reveal the ceramic cartridge.

4: With a small spanner undo the cartridge from the valve seat.
5: Rid the valve and its seals of dirt using a small brush.

6: Apply silicone grease directly on the o-rings new Ideal Standard E002467 cartridge. Seat it in the valve and tighten with the spanner.
7: Redo the screws on the decorative cap and handles to restore.


How does a ceramic disc tap work?
As opposed to older tap models which used rubber washers, taps of today utilize cartridges made from ceramic to prevent drips. This is mechanism is at work in Ideal Standard's Tantadisc mixer taps which uses the E002467 cartridge pair. Ceramic disc taps are low maintenance and more durable than their past counterparts.

Water flow is controlled by two gliding discs resulting in a seal that is airtight as a means to hinder water leaks. A pillar tap or a two handle tap has a ceramic cartridge with one opening whereas a mixer tap cartridge has two openings. Turning a tap on aligns the discs allowing water flow. Turning it off blocks water and keeps it from seeping out.

The discs are hardened through fire making them nearly as tough as diamonds. Its seals are almost perfectly smooth and flat. Fluctuations or extreme temperatures will not impact a ceramic disc cartridge. The level of water hardness can affect the

But just like all things, these cartridges are not perennial. The level of water hardness can affect the cartridge and it needs replacing. The cartridge may also develop drips.
