Trevi A952500NU11 Brass Cartridge

SUMMARY

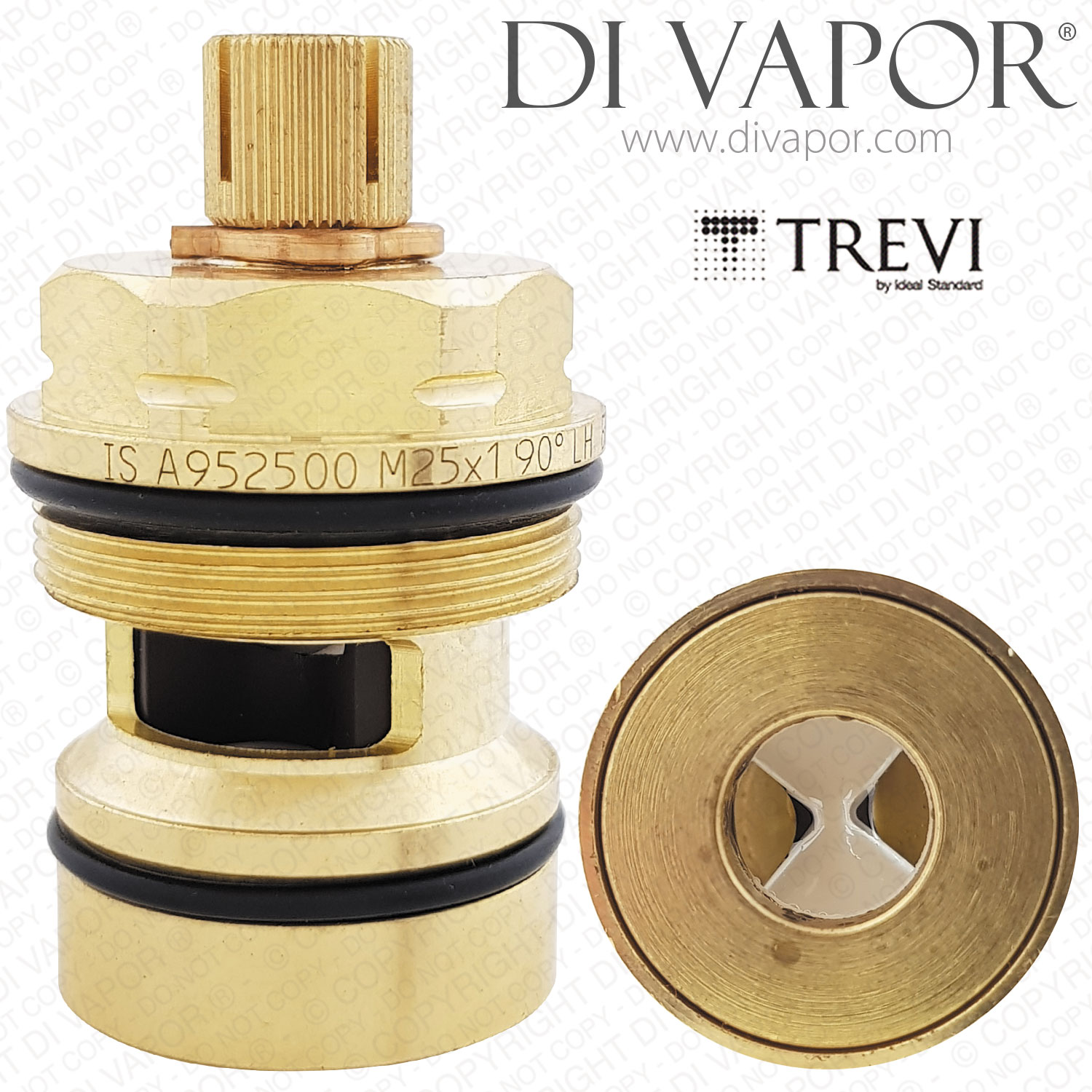

Trevi A952500NU11 Brass Cartridge. The new code for this cartridge is A952500NU. The cartridge is the exact same size as the brass / black plastic version of the cartridge.

Cartridge Measurements:
Total Length (without top screw): 42.9mm
Diameter at Widest Point: 28.5mm
Top Spline Diameter: 9.1mm
Barrel Diameter (below thread): 23.2mm
Lower Thread: 3/4" BSP (24.9mm)
Hot or Cold Side: Hot Side
Close Direction: Clockwise Close (Anti-Clockwise Open)

The screw is included.

Used in some Trevi shower valves as well as the following taps:

- Domi Duo A7640AA
- Icarus E7611AA
