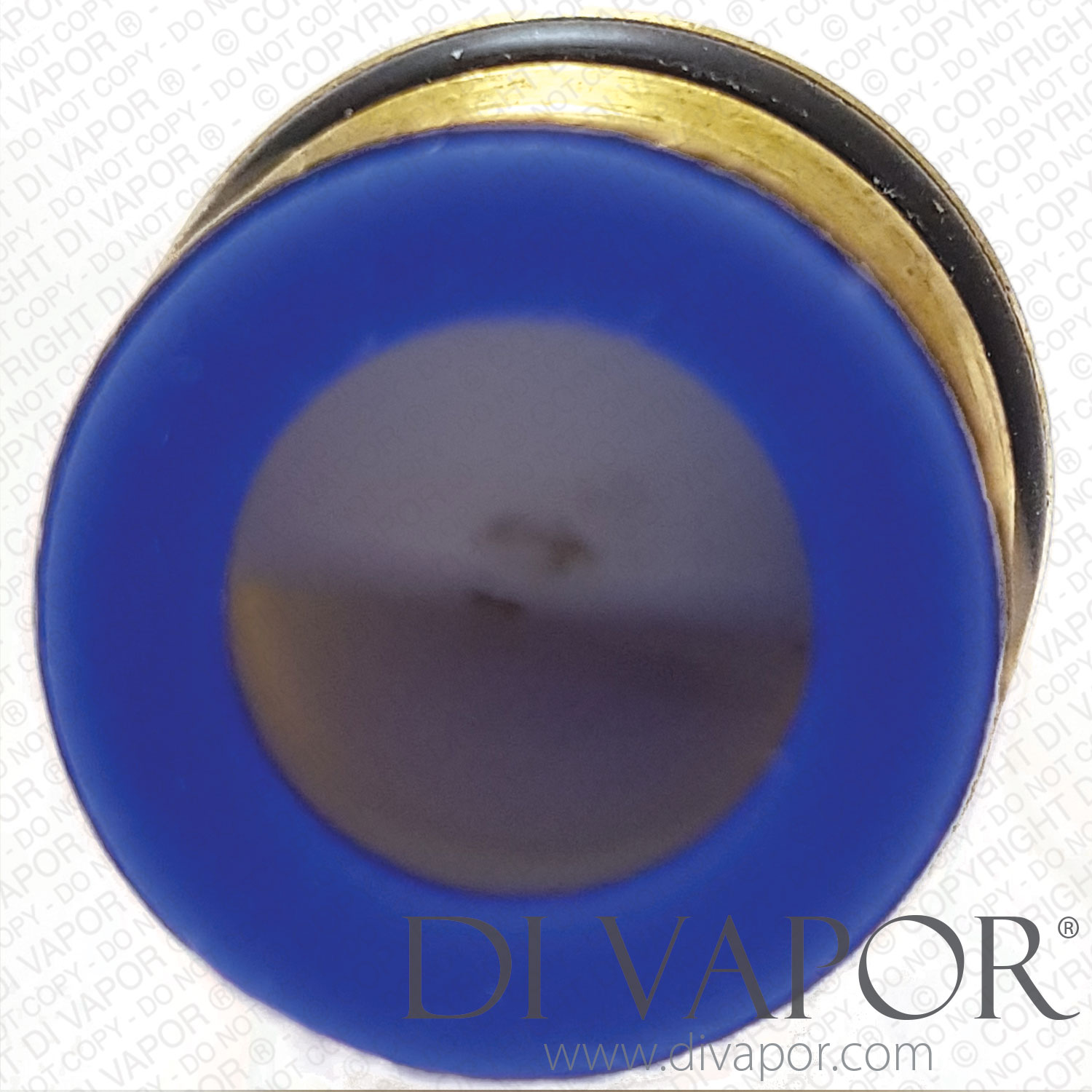

Triton 83308450 On/Off Half Turn Ceramic Disc Shower Flow Compatible Cartridge (Dove, Altair Shower Bars)

SUMMARY

Triton 83308450 Compatible On/Off Half Turn Ceramic Disc Shower Flow Cartridge (Dove, Altair Shower Bars). If your shower is leaking water from the shower valve or is dripping from the shower head, then replacing the cartridge is the most likely fix.

Measurements & Tech Info
Installation Type: Screw in Fit
Diameter at Top Hex: 17mm (you will need a 17mm spanner)
Total Height (from top to bottom): 54mm
Width (at O'Ring): 22.8mm
Width (at top spline): 7.5mm (with 20 teeth)
Width (at thread): 20.6mm
Width (at main body (just above blue washer)): 18.5mm
Turn: Clockwise Close, 180 Degree turn (half turn)
Use: Control the on / off water flow for Triton shower valves and bars.
Thermostatic Cartridge: The most common counterpart thermostatic cartridge can be found in the link at the bottom of the page or here: Triton 83308580 Thermostatic Cartridge.

Also used in:
- Triton Sema V2 MK2
- Triton Naro
- Triton Riya
- Triton Seleni
- Triton Luca
- Triton Tocatta
- Triton Nirala
- Triton Sema
- Triton Sharis Eco
- Triton Licata
- Triton Altair Pre 04-2010 and post 2010
- Triton Sharis
- Triton Dove Eco
- Triton Dove Bar Mixer
- Triton Calida
- Triton Marius

Common Questions

Question: My shower has recently started to drip from the shower head. What part will fix the problem? Is it the flow cartridge that's at fault?
Answer: If the shower head is dripping it means that the flow cartridge is letting through water. It's likely that the cartridge is the problem, therefore the drip can be fixed by replacing with a new 83308450 cartridge.

Question: Is this the Triton 83308450 mechanic headwork.
Answer: Yes it is. Headworks and flow cartridges are simply different terminologies for this type of cartridge.

Question: I have a trip which seems to be coming out of the temperature control handle. What part do I need?
Answer: If the drip is coming out of the temperature control handle it means there is a fault with the thermostatic cartridge, therefore you'll need to replace the thermostatic cartridge: Triton Thermostatic Cartridges.
