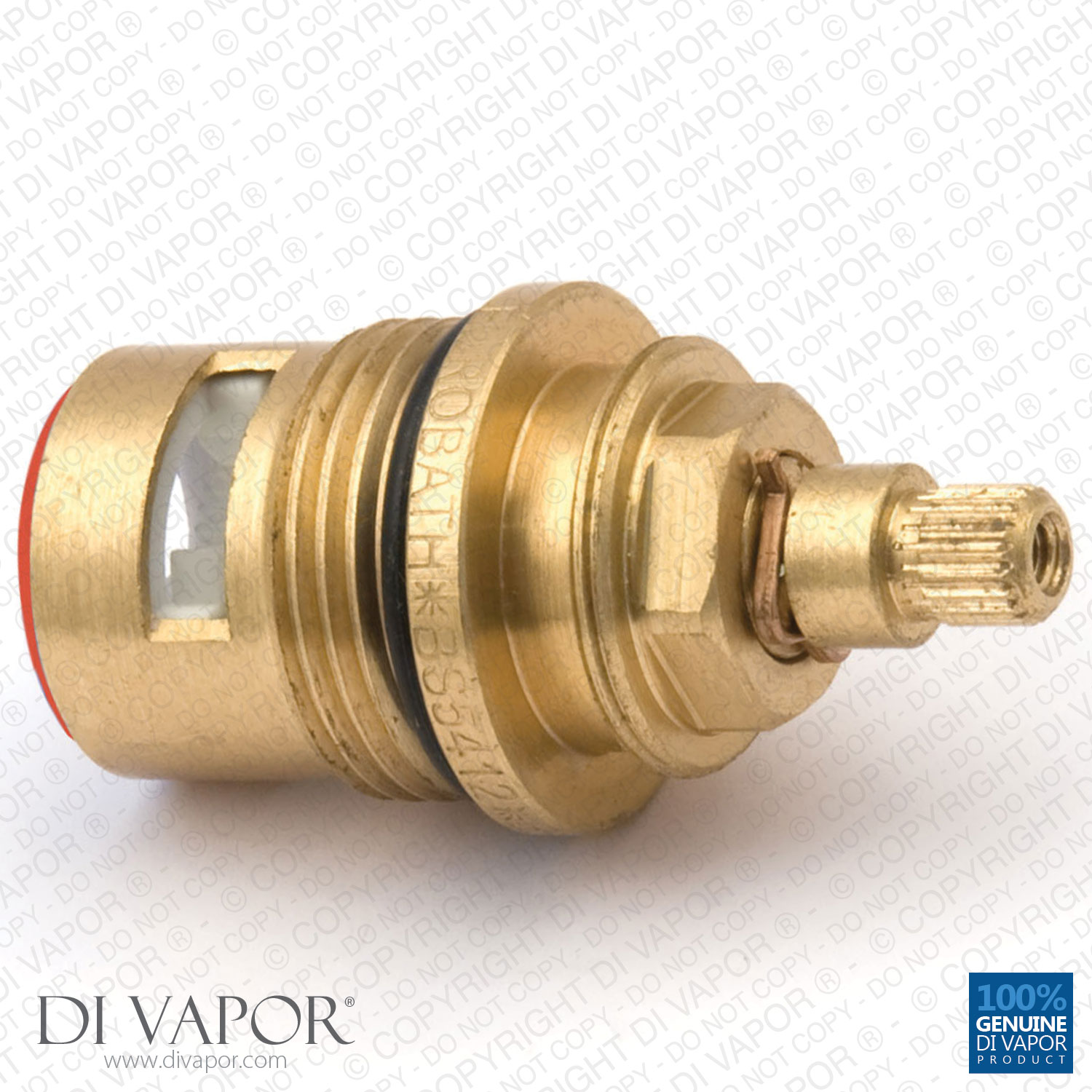

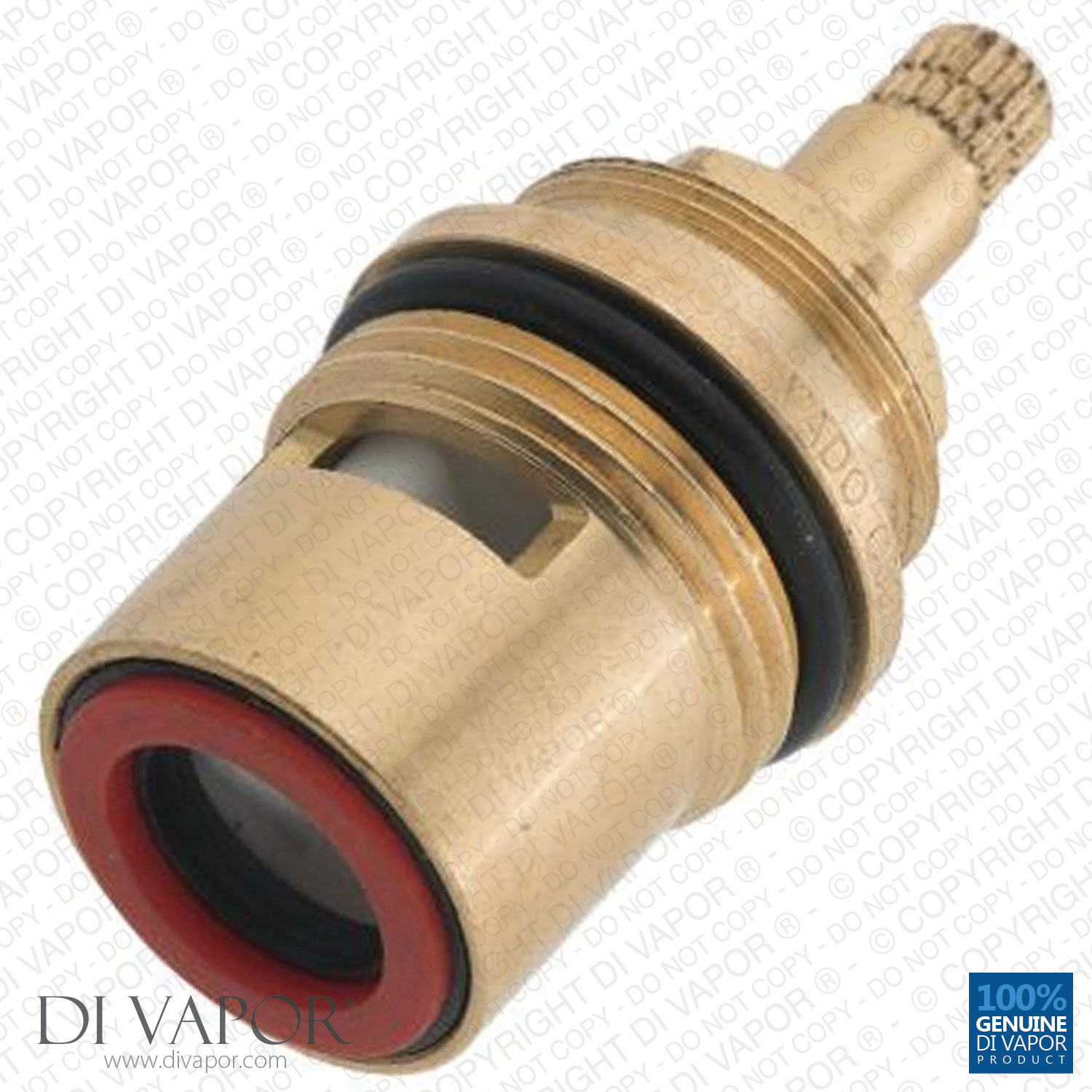

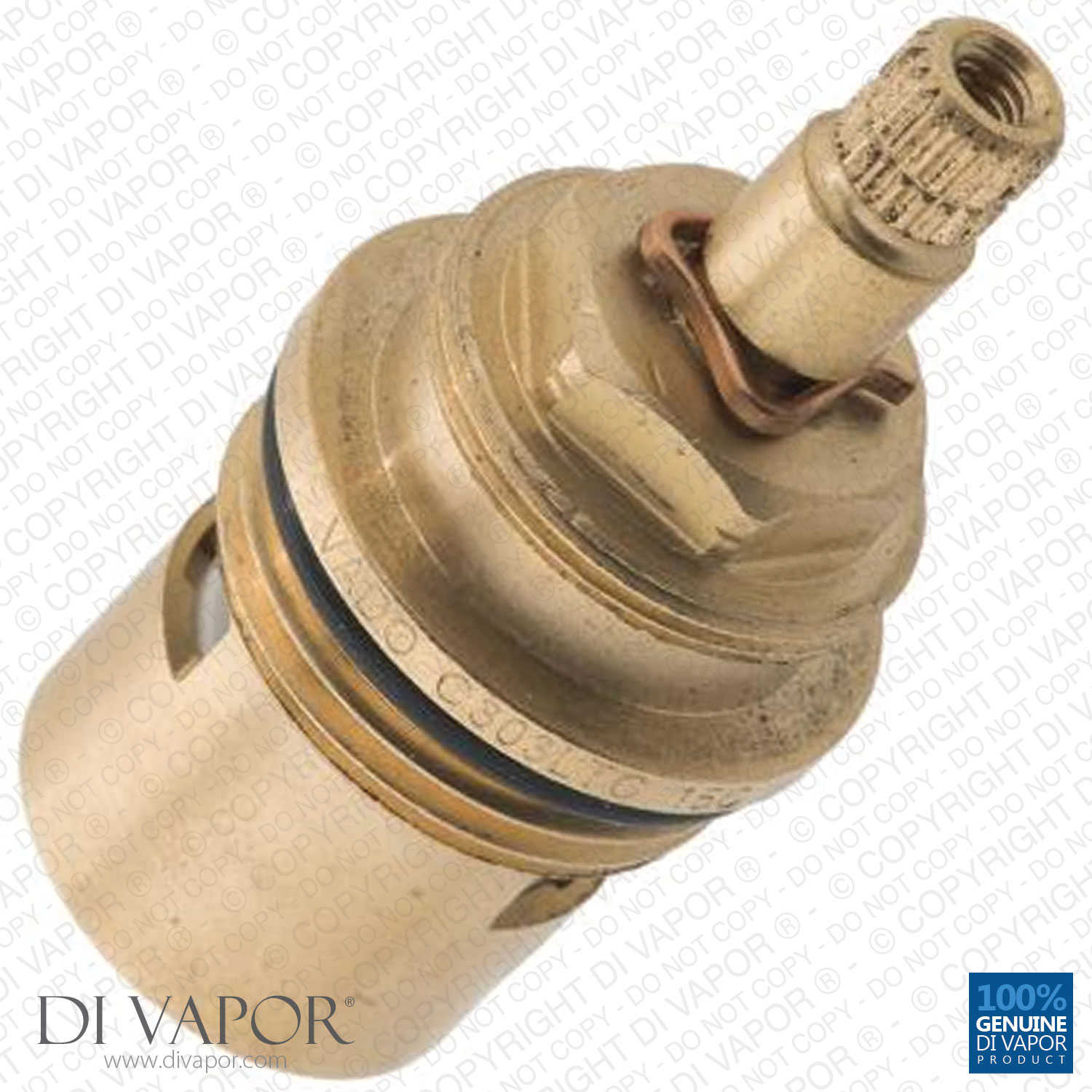

Vado ELE-VALVE/CD/HT-3/4 Ceramic Disc Valve On/Off Flow Cartridge - Hot Side

SUMMARY

3/4 Inch ceramic disc valve cold suits: ELW/ELA-125-3/4, ELW/ELA-139-3/4, ELW/ELA-135-3/4, ELW/ELA-135/NS-3/4, ELW/ELA-126S, ELW/ELA-126L, ELW/ELA-142-3/4, ELW/ELA-143-3/4, NUA-135-3/4, NUA-139, NUA-135/NS-3/4, NUA-126S, NUA-126L, NUA-125-3/4, NUA-143-3/4, NUA-142-3/4, SEN-135-3/4, SEN-135/NS-3/4, SEN-142/PR-3/4, SEN-143-3/4, TON-126S, TON-126L, TON-135, TON-139, TON-131S, TON-125-3/4, TON-142-3/4, TON-143-3/4, VIC-143/CL-3/4, ZOO-139, ZOO-135-3/4, ZOO-135/NS-3/4, ZOO-125-3/4, ZOO-142/PR-3/4, ZOO-143-3/4

Cartridge Measurements:
Total Length (including bottom seal): 57.4mm
Spindle Length from Nut to Top: 17mm
Diameter at Widest Point: 28.3mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 23.4mm
Lower Thread: 3/4"
Bottom Seal Colour: Red (for Hot Side)
Close Direction: Anti-Clockwise Close (Clockwise Open)
Upper Thread (closer to spline): 23.7mm
