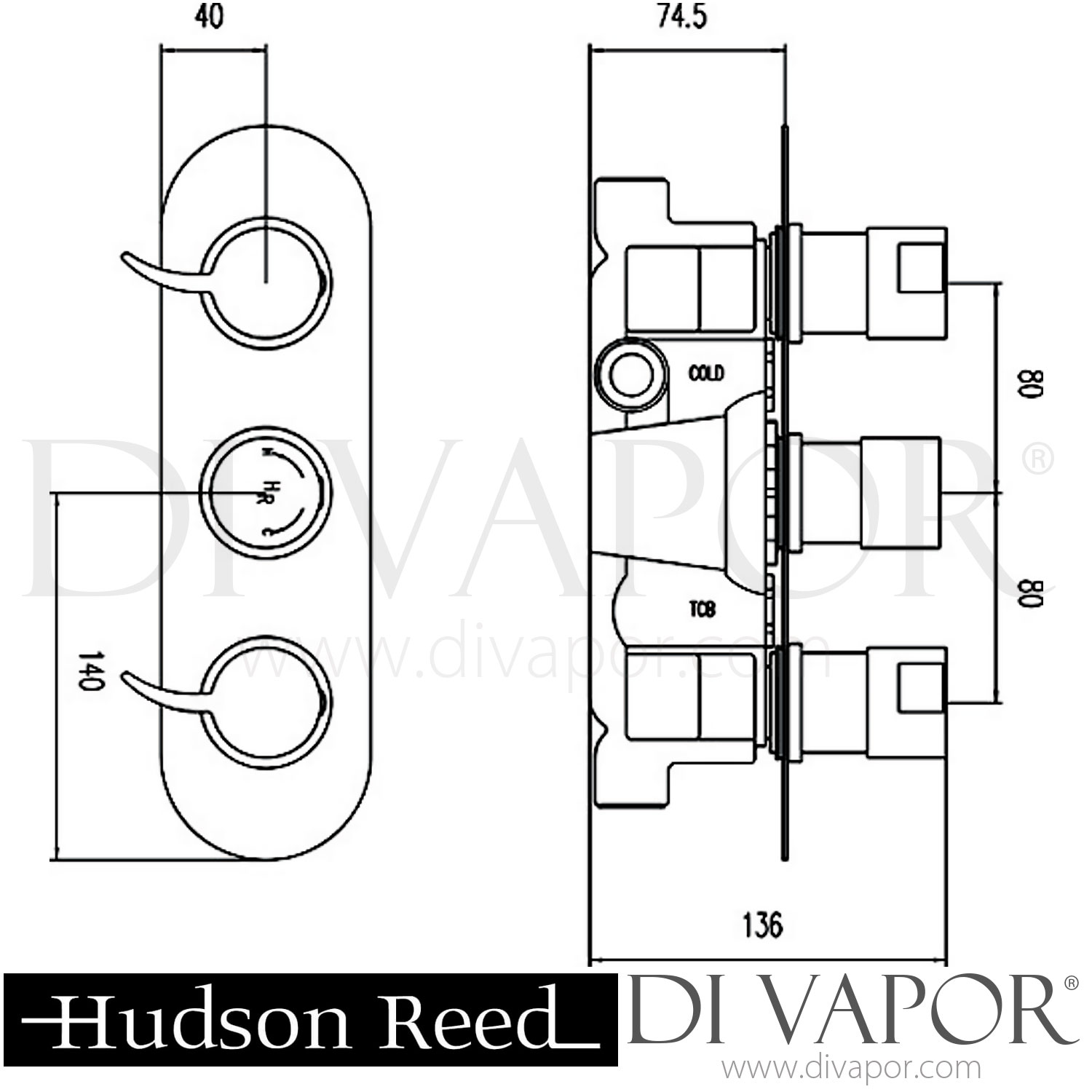

Hudson Reed Grace Triple Concealed Thermostatic Shower Valve - Round Plate - GRA3411 Spare Parts
SUMMARY
Hudson Reed Grace Triple Concealed Thermostatic Shower Valve - Round Plate - GRA3411 SparesProduct Type: Showers / Shower Valves / Triple Shower Valves
This product is now discontinued however spares are avilable below:
SC50 T20 TMV2 Thermostatic Cartridge Replacement. The SC50-T20 (SC50T20) is used on the following shower mixer valve - Crosswater Totti Thermostatic Shower Valve - CROSSWATER-PARENT-3 - Hudson Reed Tec Pura Showers - Hudson Reed REI3407 Reign Twin Concealed Shower Va...
SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves - Clockwise close (anti-clockwise open). Total Length (including bottom seal): 85.7mm Diameter at Widest Point: 28.5mm Top Spline Diameter: 7.8mm Top Spline Teeth / Notches: 20 Barrel Diameter: ...
SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red / Clockwise Open). Total Length (incl. red seal): 87.2mm Spindle Length (from top of circlip to end): 48mm Spindle Diameter: 9mm Spindle teeth head Diameter: 7.8mm Barrel Diameter: 23.8mm Lower Thread: 26mm Upper Thread (...
Hudson Reed VH044-M Round Temperature Control Handle Handle Diameter: 42mm Total Height: 29.5mm Splines: 20 (7.6mm in diameter)...
Ultra VRTRIP1 Triple Conc Valve Only (No Thermostatic Cartridge) - Chrome
