Trevi Therm Built-in Thermostatic Shower Valve Spare Parts A3000AA GEN1
SUMMARY

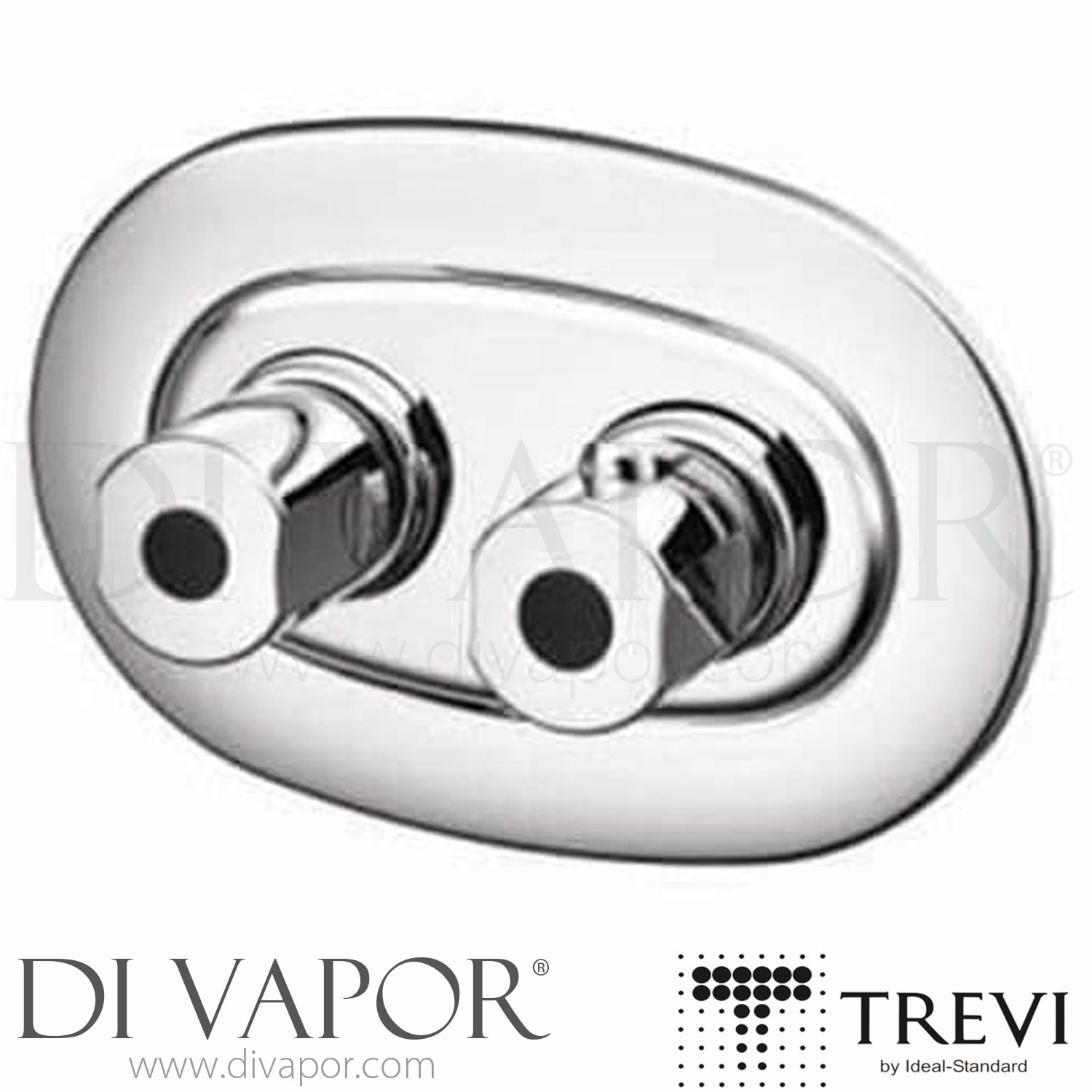

Spares for Trevi Therm Built-in Thermostatic Shower Valve A3000AA
A963067NU Ideal Standard / Trevi Therm 84mm Spindle Gear Box Assembly (Includes 2 Gears). Included: - 2 cog gears which measure 34.8mm in diameter and 6mm in thickness - 1 spindle with cog gear. The total length of the spindle is 95.4mm and the total diameter of the ge...
Genuine Trevi S960134NU Thermostatic Cartridge Assembly for Trevi Therm Shower Valves Post 1997 - 3/4". Technical Specification: S960134NU Trevi Thermostatic Cartridge The S960134NU thermostatic cartridge is the shower spare part for many Ideal Standard and Trevi valves manu...
Ideal Standard A918428 HANDLE SCREW M4 X 23.5 (AZIMUTH)
Trevi Therm A963619AA Shower Valve Faceplate (Ideal Standard), used on Therm MK2 Built-in A3000, Trevi Therm MK2 Exposed A3200 and Trevi Therm MK2 Brand: Trevi by Ideal Standard Product: Shower Valve Faceplate Manufacturer Part Number (MPN): A963619AA Finish: Chrome Measurem...
Trevi Therm A963618AA Shower Valve Faceplate (Ideal Standard). This is the faceplate that sits behind the other faceplate. The other smaller faceplate is the A963619AA. Dimensions: 222mm x 151mm Use in: A3000AA - Trevi Therm Built-in Thermostatic Shower Valve A5800A...
Trevi Therm A923142 Plastic Cover Faceplate Seals (Ideal Standard) for A3000AA, E3115AA, E9005AA, E9105AA and L6709AA Shower Valves. This seal is used on the back of the A963619AA faceplate....
Ideal Standard A918434AA Screw M4 X 50 Chrome - Compatible Spare Please note that this is a compatible spare as the original from Ideal Standard has been discontinued. ...
Trevi Therm A963515AA On / Off Control Handle (Ideal Standard), used on Therm MK2 Built-in A3000, Trevi Therm MK2 Exposed A3200 and Trevi Therm MK2...
Trevi F960955AA Temperature Control Handle - Chrome
Ideal Standard A962352PQ OUTLINE Temperature Control Handle CP/VELR - A908661/2...
Trevi Therm A963506AA Temperature Control Handle (Ideal Standard), used on Therm MK2 Built-in A3000, Trevi Therm MK2 Exposed A3200 and Trevi Therm MK2...
Trevi Temp Screw Control Handle - A918416 (A918416NU11) - Ideal Standard
A923348 Trevi Therm A923 Handle Carrier (Ideal Standard) Product Information Height: 27.8mm Diameter: 32.9mm Markings on Cartridge: A923348 >POM< 2 The A923348 cartridge / handle adapter is used in and with the following: - A1544AA Velino Archimodule Volume Handle ...
Plastic Adapter Diameter: 11.2mm Height: 22mm Internal Splines: 18 (7.6mm in diameter) External Splines: ...
Ideal Standard A911940 Gear Box Sealing Washer. Thickness: 3.2mm. External Diameter: 34.5mm. Internal Diameter: 26mm...
Trevi Boost A953155NU11 Gear Spindle 84mm. The total length of the part from top to bottom is 95.5mm...
Trevi A953164NU11 Gear Spindle Cog (Ideal Standard). The total length from end to end measures 76.7mm. The A953164NU11 is used on Trevi E3115AA and A2158AA valves. ...
Trevi A960489NU Gear Slip Clutches for Trevi Therm & Boost Valves (Pair)
Trevi A952501NU11 Ideal Standard 1/2 Dx 1/4 Turn Cartrdge Anti Clockwise Close. Please note that most Trevi Therm valves use TWO of these A952501NU11 cartridges which is controlled by this Trevi A963067NU gear set. Therefore you may need to purchase two of these cartridges to ...
Trevi A963649NU MK2 Temperature Handle Extension (Ideal Standard) (Grey Plastic). The Trevi S960134NU Thermostatic Cartridge (Link) is the most common thermostatic cartridge counterpart that this A963649NU handle extender is used on. This extender usually has the Trevi A95395...
Trevi A953957NU11 Temperature Adjustment Carrier Handle | Serenis | New Haven | Alchemy | Sandringham (Ideal Standard) The Trevi S960134NU Thermostatic Cartridge (Link) is the most common thermostatic cartridge counterpart that this A953957NU11 handle adapter is used on. Thi...
Ideal Standard A962102AA OUTLINE THERM BACK PLATE CHROME
Ideal Standard E960113NU FLOW REGULATOR 8L/MIN MRO1GA REF 58.6128
Ideal Standard E4745AA Trevi 135cm Flexible Shower Hose with Easyclean Finish (Chrome) Brand: Trevi by Ideal Standard Product: Flexible Shower Hose with Easyclean Finish (Chrome) Measurement: 135cm (1.35m) Manufacturer Part Number (MPN): E4745AA Material: Plastic Chrome C...
