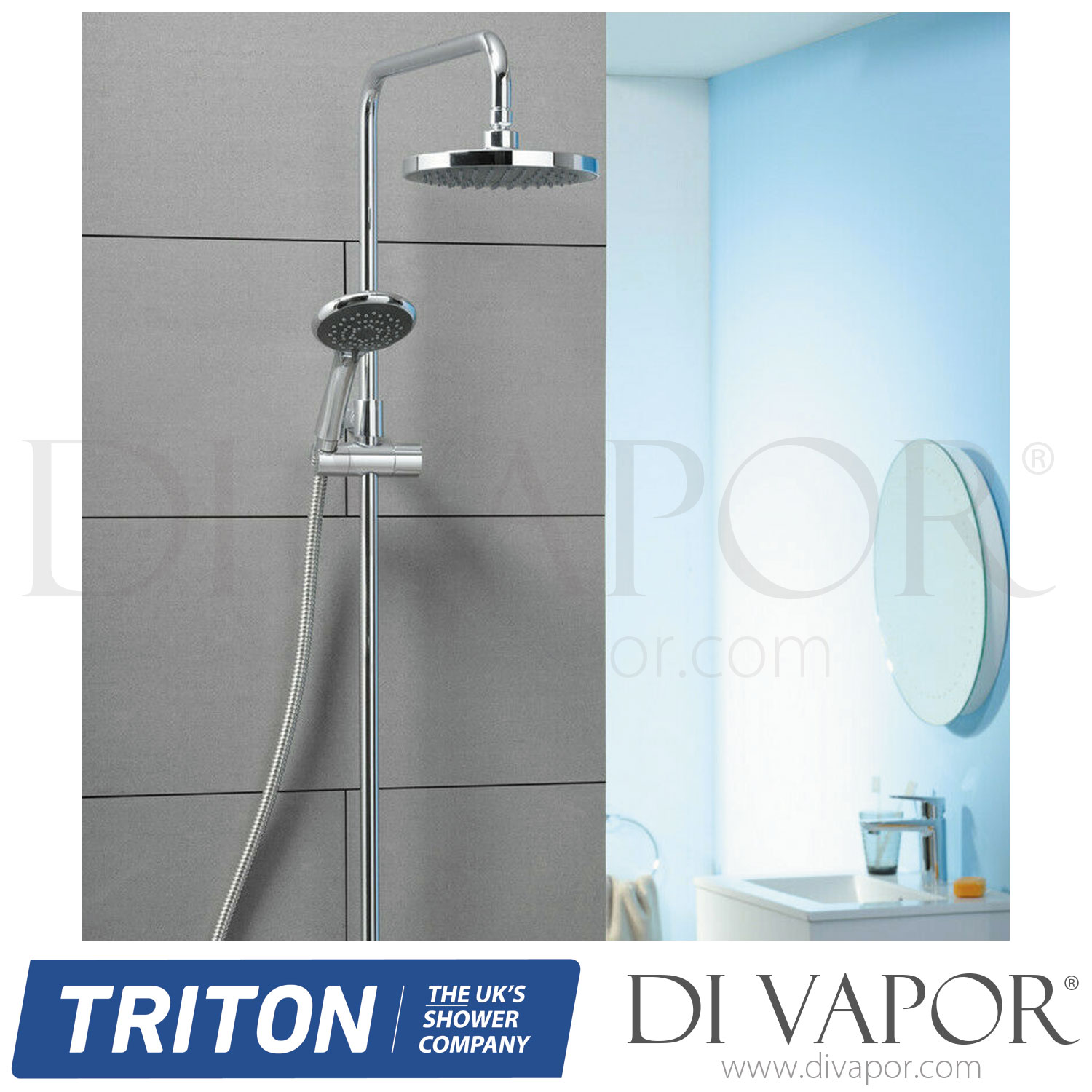

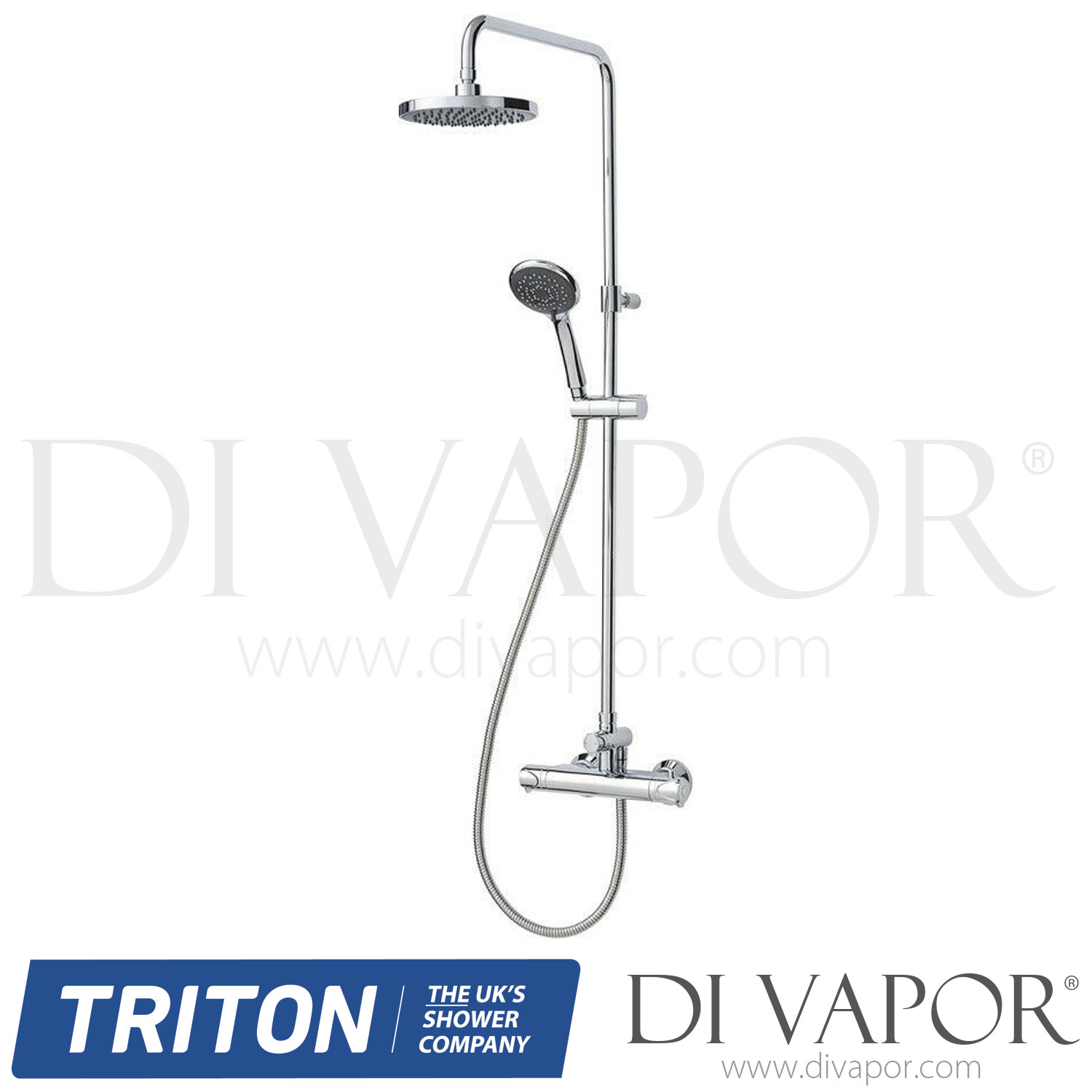

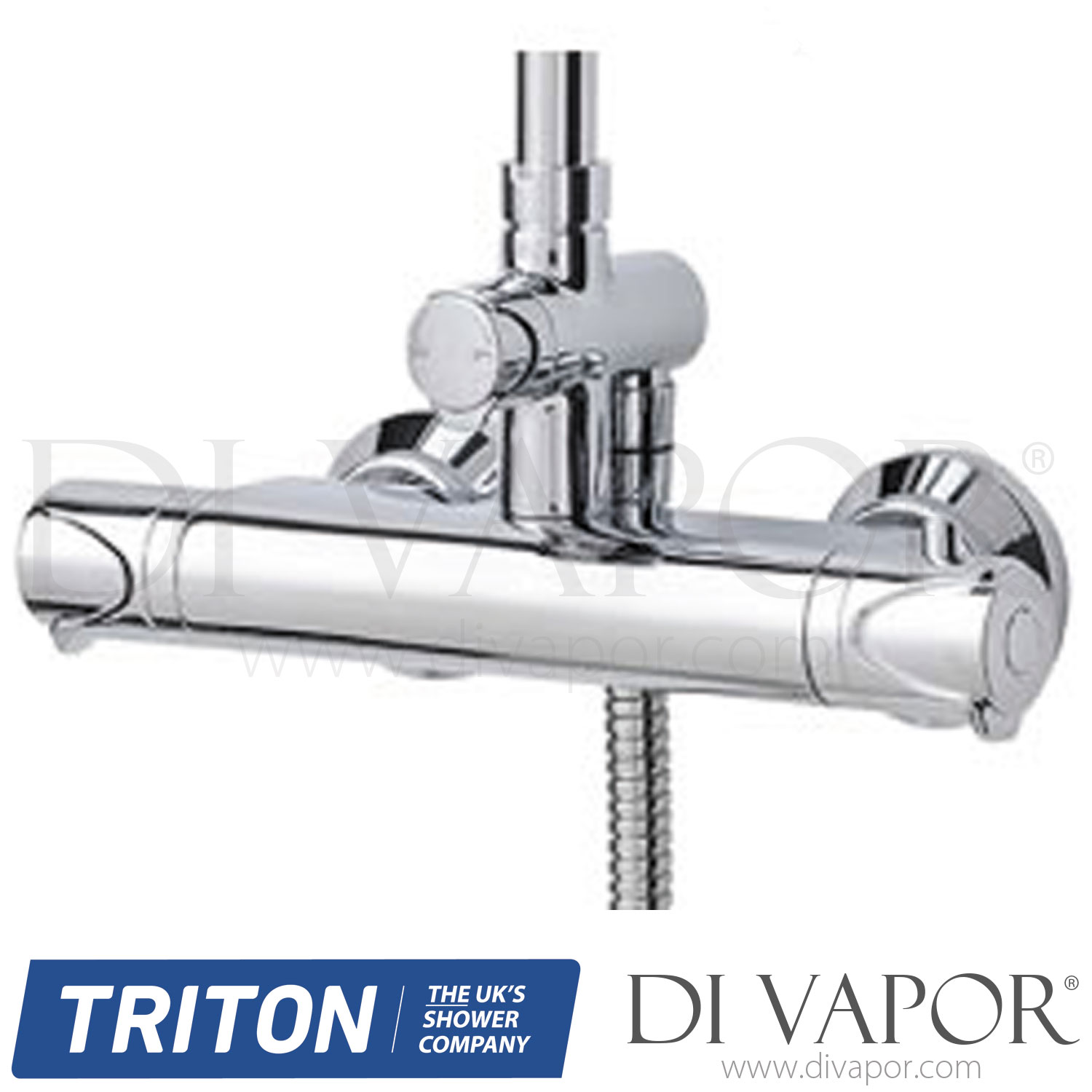

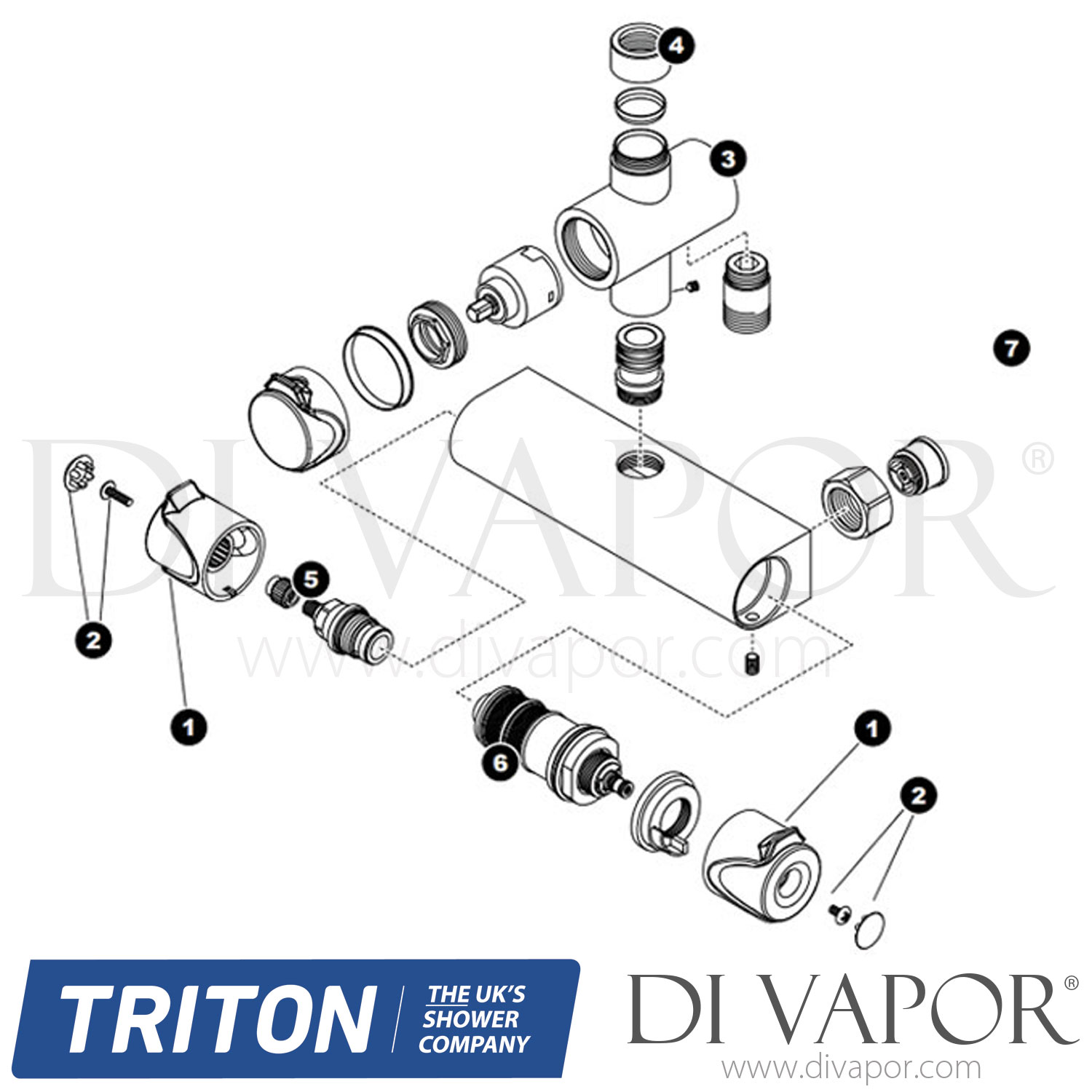

Triton SWTIATHBMDIV Tian Bar Shower Mixer with Diverter Spare Parts

Triton 83316190 Thermostatic Cartridge Cartridge Measurements: Total Length: 91.4mm (including wax thermostat at bottom) Diameter at Widest Point: 33.8m Top Spline Diameter: 9.6mm Top Spline Teeth / Notches: 24 Diameter at Top O'ring: 33.5mm Diameter at Middle O'ring: 31...

Triton 83316690 Diverter Cartridge Cartridge Measurements: Total Length (including bottom seal): 43.4mm (excluding locating pins) Diameter at Widest Point: 23mm (at o'ring) Brass Spindle Length (Including Spline): 15mm Top Splindle Square Diameter: 6.9mm x 6.9mm Barrel Di...
