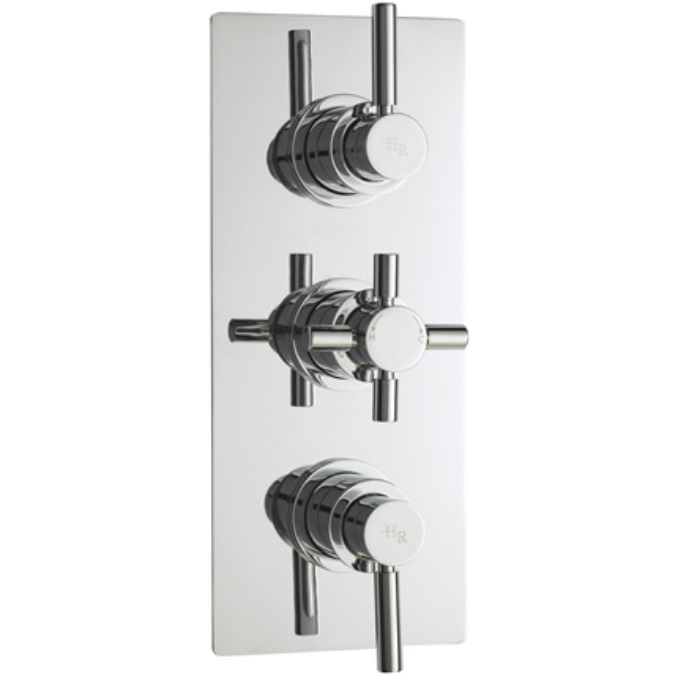

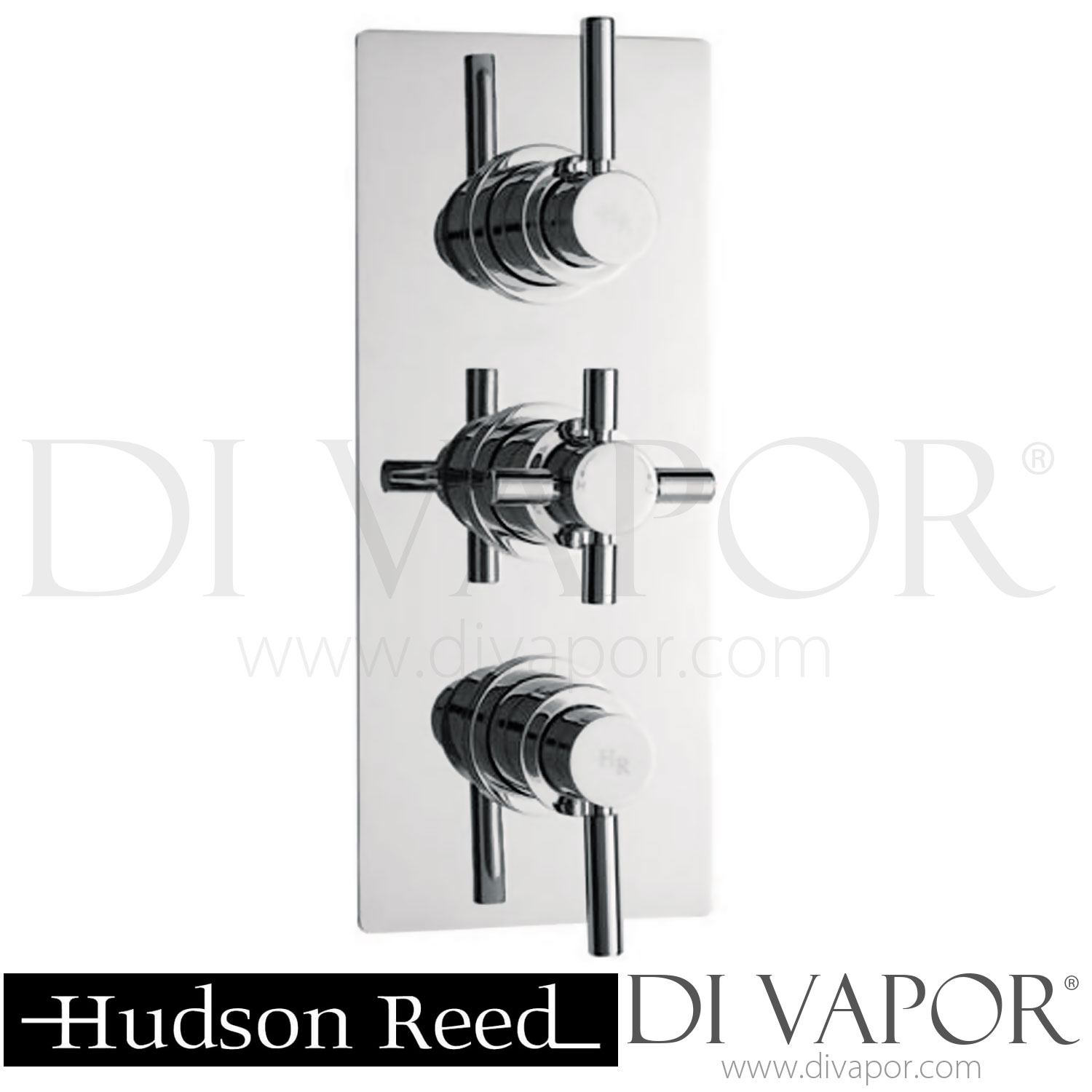

Ultra A3003 Tec Pura Plus Triple Thermostatic Shower Valve
SUMMARY
Ultra A3003 Tec Pura Plus Triple Thermostatic Shower Valve:Max Dynamic Pressure: 5 bar
Min Dynamic Pressure: 0.2 bar
Factory Outlet Temperature Setting: 43°C
Minimum Temperature Differential (Mixed water to hot water): 10°C
Temperature Stability: ±2°C
SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves - Clockwise close (anti-clockwise open). Total Length (including bottom seal): 85.7mm Diameter at Widest Point: 28.5mm Top Spline Diameter: 7.8mm Top Spline Teeth / Notches: 20 Barrel Diameter: ...
Hudson Reed A3003 Thermostatic Cartridge - Plastic (A3003PL) Measurements: Spline Teeth Count: 20 tooth / groove Total Length: 119.5mm (11.95cm) Width of Spindle Head (which the handle connects onto): 7.6mm Width at Widest Point: 53.5mm (5.35cm) Width of body at Bott...
Ultra V068-P Ov20 Check Valve - Non-Return Valve This check valves is sold individually, therefore you'll receive one check valve with one purchase. If you need two, you will need to place an order for two. Measurements: Diameter of Yellow plastic section: 19.6mm (i.e. 20...
This is a replacement screw in thermostatic cartridge for Hudson Reed SA30049 Ultra Group twin and triple valves which were mainly sold pre 2010. Please check the technical diagram and compare it to the cartridge which you have before ordering to ensure it is the correct thermos...
This is a replacement flow cartridge for Hudson Reed SACDV, also known as Ultra SACDV. The sister part for this SACDV flow cartridge is the SA30049 thermostatic cartridge. Total Length: 54mm Number of Splines/Teeth: 20 Diameter of Splines/Teeth: 7.7mm Main Body Diameter: ...
SC50 T20 TMV2 Thermostatic Cartridge Replacement. The SC50-T20 (SC50T20) is used on the following shower mixer valve - Crosswater Totti Thermostatic Shower Valve - CROSSWATER-PARENT-3 - Hudson Reed Tec Pura Showers - Hudson Reed REI3407 Reign Twin Concealed Shower Va...
Hudson Reed SP350 Tap Handle Knobs - Tec Cross Heads Pair (Chrome) for 20 spline cartridges. These handles are used in the following models: TEX315, TEX353, TEX354, TEX337, TEX334 & TEX317...
Ultra STECLTH Control Handle for A3004 Valves Used on TEL315, TEL353, TEL354, TEL337, TEL334, A3004 and TEL317...
Ultra SVQ01 3/4 Tapered Conical Nut & Washer
Ultra SVQ04 Flow Cartridge Shroud Diameter: 37.8mm Height: 39.5mm

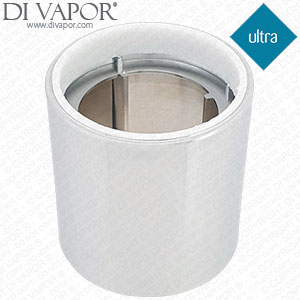

Ultra SVQ05 Shroud For Valquest Twins / Triples
SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves - Clockwise close (anti-clockwise open). Total Length (including bottom seal): 85.7mm Diameter at Widest Point: 28.5mm Top Spline Diameter: 7.8mm Top Spline Teeth / Notches: 20 Barrel Diameter: ...
SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red / Clockwise Open). Total Length (incl. red seal): 87.2mm Spindle Length (from top of circlip to end): 48mm Spindle Diameter: 9mm Spindle teeth head Diameter: 7.8mm Barrel Diameter: 23.8mm Lower Thread: 26mm Upper Thread (...
Ultra VH008 Tec Pura Temperature Control Handle (Crosshead). Used on 20 spline cartridges....

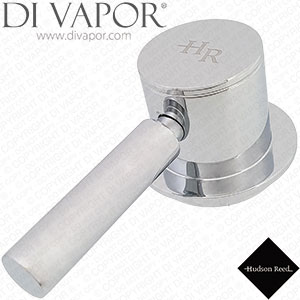

Hudson Reed VH008A Tec Pura Flow Lever Handle (Ultra Finishing) Diameter at widest round part: 40mm Diameter of bottom round part: 32mm Diameter of Top round part which says HR: 28mm Length of Lever Rod: 47mm Number of Splines: 20...
Hudson Reed VPS002 Triple Rectangular Plate (Round Flanges)
Ultra SVR21W G 3/4" Cold CD Valve Flow Cartridge
Ultra SVR22W G 3/4" Hot CD Valve WRAS Approved
