Crosswater RM/SQ Thermostatic Cartridge CR101C - CR-CR101C / CR-101C

SUMMARY

Crosswater RM/SQ Thermostatic Cartridge CR101C - CR-CR101C / CR-101C

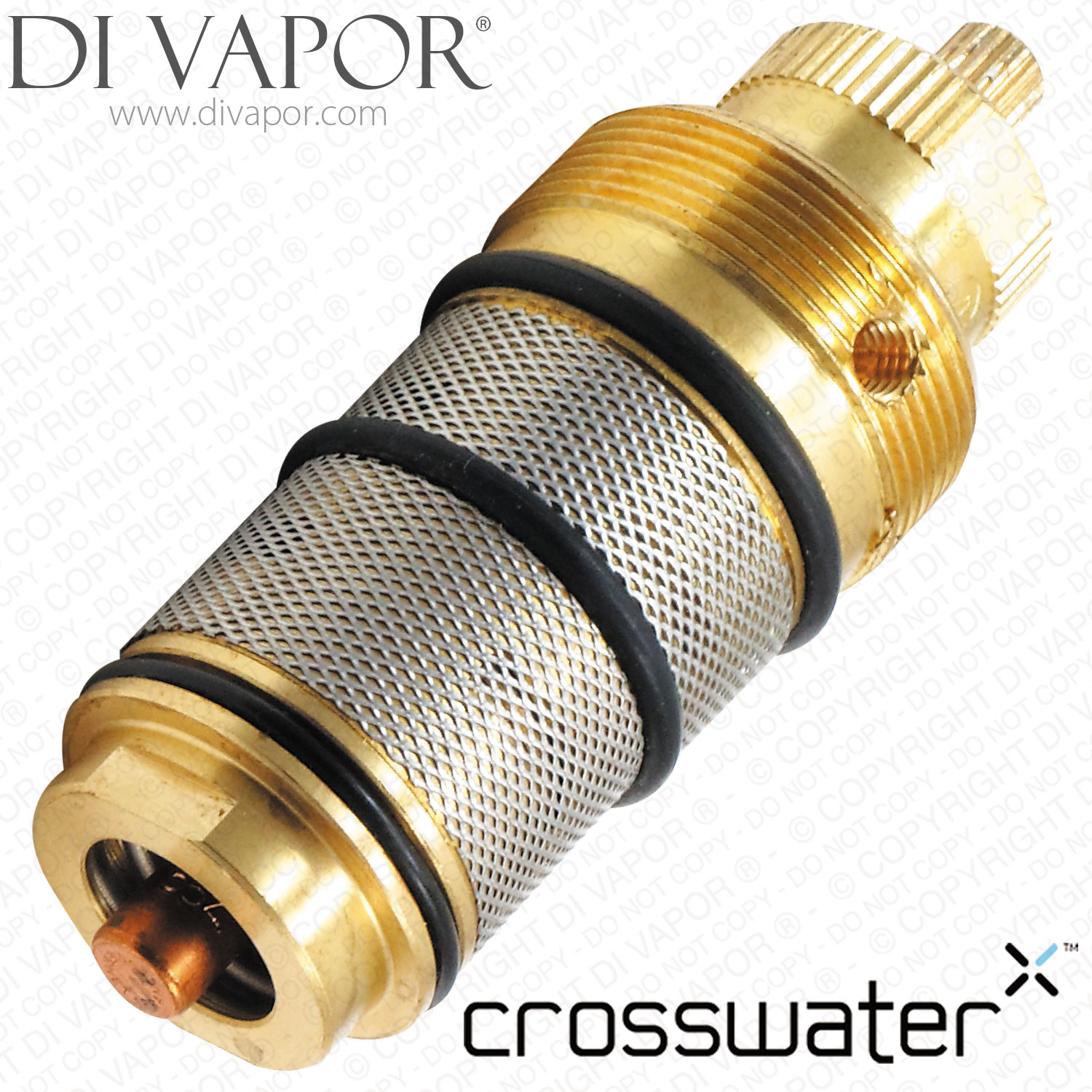

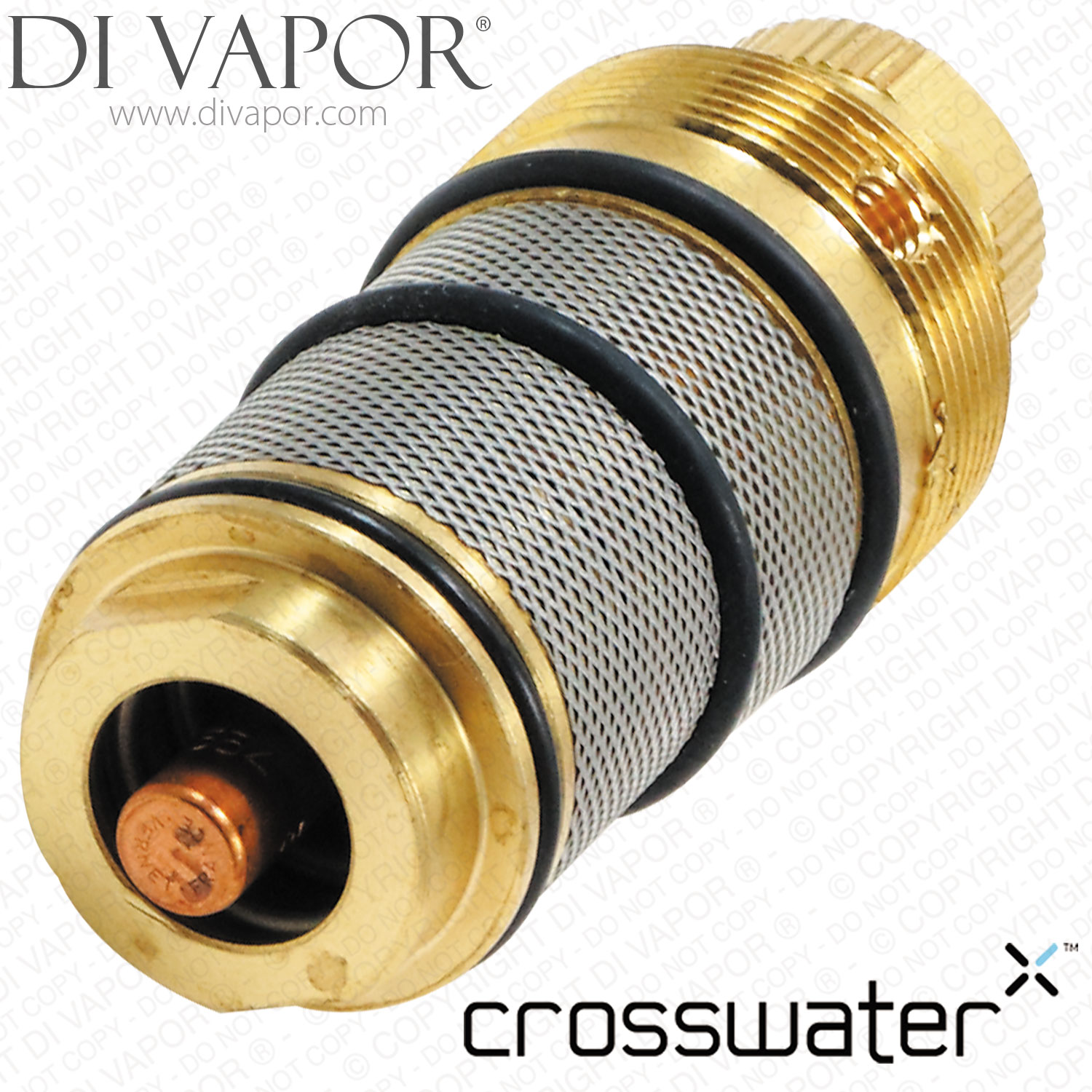

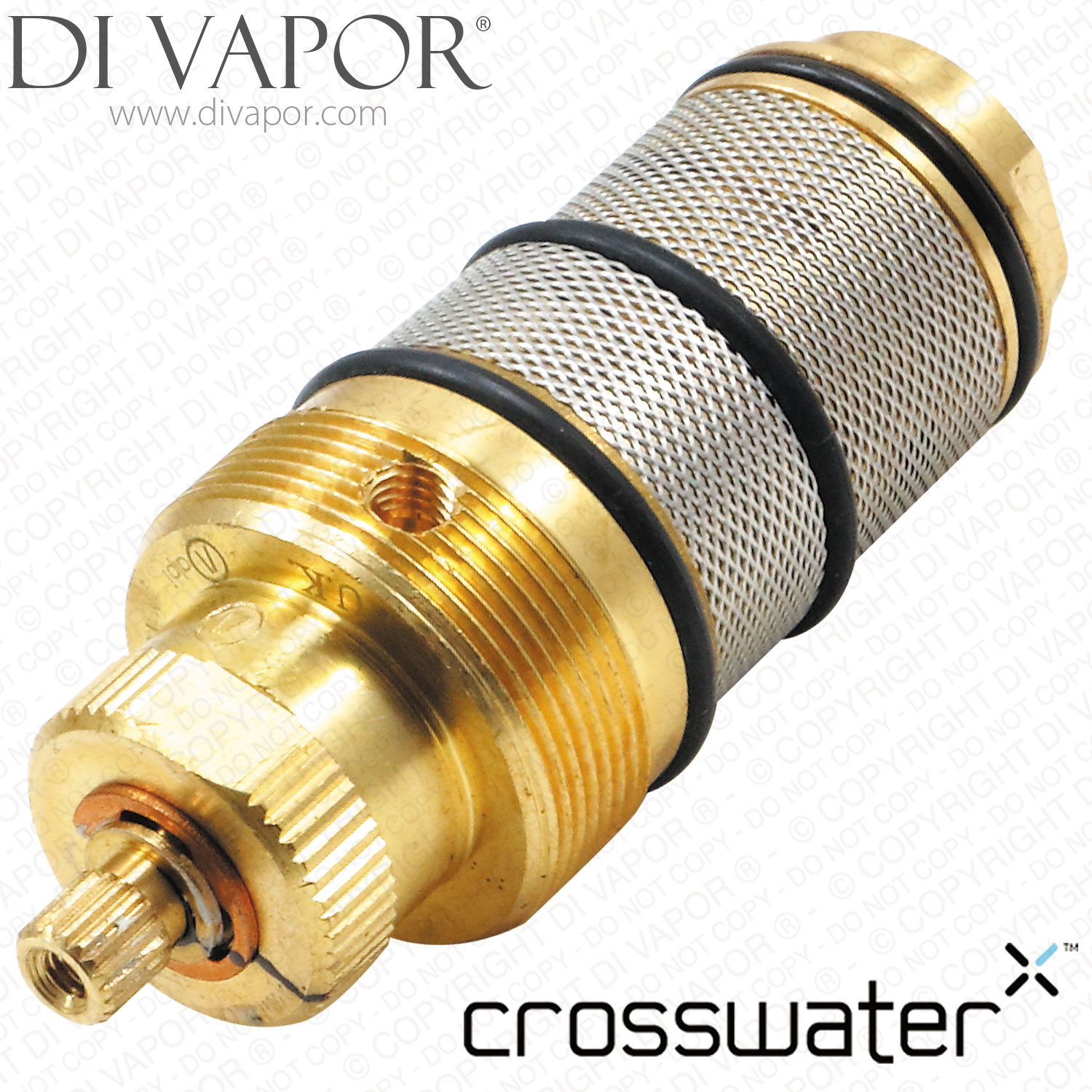

Crosswater CR101C: Shower Part Identification

Cartridge Measurements:
Length: 93.5mm
Diameter at Thread: 34mm
Diameter of Large Spline Tier: 24mm

Diameter at Top O-Ring: 32.9mm
Diameter at Middle O-Ring: 31.6mm
Diameter at Bottom O-Ring: 29.9mm

Diameter of Spindle: 7.5mm
Number of Spline Teeth/Notches: 20


CR101C is the cartridge used for some Crosswater RV and SQ shower valves. To be sure this replacement thermostatic cartridge is the one you need, please take the faulty cartridge out of the valve and compare it with the measurements given.


The Crosswater CR101C thermostatic cartridge might need to be changed if the RV or SQ shower valve is showing difficulties regulating water temperature, weakened rate of water flow, or a stiff to turn handle.


Please have a look at other in-stock Crosswater Spares.


Di Vapor is your friendly UK spares experts! Please contact us if you have any questions regarding the CR101C Crosswater thermostatic cartridge. We will gladly respond to your messages.
