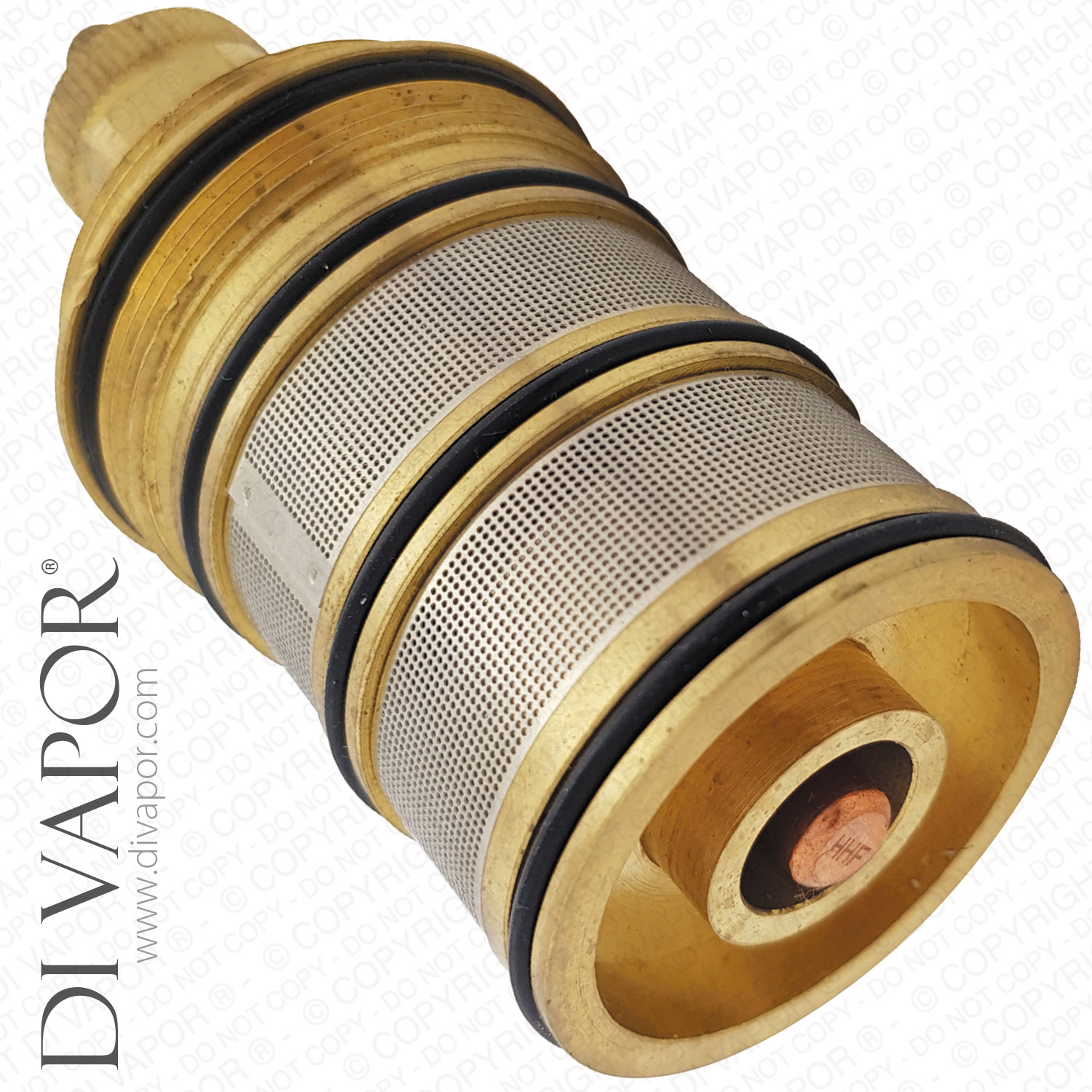

GF78906 Thermostatic Cartridge Replacement

SUMMARY

Please note that a replacement for this cartridge is the following thermostatic cartridge and stop ring. You'll need the stop ring with the thermostatic cartridge as the diameter of the stop ring splines is narrower on the new cartridge, therefore the old stop ring will be too wide:

- Click Here for Thermostatic Cartridge Alternative.
- Click Here for Temperature Stop Ring Alternative.

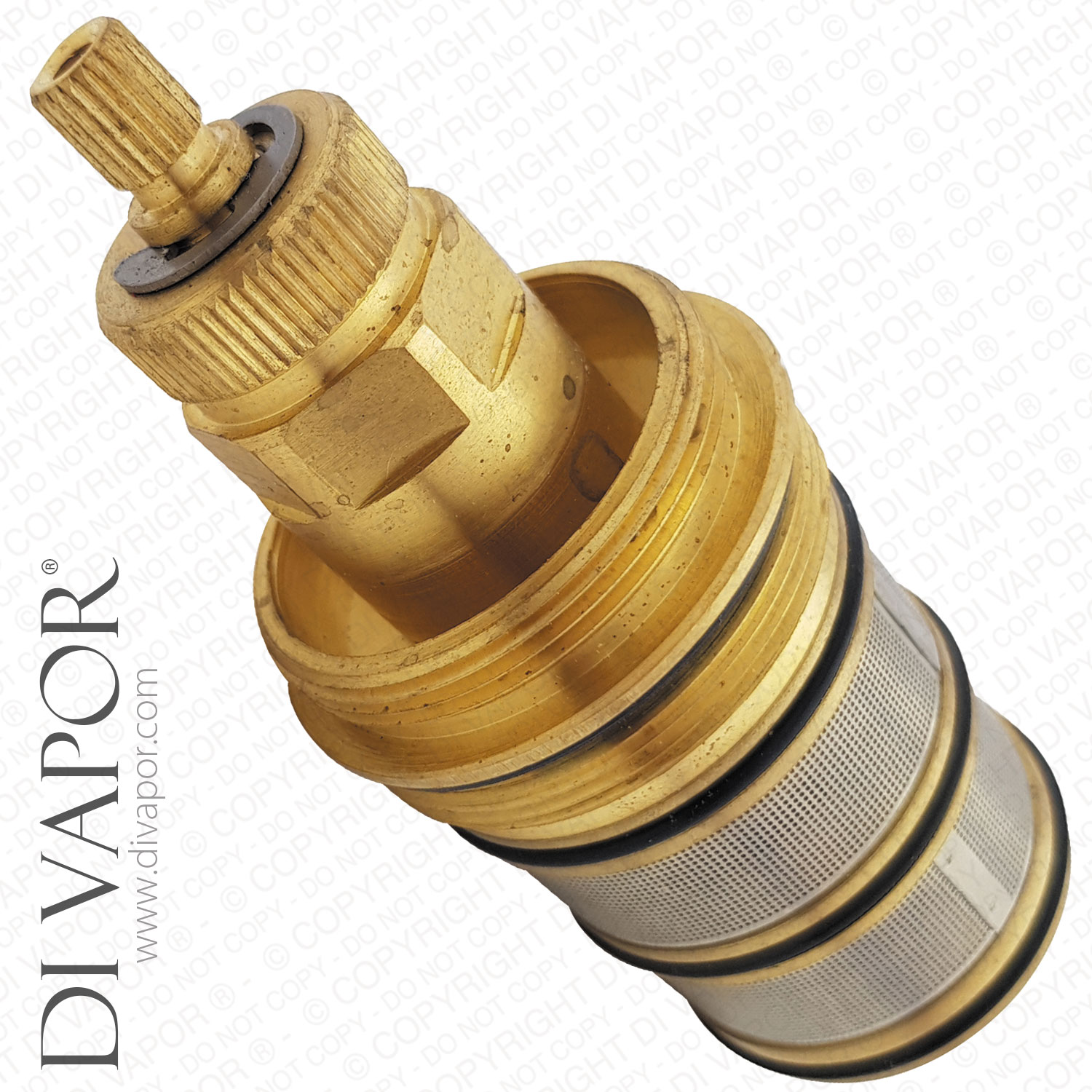

GF78906 Thermostatic Cartridge Replacement.

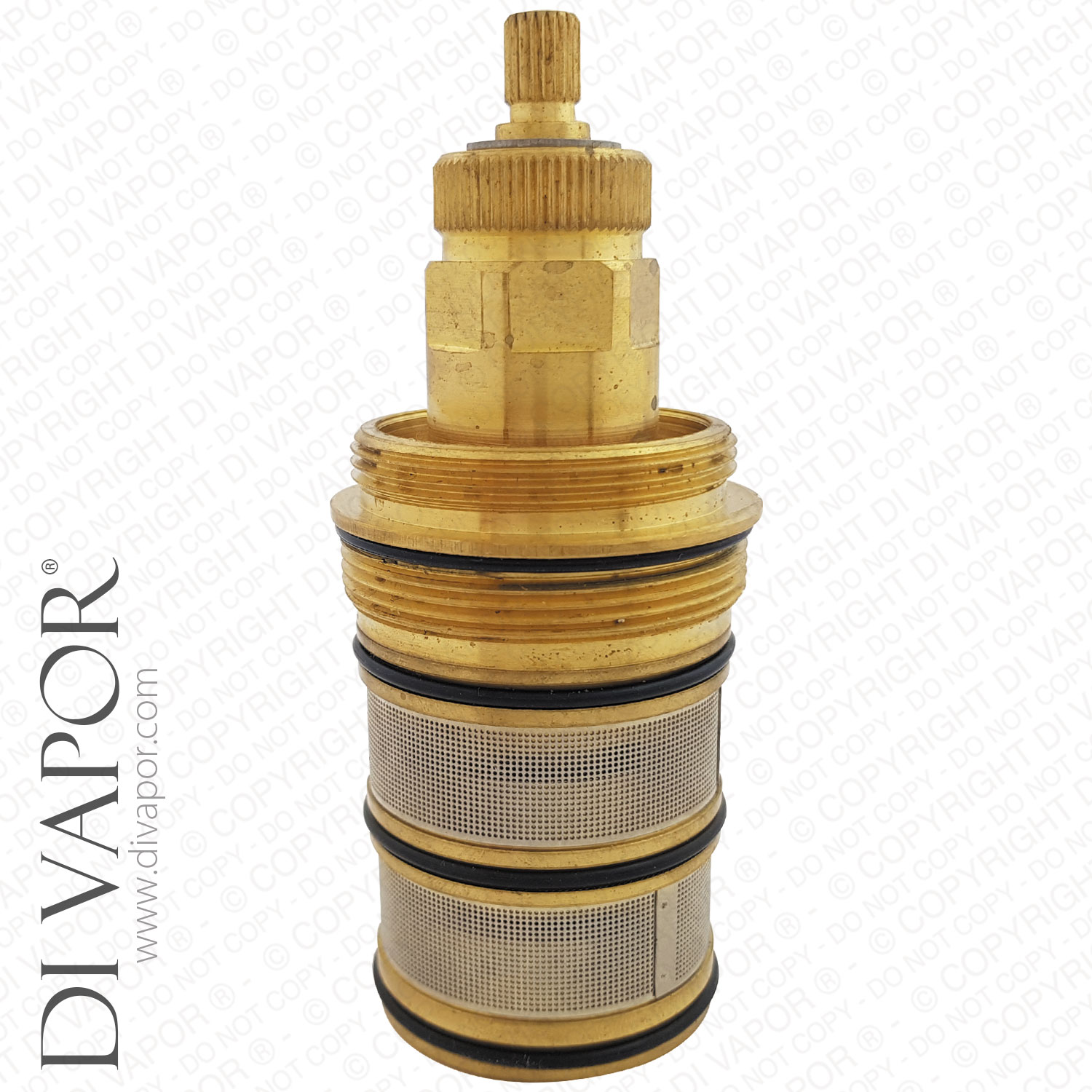

Cartridge Measurements:
Total Length: 110mmmm (including wax thermostat at bottom)
Diameter at Widest Point: 47.5mm
Stop Ring Spline Diameter: 22.6mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 20
Diameter at Top O'ring (Below Thread): 42.7mm
Diameter at Middle O'ring: 41.8mm
Diameter at Bottom O'ring: 41.2mm
Fitting Type: Screw Fit
Colour: Brass
