SUMMARY

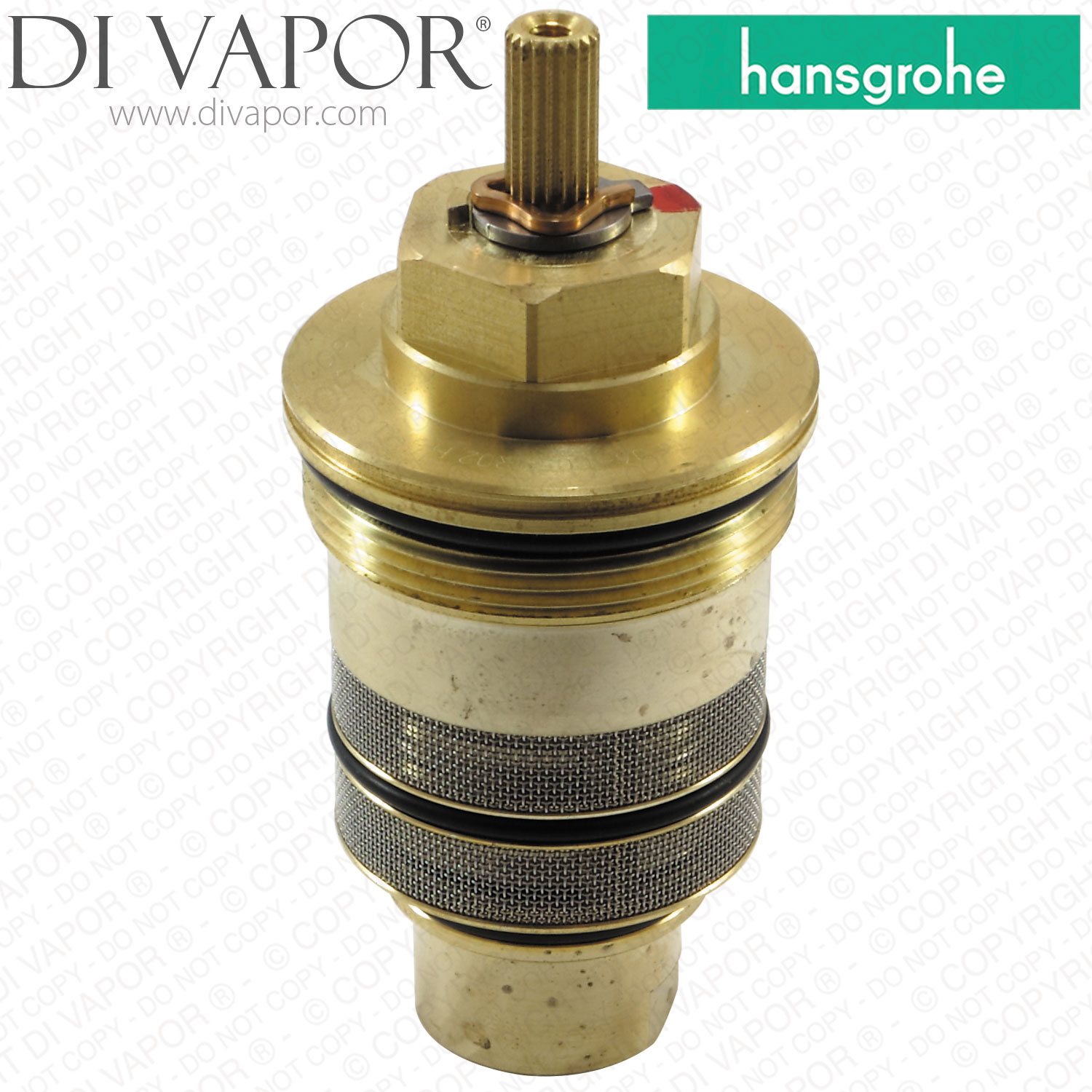

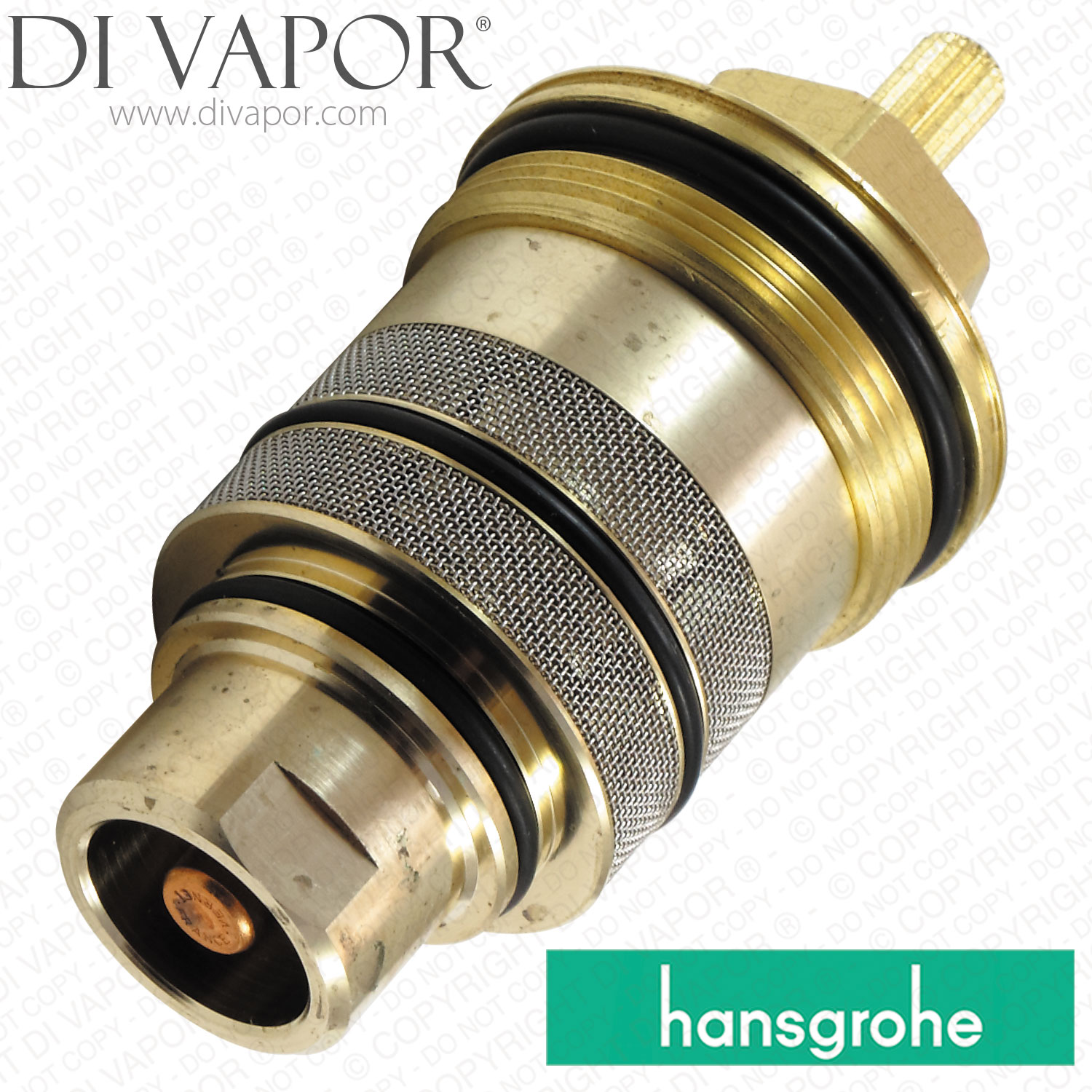

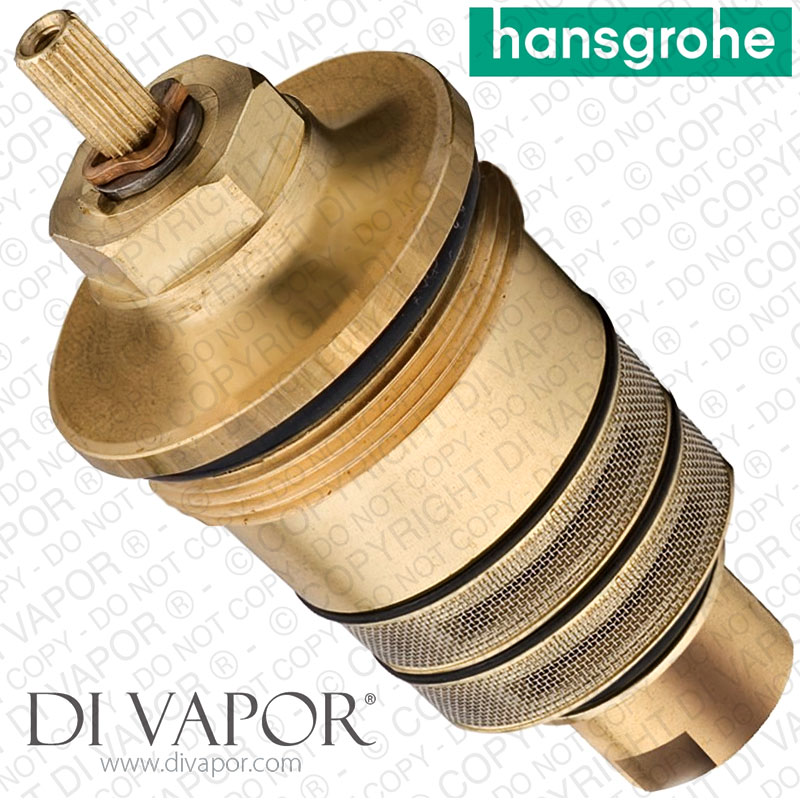

Hansgrohe 96633000 thermostatic cartridge. This is a screw fit installation. To remove the cartridge from the valve turn the cartridge anti-clockwise. To install, screw in clockwise.

This cartridge uses an extension piece in some valve which has code 97108000. If in stock, this T42 (BTC) Thermostatic Cartridge (96633000) by Hansgrohe can be dispatched on the same working day when ordered before 3:00 PM (Monday to Friday).

Included

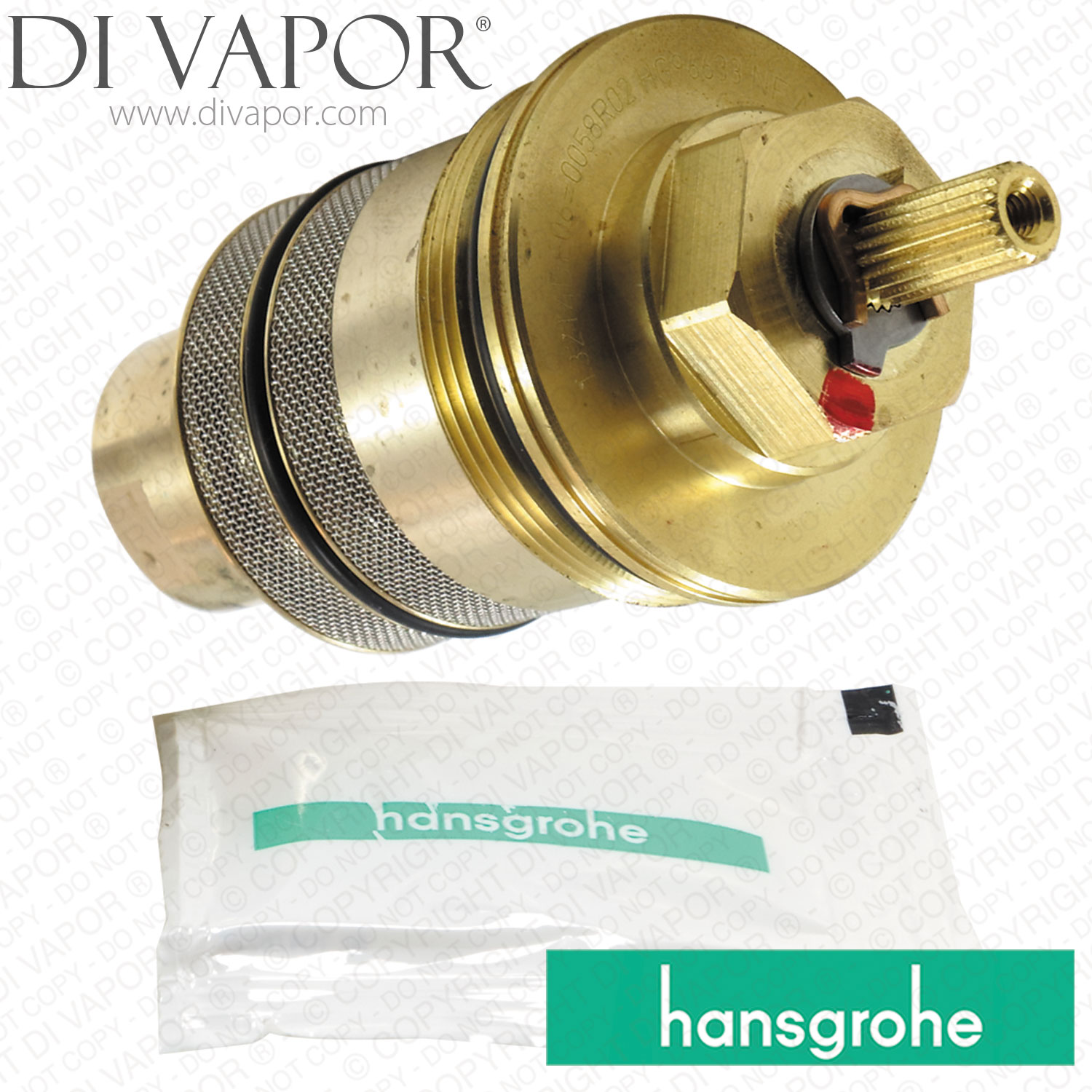

- Hansgrohe 96633000 Replacement Cartridge
- Silicone Grease
- Installation Instruction Manual

Technical Details: Hansgrohe 96633000 Thermostatic Cartridge T42 (BTC)

Measurements:
- Total length of cartridge: 95.8mm
- Width at widest point: 44.7mm
- Width at top o ring: 43.6mm
- Width at middle o ring: 38.4mm
- Width at bottom o-ring: 29.3mm

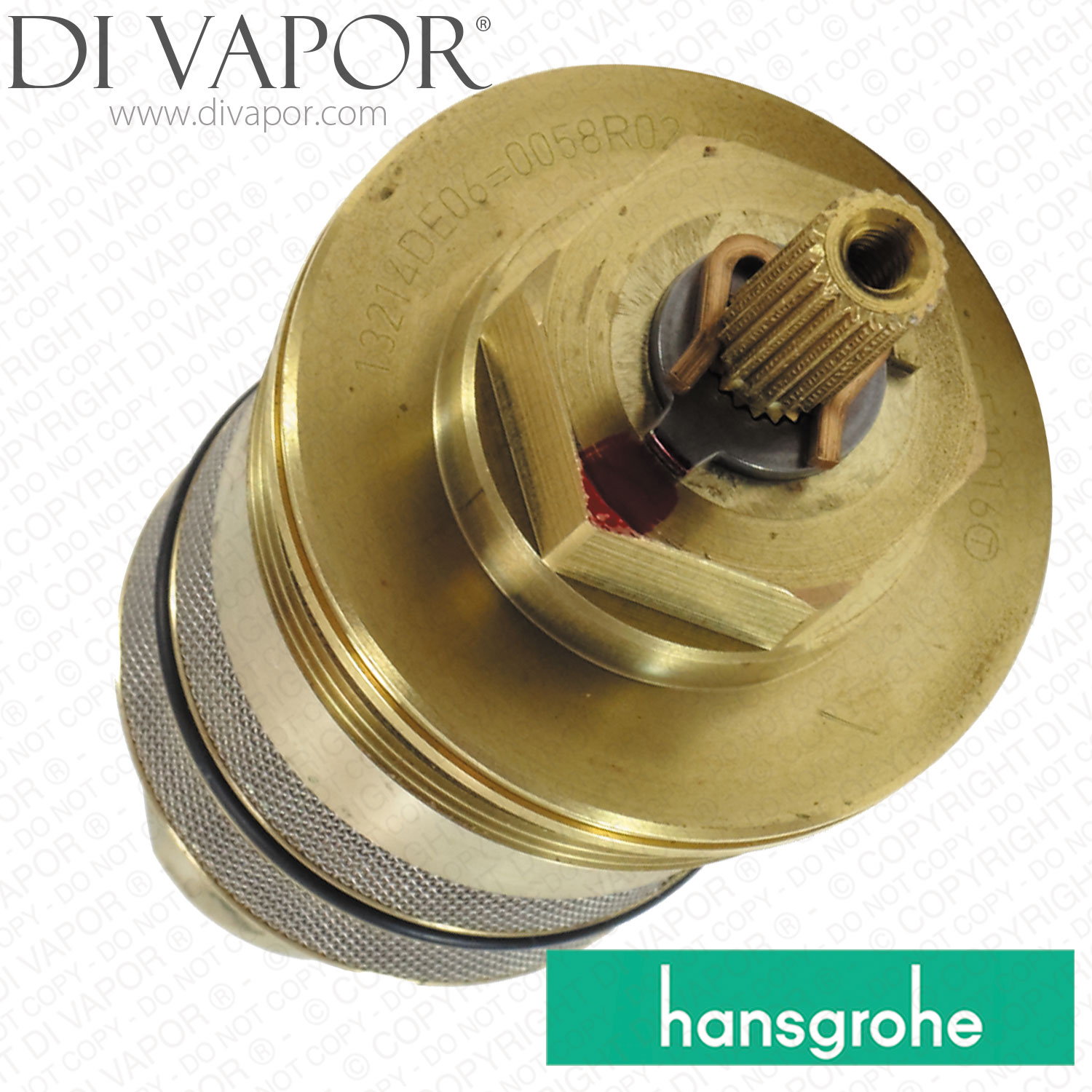

- Width of Top Spline: 7.6mm
- Number of Teeth on Top Spline: 20

Other information:
- Number of o rings: 3
- Number of filters: 2
- Material: Brass
- Colour: Brass
- Installation type: Screw
- Element: Uses Vernet France Wax Element 0204


This Hansgrohe 96633000 cartridge is used in the following models:
- Hansgrohe Axor Massaud - Highflow thermostatic mixer for concealed installation - > 07/2006
- Hansgrohe Axor Starck - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor Carlton - Highflow thermostatic mixer for concealed installation with lever handle - > 01/2005
- Hansgrohe Axor Massaud - Highflow thermostatic mixer for concealed installation - > 07/2006
- Hansgrohe Ecostat - Ecostat Classic Highflow Thermostatic Mixer for concealed installation - > 10/2010
- Hansgrohe Axor Citterio - Highflow thermostatic mixer for concealed installation with lever handle - > 01/2005
- Hansgrohe Axor Montreux - Highflow thermostatic mixer for concealed installation - > 04/2006
- Hansgrohe Ecostat - Ecostat Classic Highflow Thermostatic Mixer for concealed installation - > 10/2010
- Hansgrohe Highflow thermostatic mixer for concealed installation - > 04/2008
- Hansgrohe Axor Starck - Thermostat module finish set - 01/2009 - 12/9999
- Hansgrohe Axor Terrano - Highflow thermostatic mixer for concealed installation with lever handle - 01/2005 - 12/2010
- Hansgrohe Axor Starck - Thermostat for concealed installation 12x12 - > 06/2009
- Hansgrohe Axor Starck - Thermostat module finish set - 01/2009 - 12/9999
- Hansgrohe Axor Carlton - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe PuraVida - Highflow thermostatic mixer for concealed installation - > 07/2009
- Hansgrohe Axor Uno - Highflow thermostatic mixer for concealed installation - 01/2005 - 12/2010
- Hansgrohe Axor Starck - Trio/Quattro finish set - > 01/2009
- Hansgrohe PuraVida - Highflow thermostatic mixer for concealed installation - > 07/2009
- Hansgrohe Axor Citterio M - Highflow thermostatic mixer for concealed installation - > 01/2008
- Hansgrohe Axor Citterio - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor Carlton - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor Citterio - Highflow thermostatic mixer for concealed installation with lever handle - > 01/2005
- Hansgrohe Axor Steel - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Ecomax Exposed thermostatic shower mixer - > 03/2004
- Hansgrohe Highflow thermostatic mixer for concealed installation - 01/2005 - 03/2008
- Hansgrohe Axor Terrano - Highflow thermostatic mixer for concealed installation with lever handle - 01/2005 - 12/2010
- Hansgrohe Axor Terrano - Highflow thermostatic mixer for concealed installation - 01/2005 - 12/2010
- Hansgrohe Axor Citterio M - Highflow thermostatic mixer for concealed installation - > 01/2008
- Hansgrohe Highflow thermostatic mixer for concealed installation - > 04/2008
- Hansgrohe Axor Uno - Highflow thermostatic mixer for concealed installation - 01/2005 - 12/2010
- Hansgrohe Axor Terrano - Highflow thermostatic mixer for concealed installation - 01/2005 - 12/2010
- Hansgrohe Axor Urquiola - Highflow thermostatic mixer for concealed installation - > 04/2009
- Hansgrohe Axor Starck X - Highflow thermostatic mixer for concealed installation - > 04/2005
- Hansgrohe Ecomax Exposed thermostatic bath and shower mixer - > 03/2004
- Hansgrohe Centostat Thermostatic Bath Mixer - > 01/2005
- Hansgrohe Axor Starck - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor Steel - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor Montreux - Highflow thermostatic mixer for concealed installation - > 04/2006
- Hansgrohe Highflow thermostatic mixer for concealed installation - 01/2005 - 03/2008
- Hansgrohe Axor Starck - Thermostat for concealed installation 12x12 - > 06/2009
- Hansgrohe Axor Citterio - Showerpipe with thermostat DN15 - > 06/2010
- Hansgrohe Axor Urquiola - Highflow thermostatic mixer for concealed installation - > 04/2009
- Hansgrohe Axor Starck X - Highflow thermostatic mixer for concealed installation - > 04/2005
- Hansgrohe Axor Carlton - Highflow thermostatic mixer for concealed installation with lever handle - > 01/2005
- Hansgrohe Axor Citterio - Highflow thermostatic mixer for concealed installation - > 01/2005
- Hansgrohe Axor; 36379; Shower thermostatic mixing valve trim with dome handle; Series Allegroh, EcoMax


Hansgrohe 96633000 Thermostatic Cartridge T42 (BTC) is a spare part that can set water to a preferred temperature and it is equipped with a safety stop to prevent scalding. Measuring at about four inches in length, the Hansgrohe 96633000 cartridge can handle the water flow rate at 15 gallons per minute (GPM). It is compatible with a number of shower valves made by Hansgrohe.

Turn the cartridge counterclockwise to extract it from the valve housing. Turn the opposite direction to secure the threads in the valve.

The Hansgrohe 96633000 thermostatic cartridge T42 (BTC) spare part can be used with the 01850 rough-in valve also by Hansgrohe.


We offer a wide range of Hansgrohe spare parts.
- Please check out this link for the spare parts.
- Please leave us a message if you cannot find what you are looking for. We will get back to you in no time.

Precautionary Measures When Changing the Hansgrohe 96633000 Shower Cartridge

A shower cartridge, such as the Hansgrohe 96633000, can last long. However, there are some givens that cause the lifespan of these little, useful devices to shorten, such as limescale and chalk residue from hard water. When attempting to replace a cartridge there are a number of things crucial to remember to avoid any unwanted injuries or unnecessary purchases.

1: If uncertain which cartridge to buy, remove the old cartridge from the valve housing. Take a photo or measure it and ask your spare part provider for information.
2: Always isolate – or switch off – hot and cold water supplies before commencing your attempt. This is to prevent scalding contingent to an unexpected delivery of hot or cold water. If isolation valves cannot be found, turn the supply off from the water meter.

3: For valves with separate hot and cold water outlets, make sure the “cold side” cartridge is installed to the right side and the “hot side” cartridge goes to the left.
4: Plug down your drain before dismantling the valve to avoid small parts from falling into it.
5: The replacement process is not over until water is calibrated according to one’s preferred temperature.


General Facts: Thermostatic Cartridges
Thermostatic cartridges contain a thermostatic wax element inside it. Copper and wax that expands and contracts as the temperature fluctuates are held within the capsule. When temperature lowers the wax shrinks; it balloons when the water temperature goes up. To regulate temperature for a good shower, the pin in the capsule moves up and down based on the condition of the wax.


Manufacturer: Hansgrohe
Spare Part: Hansgrohe 96633000 Thermostatic Cartridge T42 (BTC)
