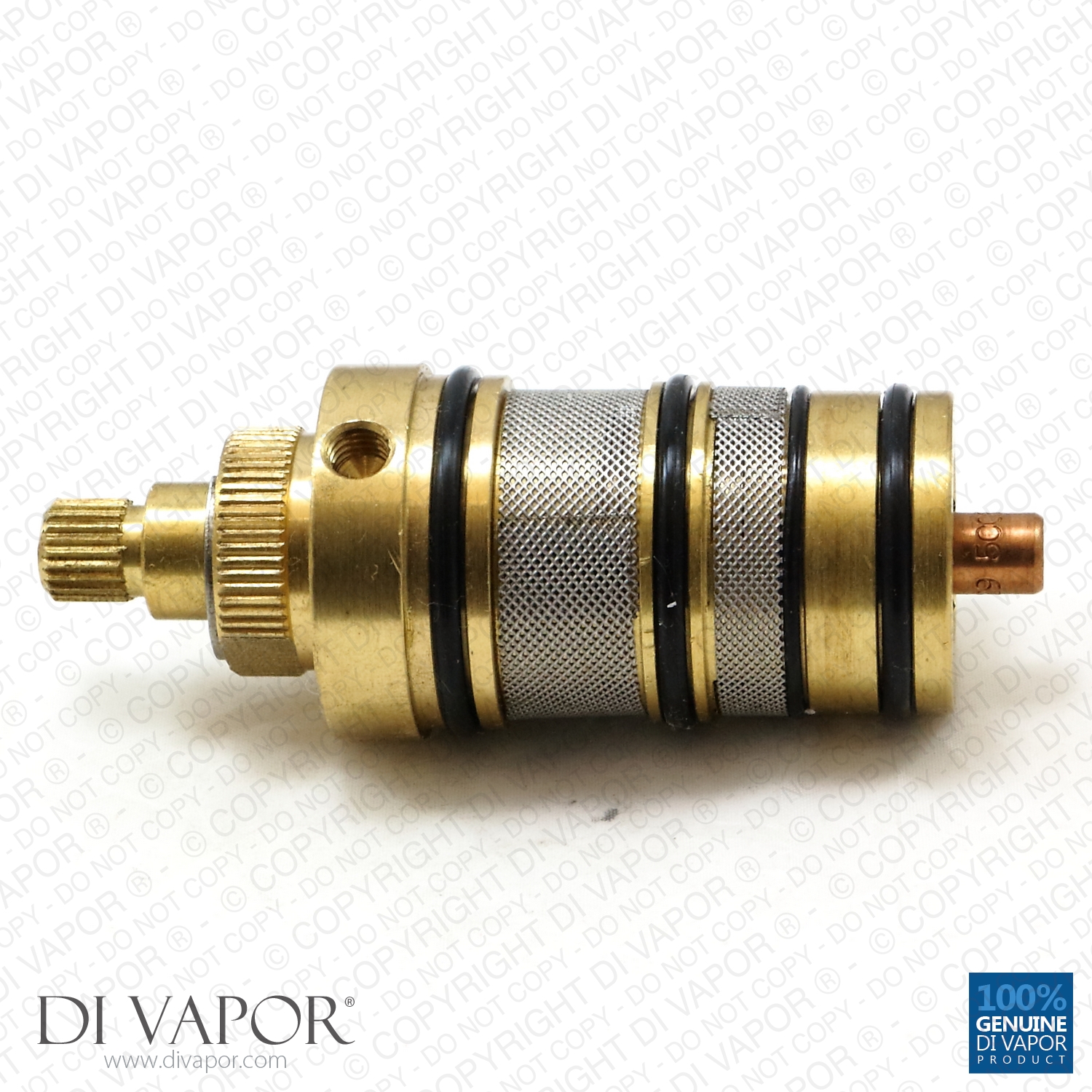

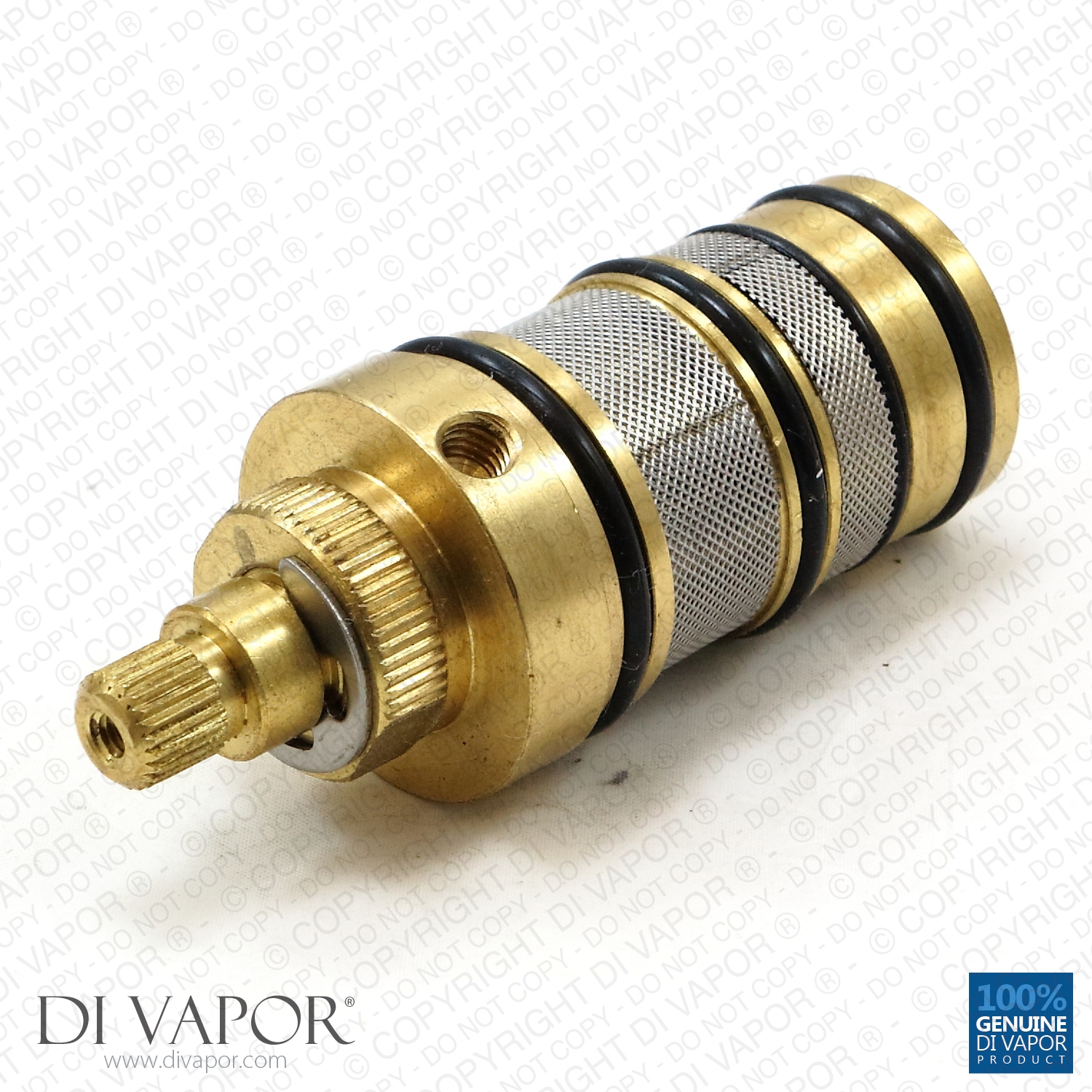

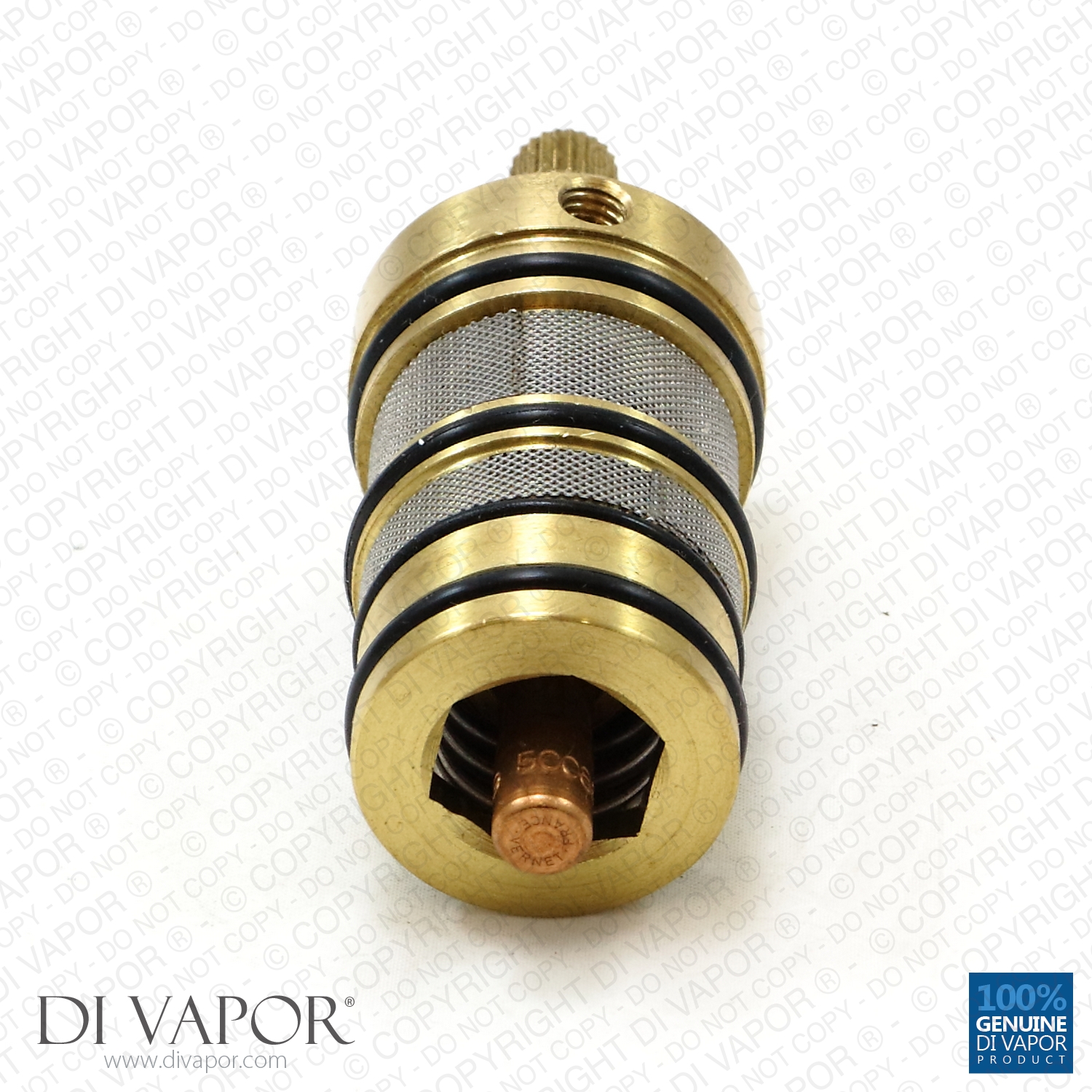

Porcelanosa NK Noken Thermostatic Cartridge for Libra, Irta & Smart Shower Valves

SUMMARY

Porcelanosa NK Noken Thermostatic Cartridge for Libra, Irta & Smart Shower Valves

Include
- Thermostatic Cartridge

Cartridge Measurements and Information
Installation Type: Push Fit (Uses Grub Screw to Connect (which isn't included))

Total Cartridge Length (including thermostat element): 90.8mm

Number of teeth on top spindle spline (which the temperature handle connects onto): 24

Width of top spindle spline (which the temperature handle connects onto): 9.5mm

Width of second toothed spline (which the temperature stop ring connects onto): 22.6mm

Diameter of top O ring: 33.3mm

Diameter of second O ring: 31.8mm

Diameter of bottom O ring: 30.1mm

Number of ORings: 4

Material: Brass

Type: Push fit installation

Gauze Filters: 2

This cartridge is used in Noken / NK / Porcelanosa Libra shower valves.
