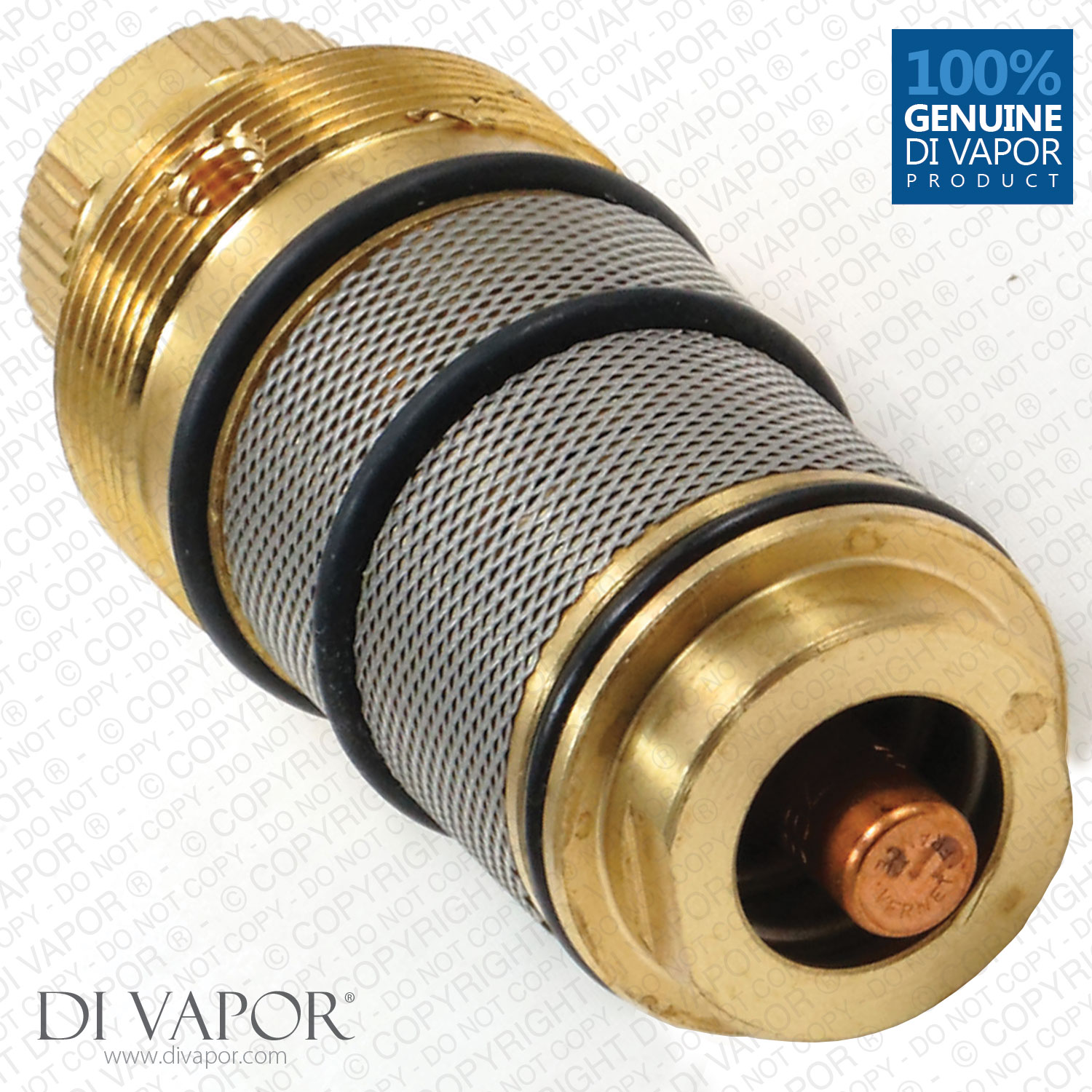

Porcelanosa Noken NK Thermostatic Cartridge for Urban C Shower Valves

SUMMARY

Porcelanosa Noken NK Thermostatic Cartridge for Urban C Shower Valves.

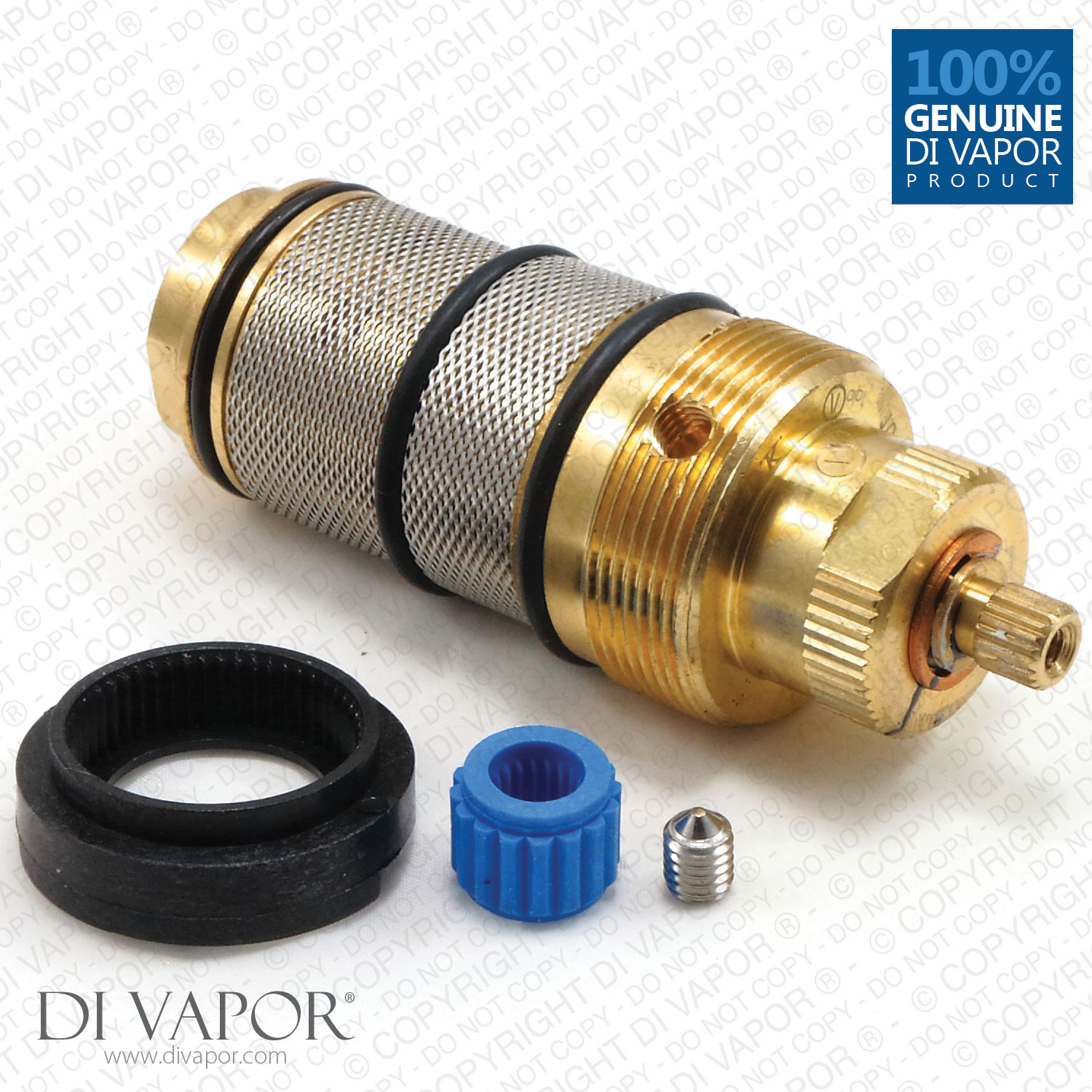

Include
- Thermostatic Cartridge
- Temperature stop ring
- Blue spindle head adapter
- Grub Screw

Cartridge Measurements and Information
Installation Type: Screw Fit (turn anti clockwise to remove from your valve)

Total Cartridge Length (including thermostat element and blue tap head carrier): 96.1mm

Number of teeth on top spindle spline (without blue tap head carrier) (which the temperature handle connects onto): 20

Number of teeth on top spindle spline, with blue tap head carrier (which the temperature handle connects onto): 16

Width of top spindle spline (which the temperature handle connects onto): 7.5mm

Number of teeth of spindle without blue tap head carrier (which the temperature stop ring connects onto): 7.5

Width of blue toothed spline: 13.8mm

Diameter of top O ring: 33.4mm

Diameter of middle O ring: 32mm

Diameter of bottom O ring: 29.8mm

Number of ORings: 3

Material: Brass

Type: Screw fit installation

Gauze Filters: 2

Colour: Brass

Wax Element: Vernet (France) 5701 (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).

This cartridge is used in Noken Urban C shower valves.
