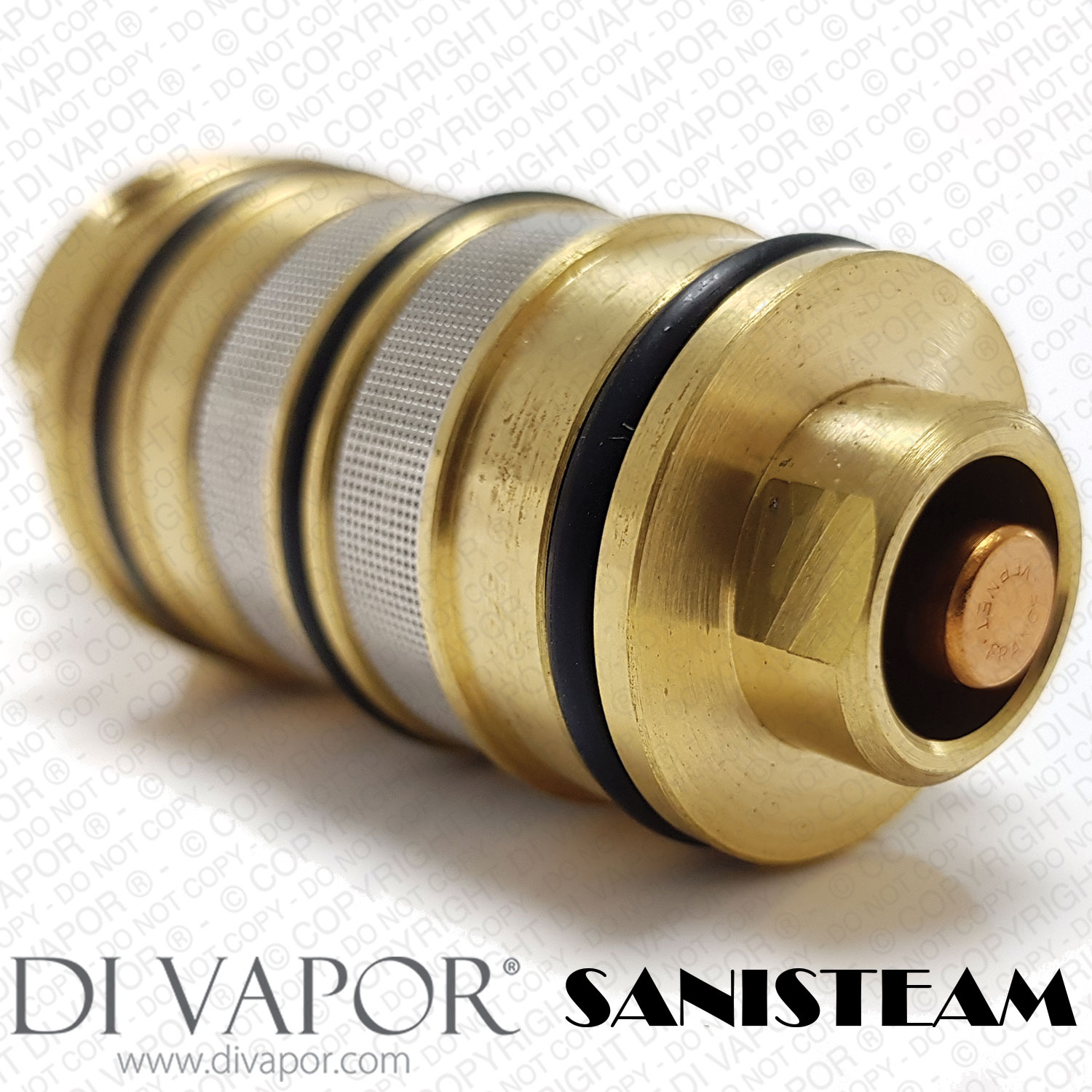

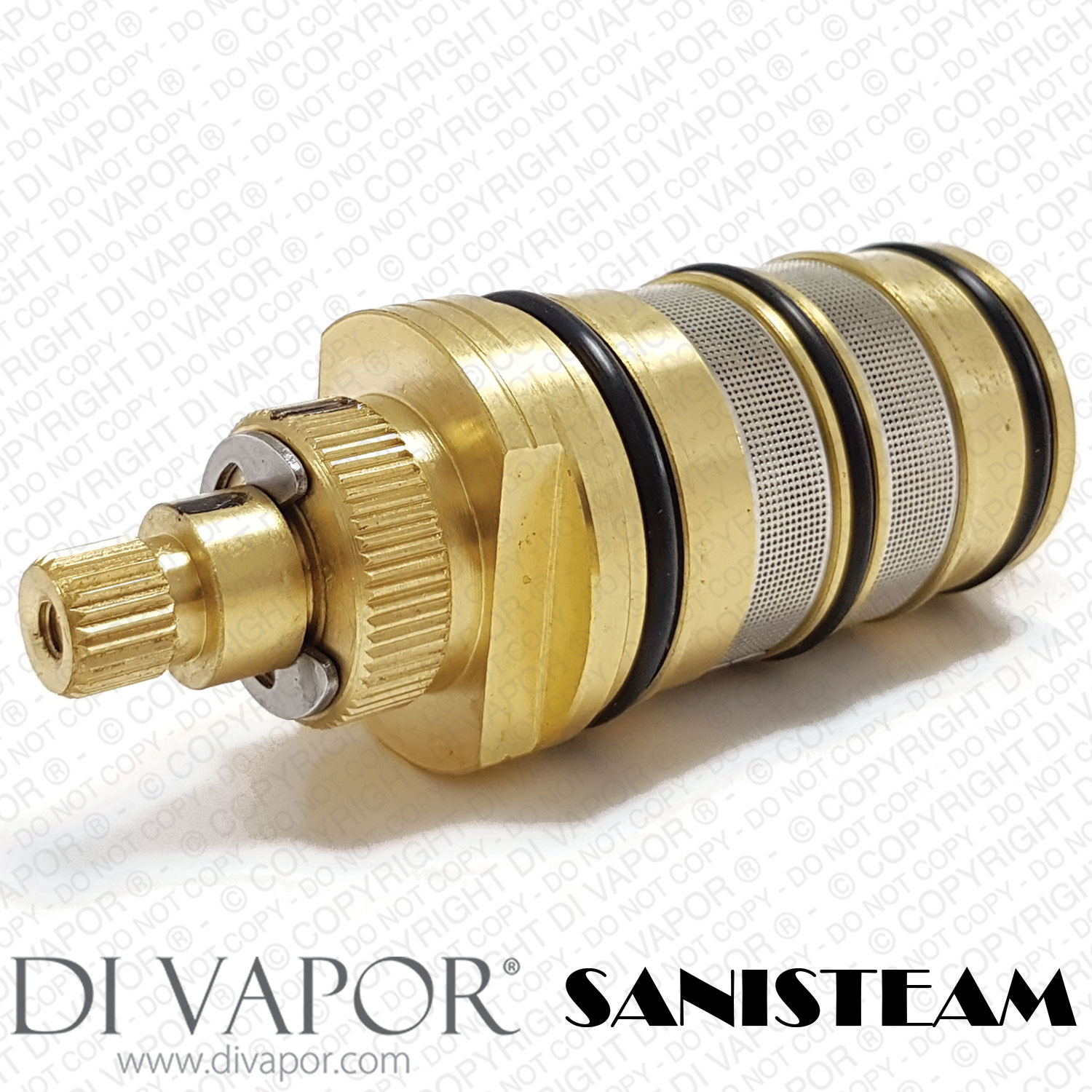

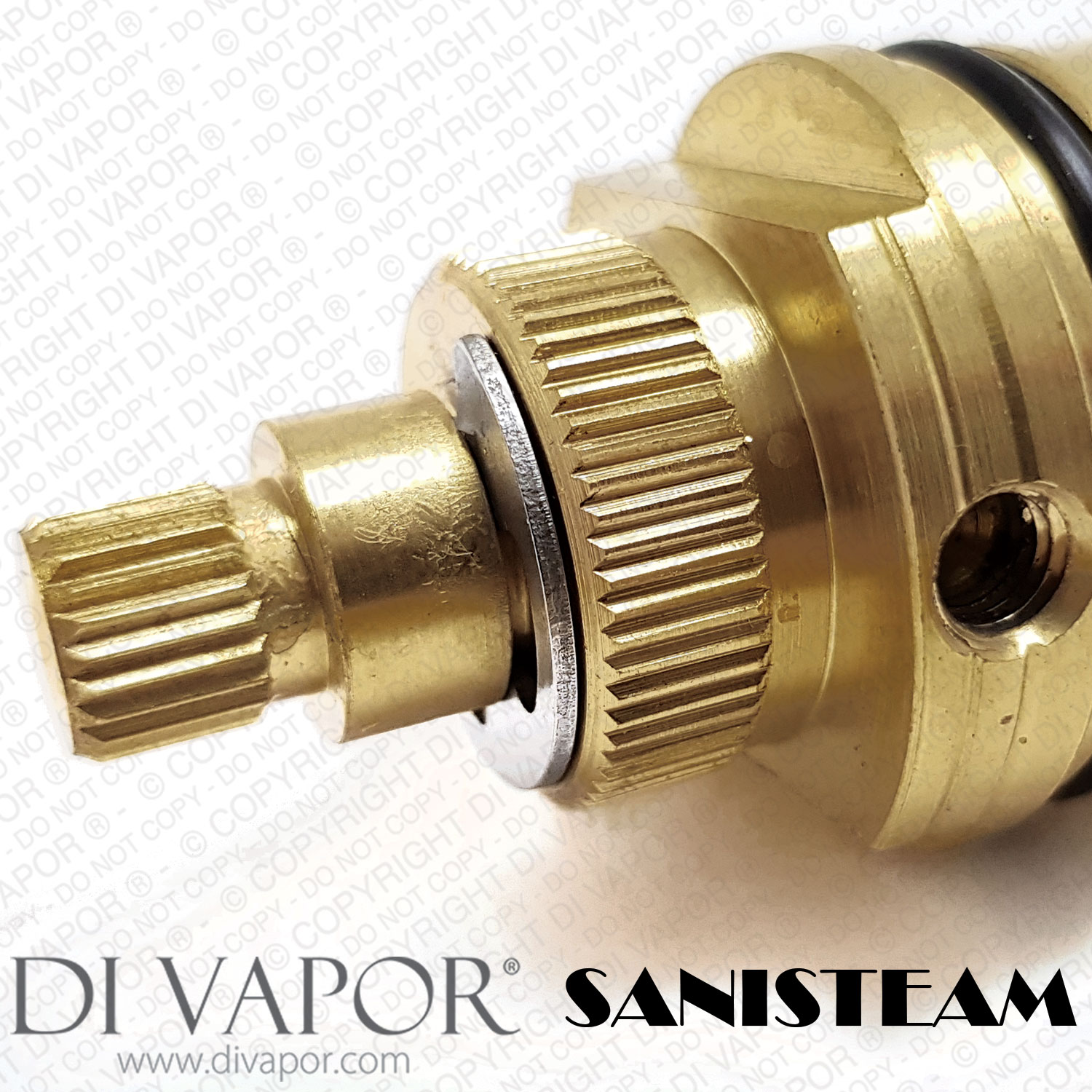

Sanisteam SS78192 Steam Shower Thermostatic Cartridge Replacement - Push Fit

SUMMARY

Sanisteam Steam Shower Thermostatic Cartridge Replacement

This cartridge is used in a number of different Sanisteam steam shower cabins including the following:
- GL500
- GL30s

This cartridge is a push fit installation which is held in place within the valve with a grub screw.

Brand: Sanisteam
Spare Part: Steam Shower Thermostatic Cartridge
Installation: Push Fit
Number of External O-Ring: 3
Number of Guazing: 2

SS78192 is a Sanisteam steam shower thermostatic cartridge replacement. It can be shipped out within the day if it is ordered before 3:00 PM (Mondays to Fridays).

Cartridge Measurements: Sanisteam Thermostatic Cartridge

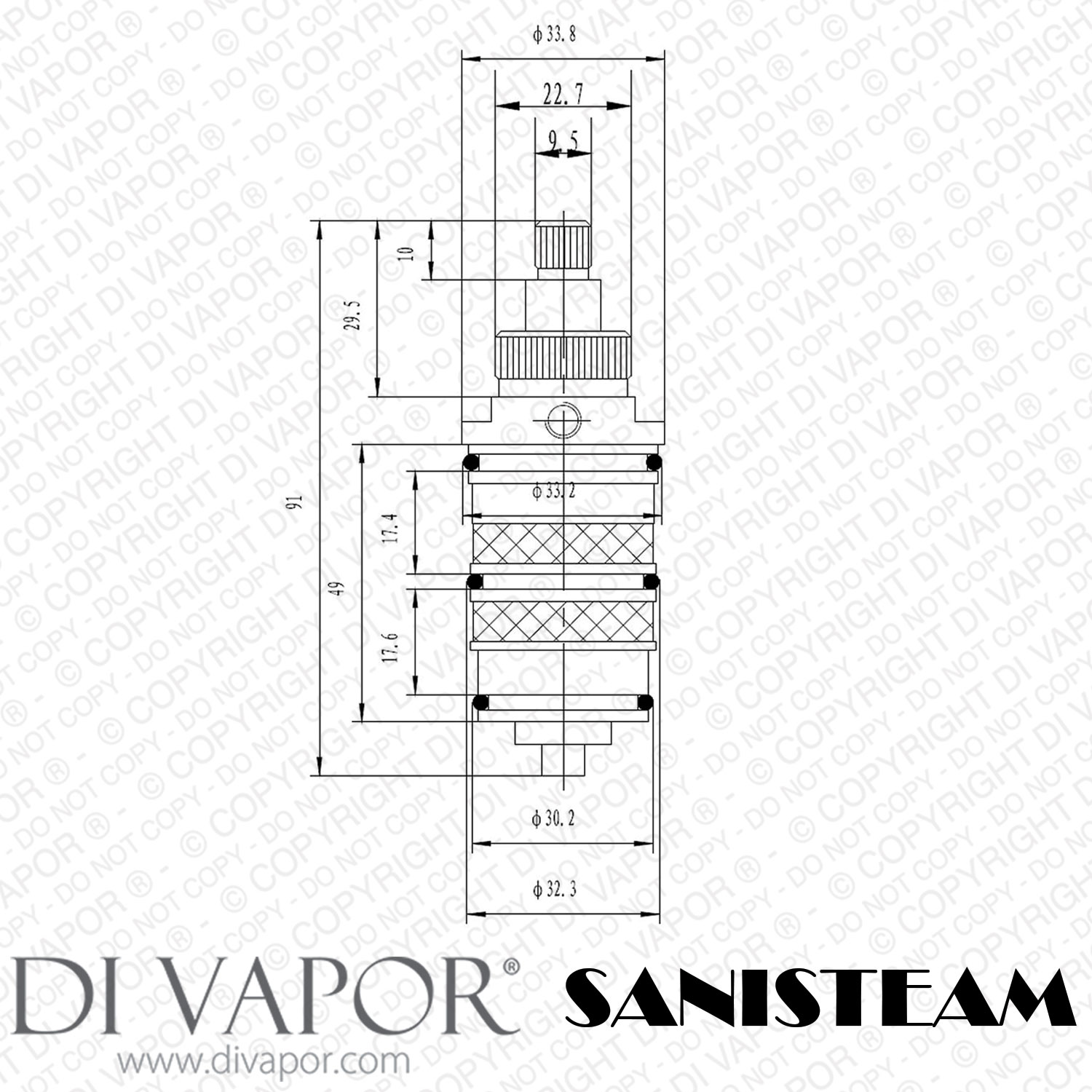

Please refer to the second image for an illustration of the cartridge measurement.

Total Length: 91mm
Diameter at Widest Point: 33.8mm
Top Spline Diameter: 9.5mm

Frequently Asked Questions: Sanisteam Thermostatic Cartridge for GL500 and GL30s Steam Showers
Q: Is this compatible with my shower? The cartridge looks the same.
A: Some cartridges look similar to each other. To be sure if this is the right replacement part please send us a clear photo of your old cartridge. We will gladly help you identify it.

Q: I cannot remove the cartridge from the shower.
A: The usual procedure is to remove the handle. Unscrew the grub screw to remove the push-fitment cartridge. Pull the cartridge out and install the new one. In some occasions, much force is needed to release the cartridge as limescale may have accumulated.

For further questions regarding the Sanisteam steam shower thermostatic cartridge replacement:
- Please drop us a message or call us.

Steam Shower Cartridge Replacement Tips
There are a few things you need to remember before and after you change your Sanisteam GL500 and GL30s steam shower’s thermostatic cartridge.

- Isolating hot and cold water supply is primarily important. This is done to prevent injuries in the event of unintended hot or cold water flow. If you are unable to find the isolation valves, water supply can be cut from the main valve.

- Put a stopper on your bath’s drain before starting the repair. Plugging your drain will save small bits and pieces (screws and O-rings) from tumbling into the drain.

- After the installation has been completed, check the temperature of your shower water using a digital thermometer. (Make sure no part of your body is under any water outlet.) Readjust the temperature if desired. Turning the splines clockwise will make the temperature colder. Turning it the opposite direction will increase the water temperature.

- Use an Allen key to free the push-fit steam shower cartridge.
