Thermostatic Shower Cartridge - 120mm Length Thermostatic Shower Cartridge - 120mm LengthThermostatic Shower Cartridge - 120mm LengthLong Thermostatic CartridgeThermostatic Cartridge

Thermostatic Shower Cartridge - 120mm Length - GF78895

Part Number: GF78895

SALE: £74.85

You save: £15.13 (17%)
Price includes VAT
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

120mm thermostatic shower cartridge used in shower mixer valves. The grub screw is no longer included.

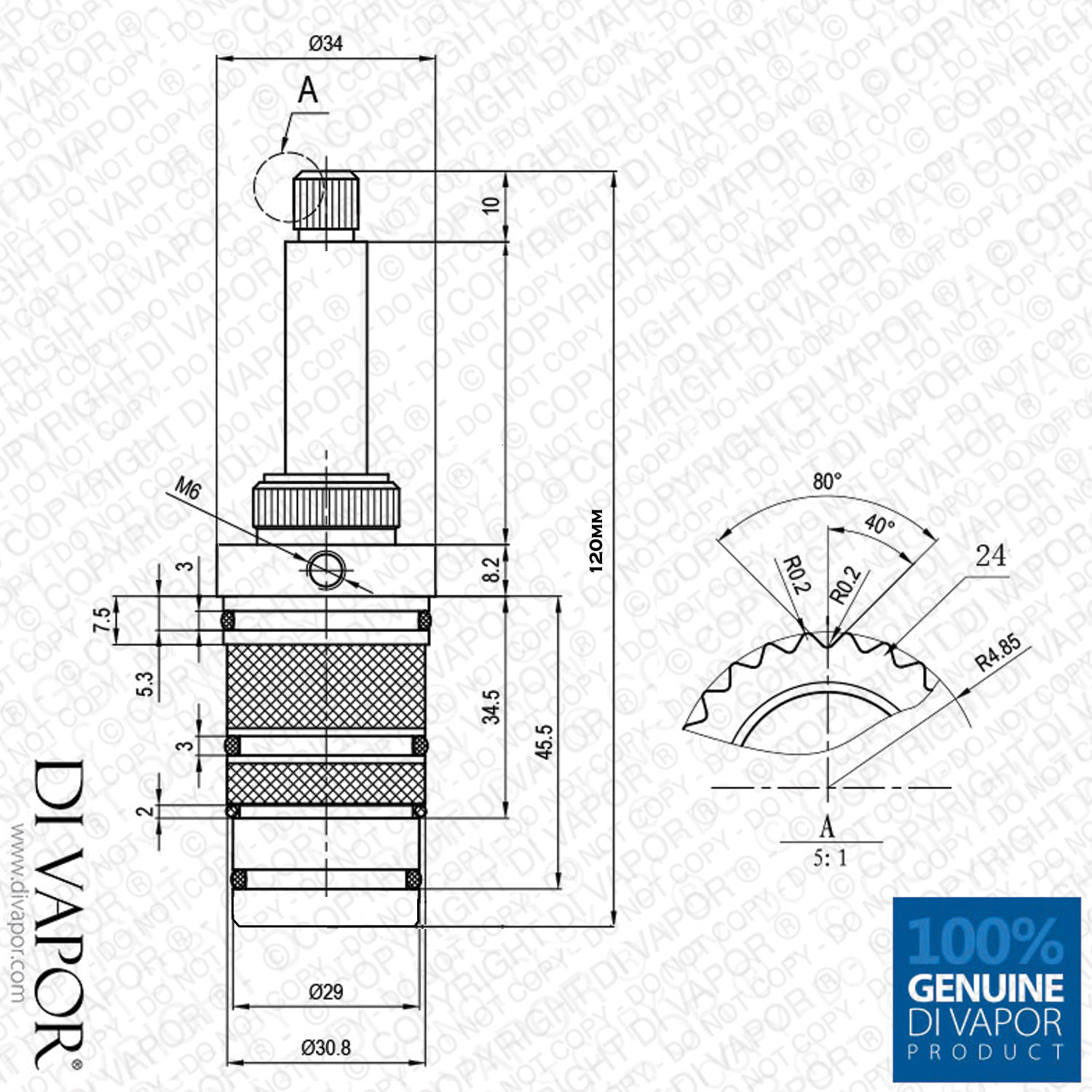

Cartridge Measurements:
Total Length: 120mm
Diameter at Widest Point: 34mm
Top Spline Teeth / Notches: 24
Top Spline Diameter: 9.6mm
Colour: Black, brass
Material: Plastic
Uses grub screw.


Spare Part Buying Guide: 120mm Thermostatic Shower Cartridge


Are you having difficulty adjusting shower water temperature? Is the shower valve leaking? These are some of the issues that might require a replacement 120mm long thermostatic shower cartridge.

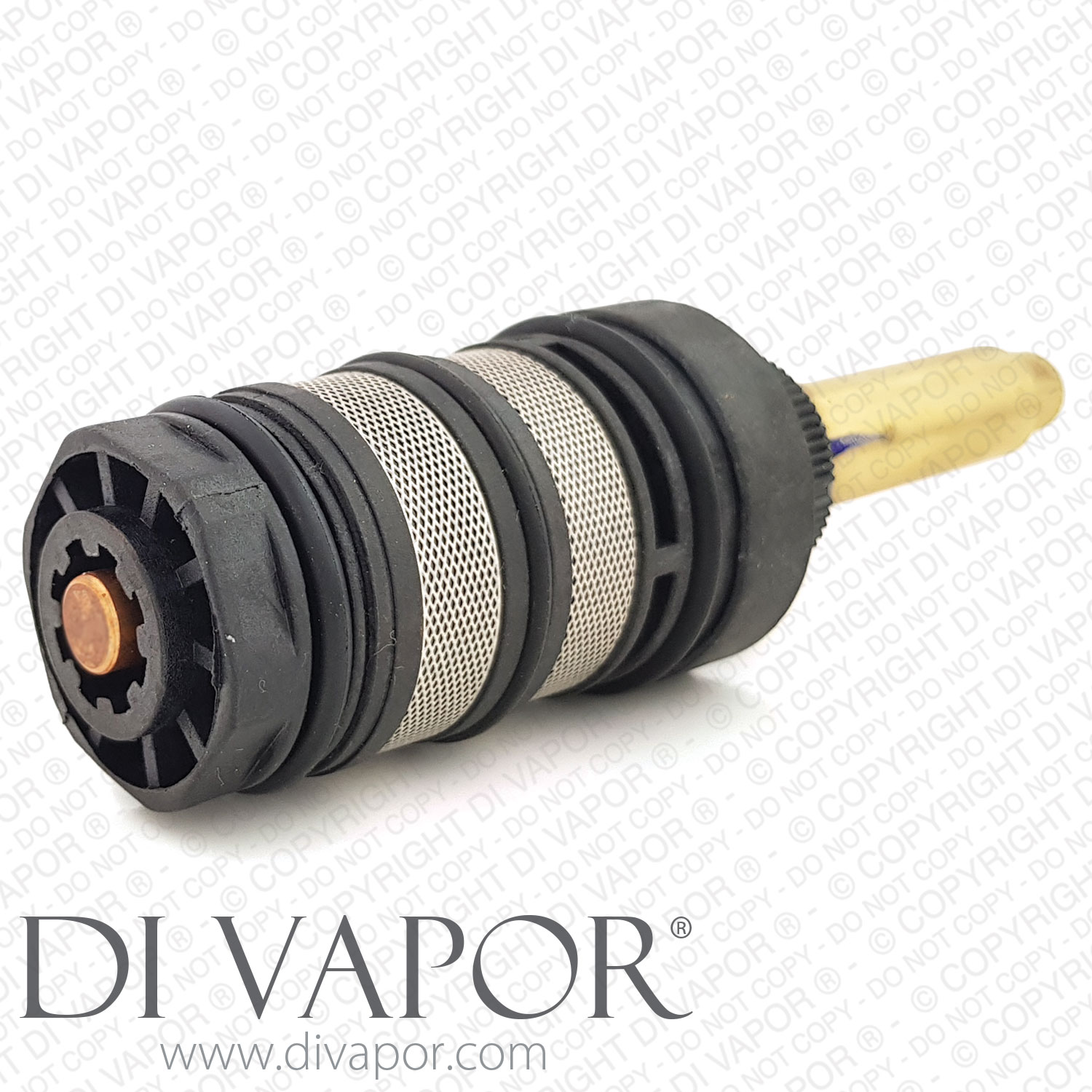

Thermostatic shower cartridges work as water from the feeds enter the two gauze filters. The core of the cartridge then operates to regulate temperature according to user preference. The cartridges can break down after years and years of use, thus, requiring a replacement.

Measurements: The right replacement thermostatic shower cartridge must meet the measurement specification to properly fit in the valve. This shower spare part is 120mm in length. It is a non-threaded, push-fit cartridge. A screw is used to anchor it in the shower valve.

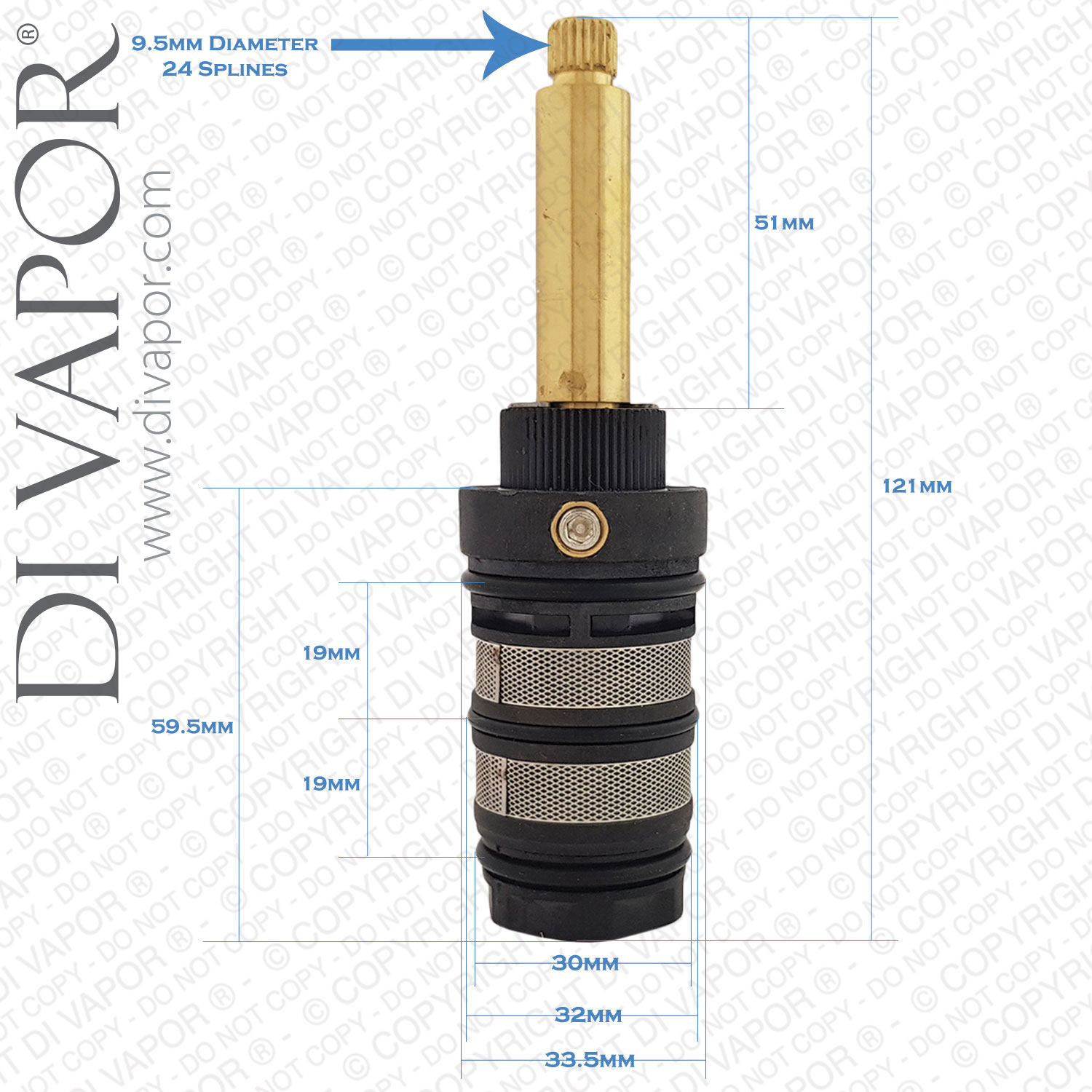

This replacement part has a long spindle. The spindle connects the cartridge with the shower temperature control handle. If it is too long, you won’t be able to attach the handle correctly. On the other hand, leaks can result if it is too short. (Please refer to the second photo in the gallery to see a visual representation of the measurements.)

Spline Teeth Count: The splines are the ridges at the top of the spindle. This 120mm thermostatic shower cartridge has a total of 24 spline notches. The count of the splines in this cartridge must match with the count on the splines your cartridge has or it will not fit at all.

Contact Us: Please consider the measurements given to manually determine if this is the spare you need. Must you require help please feel free to contact us, your friendly spares provider. We will gladly do the spare part identification for you.


120mm Thermostatic Shower Cartridge Replacement Tips


Here are a few basic tips for changing the 120mm thermostatic shower cartridge.



– Isolate water supplies before opening the shower valve. If you are unable to locate the isolation screws/valve, please shut off the water supply from the mains.

– The faulty cartridge can be discarded or kept as a reference in case you need to change it in the future.

– After fitting the new thermostatic shower cartridge with 120mm length, cycle the shower from hot to cold a few times.
