Triton 83308460 Thermostatic Shower Cartridge (Up to 2010) for Altair | Dove | Naro | Riya | Sharis | Sileni | Marius and Toccata Shower Mixer Bars

SUMMARY

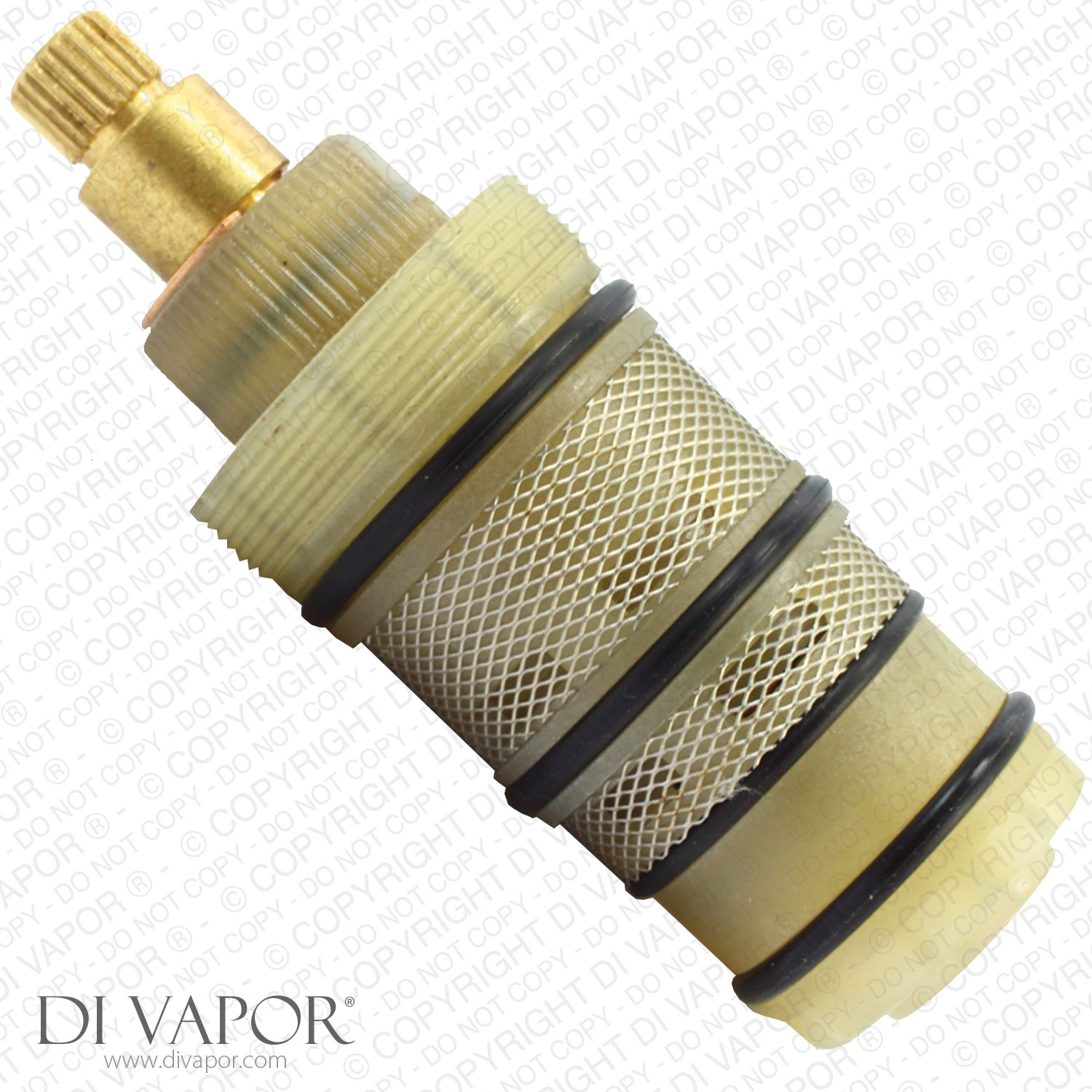

Triton 83308460 screw type thermostatic cartridge which is used in shower valves sold pre 2010.

The Triton 83308460 cartridge is used on the following models:
- Triton Sharis Thermostatic Bar Mixer Shower
- Triton Naro Thermostatic Bar Mixer Shower (February 2009)
- Triton Riya Thermostatic Bar Mixer Shower
- Triton Dove Eco Shower Spares
- Triton Sileni Thermostatic Bar Mixer Shower
- Triton Dove Thermo Shower Spares
- Triton Sharis Eco Thermostatic Bar Mixer Shower
- Triton Nirala Thermostatic Bar Mixer Shower Spares
- Triton Altair (Original)
- Triton Toccata Thermostatic Mixer Shower
- Triton Marius Thermostatic Bar Mixer Shower Spares

Technical Information

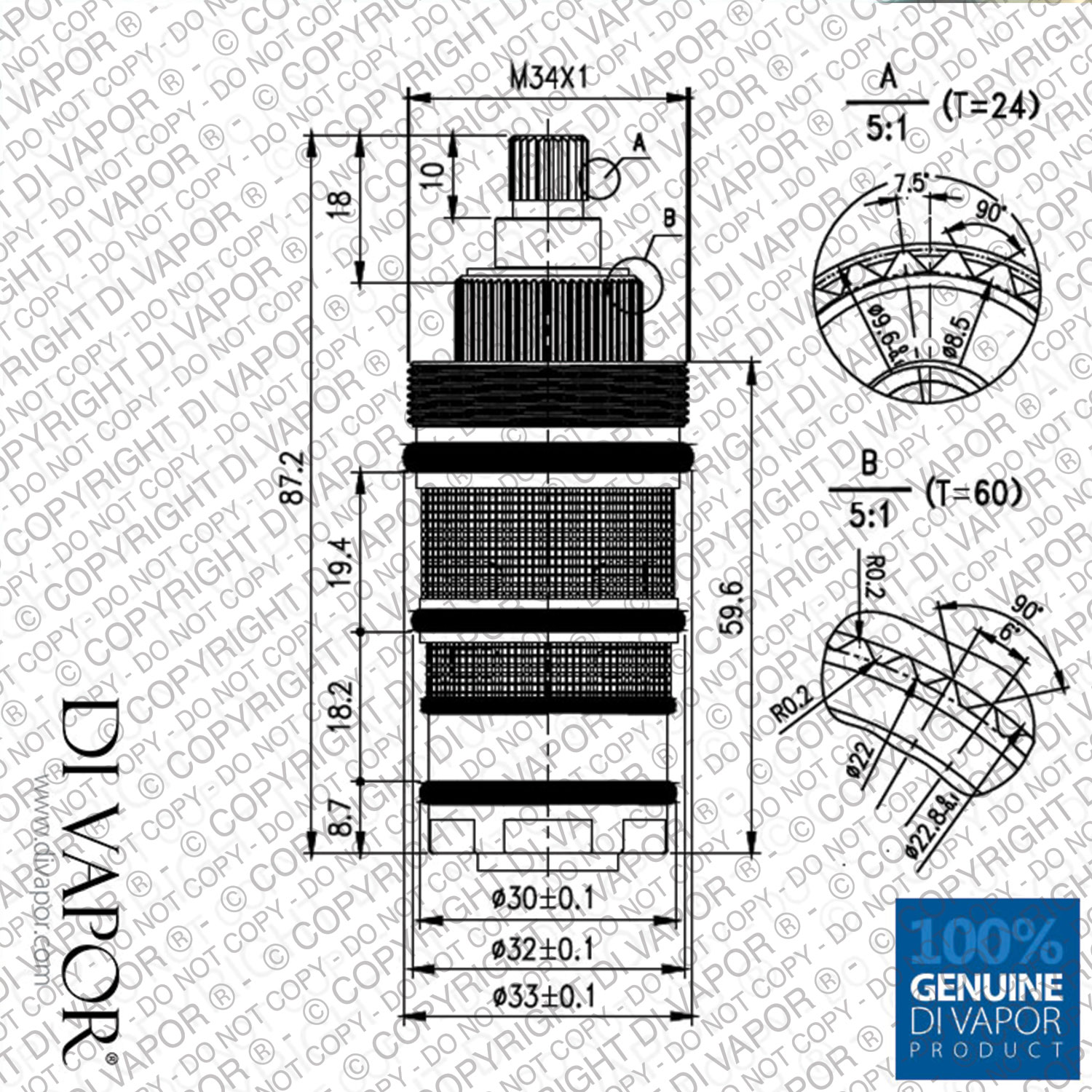

- Number of Splines: The upper spline has 24 teeth while the lower larger spline has 60 teeth. For more detailed information refer to the technical diagram in the images section.
- Total Length: 87.2mm
- Width at Widest Point: 34mm
- Width of body at Bottom: 30mm
- Number of Filters: 2
- Material: Plastic
- Colour: Cream / Brown

Common Questions Regarding the 83308460 Cartridge

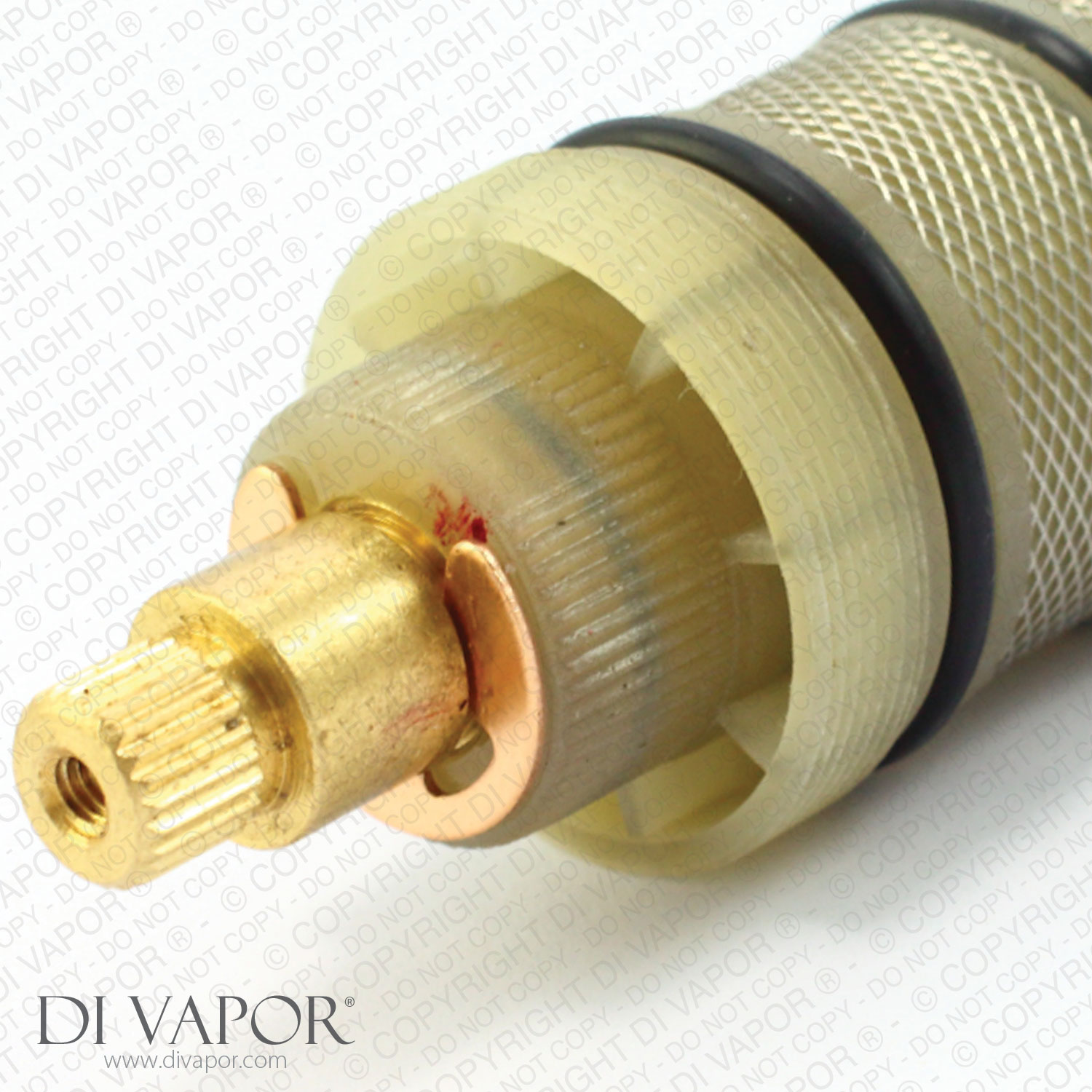

- Question: When the cartridge arrived it had a red mark on the spindle and the body of the cartridge. What does this represent?
- Response: The red mark that you see is a temperature calibration point. When the two red marks line up it means that the temperature of the water should be 38 decrees Celsius. This is to help you install the temperature stop ring at the correct point as the temperature stop ring will lock at 38 degrees to stop the user from getting scolded.

- Question: When I went to unscrew the plastic 83308460 cartridge from the bar with the spanner, the plastic just bent / crumpled under the force. Now there is no flat edge for the spanner to grab onto so how can I get this out?
- Response: First, make sure you are twisting the cartridge the correct way. To take it out you need to turn it anti-clockwise. If you no longer have a good connection with the spanner then you can just use a pair of pliers to grab onto it. The pliers will make a mess on the cartridge but you're replacing the cartridge with a new one anyway so there's no real incentive to be gentle.
