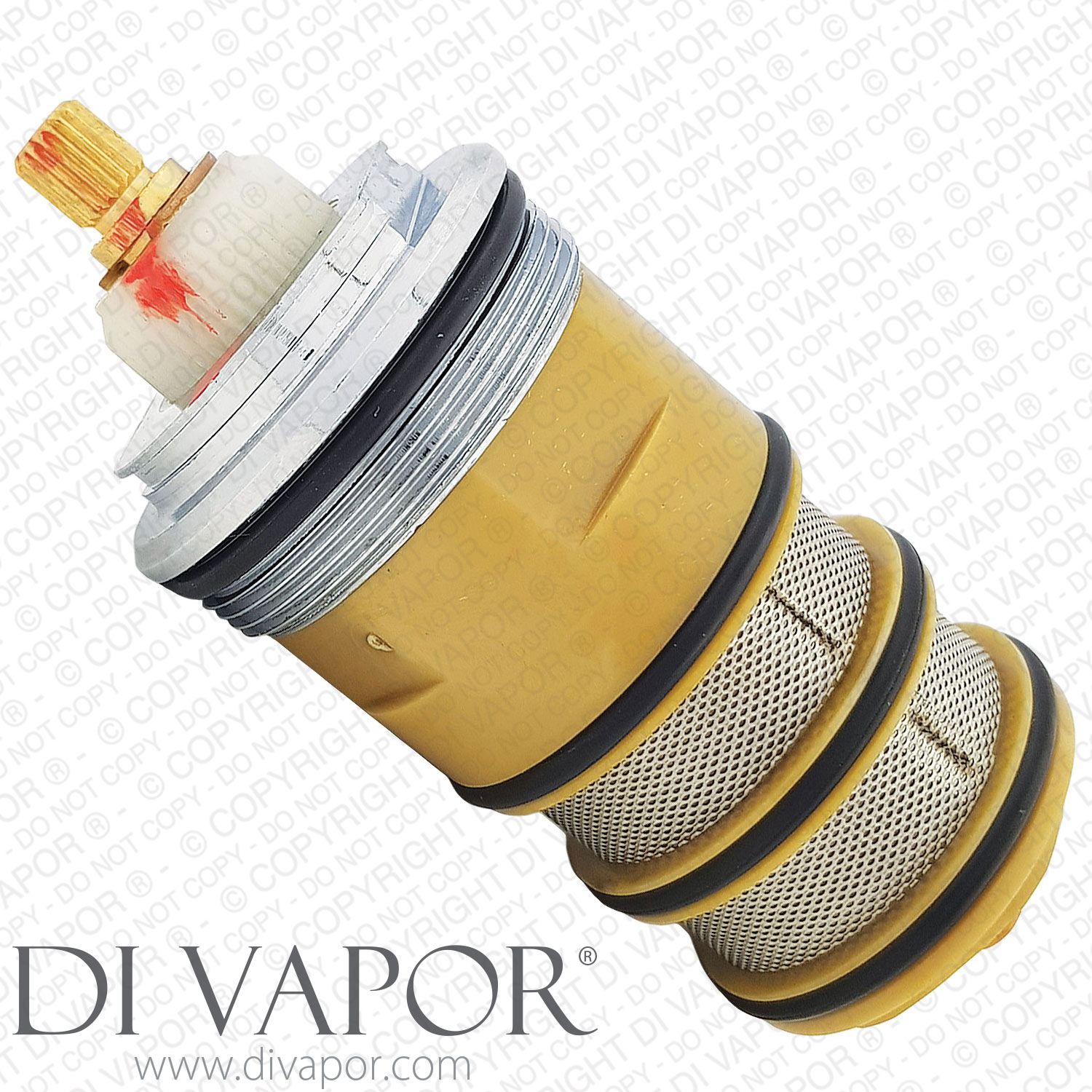

Wickes Vista XX Shower Thermostatic Valve Cartridge Replacement - WICKES9543

SUMMARY

Wickes Vista XX Shower Thermostatic Valve Cartridge Replacement - WICKES9543

Brand: Wickes
Product: Thermostatic Cartridge
Installation: Screw In
Number of External O-Ring: 4
Number of Gauzing: 2

This genuine Wickes Thermostatic Cartridge spare part can be dispatched on the next working day when ordered before 3:00 PM, Monday to Friday.

Like all thermostatic cartridges, the Wickes9543 sits inside a shower valve. To access the cartridge for replacement, unscrew the valve handle and remove the parts found on top of the cartridge. Screw the cartridge out with the help of a spanner. Apply a thin layer of silicone lubricant on the o-rings of the new cartridge and install it in the valve.

Cartridge Measurements:
Total Length (excluding wax thermostat): 96mm
Diameter at Thread: 41.7mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Stop Ring Spline Diameter: 20mm
Diameter at Top O'ring: 40.5mm
Diameter at Middle O'ring: 40mm
Diameter at Bottom O'ring: 39.6mm
