WP32 White Plastic Thermostatic Cartridge - 32 Splines
Part Number: WP32
Price: £89.99
SALE: £78.83
You save: £11.16 (12%)
Price includes VAT
IN STOCK
Product description
SUMMARY

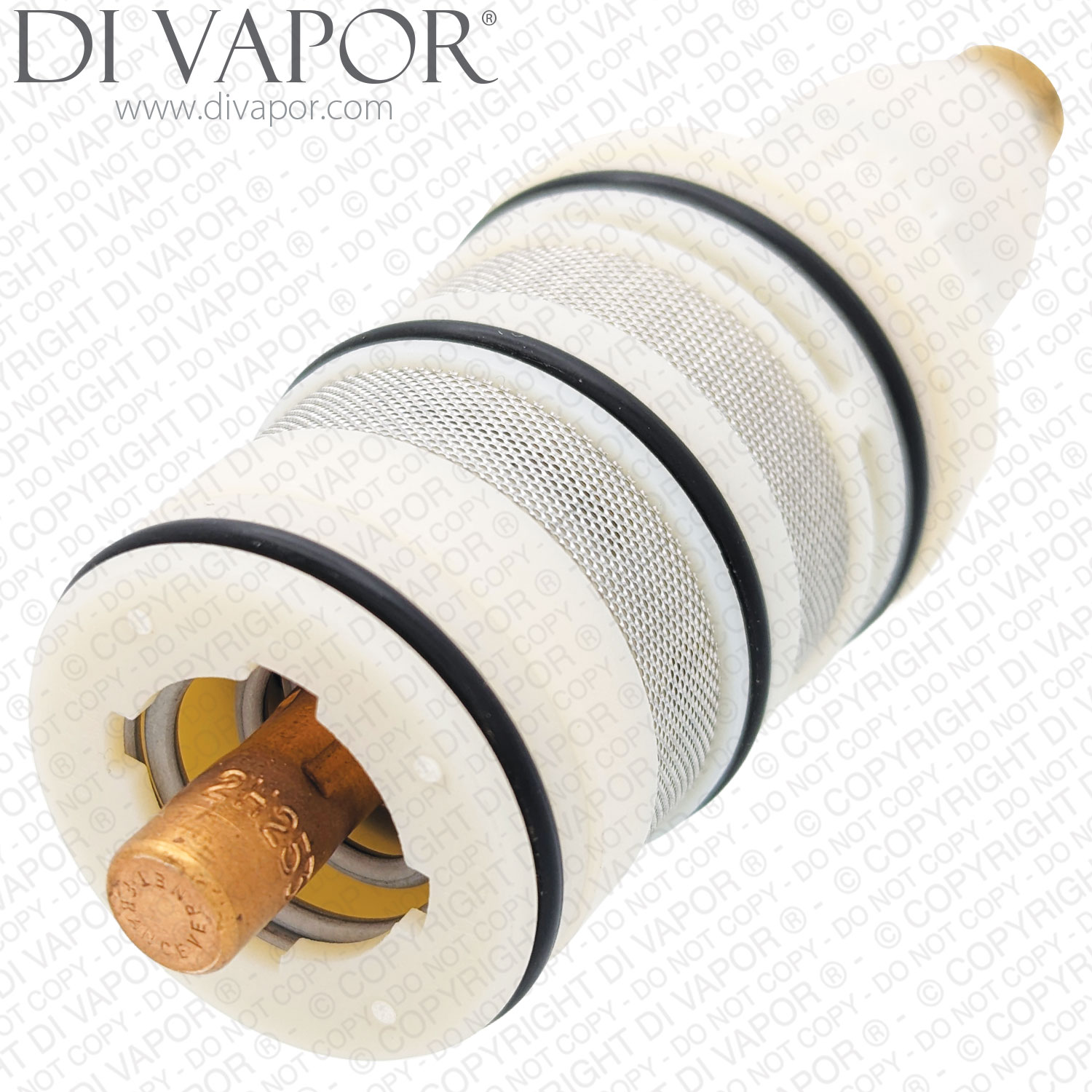

WP32 White Plastic Thermostatic Cartridge - 32 SplinesWhite plastic thermostatic cartridge with 32 splines/teeth at the top and 3 o-rings. This thermostatic cartridge is used in both concealed valves as well as exposed shower valves such as shower bar valves.
Dimensions:
Total length (with wax thermostat): 95.8mm
Total length (without wax thermostat): 103.6mm
Number of 0-rings: 3
Splines count: 32
Spline diameter: 11mm
Splines height: 34.7mm
Diameter (widest point): 34.4mm
Diameter (below 1st o-ring): 32.1mm
Diameter (below 2nd o-ring): 30.4mm
Diameter (below 3rd o-ring): 29.2mm
Material: Plastic
Colour: White
Fitting type: Push-fit
Gauzes: 2
