SUMMARY

This is a genuine Vernet thermostatic element which is identical to the Grohe 00798000 (00798 000) Avensys wax element and can be used as a direct replacement.

We deliver this thermostat element worldwide.

The thermo element can be used with the following brands and models (this list is not comprehensive and you'll find this thermostat being used on further brands and models of thermostatic cartridge):

- Grohe Avensys Exposed Single Thermostat Mixing Valve
- Grohe Grohmaster 34 084 Avensys Thermostatic Dual EV
- Gainsborough Royale Antique Shower Mixing Valve
- Grohe Grohmaster 34 035 Avensys
- NewTeam 968 Thermostatic Valve
- Grohe Grohmaster 34 043 Avensys Trad. Thermostatic Dual 1/2 Shower Valve
- Thermostatic Single Biv Shower Mixer Valve
- Grohe Grohmaster 34 044 Avensys Trad. Thermostatic Single 1/2 Mixing Valve
- Grohe Grohmaster 34 033 Avensys Thermostatic Single Ev
- Grohe Avensys Thermoatatic Shower Mixing Valve
- Grohe Grohmaster 34 028 Avensys Thermostatic Dual Ev
- Grohe Grohmaster 34 042 Avensys Trad. Thermostatic Dual 1/2 Shower Valve
- Sirrus TS1400 Thermostatic Shower Valve
- Grohe Grohmaster 34 045 Avensys Trad. Thermostatic Single 1/2 Shower Mixer - Grohe Grohmaster 34 083 Avensys Thermostatic Dual Biv
- Grohe Grohmaster 34 031 Avensys Thermostatic Dual 1/2 Shower Valve
- Grohe Grohmaster 34 030 Avensys Thermostatic Dual 1/2 Shower Mixing Valve


Please contact us if you have any questions regarding this element.

Grohe 00798000 Measurements and Other Information

Manufacturer: Vernet
Spare Part: Wax Thermostat Element

Wax Thermostat Element, GROHE 00798000, is a replacement part for a wide range of shower mixers such as Grohe Avensys and the Sirrus TS 1600 and Gummers/Sirrus SK 740012.

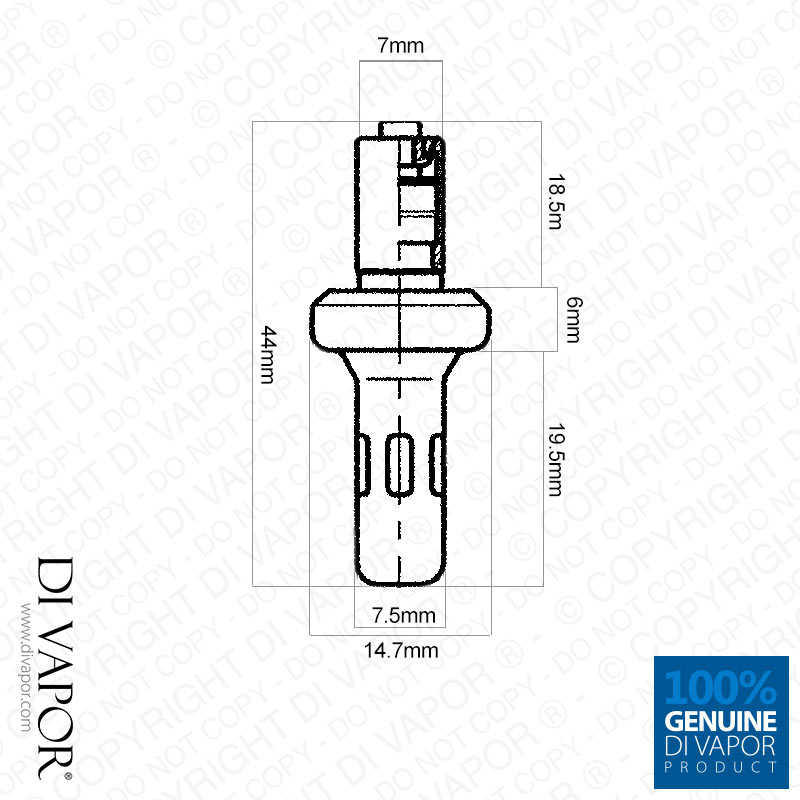

Measurements:
Approximate Dimensions
Diameter at Widest Point: 14.5mm
Diameter of Body: 7.5mm
Compressed Length: 40mm

Other spare parts that go with the Grohe 00798000:
- Shuttle slider

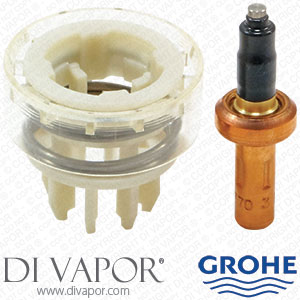

- Wax thermostatic element and slider combo

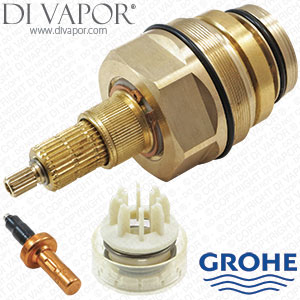

- Grohe 47598000 Control Unit Replacement Set for Avensys and Grohmaster Valves

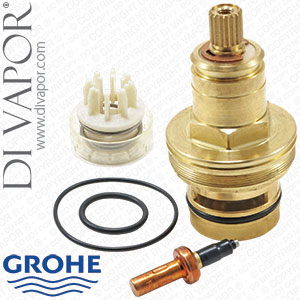

- Grohe 47600000 Cartridge Replacement Set

Frequently Asked Questions: Wax Thermostat Element for Grohe 00798000

Question: How can I take out the element?
Answer: Taking the element out is contingent on the type of cartridge and shower you own. Some cartridges require the removal of the slider latched onto the bottom of the cartridge housing. For other cartridges; spring, seals, and washers need to be removed before you can get to the wax thermostatic element.

Question: Can I know if the capsule needs a replacement?
Answer: You can test the Grohe 00798000 capsule element by dipping it in hot and cold water. If the pin does not move up and cannot be pushed down with ease, you need to replace the part.

Question: Why is the shower not producing hot water?
Answer: Issues from the supply pipes or from the valve unit components may lead to sluggish hot water flow from the bathtub or shower tap. If supply pipe pressure is lacking adjust it. If the temperature limiter is misaligned, readjust it. However, if there are no troubles with water pressure or part installation, the cartridge should be checked.

Reasons for a lack of hot water that does not originate from the supply lines or valve installation include a faulty Grohe 00798000 thermo-element.

Question: What contributes to a faulty wax element?
Answer: High levels of hard water will not only affect the cartridge barrel or the tap unit, but also the temperature sensitive Grohe 00798000 capsules inside the cartridge. White and rust coloured deposits found on shower enclosures and appliances are signs of hard water presence.

Hard water minerals will react more when the temperature is high. Because of this, debris will build up on the pathway where hot water passes – gauzing and thermostat element. The development of debris can hinder the normal functioning of the little temperature regulators.

Living in an area where hard water levels are high?
- We have a Magnetic Limescale Inhibitor. It is a natural solution for limescale buildup.
