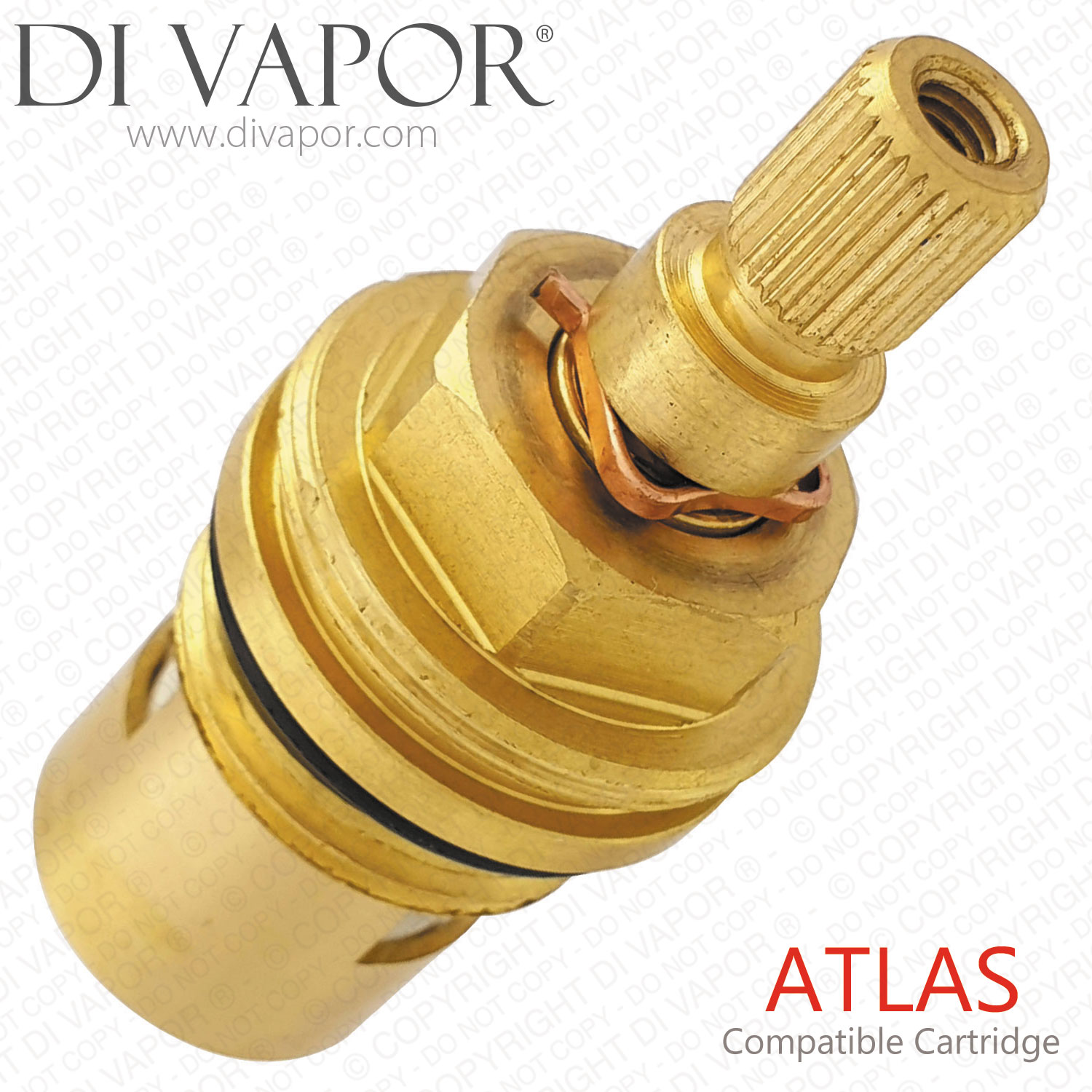

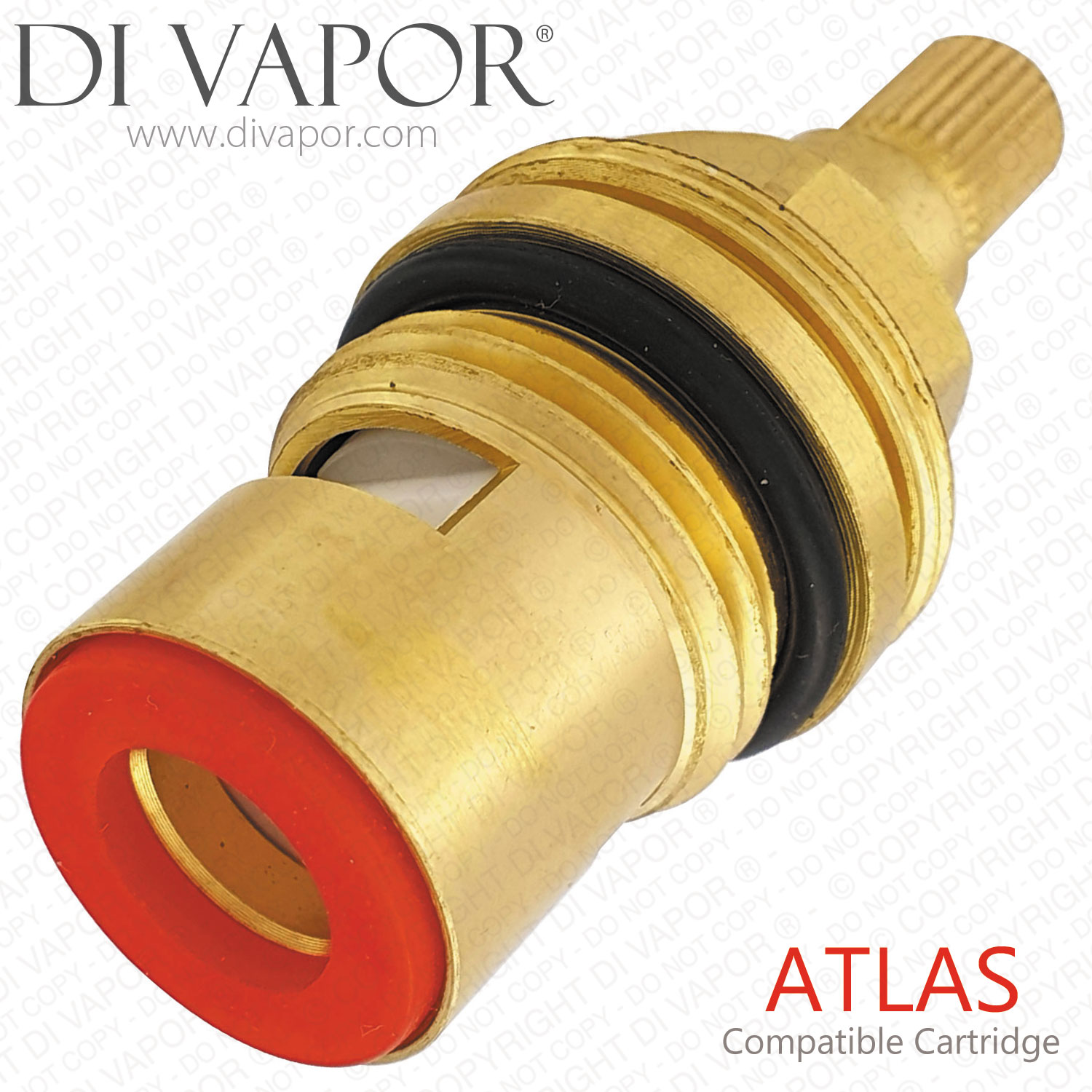

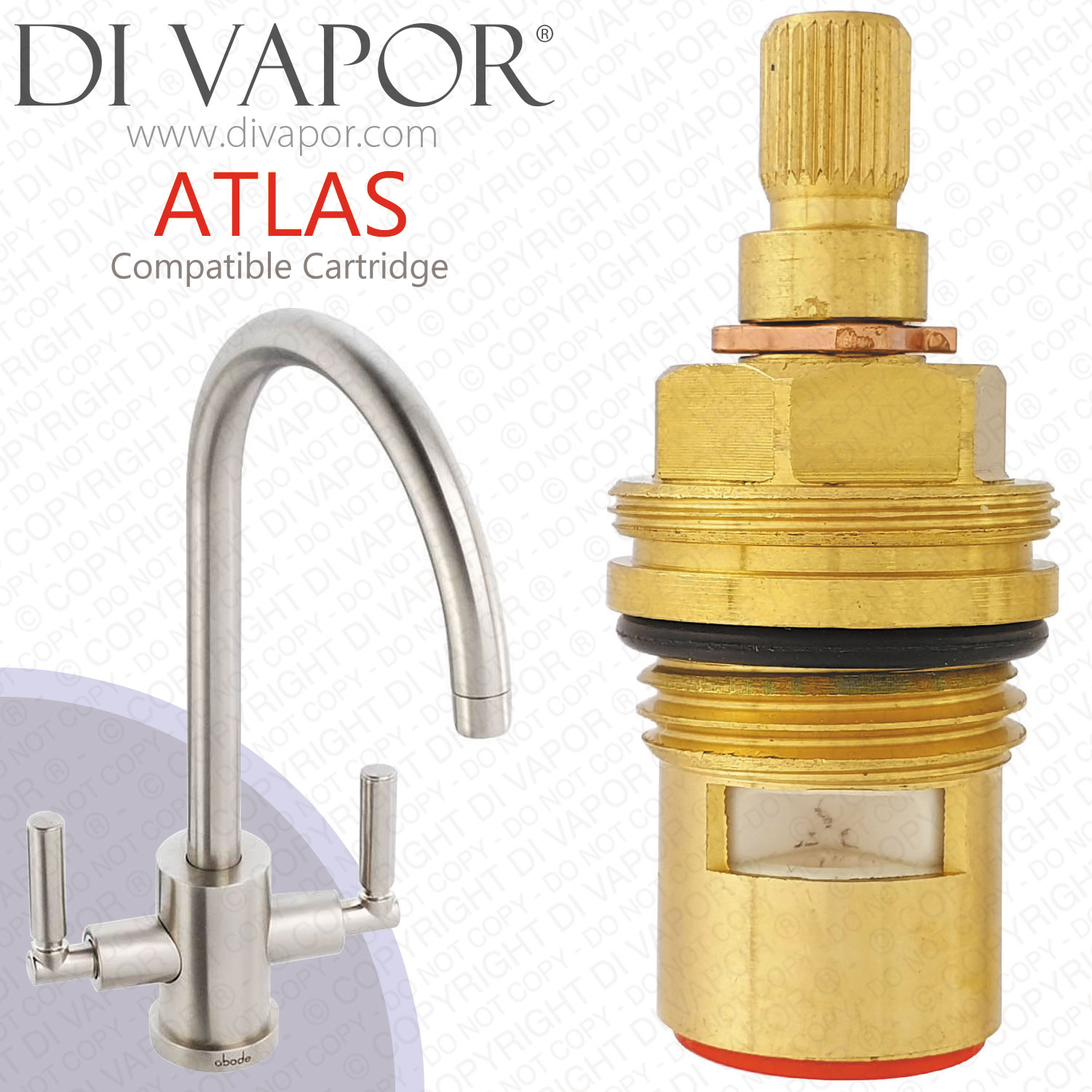

Abode Atlas Aquifier Hot Kitchen Tap Cartridge Compatible Spare

Abode Atlas Aquifier Tap Spares: Hot Side Compatible Cartridge Measurements and Other Information

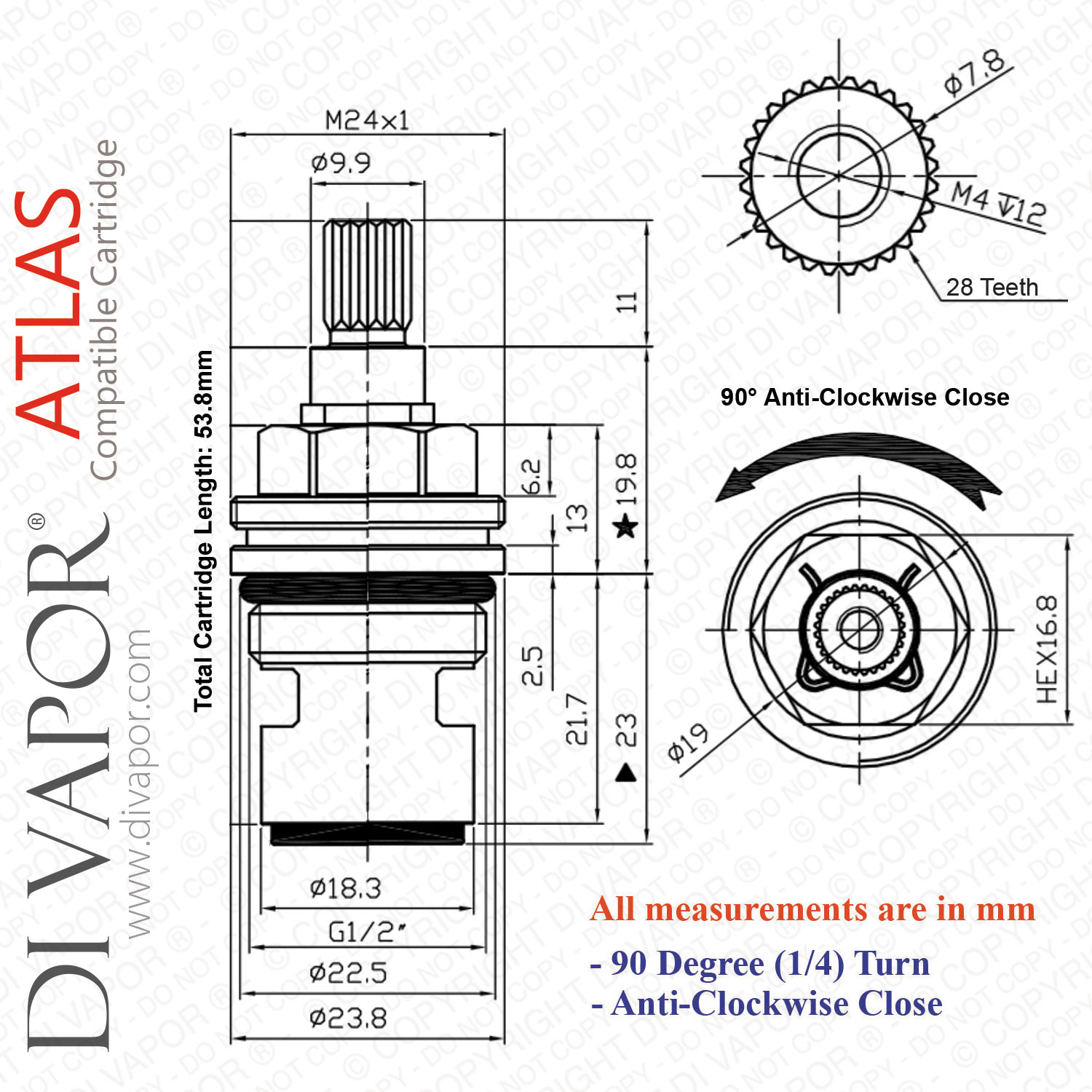

This kitchen tap spares can also be fitted in other taps. Please have a look at the second image in the gallery for the complete measurement diagram of the Abode Atlas Aquifier tap cartridge. You can then compare the measurement with the cartridge you have.

Measurements:
Total length (from top to bottom of cartridge): 53.8mm (5.38cm)
Diameter at the widest point: 23.8mm (2.38cm)

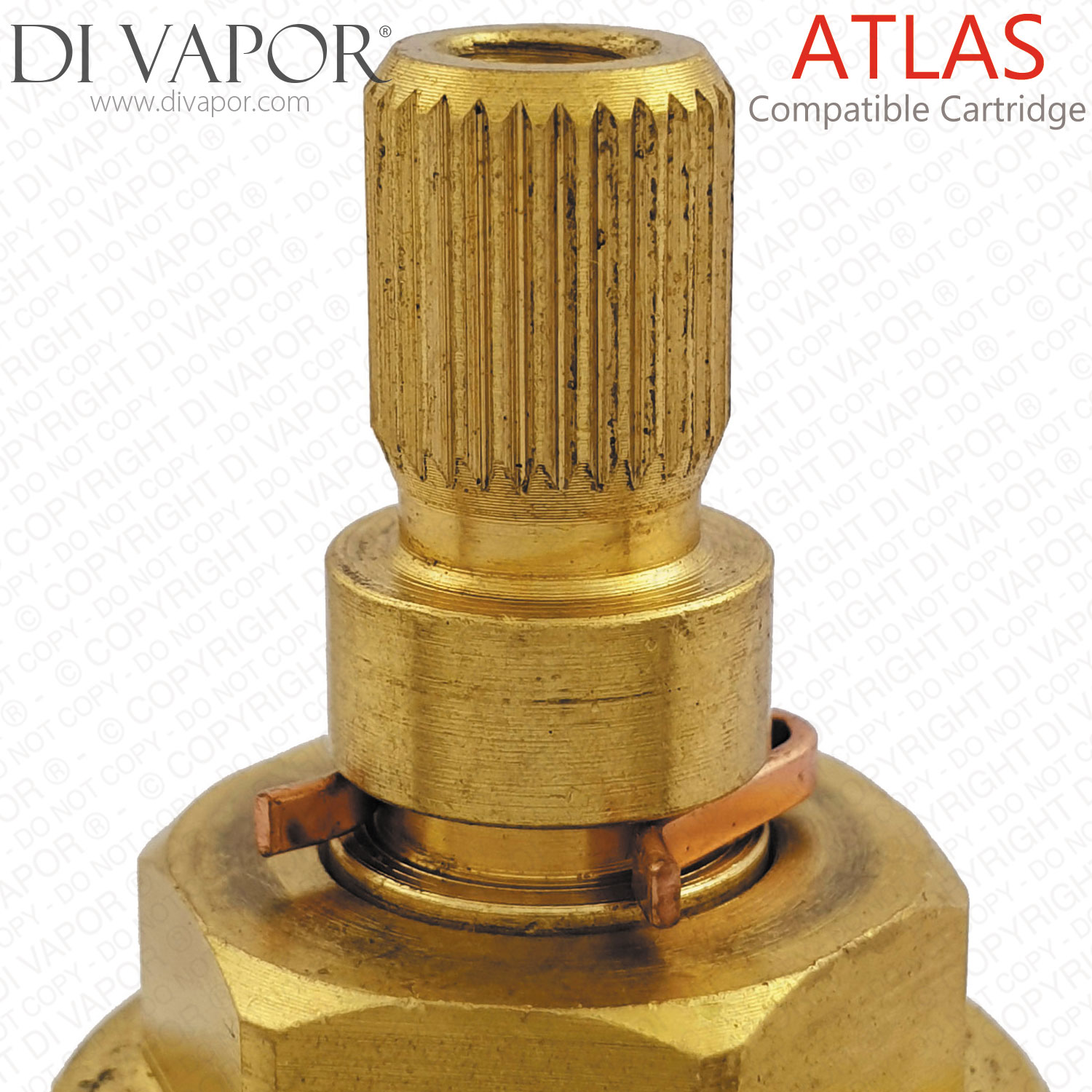

Spline diameter: 7.8mm
Spline count: 28

Other information:

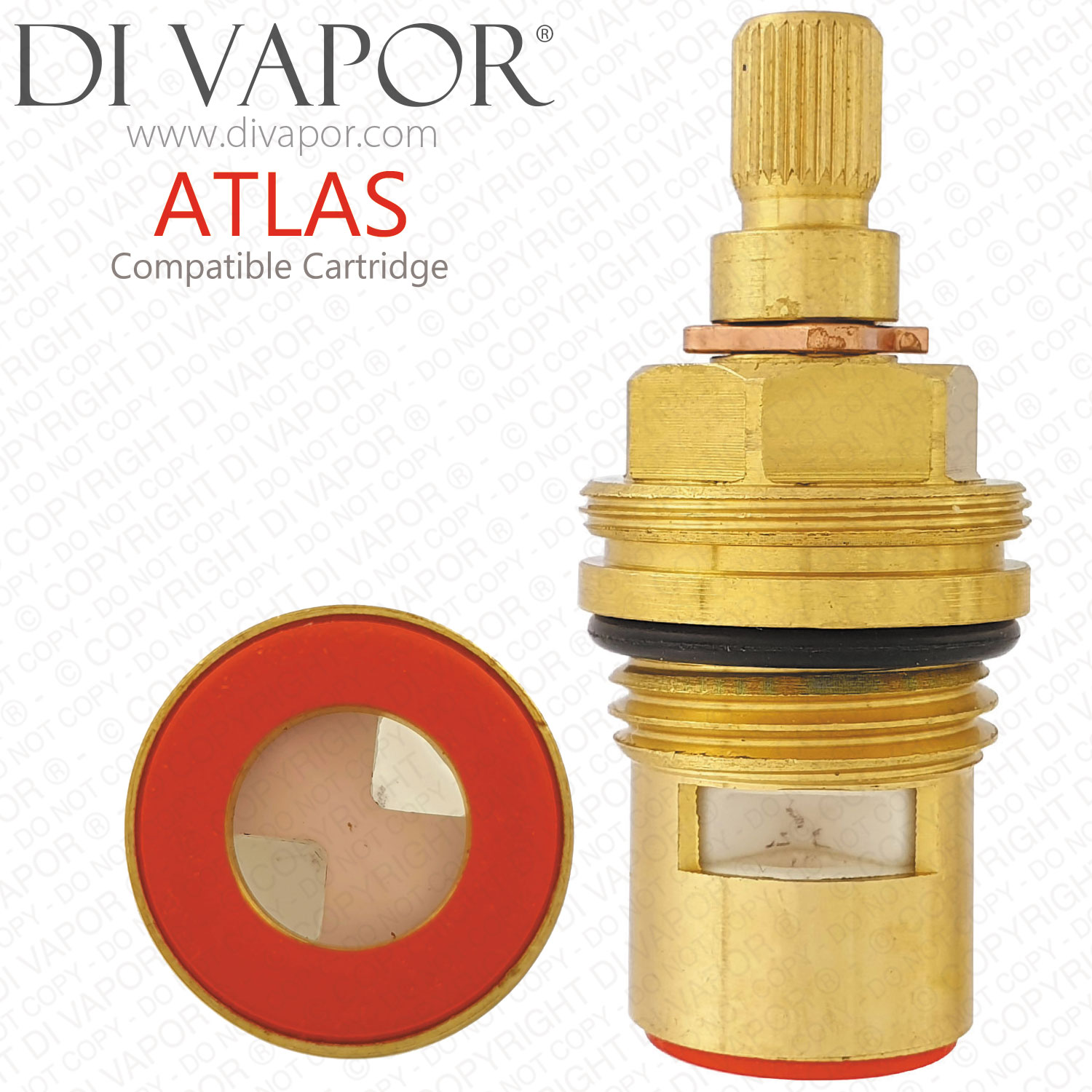

Bottom seal colour: Red (Hot)
Close direction: Anti-clockwise close (Clockwise open)
Original spare part number: 4276R and 3547R

Abode Atlas Aquifier Cartridge Tap Repair Guide

1. Use a 2mm hexagonal key to loosen the grub screw found under the handle. Remove the handle by pulling it.

2. Remove the valve covering. The part can be unscrewed anti-clockwise by hand.

3. Use an adjustable spanner to unscrew the faulty cartridge from the tap.

4. Coat silicone grease on the O-ring of the replacement Abode Atlas Aquifier tap cartridge. This will help seal the new cartridge with the tap valve. (Please see the last section below for the plumbing grease.)

5. Insert the cartridge in the tap valve and use the spanner to tighten the threads.

6. Put back the valve covering, the handle and the grub screw.


We supply many tap cartridges compatible with different Abode kitchen taps.
– Please click on the link to see the whole range.
– Or, you can enter the tap model or the spare part number in our search bar.
– Please use our spare part identifier if you don’t know the tap model or spare part number. We will do our best to respond to you, with the part you need, as soon as possible.
