SUMMARY

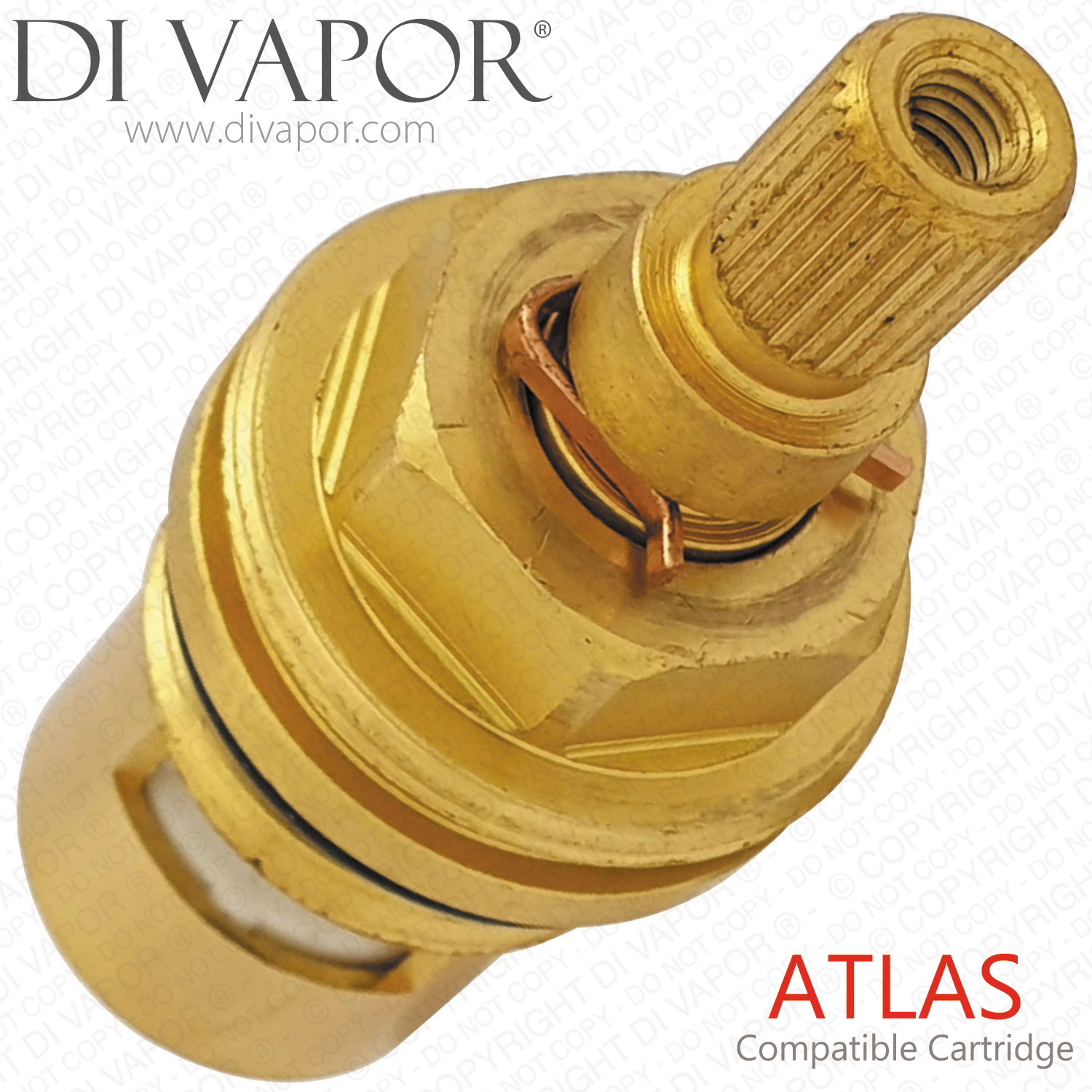

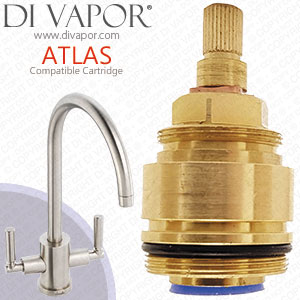

Abode Atlas Cold Kitchen Tap Cartridge Compatible Spare

Abode Atlas Tap Cartridge Measurements and Other Information

Measurements:
Total cartridge length: 53.8mm (5.38cm)
Diameter at the widest point: 23.8mm (2.38cm)

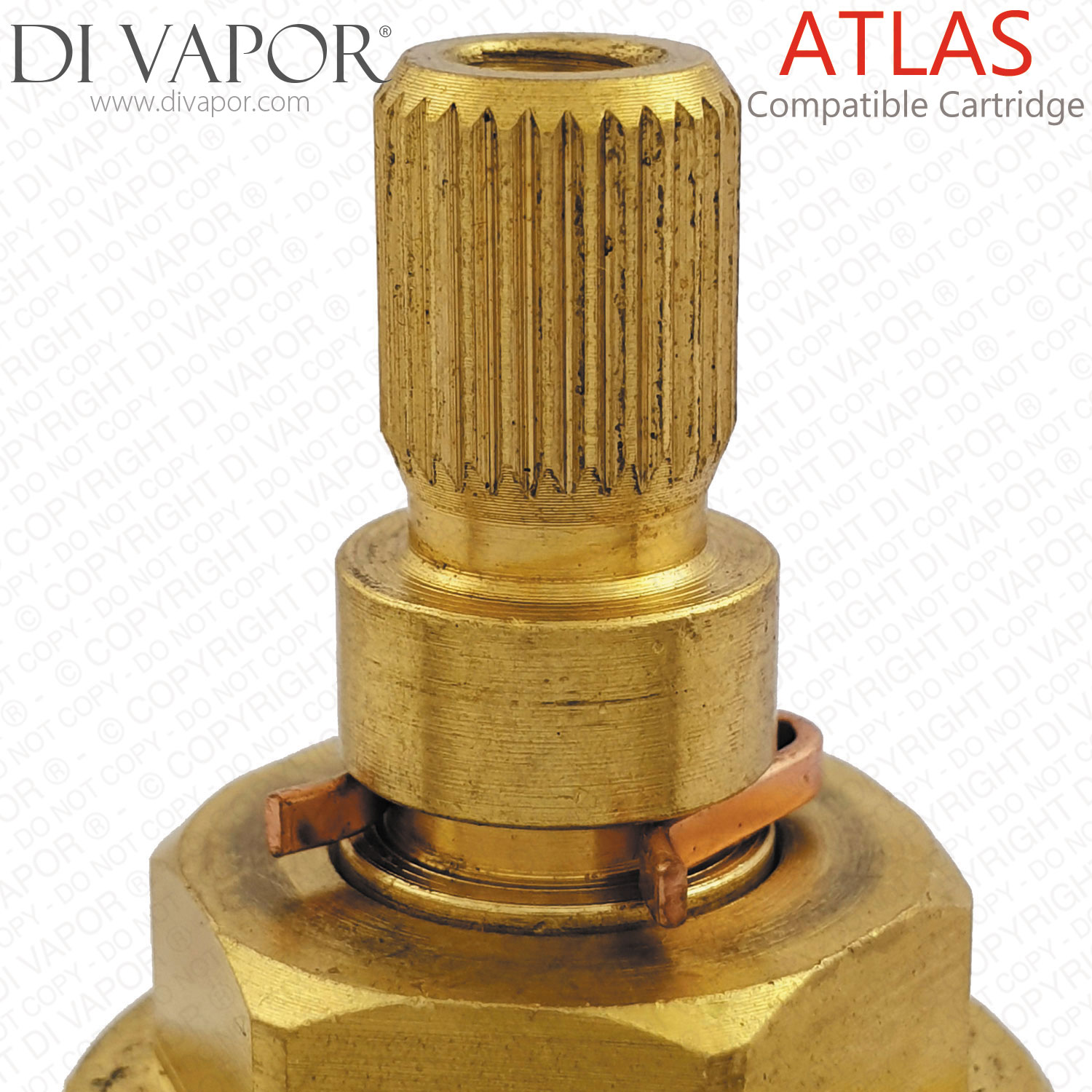

Spline diameter: 7.8mm
Spline count: 28

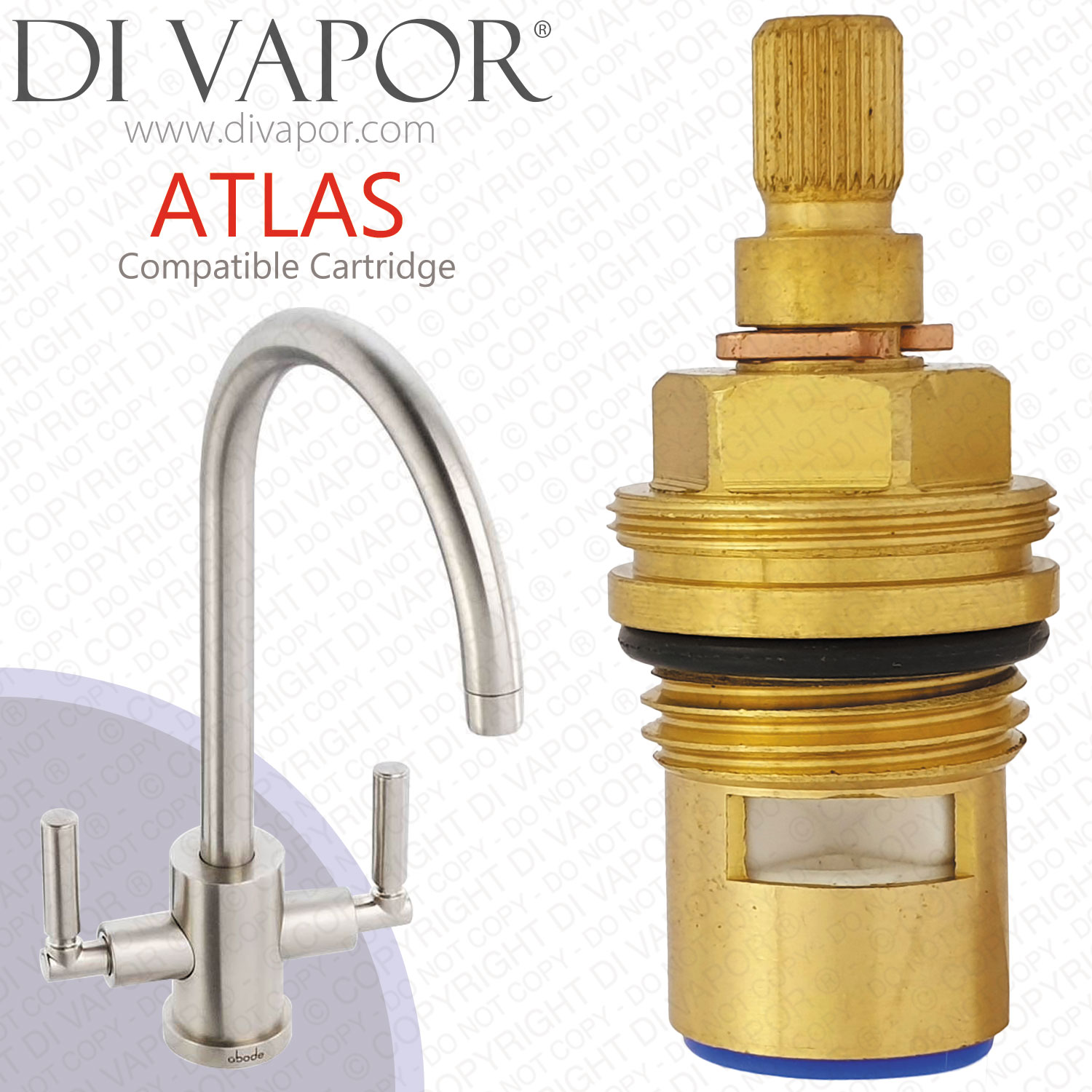

Please have a look at the second image in the gallery to see an illustration of the complete Abode Atlas tap cartridge measurements.

Other information:

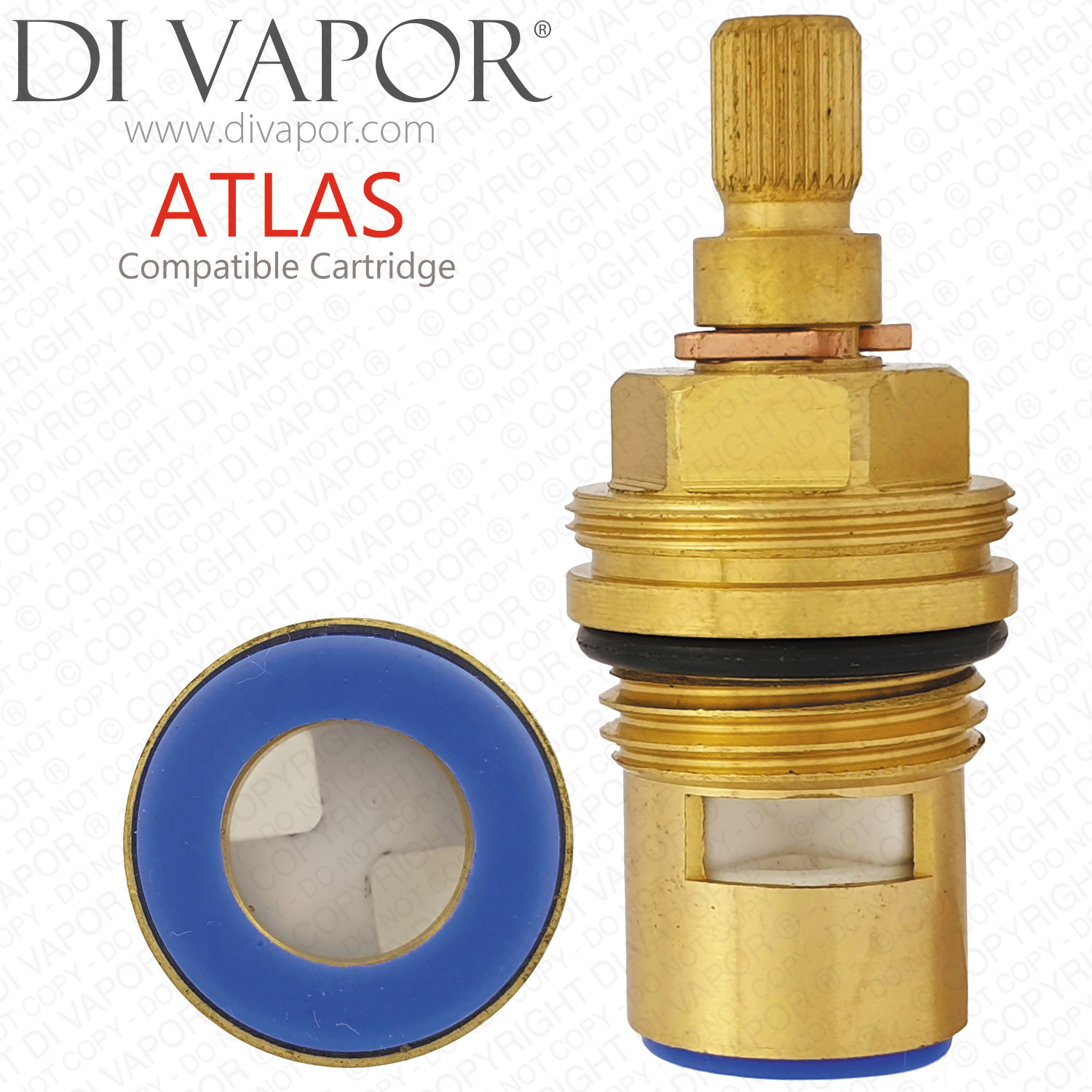

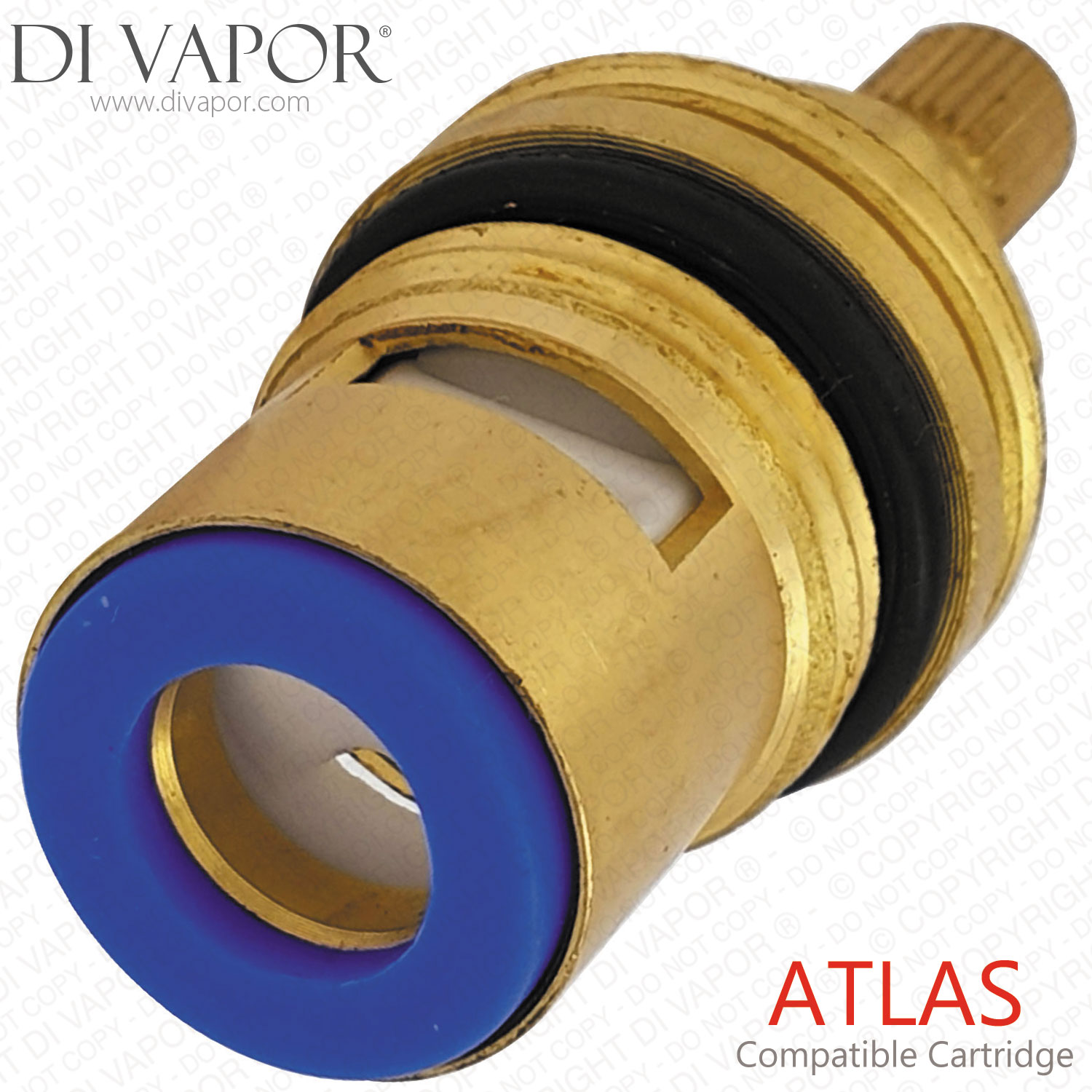

Bottom seal colour: Blue (Cold)
Close direction: Clockwise close (Anti-clockwise open)
Hot valve cartridge: AD8334 (Please visit the spare part page for the additional cartridge information and installation guide.)
Original spare part number: 3561R and ASCDV0003C

Frequently Asked Questions: Abode Atlas Tap Cartridge

Question: What should I do if the handle won’t separate from the tap valve?
Answer: The insides of the handle cap can corrode over a span of time. This makes accessing the Abode Atlas tap cartridge more challenging than normal. You can pull the handle as mightily as you can as you try to remove it.

Question: Will this tap spare part fit in other kitchen taps?
Answer: Yes, this replacement tap cartridge for Abode Atlas can fit in other taps.
1. You can see the Abode tap spares we supply.
2. You can search our search bar for the make and model of the tap you have.
3. Contact us if you don’t know the make and model of the tap or if you cannot find it in search. We will be more than happy to assist you in looking for the spares you need.

Question: What size Allen key should be used?
Answer: A 2mm Allen key is used to remove the handle from the tap.
