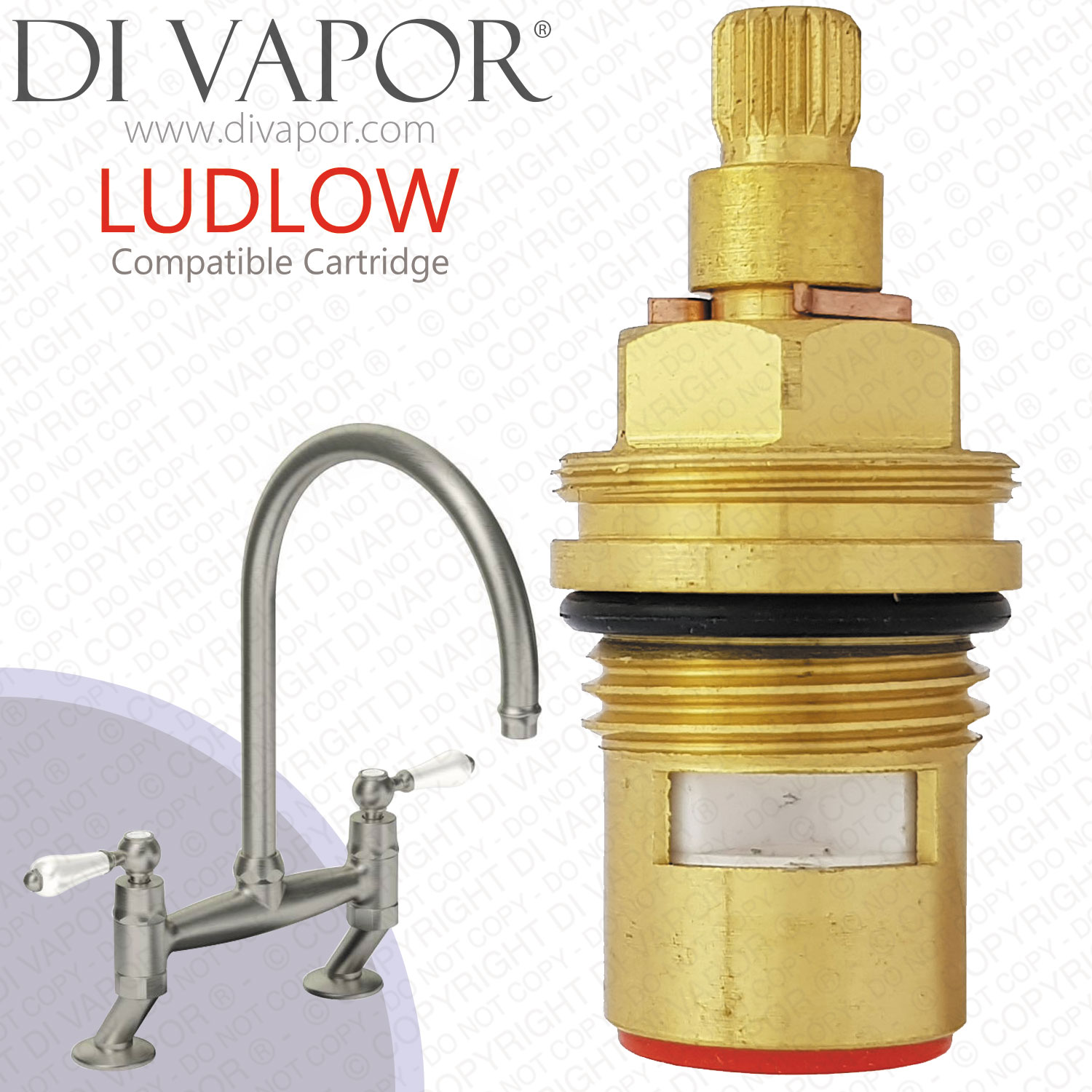

Abode Ludlow Bridge Hot Kitchen Tap Cartridge Compatible Spare - After 2010 - 3984R (Anti-Clockwise Off)

Abode Tap Spares Ludlow Bridge Cartridge: Measurements and Other Information

Measurements:
Total cartridge length: 52mm (5.2cm)
Diameter at the widest point: 23.8mm (2.38cm)

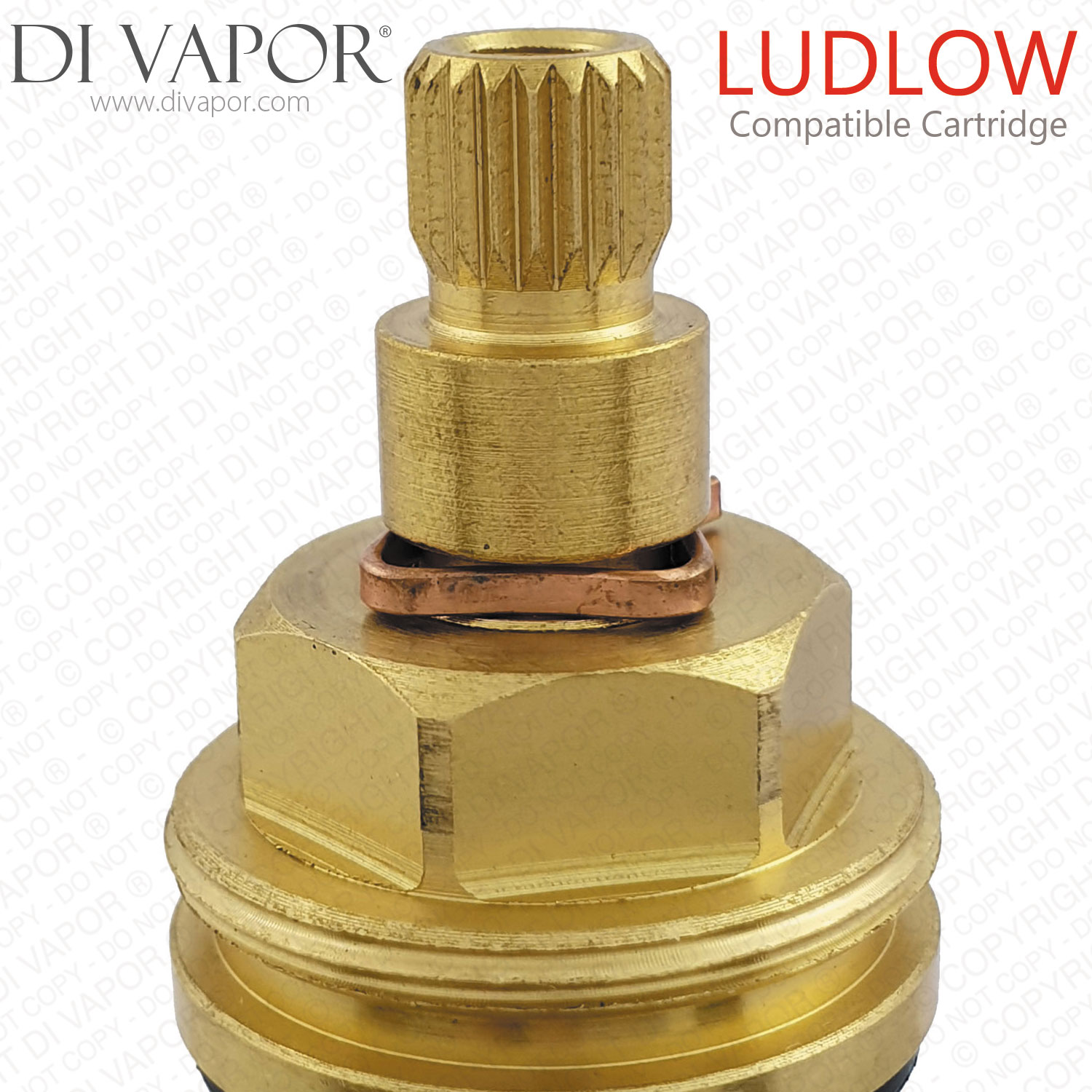

Spline diameter: 7.65mm
Spline count: 20

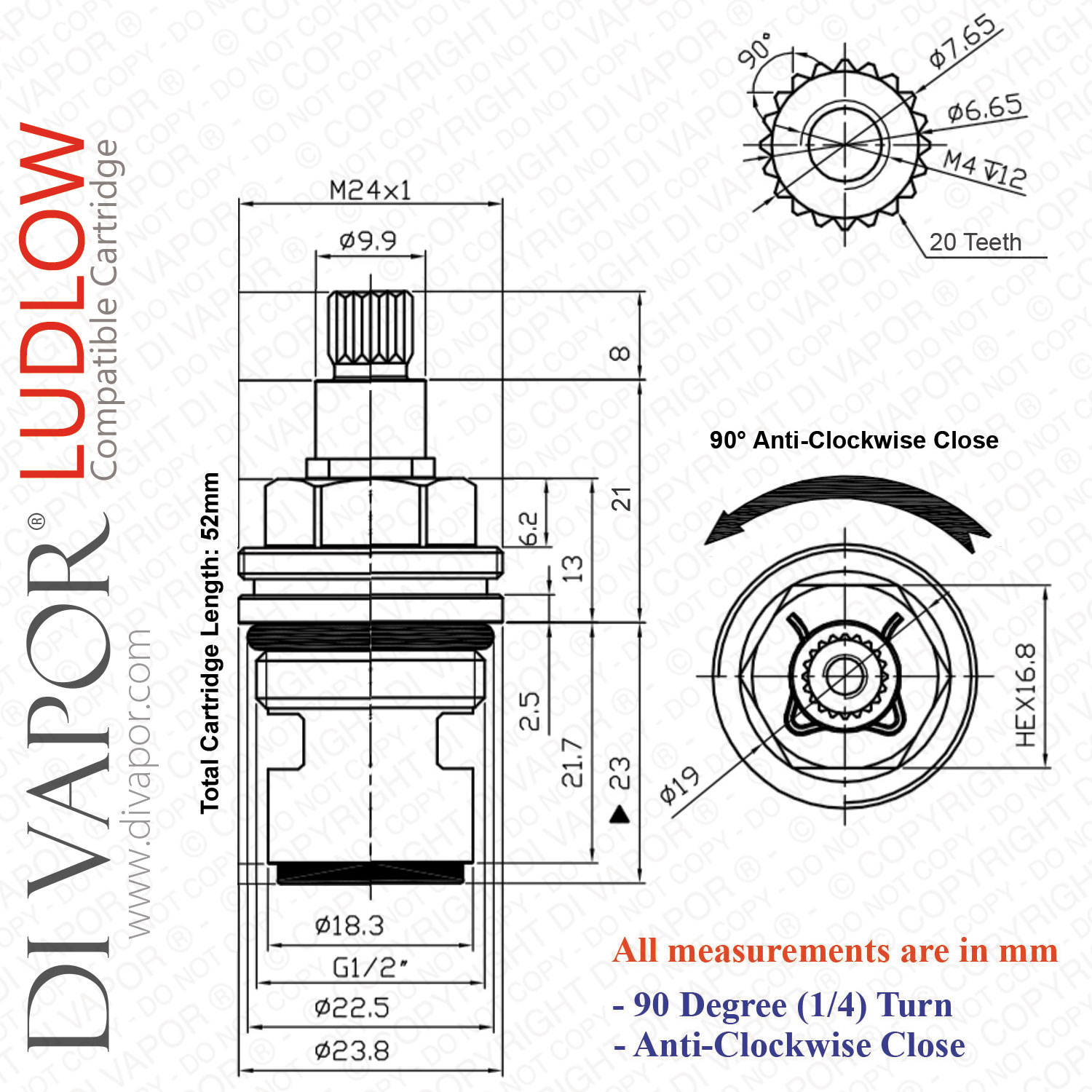

Please refer to the second photo for the diagram of the measurements.

Other information:
Cartridge type: Ceramic valve cartridge insert

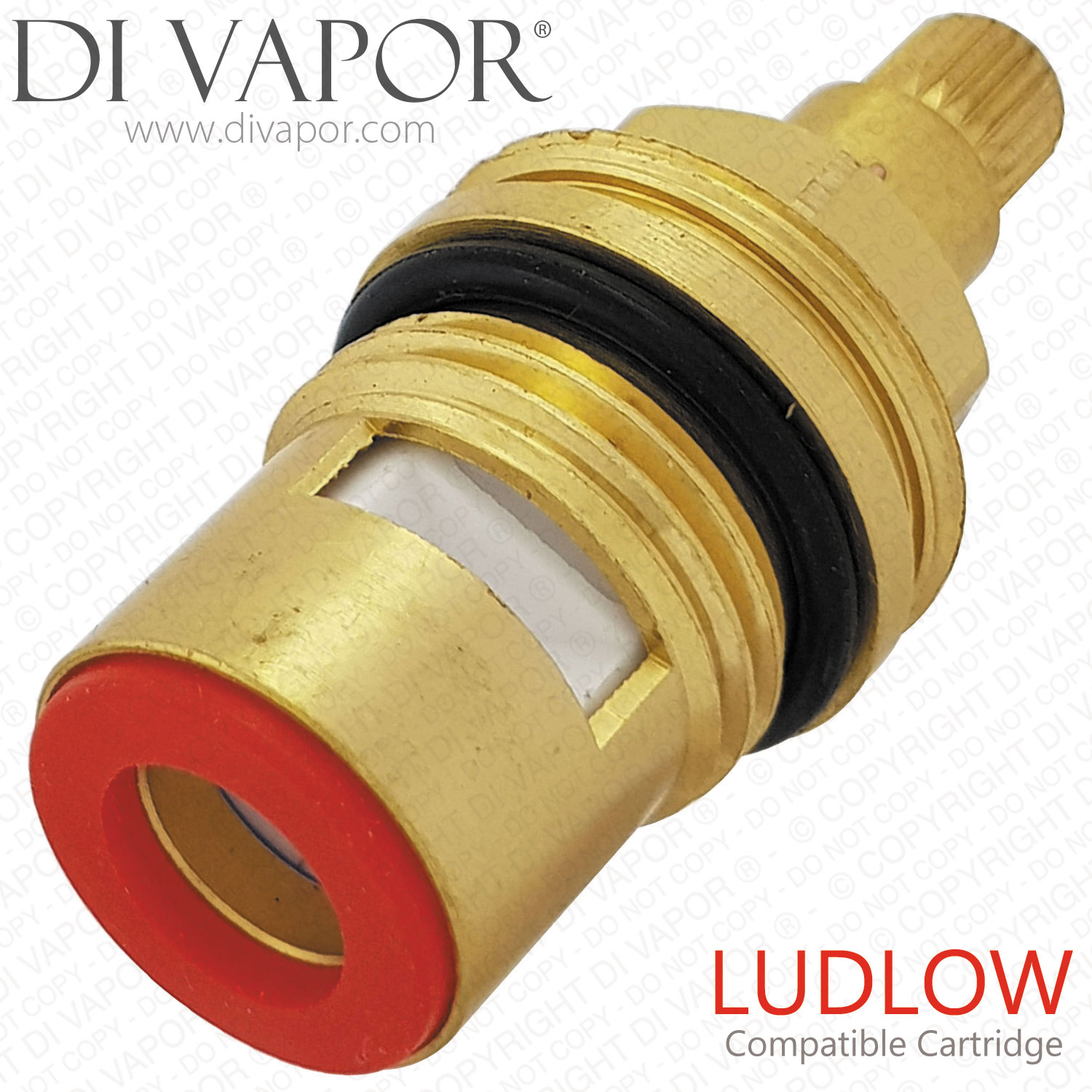

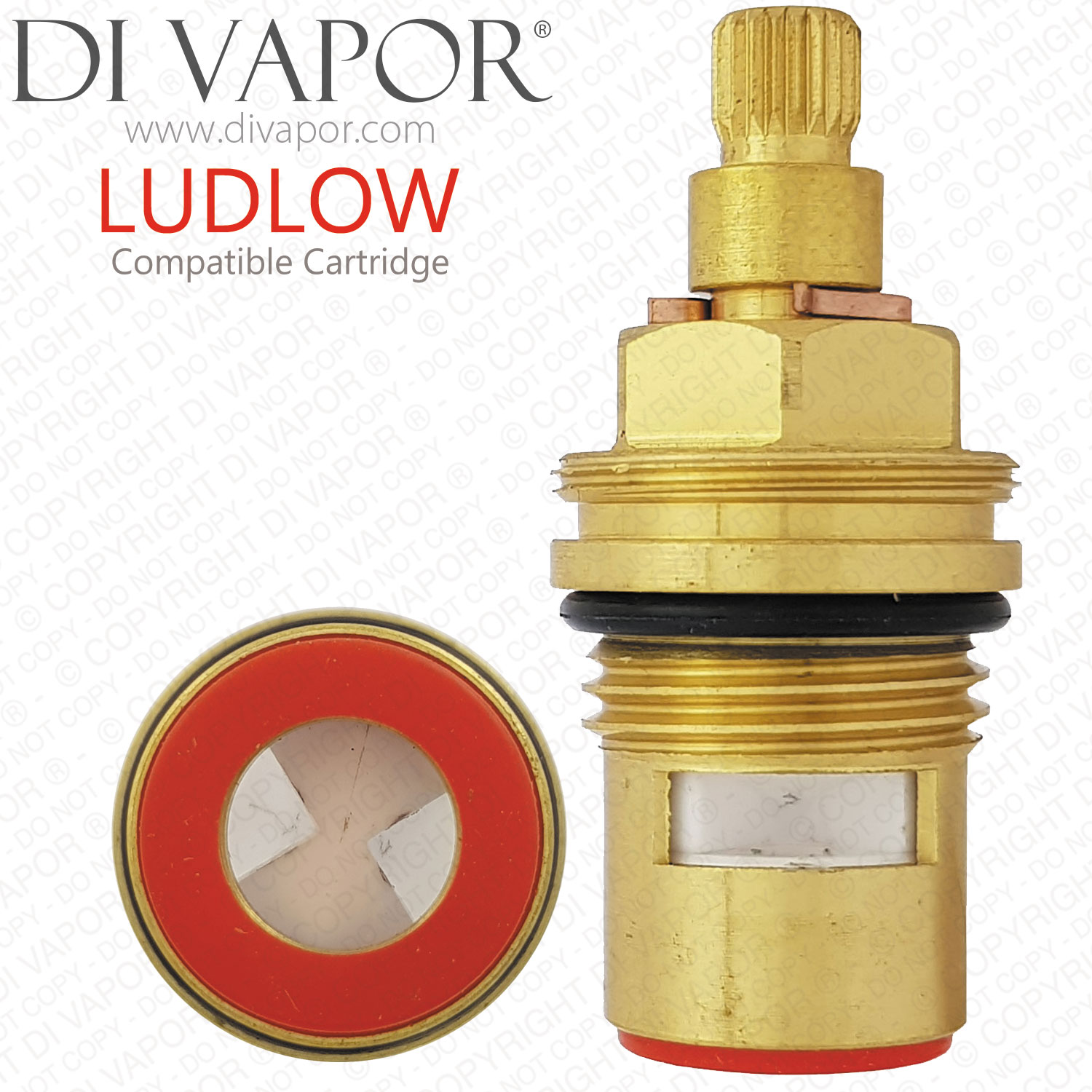

Bottom seal colour: Red (Hot)
Close direction: Anti-clockwise close (Clockwise open)
Cold valve cartridge: AD8309 (Please visit the spare part page for very important information – Abode Ludlow Bridge Tap Spares Buying Guide.)
Original spare part number: 3984R
*For Abode Ludlow Bridge taps sold post-2010.

Fitting Guide for the Abode Tap Spares Ludlow Bridge Replacement Cartridge

– Shut off the water supply of the tap.

– Remove the white decorative button and the round part under it.

– Loosen the handle screw and lift the handle to remove. Remove the cartridge cover.

– Use an adjustable spanner to undo the threads of the old cartridge.

– Coat the O-ring of the Abode Ludlow Bridge replacement cartridge with silicone grease and insert it in the valve seat. (Please see the last section for the plumbing grease we supply.)

– Tighten the cartridge threads using the spanner and reassemble the handle.
