SUMMARY

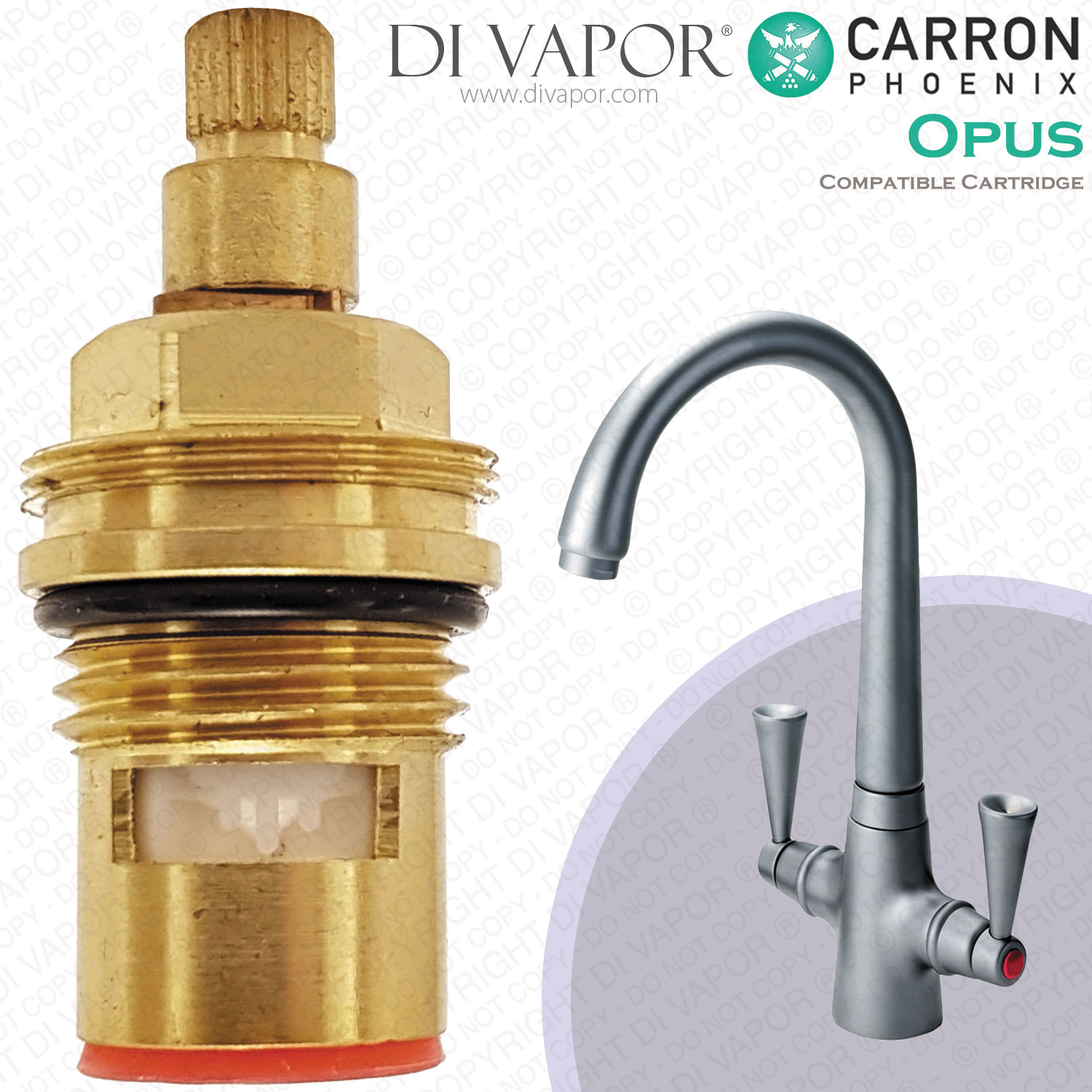

Carron Phoenix Hot Opus Tap Cartridge Replacement - 52mm, 1/2 Inch, 20 Spline Compatible Tap Valve

Need the cold valve for a complete tap repair?
+ CP-OP25 is the Carron Phoenix Opus tap cartridge compatible cold insert.
+ Please check out the spare part page for additional information.

How to Fit the Carron Phoenix Hot Opus Tap Cartridge

This Carron Phoenix hot Opus tap cartridge is a compatible spare part. The original tap spare is known as 1212R, 3984R and 3984R-C. Turn off the tap’s water supplies before beginning the repair.

1. Remove the red indice on the hot side handle (the blue indice for cold). A flat and blunt tool or your fingernail can be used to remove the indice. Please be careful not to scratch the tap’s finish when using a screwdriver.

2. The handle’s retaining screw can now be accessed. Loosen the screw adequately using a hexagonal key then remove the handle.

Due to corrosion or calcification, it may take an extra amount of force to pry out the handle. Hold the tap spout firmly in place and pull out the handle.

3. Unscrew the valve cover by hand.

4. Grab a spanner and unscrew the hot valve cartridge which can be kept for future reference.

5. Layer a thin coating of silicone grease on the seal (O-ring) of the replacement Carron Phoenix hot Opus tap cartridge.

We provide grease apt for plumbing which can be seen in the section below.

6. Push the new part in the valve seat and screw it in until hand-tight.

7. Return the valve cover, the handle, the retaining screw and the indice.

Know Your Spare Part: Carron Phoenix Opus Tap Cartridge Compatible Hot Valve

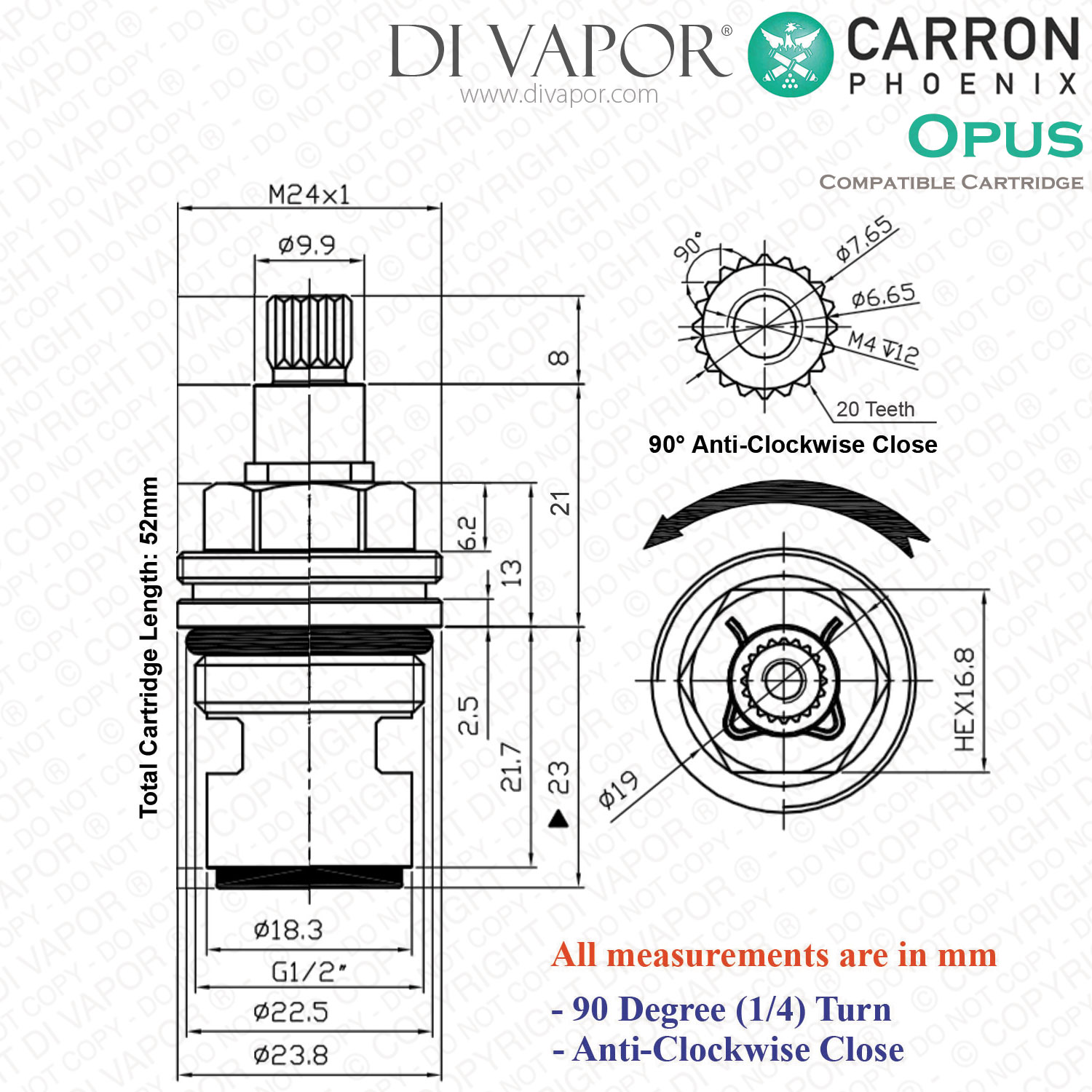

The compatible hot valve cartridge for the Carron Phoenix Opus can be fitted in other tap models as well. Please take note of the measurements given – see the second photo in the gallery above – and compare it with the spare part you have. You can always contact us should you require more details or need spare part identification help.

– This Carron Phoenix Opus tap cartridge sits in the hot valve of the tap. It opens water flow to the tap in a clockwise direction and closes anti-clockwise. Because of this, the hot and cold cartridge of the tap is not interchangeable.

– This tap spare’s rotation angle is 90 degrees (quarter turn).

– As a quality compatible tap cartridge, this spare part is as reliable as the original.

– A ceramic core sits inside the brass shell of the replacement Carron Phoenix Opus hot valve tap cartridge. Since it is made of ceramic, the core is less susceptible to limescale build-up than its brass body.
