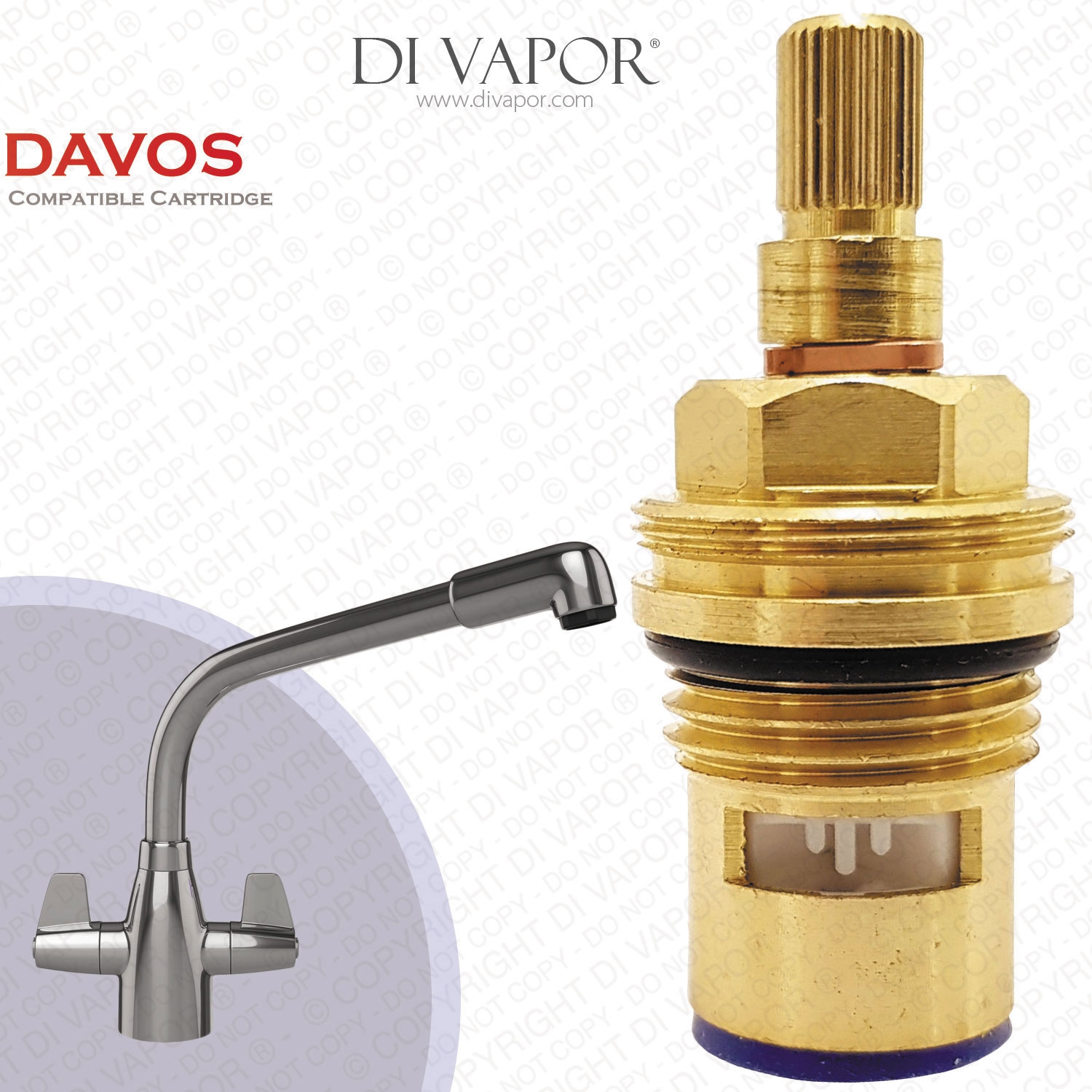

Franke Davos 1427R-C Kitchen Tap Valve Cartridge (133.0069.364) - 28 Splines - 1427R Compatible Cold Cartridge (after 2007)

SUMMARY

Franke Davos 1427R-C Kitchen Tap Valve Cartridge (133.0069.364) - 28 Splines - 1427R Compatible Cold Cartridge (after 2007)

Cartridge Compatibility: Franke Davos and Frake Davos J – 1427R-C
Spare Part: Tap Cartridge Spare Part – Cold
Installation: Screw-Fit
Material: Brass with Ceramic Core
Number of External O-Rings: 1

The Franke Davos and Davos J compatible kitchen tap valve cartridge is a cold tap valve spare part. It will fit taps released after 2007. This tap spare part is the same as the Franke part number 1427R cold.

Note: This Franke Davos tap valve replacement part will fit the modified and newer versions of the Davos. Pre-2007 models have 20 spline notches while newer ones have 28. Notches are like gears. It makes for turning the tap handle on/off and serves as an anti-rotational component, hence it won’t slide to the “on” or “off” position on its own. The splines on the cartridge must match with the splines in the handle cap in order to fit.

(M4721 and M4720 are the cold and hot side cartridges for the pre-2007 Franke Davos.)

The hot cartridge can be found in this link.

This cartridge’s compatibility is not limited to the Davos or the Davos “J”. It can fit various kitchen taps as long as the measurements and the spline count are the same. Please give us a ring if you need help in determining the correct cartridge replacement you need.

Technical Specifications: Franke Davos and Davos J Compatible Tap Cartridge

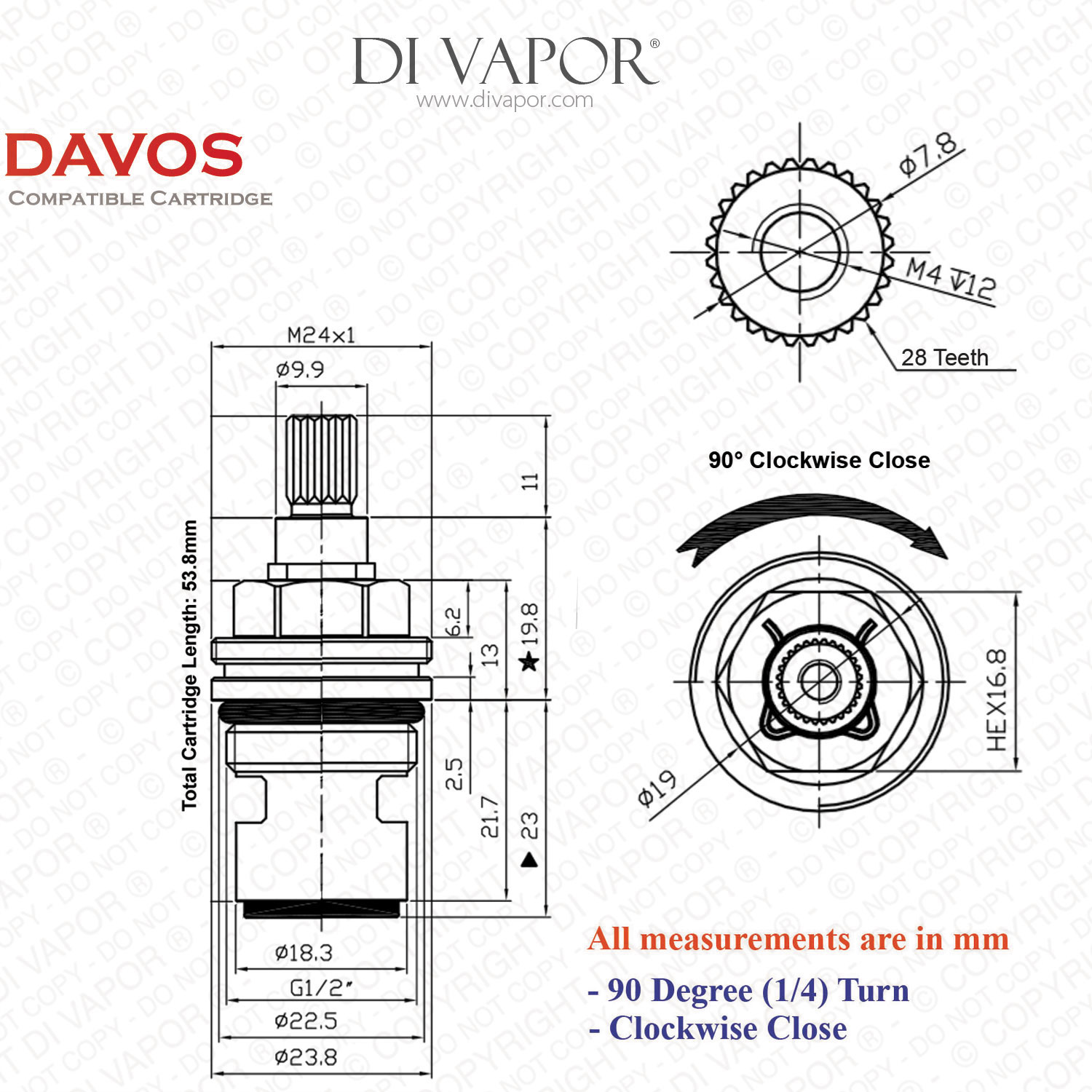

An illustration of the measurements in available above. Please refer to it for visual information.

Cartridge Measurements (Approximate):
Total Length (including bottom seal): 53.8mm
Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 28
Lower Thread: 1/2"
Bottom Seal Colour: Blue (for Cold Side)
Open Direction: Anti-clockwise
Close Direction: Clockwise

Frequently Asked Questions: 1427R-C Franke Davos Compatible Tap Cartridge
Question: My tap is not from Franke. Is this cartridge compatible?
Answer: You can remove the cartridge from the tap and take measurements. You have to know the overall length of the cartridge, its diameter, and spline teeth count. Check if the cartridge fitment is push-fit (without threads on the barrel) or screw-in (with threads). Better yet, you can send us a message with a picture of the cartridge in question and we will gladly help you.

Question: How do I replace the cartridge in a Franke Davos “J”?
Answer: Flick the blue cold indicator out of the handle. Unscrew the handle. Use an adjustable spanner to detach the old cartridge. Apply silicone grease on the surface of the new cartridge O-ring. The grease will protect the it from chafing. Insert and fasten the Franke Davos cartridge in the tap.

Question: The cartridge is stuck. How can I get it out?
Answer: A cartridge can be hard to remove because of limescale. You can try tapping the sides of the tap, perhaps, the scale will loosen. Or try using WD40.
