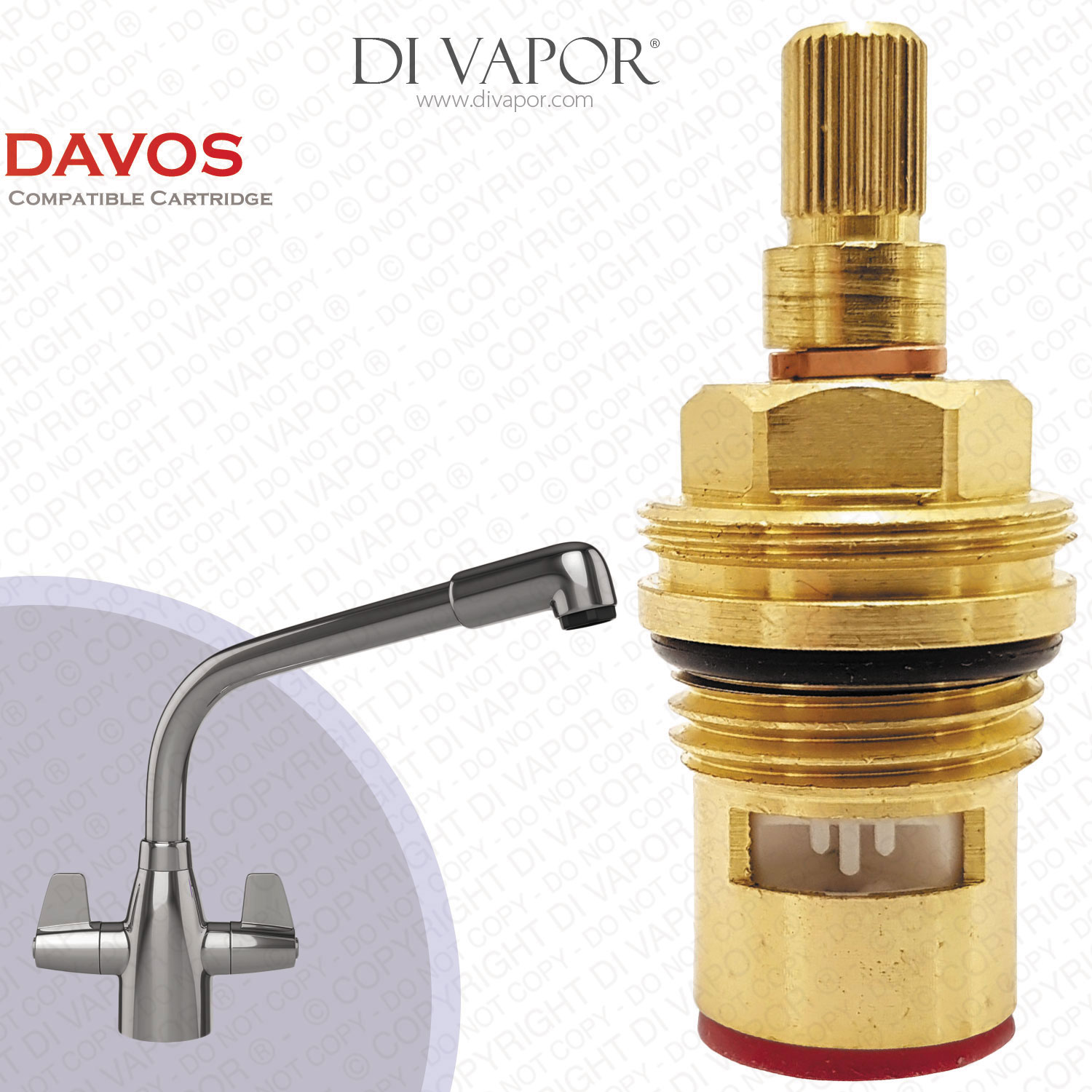

Franke Davos 1427R-H Kitchen Tap Valve Cartridge (133.0069.365) 28 Spline - 1427R Compatible Hot Cartridge (after 2007)

SUMMARY

Franke Davos 1427R-H Kitchen Tap Valve Cartridge (133.0069.365) 28 Spline - 1427R Compatible Hot Cartridge (after 2007)

Franke Davos and Franke Davos J compatible cartridge spare part.

This Franke Davos tap valve replacement part is the equivalent of Franke spare part 1427R.

1427R – hot side – spare tap cartridge is compatible with the post-2007 Franke Davos and the Franke Davos “J” swivel spout kitchen taps. This replacement tap cartridge is also suitable for other kitchen taps. If you have any questions regarding the exact cartridge you need, please do not hesitate to contact us with a photo of the old cartridge. We will be here to assist you in identifying it.

1427R is the same as 2552R. (So if your Franke tap needs the 2552R this is a suitable replacement part.)

Other Franke tap spare parts:
– 1427R-C is the cold side counterpart of this kitchen tap cartridge spare.

Is your Franke Davos released before 2007? Here is a list of compatible replacement parts:
– M4720 for the hot side.
– M4721 for the cold side.

Franke Davos Tap Cartridge Technical Details

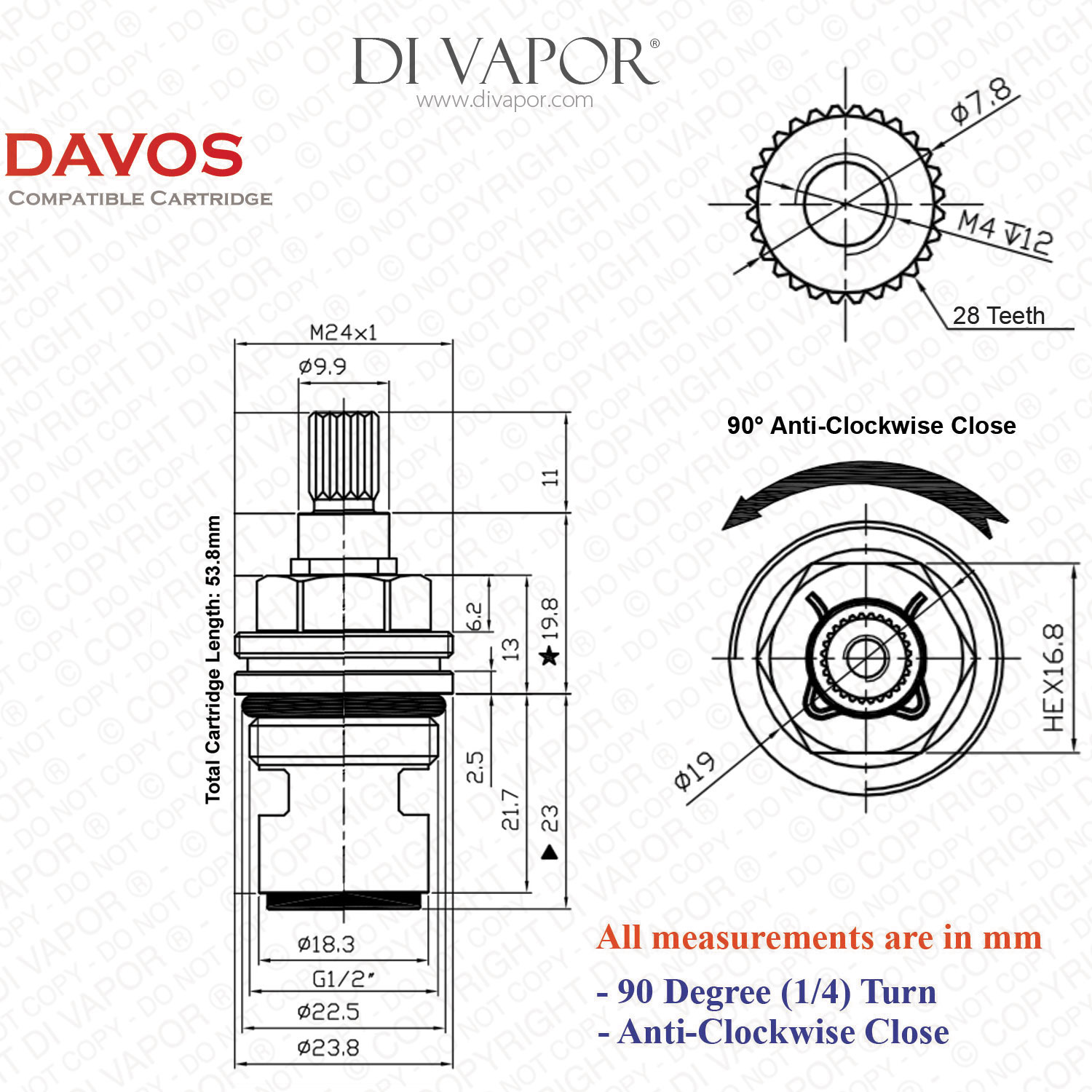

1427R-H equivalent tap valve replacement spare part has a 28 teeth count on its spline. The spline has a 7.8-millimeter diameter. Please do check the second photo above for a diagram of the measurements.

Cartridge Measurements (Approximate):
Total Length (including bottom seal): 53.8mm
Diameter at Widest Point: 23.8mm
Lower Thread: 1/2"
Bottom Seal Colour: Hot (for Hot Side)
Open Direction: Clockwise
Close Direction: Anti-clockwise

Franke Davos and Davos J Cartridge Replacement Instruction
The process for changing the cartridge is the same with the Franke Davos and Davos “J”. Before starting, please do not forget to isolate the hot side water supply line. And to prevent screws from rolling in the drain, put a stopper on it.

1. Detach the red indicator indice from the hot side handle. You can use a flat tool to remove it.
2. Use a small screwdriver to unscrew the handle.
3. Use a spanner to undo the threads and remove the cartridge.
4. Coat the Franke Davos / Davos J replacement cartridge O-ring with plumbing grease.
5. Seat the cartridge in the kitchen tap valve. Tighten.
6. Assemble the handle and clip the red indice in place.

Signs a Kitchen Tap Cartridge Needs to be Changed
If your Franke Davos kitchen tap is experiencing problems like low water flow or water leaks, it might be high time to replace the cartridge.

The Davos tap model has a flow rate of 4.5 liters per minute at 0.3 bar. Low water flow can be the result of a lack of water pressure or there are sediments in the cartridge blocking it. By checking the pressure with a water pressure gauge, you can see if it is the cause of the problem. Water pressure can be increased if it is too low for the tap.

Leaks arise out of a damaged tap cartridge. If left unattended, liters of water can be wasted and your water bill increased. If this is the case, and/or the cartridge is clogged, replacing it with a Franke Davos compatible tap cartridge is a cost-efficient must.
