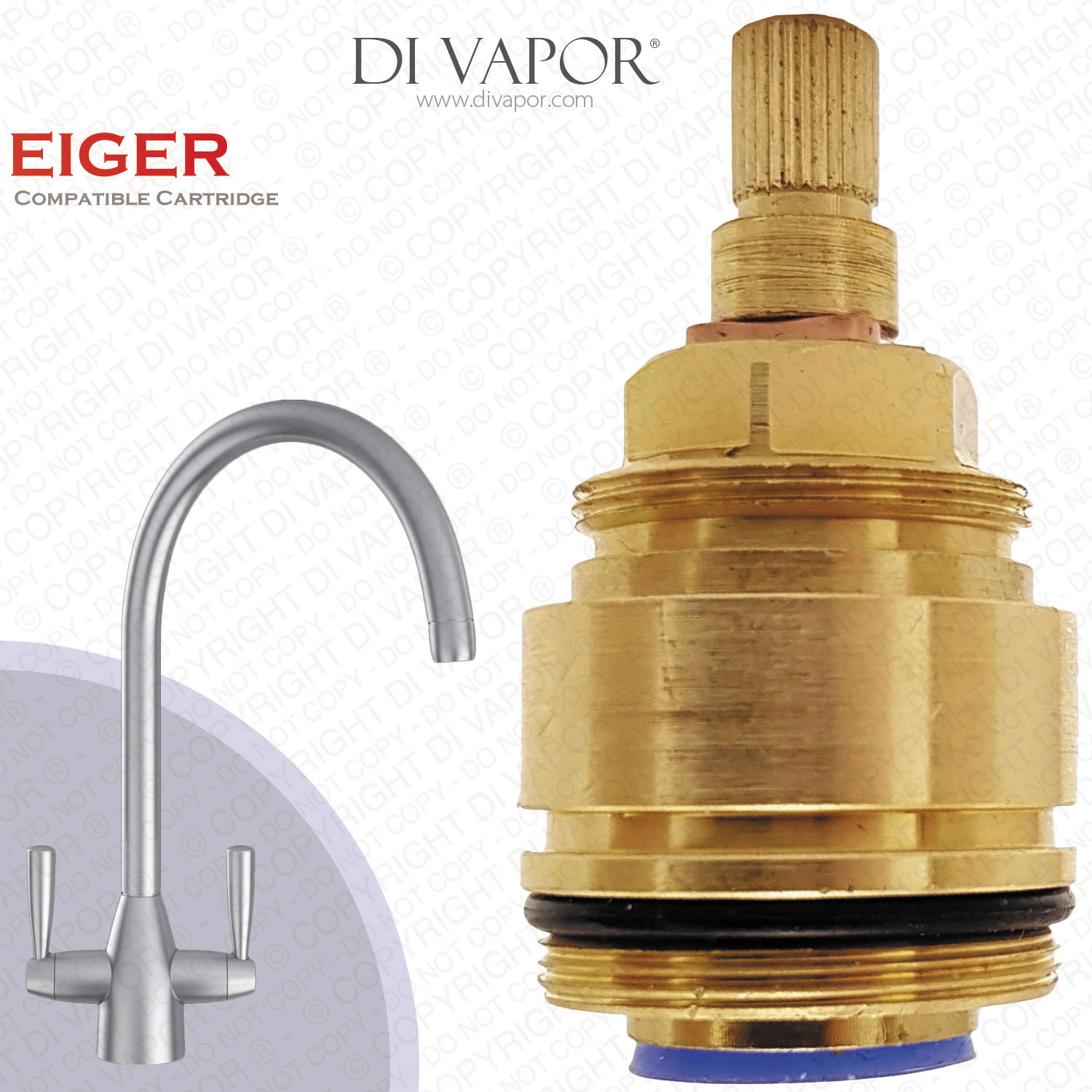

Franke Eiger Kitchen Tap Valve Compatible Cartridge Replacement - Cold

Cartridge Compatibility: Franke Eiger
Spare Part: Kitchen Tap Cold Valve Cartridge
Installation: Screw In
Material: Brass

The replacement cartridge for the Franke Eiger tap valve cold side can be dispatched on the same day when ordered before 3:00 PM, Monday to Friday.

Franke Eiger Cartridge Information

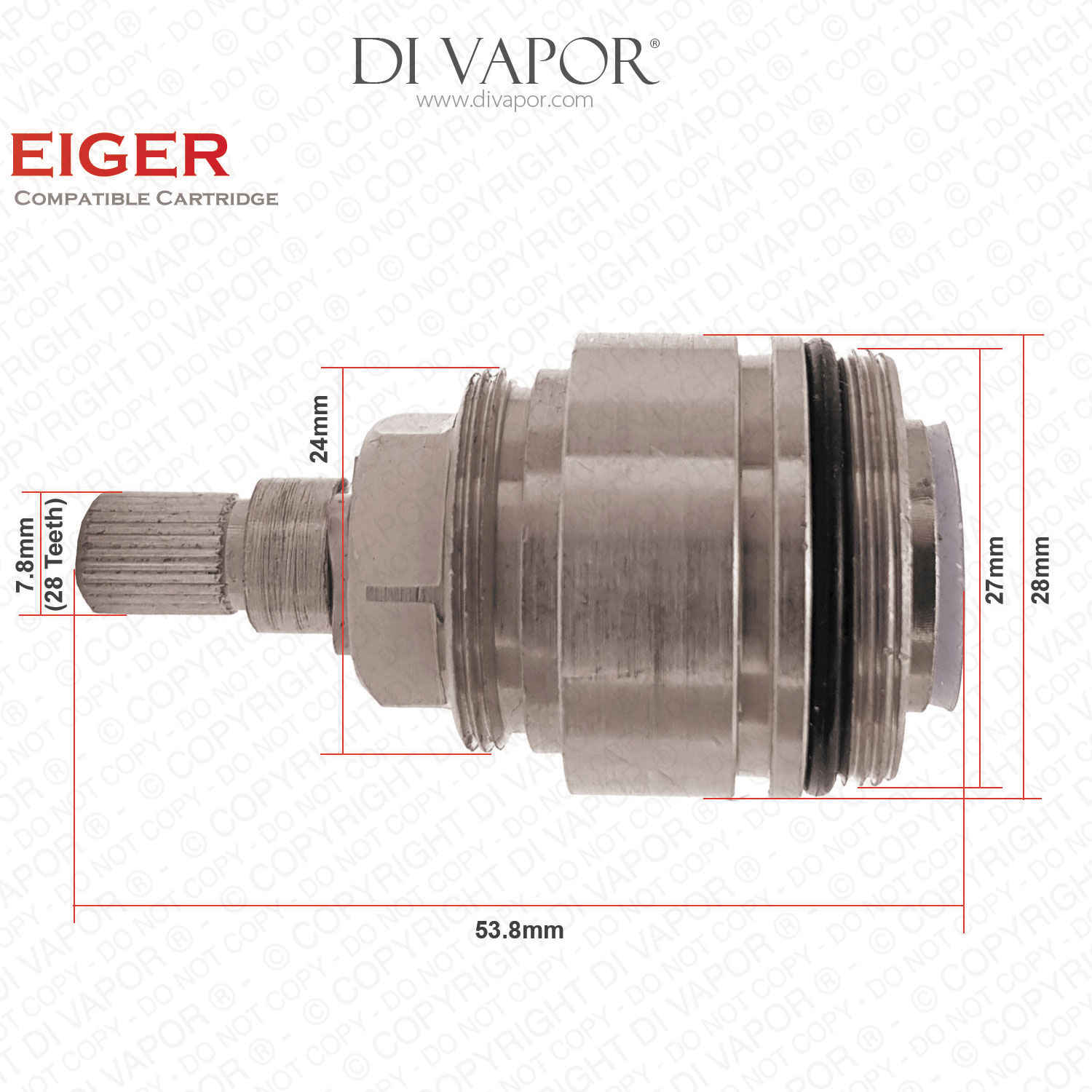

Cartridge Measurements:
Total Length (including bottom seal): 53.8mm
Diameter at Widest Point: 28mm
Diameter of Upper Thread: 24mm
Diameter of Lower Thread: 27mm
Splines: 7.8mm in diameter; 28 teeth

Bottom Seal Colour: Blue (for Cold Side)
Close Direction: Clockwise Close


We also have the hot side cartridge for a complete Franke Eiger tap repair.
- Franke Eiger Kitchen Tap Valve Compatible Cartridge Replacement - Hot


Franke Eiger Cartridge Installation
1. To replace an old cartridge with this Franke Eiger spare part, unscrew – with a hex key – the right side handle of your tap. The grub screw can be found under the handle. Proceed to remove the shroud. Use an appropriate sized spanner to take the screw-in cartridge out.

2. Grease the o-ring of the new cartridge and install it in the valve. Tighten it with a spanner. Then, restore and fasten the shroud and tap handle.

Note: It is important to note that one should never forget to shut off the tap’s water supply lines. Also, clean the kitchen tap valve seat if necessary.

Franke Eiger Cartridge: A Kitchen Tap Problem Solution

The Franke Eiger cartridge is a ceramic disc cartridge with a brass body. Mineral debris from poor water quality (i.e. hard water) can accumulate on brass. This clogs the cartridge developing a bottleneck that leads to less and less water flow.

Brass is a sturdy material with a typically low melting point. It is an alloy derived from a mixture of zinc and copper. It is stronger than copper. Although not inclined to corrode, dezincification will occur dependent on water conditions such as pH level and temperature. Over a span of time, the cartridge body will weaken causing fractures to develop and leakage will follow. Copper is a soft metal. The less zinc content in the brass the weaker it becomes.

Poor water quality means the Franke tap cartridge needs to be replaced once every few years.


Do you live in an area with high hard water level?
- We have a Magnetic Limescale Inhibitor to help protect your taps.
